Ginpertec ultrasonic transducer 25 mm 2.4 mhz / 1.7 mhz / 3 MHz

Supplier: Ginpertec(Suzhou) Co., Ltd.
Region: Jiangsu, China
Contact: Ms Mary Yan
Price: $0.50 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

model:	GPWH	brand:	Kimpertek
payment terms:	wire transfer	place of origin; place of origin:	Jiangsu, China
frequency:	2.4MHz/1.7MHz	type:	Ultrasonic atomization
diameter:	25mm

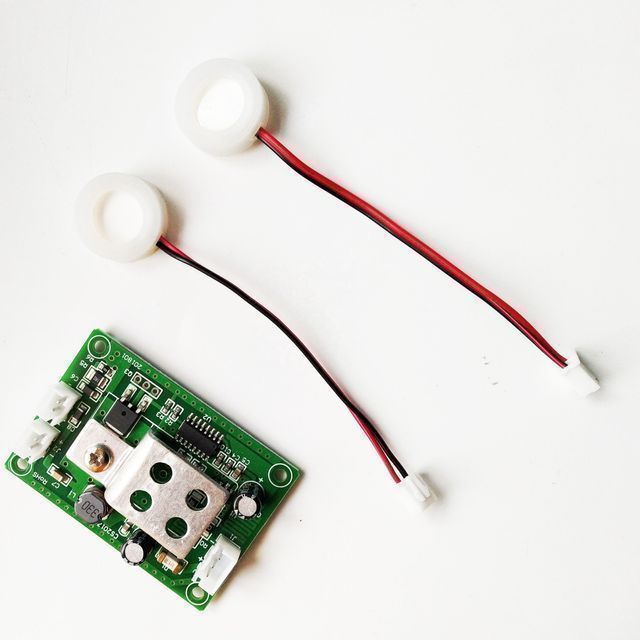

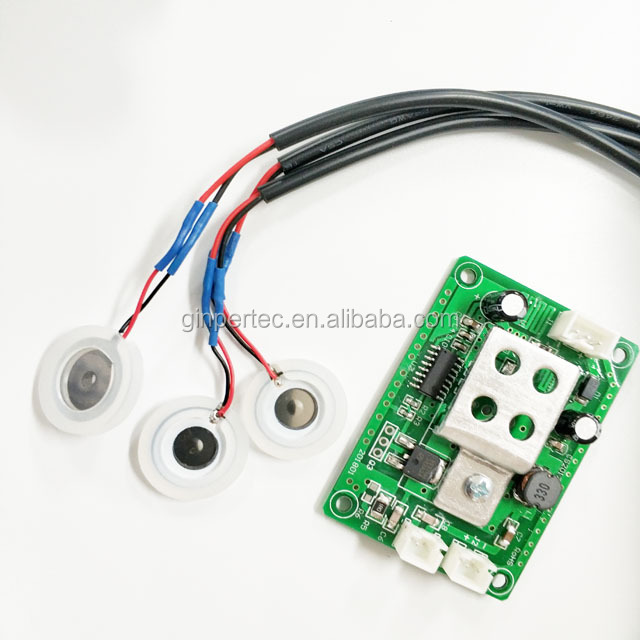

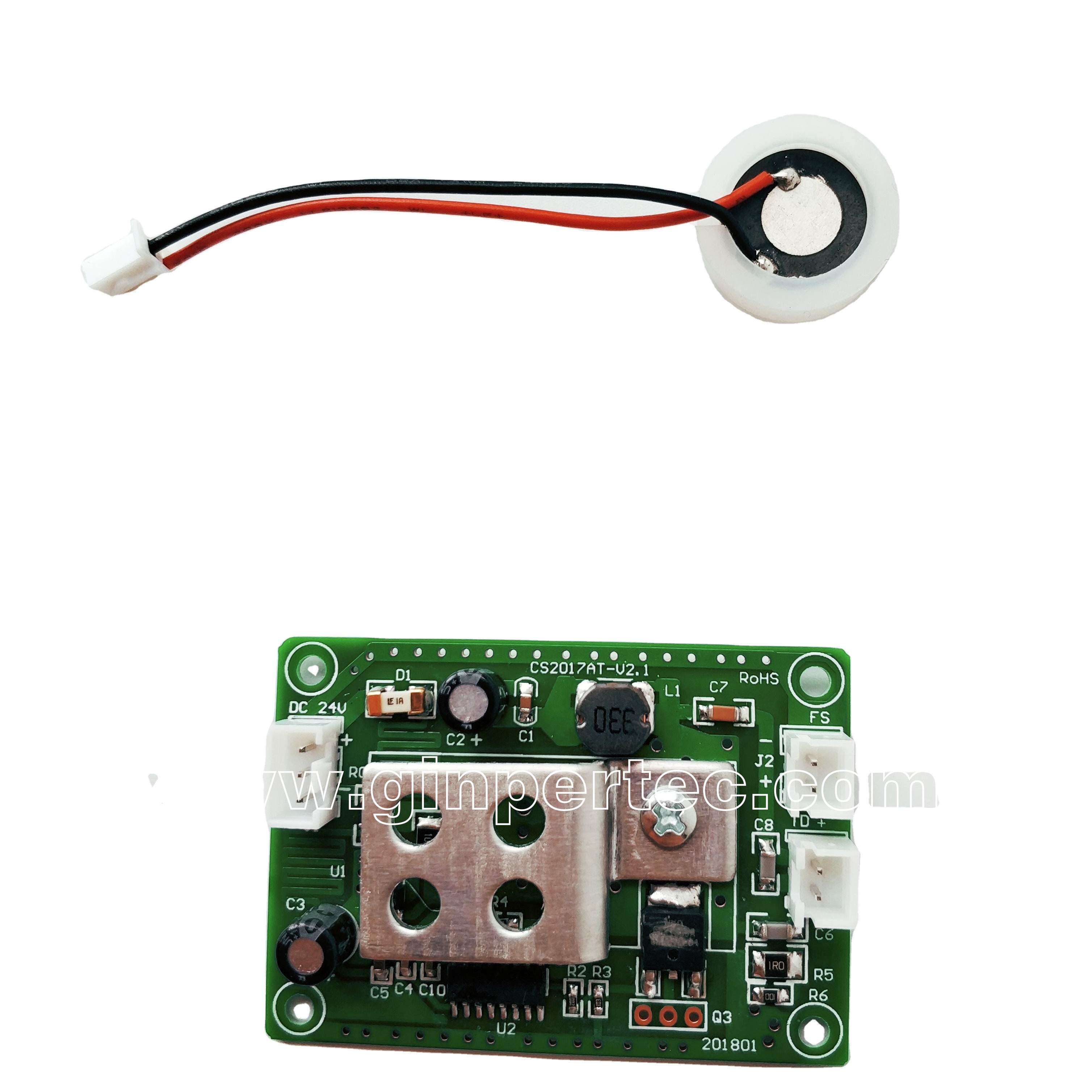

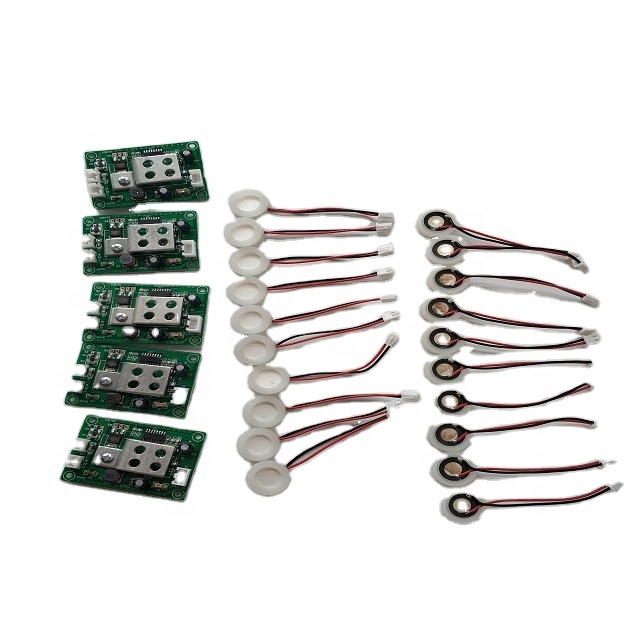

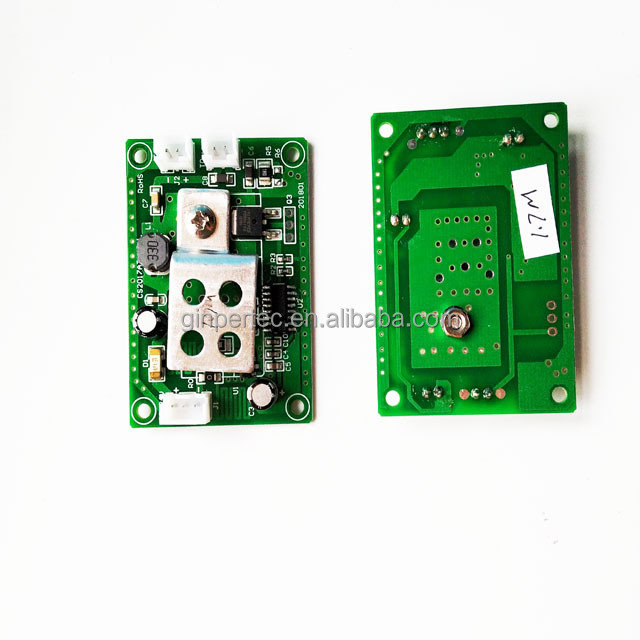

Ultrasonic applications

Ultrasonic Humidity

1. Ultrasonic atomizer with 1.7M/2.4M frequency (the frequency of the atomizer can also be changed according to customer requirements
2. You can use the potentiometer to adjust the size of the atomization
3. Use a reed tube to detect water shortage. Responsive. For the first time, it ensures that the atomizer
Prevent dry burning and protect the life of the whole machine. Red light indicates when there is water shortage, green light is on
normal instructions.
3. Built-in 24V fan drive or customized

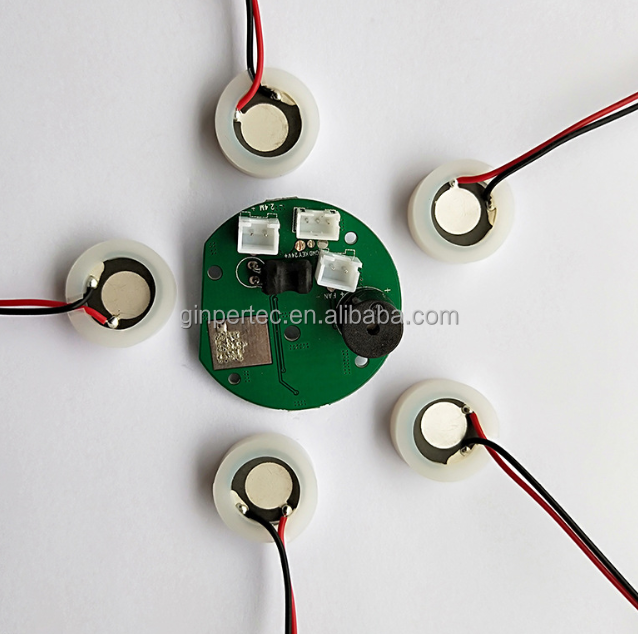

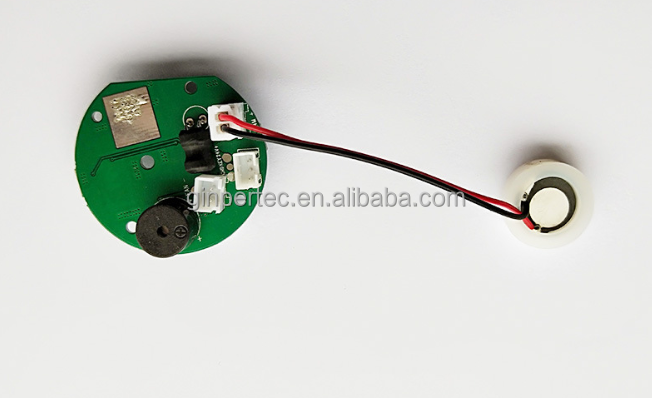

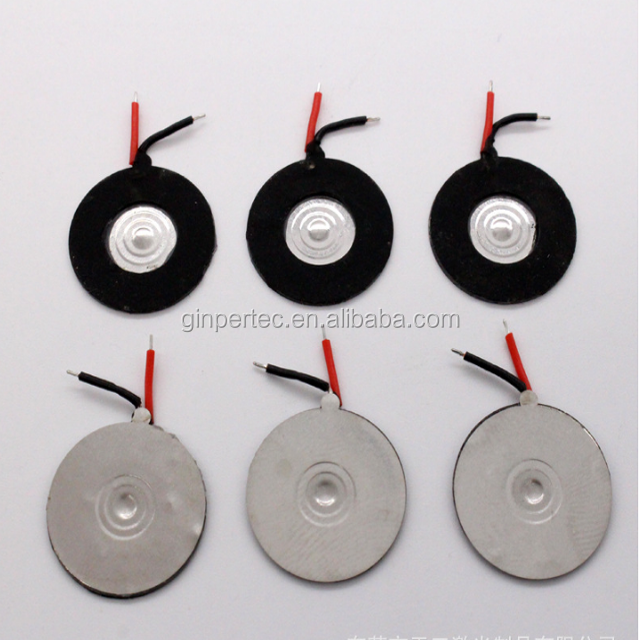

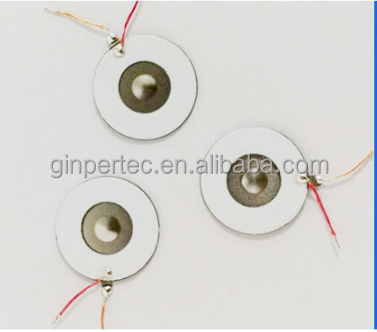

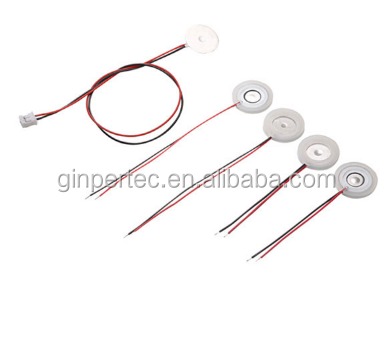

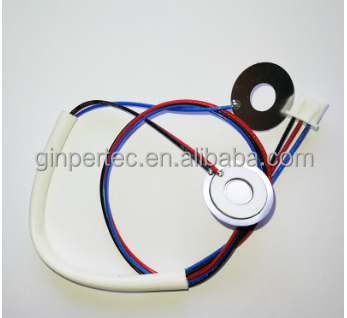

Ultrasonic medical mesh atomization

The piconet nebulization in this specification is mainly used for respiratory medical nebulization.
PZT Piezoelectric Ceramic Piezoelectric High Frequency Vibration Performance Through Micro-membrane Liquid
Stainless steel sheet, dispersed to form aerosol particles with a diameter of 3-5 microns, aerosol tape is introduced into the mouth and
Respiratory disease treatment. .

Model	GPWH-4F1.7-2016	GPWH-4F2.4-2016	GPWH-4F3-2016	GPWH-4F1.7-2520	GPWH-4F2.4-2520	GPWH-4F3-2520
outer diameter	20mm	20mm	20mm	25mm	25mm	25mm
Piezo Dimmer	16mm	16mm	16mm	20mm	20mm	20mm
Resonance frequency (Fs)	1.7 MHz	2.4MHz	3 MHz	1.7 MHz	2.4MHz	3 MHz
Resonance impedance (Zr)	<2.5mm	<2.5	<2.5	<2.5	<2.5	<2.5
Voltage (V)	≤ 36	≤ 36	≤ 36	≤ 36	≤ 36	≤ 36
Drive power (w)	twenty four	12	5	twenty four	12	5
dry	<30	<30	<30	<30	<30	<30
Operating temperature	5-40'C	5-40'C	5-40'C	5-40'C	5-40'C	5-40'C
Electrode protector	glass glaze	glass glaze	glass glaze	glass glaze	glass glaze	glass glaze
Electrode material	silver	silver	silver	silver	silver	silver
water quality	drinking water	drinking water	drinking water	drinking water	drinking water	drinking water
Atomization volume (mL)	350/min	250/min	200/min	350/min	250/min	200/min
Life (h)	5000	5000	5000	5000	5000	5000
Capacitance (pF)	1500±20%	1500±20%	1500±20%	1500±20%	1500±20%	1500±20%

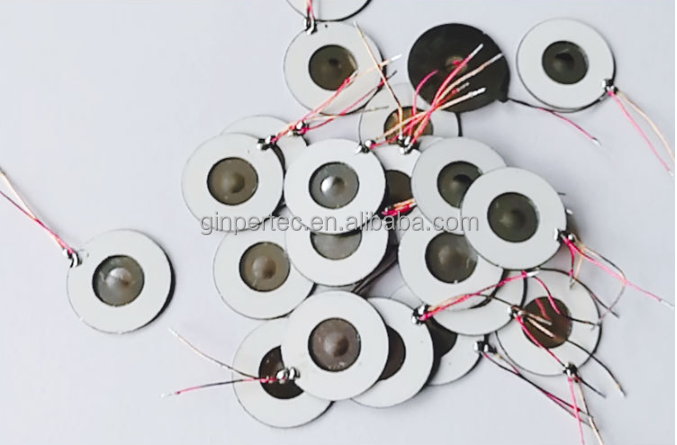

Model	Resonance frequency	Resonant resistance	electrostatic capacitance	Punching area	Number of micropores
Model		kilohertz	(Ω)	pf	Small (mm)	piece
GP20-111K	111±3K	≤100	3000	3-5.0	medical
network	111±3K	≤100	3000	3-5.0			800-3000
GP20-112K	111±4K	≤100	3000	3-5.0	600-800
beauty moisturizing device	111±4K	≤100	3000	3-5.0	600-800
GP20-108K	108±3K	≤100	3000	3-5.0	medical
Convex Medical Nebulizer	108±3K	≤100	3000	3-5.0			800-3000
GP20-108K	108±3K	≤100	3000	3-4.5	400-600
ConvexBeauty Hydration	108±3K	≤100	3000	3-4.5	400-600
GP16-108K	108±3K	≤100	3000	3~5	500-800
ConvexBeauty Hydration	108±3K	≤100	3000	3~5	500-800
GP16-108K	108±3K	≤100	3000	3~5	800-3000
Convex Medical Nebulizer	108±3K	≤100	3000	3~5	800-3000
GP16-115K	115±3K	≤100	3000	≥3.0	500-700
GP16-145K	145±3K	≤100	2000	≥3.0	500-700
GP13.8-160K	160±5K	≤150	1300	≥3.0	400-600
GP13.8-150K	150±5K	≤150	1300	≥3.0	400-600
GP12-160K	160±5K	≤150	1300	≥3.0	300-600
GP10-160K	160±5K	≤150	1300	≥0.6	300-600

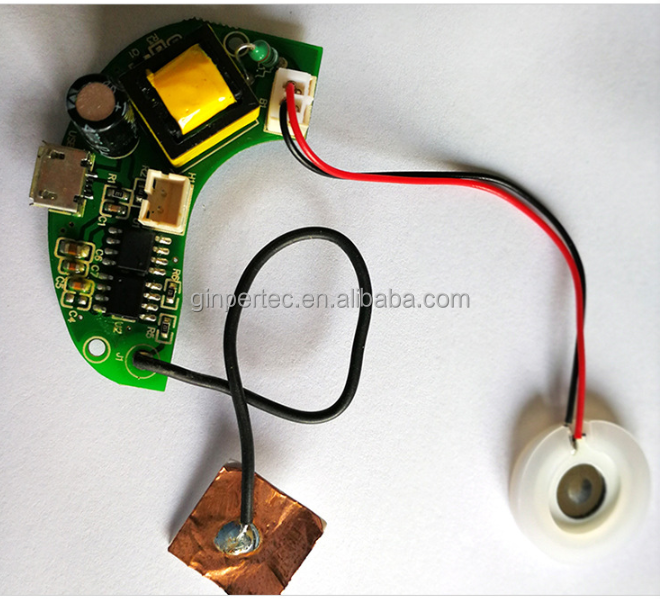

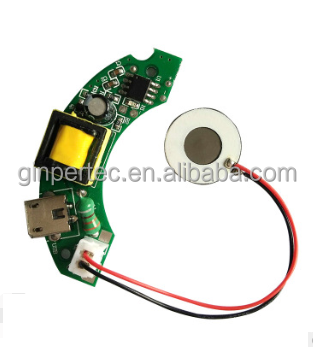

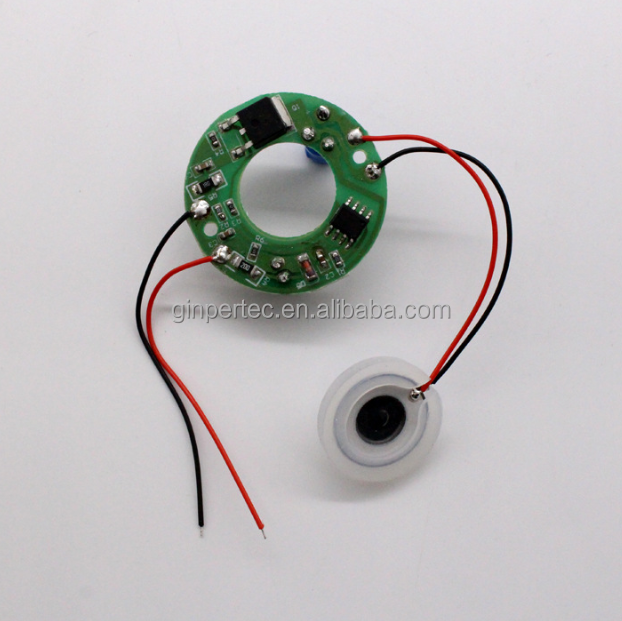

Ultrasonic Micro Atomization

1. The atomized particles are small, the conversion efficiency is high, and the atomization amount is large. 2. Working voltage: DC 3-12v. 3. Good atomization effect: 50-300ml/h. 4. Circular design, medium spray, stable quality, small outlet aperture, ranging from 7um to 9um to a series of specifications. 5. Specifications: Diameter (10-20mm) Uses: Supply USB humidifier circuits and atomizing tablets, using new micro-porous technology, using the principle of high-frequency ultrasonic physical vibration, high-frequency vibration generates negative ions, and the generated negative ions can quickly interact with the air, Removes harmful gases and bacteria from the air. Play fresh air, adjust humidity, remove air odor, promote blood circulation, reduce the occurrence of diseases, and effectively keep the air fresh. 6. It can be directly applied to the water surface, mainly suitable for heavy-duty atomizing toys, USB charging table mini humidifier, essential oil and perfume atomization, mosquito coil spray and facial cosmetic atomization.
