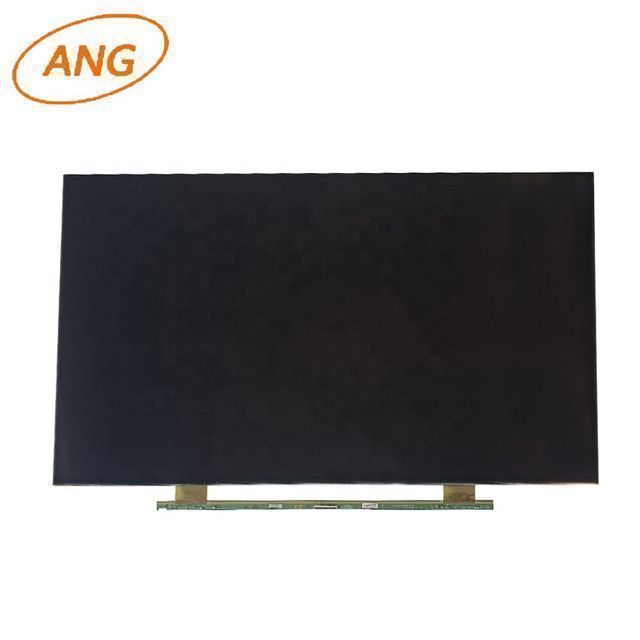

32 Inch TV Panel Screen OPENCEll LC320DXY-SLAA for LG

Product details
DC:20200601type:logic integrated circuit
payment terms:Western Union, T/T, MoneyGrampack:The original
Supply capacity:5000 blades per weekCross reference:LC320DXY-SLA9
Packaging Details:Sea Freight Wooden Case, Air Freight Palletgrade:a grade
brand:LGplace of origin; place of origin:Guizhou, China
port:GuangzhouPackaging Preview:
Product Description



Panel brand
LG Display
Panel model
LC320DXY-SHA1
Panel size
32.0"
panel type
a-Si TFT-LCD, CELL
Resolution
1366(RGB)×768 , WXGA
pixel format
RGB vertical stripes
Display area
697.685(W)×392.256(H) mm
bezel opening
-
Dimensions
715(W)×411(H)×1.4(D)mm
surface
Anti-glare (1% haze), hard coating (3H)
brightness
0 cd/m²
Contrast
1200:1 (typ.) (TM)
perspective
89/89/89/89 (minimum) (CR≥10)
display mode
IPS, Normally Black, Transmissive
best view
symmetry
Response time
8/10 (typ.) (Tr/Td)
glass depth
-
Transmittance
6.32% (Typ.) (with polarizer)
display color
16.7 million 65% NTSC
Lamp Type
no bill of lading
frequency
60 Hz
touch screen
No
Panel weight
0.86Kgs (typ.)
application
Signal interface
LVDS (1 ch, 8-bit) , 30 pin connector
Input voltage
12.0V (typ.)
surroundings
Operating temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C
Packaging and Shipping
