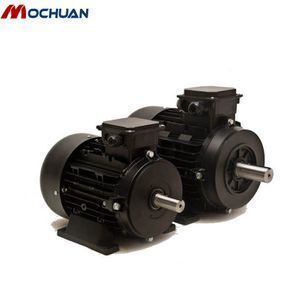

1500rpm AC 380v 400v 4kw 3phase permanent magnet synchronous high speed electric motor

Product details
Package Preview:https://sc02.alicdn.com/kf/HTB1u2JGL9zqK1RjSZPcq6zTepXal.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1iTibLYvpK1RjSZFqq6AXUVXaq.jpg_640x640.jpg;Service:Supporting OEM;
Single gross weight:33 KG;Selling Units:Single item;
Single package size:41X24X19 cm;Brand Name:MOCHUAN;
Movement Magnet:Built-in;AC Voltage:400V /230V/ 380V;
Protection class:IP55;Model Number:PM-AW112M4-4;
Power:0.75kw to 30kw;Delivery Detail:0 days after payment;
Place of Origin:Jiangsu China (Mainland);Certification:CE;
Package Type:"low voltage high torque low rpm electric synchronous 350watt ac motor Standard exported package( carton or wooden case) or as your requirements. 7days refund in case of bad quality";Protect Feature:IP55;
Frequency:50hz/60hz;Rated speed:1500rpm / 3000rpm;
Efficiency:IE 4;Type:permanent magnet motor;
Phase:Three-phase;
Pay Attention


Mochuan Drives offer you:
1. FACTORY PRICE.
2. NICE QUALITY.
3. 10YEARS FOR PROFESSIONAL EXPERIENCED FAE.
4. NO MOQ, 1PC OK, WELCOME SMALL ORDER.
5. ONLINE PAYMENT.
6. OFFER AVAIABLE SOLUTION.
IE4 Standard

IE4 Standard:

AC 3phase PMSM motor meets European IE4 energy consumption standard, Its power factor an be up to 15% higher than Y series motor.


Kindly reminder:

All our certifications are REAL ONE.

NOT FAKE, NOT FAKE, NOT FAKE!!!


PLEASE CONTACT US TO SHOW YOU!!!


WORLD-WIDE CUSTOMERS COMMEND & FEEDBACK

Here is some of comments from our world-wide customers.

You can check all the comment at our company profile by www.mochuan.en.alibaba.com-" company profit"-"Rating& Rewiews" Then you can see all comments from our clients.


( Know please, all our customer comments are real one, NOT FAKE.)

TRUST YOU WILL LIKE OUR SERVICE, QUALITY AND PRICE

Alibaba.com suppliers platform show that:

1. We never got any complain.

2. More than 5000 customers contacted us.

3. Star supplier with more than 10000 points.


Product Introduction
Permanent Magnet Synchronous Motor, consists of stator and rotor. Stator is made up of three phase winding and stator core that is the same to normal ac synchronous motor. Just the rotor is permanent magnetic rara earth material, Nd2Fe14B that eliminates excitation loss.
Technical of Permanent magnet synchronous motor
Magnetic Material
highest intrinsic coercivity rare earth permanent materials
Motor Power
0.2KW~55KW
Rated Voltage
AC440V/AC415V/AC400V/AC380V/AC230V/AC220V
Rated Magnet Steel
interior( significant different for inductance of DQ axis)
Magnetic Steel
demagnetization temperature ≥130℃
Cooling Fan
Rotaed with motor shaft in same speed, called coaxial fan
Installation Mode
IMB3, IM5, IMB35, IMB14
Protection Grade
IP55
Temperature Rise
surface temperature rise ≤50° when rotor runs continously at rated load
Certification
CE(IEC60034)
Energy Efficiency
IE4
Environment Temperature
-10~50℃
Transport and Store Temperature
-10~50℃
Environment Strength
<90%( no water- bead coagulation)
Vibration Strength
<0.5g( acceleration)
Height above Seal Level
<1000m( derate above 1000m)
Equippment Location
Suitation for usage occasion of any general induction motor, rated standard if there is any special environment with tangy caustic gases or flammable gases, etc.

How does permanent magnetic rotor makes synchronous speed?

After permanent magnetic rotor is put into stator core that generates rotating magetic filed, it will synchronously spin with magnetic filed, and its speed is the same to magetic filed's. Following is just graphic to show this:

Staring Mode: special vector control VFD. Firstly, frequency power supply( frequency converter) supply powers to permanent magnet synchronous motor, adjust the frequeny power supply to slowly increase from 0, and rotating magnetic filed speed also slowly increase from 0 unitl to the rated speed to make motor slow synchronously aelerate.


Recommend VFD driver: Mochuan MH300 series, Siemens 6ES70 series, Yaskawa CR5 series, Bosch Rexroth RD51 series, ABB ACS800 series, Danfoss FC312 series, Mitubish A740 series, Delta C200 series, B&R P84 and P74 series, etc.

Features& Item

High Power Factor and Efficiency: permanent magnetic rotor eliminates exiting current on account of high magnetic flux density that makes reactive current significantly reduce, working efficiency and power factor hugely increase therewith. Following is the energy efficiency comparision of PM-AW112M4-5 in centrifugal fan.

Fast-Response Strong Overload Capacity: PMSM motor's stator core can be designed hollow structure to reduce rotor inertia, and lessen starting and stopping time. Making use of IPM reluctance effect realize above 2times overload capacity of asynchronous motor, Below shows torque characeristce:

Smaller Size and Lighter Weight: compared with aynshronous motor with same power, pmsm motor is samller 1-2 stand with compacter size.

Model
Seat No.
Power     KW
Speed RPM
Torque N.m
Frequency Hz
Current       A
Energy Efficiency
PM-Y2-6314
63
0.2
3000
0.635
100
0.6
PM-Y2-6324
0.4
1.27
1.2
PM-Y2-7114
71
0.75
2.4
1.7
88.6
PM-Y2-7124
1.1
3.5
2.45
89.8
PM-AW90S1-4
1.5
4.8
3.3
90.9
PM-AW90S2-4
2.2
7
4.7
91.8
PM-AW90S3-4
3
9.55
6.4
92.6
PM-AW112M1-4
112
4
12.8
8.6
93.3
PM-AW112M2-4
5.5
17.5
11.6
94
PM-AW112M3-4
7.5
24
16
94.5
PM-AW132S1-4
132
11
35
22
95
PM-AW132S2-4
15
47.75
30.9
95.3
PM-AW160M1-4
160
18.5
59
37.8
95.6
PM-AW160M2-4
22
70
45
95.9
PM-AW160M3-4
30
95.5
61
96.1
PM-Y2-6334
63
0.2
1500
1.27
50
0.6
...
PM-Y2-6344
0.4
2.54
1.2
...
PM-Y2-7134
71
0.75
4.8
1.7
85.6
PM-Y2-7144
1.1
7
2.45
87.4
PM-AW90L1-4
90
1.5
9.6
3.3
88.1
PM-AW90L2-4
2.2
14
4.7
89.7
PM-AW90L3-4
3
19.1
6.4
90.3
PM-AW112M4-4
112
4
25.5
8.6
90.9
PM-AW112M5-4
5.5
35
11.6
92.1
PM-AW112M6-4
7.5
47.8
16
92.6
PM-AW132M1-4
132
11
70
22
93.6
PM-AW132M2-4
15
95.5
30.9
94
PM-AW160L1-4
160
18.5
117.8
37.8
94.3
PM-AW160L2-4
22
140
45
94.7
PM-AW160L3-4
30
191
60
96.6
