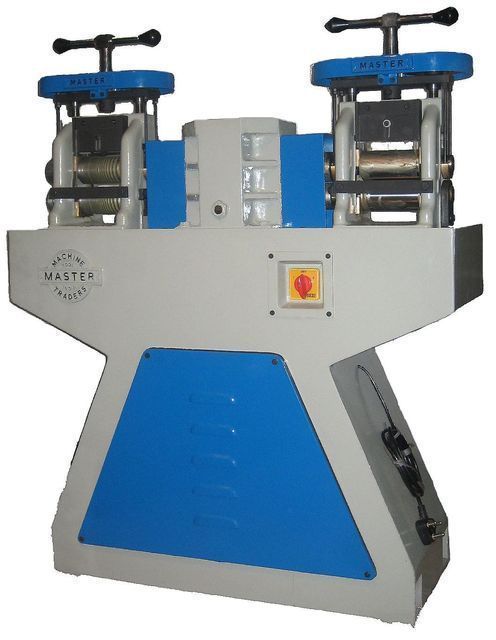

Indian Jewelry Gold and Silver Sheet and Wire Rolling Machine Precision Sheet and Wire Rolling Factory

This roller press is the most popular model among goldsmiths and jewelers. It is a combined sheet and wire mill with 5" length rolls that hold extension rolls at the ends of the wire rolls.

The rolls are made of high-carbon high-chromium special steel, hardened and polished. They are mounted in an extremely strong frame to overcome all vibrations and stresses that arise during work. The rolls run in special anti-friction phosphor bronze alloy bushings. The gears are made of case-hardened steel and immersed in an oil bath for quiet and smooth operation. Various components are standardized and interchangeable. This ensures easy maintenance.

This MASTER Roller is powered by a 1.5 HP strong TEFC type AC motor running on 220 Volt 50 cycle single phase power. It also features a 2.0 HP 440 volt three-phase motor for large plants in continuous use.

The machine is equipped with side rollers with standard semi-circular grooves. Other grooves and designs are available to order.

We also offer automatic lubrication and a foot-operated emergency stop system as additional optional features. Export machines of different voltages and frequencies are available to order.

We also offer machines in 6" x 3" and 8" x 4" reel sizes of similar design and construction.

Please ask for more details.
