BLOXSPORT 6x139.7 CB93.1 Forged Hub Spacer 6x6.5'' for Ford Rnager wildtrak T5 T6 T7 /Everest

Product details
Hole:6Packaging Preview:
color:black anodizedbrand:BLOXSPORT
Certificate:SGSfinishing:black anodized
Surface treatment:hard anodizingCenter hole:93.1mm
port:Guangzhoudiameter:11~22 inches
Packaging Details:Standard export packing, protective bag + brand box + cartonpayment terms:L/C, T/T, Western Union, PayPal
place of origin; place of origin:ChinaEastern Time:40mm, 50mm, 30mm, 25mm, 35mm, customized 20~100mm
Bolt grade:12.9 (higher than original)product name:BLOXSPORT Forged Wheel Spacers
personal computer:139.7mm, 6x139.7Warranty:5 years
Supply capacity:10000 pieces per monthMaterial:Forged aluminum 6061T6/7075T6, forged aluminum alloy 6061 T6/7075T6
thickness:25~100mm, 20~100mm optional

BLOXSPORT Forged Wheel Center Wheel Spacer for Ford Ranger / Mazda BT50


BLOXSPORT Forged 6061T6 / 7075T6 Track
MaterialForged 6061T6/7075T6colorBlack anodized (customized according to your requirements)
stud12.9 class SGS test (higher than original stud)lug nutsT8 level SGS test
bolt pattern6x139.7 /6x5.5''Center hole93.1 (customized according to your needs)
Centeredwith center lipCertificateSGS/TUV
processingCNC machining accuracy 0.02mmsurface treatmenthard anodizing
Warranty5 yearsthickness25~50mm in stock, other thickness can be customized
logo brandavailablebox designavailable










  • High strength aircraft aluminum alloy 6061-T6 or 7075-T6, forged material.
  • Specific data number and logo laser on spacer/adapter.
  • Hard anodized for durability and corrosion protection.
  • Precision engineered hub-centric and model-specific perfect fit and wheel balance.
  • Limited life range (1 million cycles) of wheel bolts/studs tested according to ISO3800.
  • Applications are strength tested (bolts/studs/nuts) according to ISO898-1, ISO898-6, SAE J429, SAE J995.
  • Application (bolts/studs/nuts) rust tested according to ISO9227 (NSS 72 hours).













Real forged aircraft aluminum 6061T6/7075T6 alloy, tensile strength 300-310Mpa, yield strength 241-275Mpa, elongation 8-10%, better than ordinary 6061 forged gasket or cast 6061T6 gasket.

















Forged Aluminum 6061T6 Wheelbase

great show



Black anodized finish

Strong rust resistance



Class 12.9 Bolts

Stud material SCM440 steel forged, Dacromet, 12.9 grade stud, higher than original 10.9 grade stud

ISO standard, passed 1 million anti-fatigue tests (durable)

72 hours neutral salt spray test (strong anti-rust ability)











Specified Model &hub-centric



Most of our BLOXSPORT spacers are hub spacers as it has better performance and is more durable than non-hub spacers

As you can see in the cross-sectional view of the hub center wheel spacer above, the retaining ring fits into the space on the wheel exactly as the hub retaining ring. This means that the weight of the car still rests on the hub rather than on the wheel studs, which means the wheels don't vibrate and also protects the studs.

However, with non-hub spacers, the weight of the car is no longer on the retaining ring, but on the bolts, which are more likely to cause vibrations in the wheels, and the bolts carry all the weight of the car. That doesn't mean you can't choose an off-center track, just make sure the studs are of good quality.

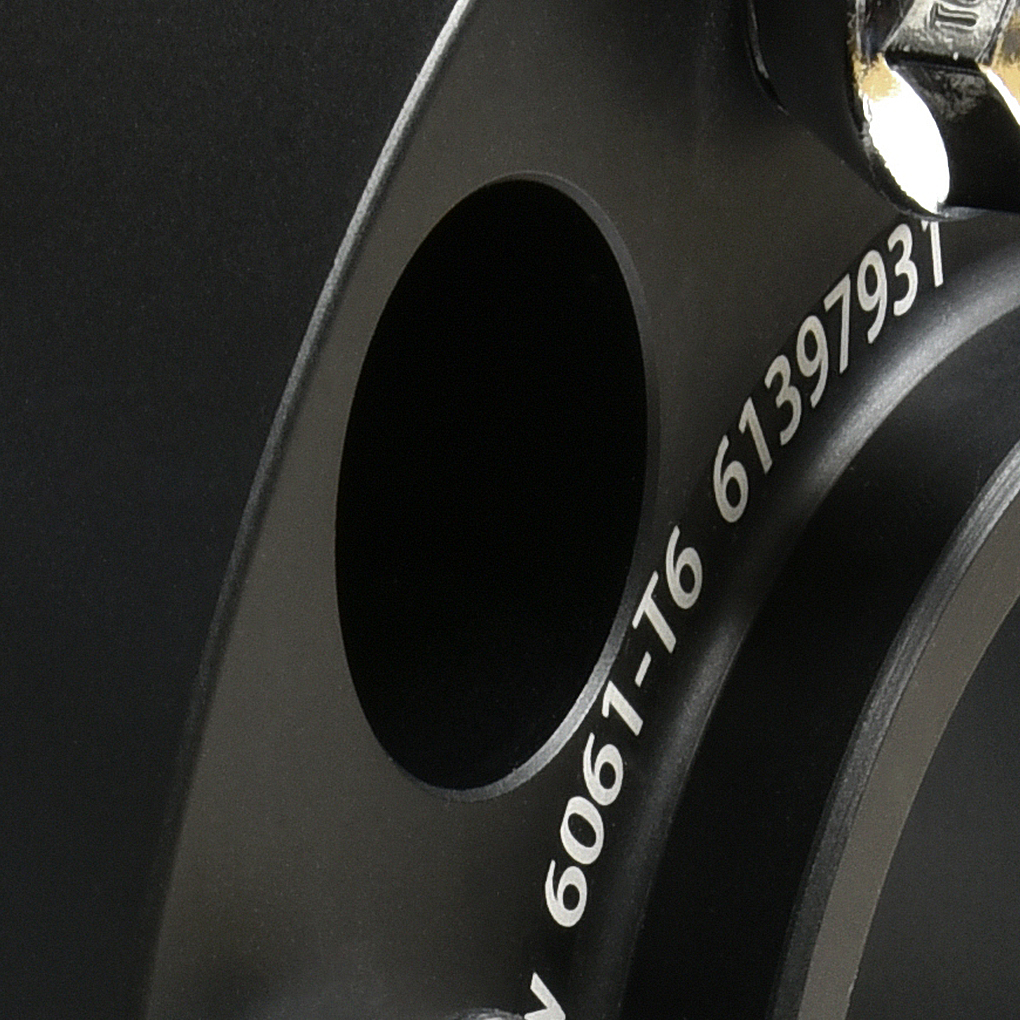

Brand, material and size laser on the gasket.

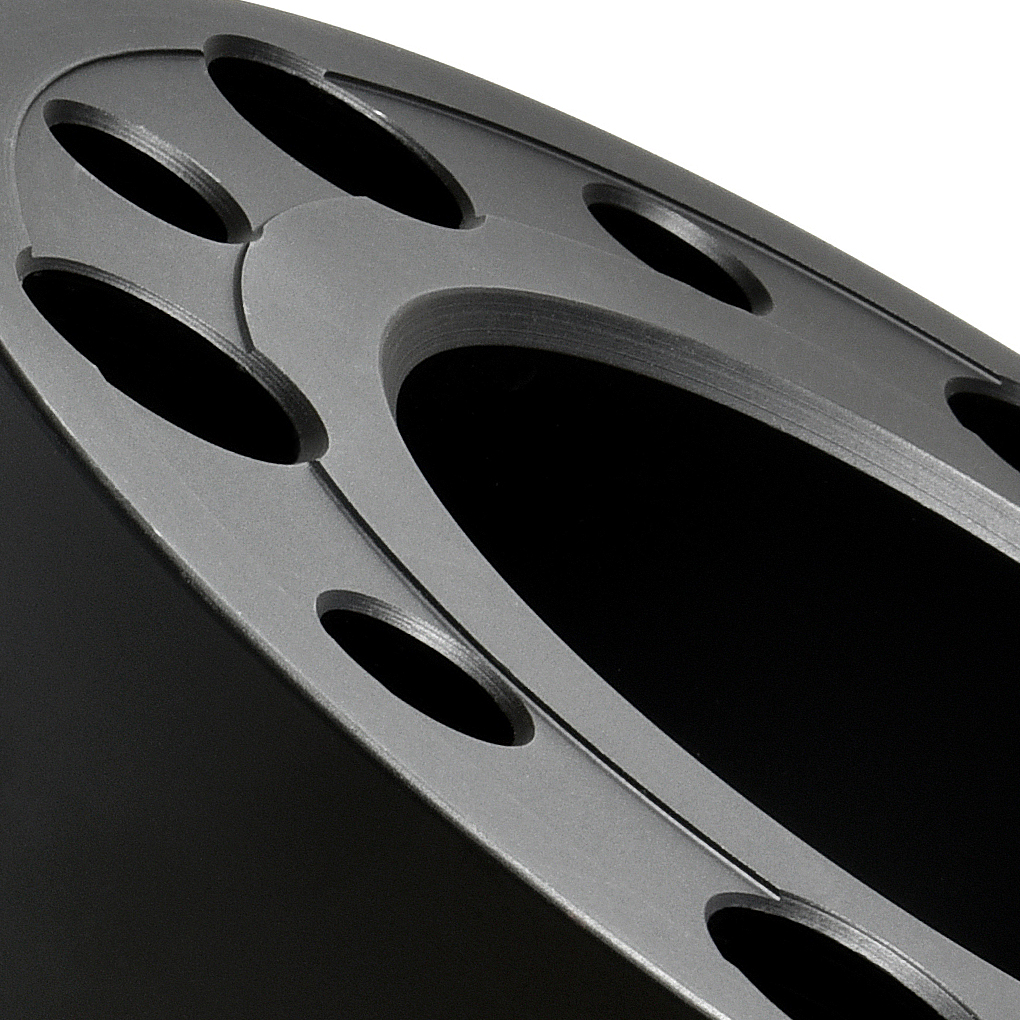

Precision CNC machining







BLOXSPORT is a professional factory specializing in manufacturing high-quality forged aluminum wheel spacers, fully CNC machined, accurate to 0.05mm, to ensure wheel balance and performance.





BLOXSPORT Wheelbase series





We supply almost all types of wheel spacers, BL and BLA for Mercedes-Benz Audi Volkswagen BMW Porsche etc., BLS and BLM for Ford Land Rover Jeep and Japanese cars etc. We also offer custom change PCD/CB wheel spacer adapters, 4 to 4, 5 to 5, 5 to 6 and 6 to 5.

Contact us for more details on custom wheel spacers if needed.
