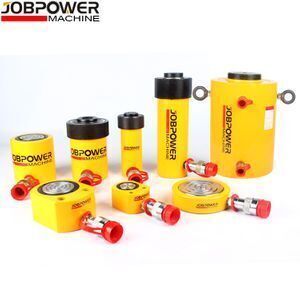

10 30 40 50 60 100 120 150 200 300 500 1000 ton air mini body long ram small toe price double acting electric hydraulic jack

Supplier: Jiangsu JOBA Mechanical Manufacture Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sunny Yao
Price: $80.00 /set
Min. Order: 1 set

Click here to contact

Product details

Use:	Heavy Lifting;	Capacity (Load):	>50T;
Material:	Alloy Steel;	Brand Name:	JOBPOWER;
Package Type:	wooden case;	Type:	Hydraulic Jack;
Single gross weight:	20 KG;	Max Height:	915mm;
Color:	Customerized;	Packing:	Wooden Box;
Single package size:	30X30X30 cm;	Product name:	Hydraulic Jack;
Min Height:	581mm;	Model Number:	JRR;
Certification:	ISO9001;	Model:	JRR-1502;
Delivery Detail:	0 days after payment;	Place of Origin:	CHINA;
Selling Units:	Single item;

Company Profile

Product Description

Model Number	Cylinder Capacity (T)	Stroke (mm)	Body Height (mm)	Cylinder Out Dia (mm)	Hydraulic Tank Capacity (cm³)	Piston Diameter (mm)	Weight (kg)
JRR-1502	150	57	196	245	1129	125	49
JRR-15013	150	333	582	245	6597	125	124
JRR-2006	200	152	430	273	4332	145	147
JRR-20013	200	330	608	273	9405	145	199
JRR-20024	200	610	917	273	17385	145	279
JRR-3006	325	153	485	325	6997	175	200
JRR-30024	325	609	943	325	27850	175	469
JRR-30036	325	915	1247	325	41843	175	628
JRR-4006	440	152	538	358	9319	190	303
JRR-40018	440	457	843	358	28018	190	453
JRR-40024	440	610	995	358	37400	190	597
JRR-40036	440	914	1300	358	56037	190	792
JRR-5006	520	153	577	426	11164	220	432
JRR-50012	520	305	730	426	22256	220	589
JRR-50018	520	457	882	426	33347	220	680
JRR-50024	520	609	1035	426	44440	220	816
JRR-50036	520	915	1339	426	66768	220	1002
JRR-50048	520	1219	1644	426	88951	220	1224

Other hydraulic jack

How to select hydraulic jack:
1. Thin hydraulic jacks are available in low space.
2. Select synchronous hydraulic jack when several jacks are used at the same time.
3. Self-locking hydraulic jack is selected for long time use.
4. Hollow hydraulic jack is available for tension and tension.
5. When the weight of 500t needs to be lifted, the uhp large-tonnage jack can be used.
6. Synchronous jacking system is optional for high progress synchronous jacking.
