Sale Welding Table Clamping System Steel 28 Series Work Platform 3d Flexible Welding Table with Welding Fixtures

Product details
type:Manual measuring toolbrand:Nitta
Packaging Preview:weight:500-3200kg
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramusage:an examination
Packaging Details:Export pallet or customer requestplace of origin; place of origin:Hebei, Hebei
size:Accept customizationpack:export package
Material:cast ironMinimum order quantity:1 set
model:XT3D-01Supply capacity:1000 units per month
port:TianjinWarranty:3 years
product name:3D welding stations and welding station systemsapplication:welding system
Custom Support:OEM, ODM
product description

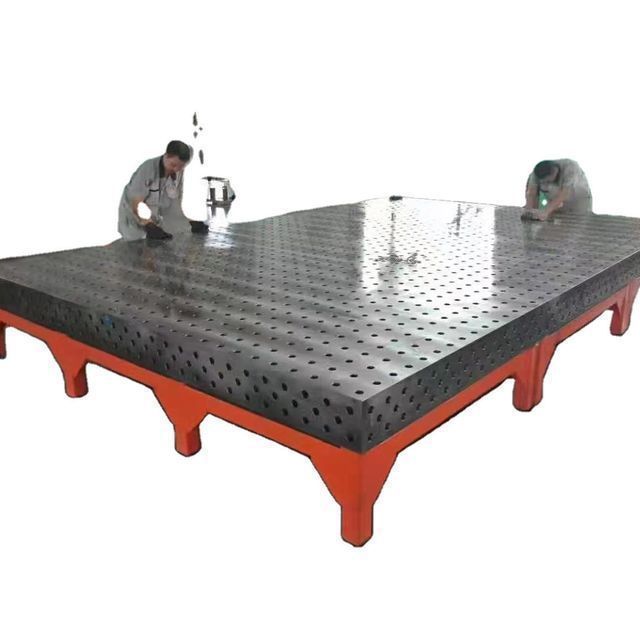

Sale Welding Table Clamping System Steel 28 Series Work Platform 3d Flexible Welding Table with Welding Fixtures
Machined by CNC machining center. According to the hole system, it is divided into two series: Φ28 and Φ16. According to the structure, it is divided into two-dimensional flexible combined tooling and three-dimensional flexible combined tooling. The tooling platform is divided into steel plate platform, cast iron platform and plate platform according to the material. The grid is engraved with corresponding grid lines. According to customer requirements, millimeter scales can be drawn on both sides of the right side of the platform.

3D Welding Workbench - D16 Series
made of cast iron
5 precision machined work surfaces
Aperture: 16mm
Grid line: 50mm*50mm
Hole distance: 50mm
Material thickness: about 14mm
Side height: 100mm
Reinforced on the underside by ribs.


3D Soldering Station - D28 Series
made of cast iron
5 precision machined work surfaces
Aperture: 28mm
Grid line: 100mm*100mm
Hole distance: 100mm
Material thickness: about 23mm
Side height: 200mm
Reinforced on the underside by the ribs

right façade
left facade
Front view
