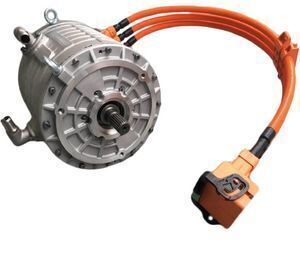

20kw 100kw best high speed ac engine drive motor for ev electric car vehicle van bus conversion motor controller kit system

Supplier: Zhejiang Alpha Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jens Yan
Price: $800.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	Electric Bus, Truck, passenger car;	Place of Origin:	Zhejiang China (Mainland);
Use:	drive;	Delivery Detail:	1-30;
Type:	AC Motor;	Model Number:	APEV10-80;
Motor:	Brushless;	Supply Ability:	5000 Piece/Pieces per Month;
Brand Name:	ALPHA;	Voltage:	260 to 540VDC;
Certification:	CE;	Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram;
Warranty:	2 Years;	Port:	Shenzhen port;
Packaging Detail:	Wood package as customer requirement.;

Product Introduction

Professional electric vehicle driving system manufacturer

Alpha is a leading electric vehicle powertrain system and key component suppliers. Alpha determined to pursue electric vehicles energy conversion and utilization of key technologies, can fully cover the new energy automotive applications powertrain system and its core components manufacturers. Alpha has full series of related products, including electric motor controller, electric motor, vehicle controller, battery management system, car charger, DCDC power supply, air pump motor controller, steering power motor controller.

Product Details

The main features of electric vehicle motor

1. After adopting circulating water for cooling through specially designed cooling channel, extremely taking away the heat, controlled the overall temperature rising.

2. Using high-power weight ratio structure, effectively saving space, shorten the length of motor

3. Using advanced air tightness testing equipment to ensure the seal ability of cooling structure.

4. Using closed-loop control, feedback the value of rotor angle function changes to output electrical signal

5. Using the international advanced electromagnetic designing software to analyze the motor electromagnetic field.

6. After DFMEA potential failure mode and consequences analyzing, minimized the potential risk of the motor

7. Using specially designed motor output shaft to ensure the rigidity of motor when running at high speed or torque.

Product Parameters

Series Number	APEV 10	APEV 20-8 (10)	APEV 60-8 (15B)	APEV 60-8 (15 )	APEV 70-12 (07B)	APEV 70-12(04D)	APEV80-12 (23B)	APEV80-12 (33B)	APEV80-12(16)
Pole	8	8	8	8	12	12	12	12	12
Direct Current Voltage (VDC)	320	260	312	312	540	576	540	540	540
Rated current (A)	85	100	250	170	240	120	220	200	255
Peak Current (A)	245	250	400	400	400	250	450	400	650
Rated Power (kW)	25	20	60	60	70	70	80	80	150
Peak Power (kW)	55	40	80	100	135	100	135	150	220
Rated Speed (RPM)	3000	3,000	955	1,600	786	2,000	700	700	1,650
Peak Speed (RPM)	8000-9500	8,000	3600	3,600	3,000	4,500	3,000	2,400	3,300
Rated Torque (N.m)	80	64	600	360	850	335	1,023	1,091	868
Peak Torque (N.m)	175	180	800	1,000	1,500	700	2,000	2,500	3,000
BEMF (VAC)/rpm rms	380/ 3600	280/ 6000	400/ 3600	380/ 3600	490/ 3500	640/ 4500	570/ 3000	660/ 2400	660/ 2401
Working System	S9	S9	S9	S9	S9	S9	S9	S9	S9
Insulation Grade	H	H	H	H	H	H	H	H	H
Protection Class	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Cooling	Water	Water	Water	Water	Water	Water	Water	Water	Water
Weight (Kg)	45	45	140	160	160	87	210	240	260
Motor Enclosure	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium

Electric Vehicle Motor Controller/driver/inverter:

The main features of electric vehicle motor Controller

1. Can be used for AC Asynchronous or Permanent Magnet Synchronous Motor

2. Using automotive-grade power devices IGBT, higher performance, faster heat dissipation

3. CANBUS communication

4. Heavy overload ability, Wide speed range, perfect weak magnetic performance

5. Using over-current, over voltage, under voltage, overload, over temperature, stall, hardware-by-wave current limiting, phase short circuit,

encoder short-term and other protection measures

6.Car-specific functions: electronic parking, anti-slip car, brake priority, cruise control, anti-theft, feedback braking, reverse speed limit, stalls to

prevent misuse

Index items	Specification parameter
Used for motor	PMSM, AC asynchronous motor
Adaptable Vehicle Type:	Bus, Truck, Passenger car
Model:	AEV100-D330090L1	AEV100-D540200L1
Rated Input Voltage:	200V～450V(336V system)	350V～750V(540V system)
Rated Capacity:	90kw	200kw
Rated Current:	350A	380A
MaxOutput Current:	530A	570A
Communication Mode:	CAN
Level of Protection:	IP67
Working temperature:	-40~85℃
Storage temperature:	-40~105℃
Type of Cooling	Water cooling
Volume:	L550mm×W540mm×H180mm

Model：	AEV100-D330060L1	AEV100-D540120L1	AEV100-D330045L1	AEV100-D540090L1
Rated Input Voltage:	200V～450V (336V system)	350V～750V (540V system)	200V～450V (336V system)	350V～750V (540V system)
Rated Capacity:	60kw	120kw	45kw	90kw
Rated Current:	230A	230A	178A	178A
MaxOutput Current:	350A	350A	266A	266A
