WINE FILTER PLATE

Website www.cepitaly.com

made in Italy

wine equipment

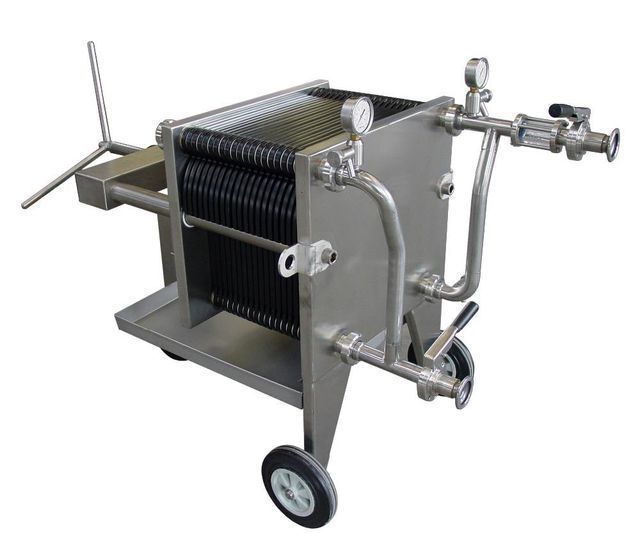

20x20 plate polishing filter for wine-wine-beer etc.

                     - AISI 304 stainless steel frame mounted on wheels
- Aisi 304 Stainless Steel Collection Tray
-Standard sealing plate silicone food
- The closing of the stack (filter assembly) is carried out by means of a central screw stainless steel
- Sheets can be made of polyethylene for wine or a standard version of polyethylene for oil
- Equipped with pressure gauge and connection product inlet/outlet Dn.20 with hose
- Pump Standard Model "E" completely in Stainless Steel AISI 304 kw 0.5- 2800 rpm 220 Volt 50Hz Single Phase

279F.20x20and10 platesandSealsno pump

m² = 0,4 capacity (water) 300/700 l/h measurement 400x550xh301 mm 23 kg

280F.20x20and10 platesandSealsWith pump module. Second

m² = 0,4 Capacity (water) 300/700 l/h Meas.400x550xh301 mm 23

281F.20x20and10 platesandSealsWith Pump Mod E+By pass

m² = 0, 4 capacity (water) 300/700 l/h measured. 400x550xh301 mm 23 kg

282F.20x20and20 platesandSealsno pump

m² = 0,8 capacity (water) 700/1400 l/h measurement. 400x630xh601 mm 36 kg

283F.20x20and20 platesandSealsWith pump module. Second

m² = 0,8 capacity (water) 700/1400 l/h measurement. 400x630xh601 mm 36

284F.20x20and20 platesandSealsWith Pump Mod E+By pass

m² = 0,8 capacity (water) 700/1400 l/h measurement. 400x630xh601 mm 36 kg

285F.20x20and20 platesandSealswith pump module E+bypass+plate forplate

            For double filtering st.st.m² = 0,8 capacity (water) 700/1400 l/h

Measurement. 400x630xh601 mm 36 kg

286F.20x20and30 platesandSealsno pump

m² = 1,2 capacity (water) 1400/2000 l/h measured. 400x850xh601 mm 42 kg

287F.20x20and30 platesandSealsWith pump module. Second

m² = 1,2 capacity (water) 1400/2000 l/h measured. 400x850xh601 mm 42 kg.

288F.20x20and30 platesandSealsWith Pump Mod E+By pass

m² = 1,2 capacity (water) 1400/2000 l/h measured. 400x850xh601 mm 42 kg

289F.20x20and30 platesandSealswith pump module E+bypass+plate forplate

            For double filtering st.st.m² = 1,2 capacity (water) 1400/2000 l/h

Measurement. 400x850xh601 mm 42 kg

290F.20x20and40 platesandSealsno pump

m² = 1,6 capacity (water) 2000/2600 l/h measured. 400x1050xh601 mm 50 kg

291F.20x20and40 platesandSealsWith pump module. Second

m² = 1,6 Capacity (water) 2000/2600 l/h Meas.400x1050xh601 mm 50 kg.

292F.20x20and40 platesandSealsWith Pump Mod E+By pass

m² = 1,6 capacity (water) 2000/2600 l/h measured. 400x1050xh601 mm 50 kg

293F.20x20and40 platesandSealswith pump module E+bypass+plate forplate

            For double filtering st.st.m² = 1,6 capacity (water) 2000/2600 l/h

Measurement. 400x1050xh601 mm 50 kg

Polished Filtersimpeller pumpRubber Steel A 900 rpm 4 bar with bypass

294F.20x20and10 platesandSealsWith Pump Type 900 rpm 220 Volt 1 Phase 4bar + Bypass

m² = 0,4 capacity (water) 300/700 l/h measurement. 400x550xh301 mm kg 23

295F.20x20and20 platesandSealsWith Pump Type 900 rpm 220 Volt 1 Phase 4bar + Bypass

m² = 0,8 capacity (water) 700/1400 l/h measurement. 400x630xh601 mm kg 36

296F.20x20and20 platesandSealsWith Pump Type 900 rpm 220 Volt 1 Phase 4bar + Bypass

            + plate forplateFor double filtering st.st.m² = 1,2 capacity (water) 1400/2000 l/h

Measurement. 400x850xh601 mm kg 42

297F.20x20and30 platesandSealsWith Pump Type 900 rpm 220 Volt 1 Phase 4bar + Bypass

m² = 1,2 capacity (water) 1400/2000 l/h measured. 400x850xh601 mm kg 42

298F.20x20and30 platesandSealsWith Pump Type 900 rpm 220 Volt 1 Phase 4bar + Bypass

            +bypass+plate forplateFor double filtering st.st.m² = 1,2 capacity (water) 1400/2000 l/h

Measurement. 400x850xh601 mm kg 42

299F.20x20and40 platesandSealsWith Pump Type 900 rpm 220 Volt 1 Phase 4bar + Bypass

m² = 1,6 capacity (water) 2000/2600 l/h measured. 400x1050xh601 mm kg 50

300F.20x20and40 platesandSealsWith Pump Type 900 rpm 220 Volt 1 Phase 4bar + Bypass

            + plate forplateFor double filtering st.st.m² =1,6 capacity (water) 2000/2600 l/h

Measurement. 400x1050xh601 mm kg 50

The filter surface depends on the type of filter used

            Accessories/Spare Parts

                Filter Plate CKP O - 4 - 8 -12 - 16(25 per pack)

                Filter plates CKP 18 – 20 - 24(25 per pack)

application

                CPK0Washable flour support layer
            CPK4for coarse filtration
            CPK8for coarse filtration
            CPK12Brighteners for filter media
            CPK16for whitening filter
            CPK18for filtrationsemi-sterilization
            CPK20for sterile filtration
            CPKtwenty fourFor sterile filtration under critical conditions
