Astm Standard Modified Proctor Compaction Rams and Dies

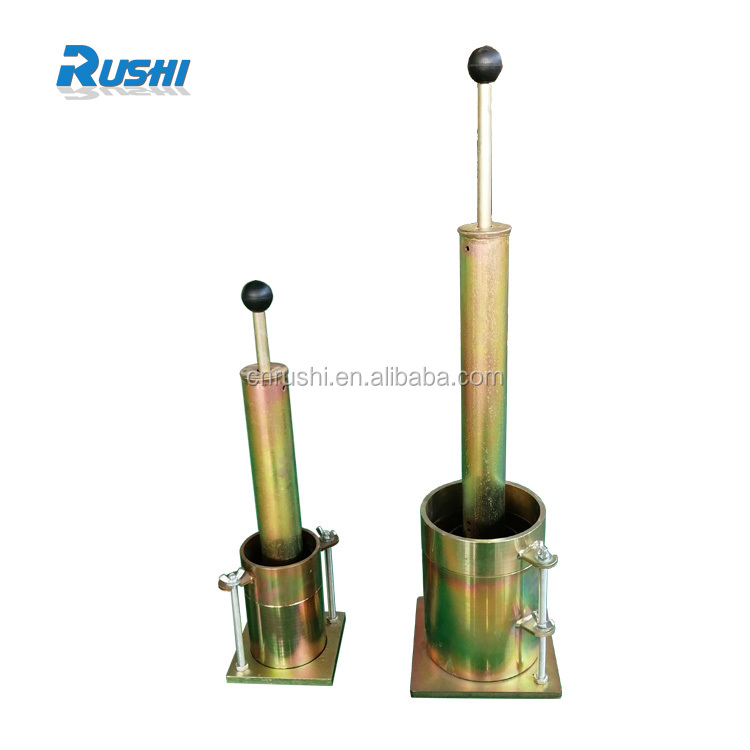

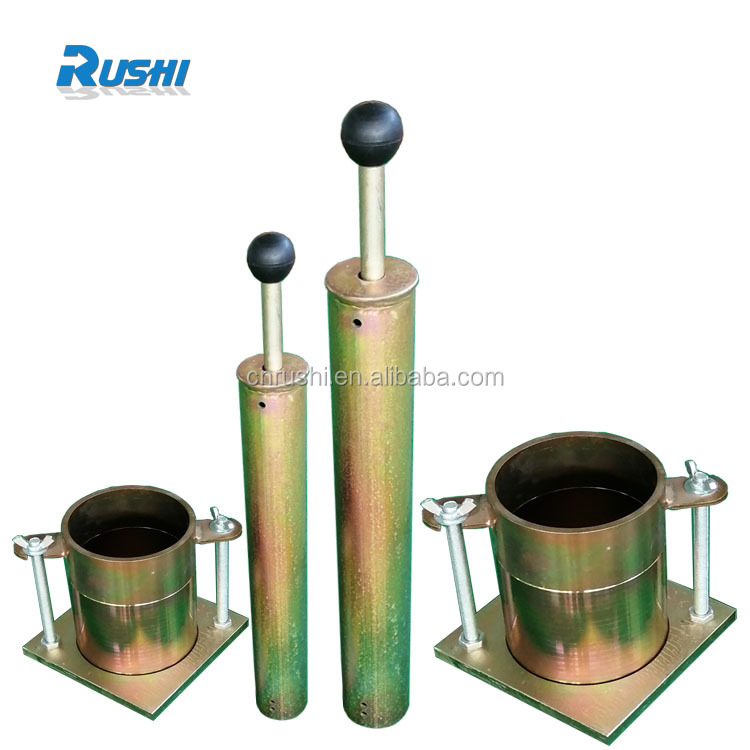

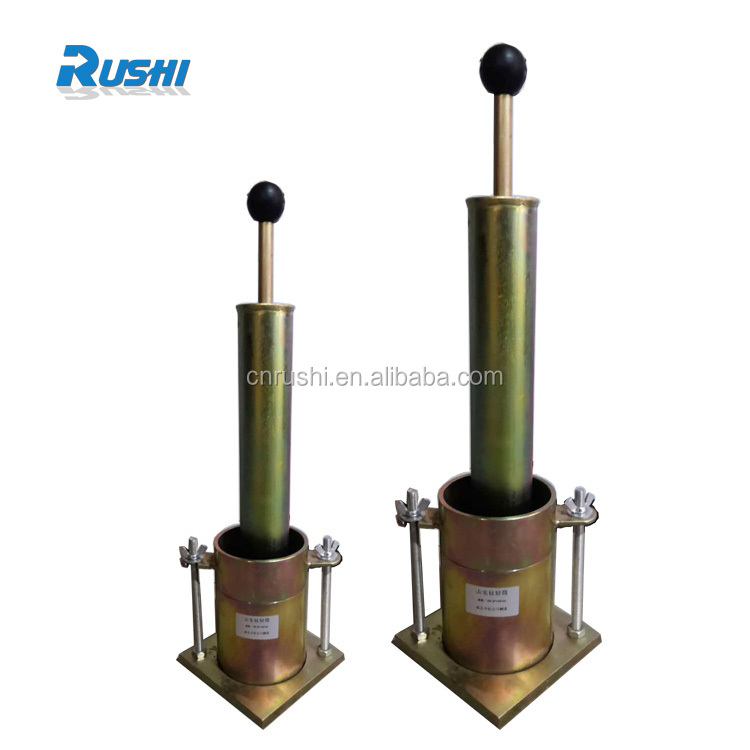

Proctor Dies and Tampers
standard
ASTM D 698, D 1557, D 558; AASHTO T 99, T180, T 134; EN 13286-2;
British Standard 1377:4, 1924:2; NF P 94-093 (alternative); as 1289.5.1.1 and 5.1.2
Dies and rammers are used to determine the relationship between moisture content and density of compacted soils. Made of galvanized steel including collar, mold body and base plate. Tampers are used to compact soil samples in Proctor molds and are made of plated steel. Different models are available in compliance with the relevant standards.
According to NF P 94-093, proctor dies and tampers containing "...NF" can be used as a substitute for dies and tampers containing "...E", which also comply with EN 13286-2.
Proctor Molds - ASTM/AASHTO
Product Code |
describe |
the inside diameter of |
height |
volume |
weight |
RS-0600A |
Standard P&G Mold |
101.6 ± 0.4mm |
116.4 ± 0.5mm |
944.0 ± 14 centimeter3 |
7 kg |
RS-0610A |
Modified Proctor Mold |
152.4 ± 0.7mm |
116.4 ± 0.5mm |
2124±25 centimeter3 |
9 kg |
Proctor Mold - EN
Product Code |
describe |
the inside diameter of |
height |
volume |
weight |
RS-0600E |
Type A Proctor Die EN (Standard) |
100 ± 1mm |
120±1mm |
942 cm3 |
5 kg |
RS-0603E |
Form A Split Proctor Mold (Standard), EN |
100 ± 1 mm |
120±1mm |
942 cm3 |
5 kg |
RS-0610E |
Type B (improved) Proctor/CBR Die EN |
150 ± 1mm |
120 ± 1 mm |
2120 cm3 |
8.9 kg |
RS-0613E |
Type B (Modified) Split Proctor/CBR Die, EN |
150 ± 1mm |
120 ± 1mm |
2120 cm3 |
8.9 kg |
RS-0620E |
C-Type Proctor Mold (Standard), EN |
250 ± 1mm |
200 ± 1mm |
9813 cm3 |
20 kg |
Proctor Mold - BS
Product Code |
describe |
the inside diameter of |
height |
volume |
weight |
RS-0600B.TS |
1 liter mold (standard Proctor) BS, TS-1900-1 |
105 ± 0.5mm |
115,5± 0,5 mm |
1000 cm3
|
5 kg |
RS-0610B |
(Improved Proctor) (CBR type mold) Vibratory hammer mold BS, EN, TS-1900-1 |
152 ± 0.5 mm |
127 ± 1 mm |
2303 cm3 |
7.3 kg |
*C Wrench (RS-00611B.E) and assembly tool (RS-0612B.E) should be ordered separately for assembly and disassembly of these dies.
Proctor Mold - NF P 94-093 (optional)
Product Code |
describe |
the inside diameter of |
height |
volume |
weight |
RS-0600NF |
Standard P&G Mold, NF |
101.6mm |
116.4mm
|
944 cm3 |
7 kg |
RS-0603NF |
Split Standard Proctor Mold, NF |
101.6mm |
|||
RS-0610NF |
Modified Proctor (Type CBR) Die, NF |
152 mm |
152 mm |
2758 cm3 |
8.3 kg |
RS-0613NF |
Split Modified Proctor (Type CBR) Mold, NF |
152 mm |
Proctor Tooling - AS
Product Code |
describe |
the inside diameter of |
height |
volume |
weight |
RS-0600AS |
Type A Proctor Mold AS (Standard) |
105 ± 0.5mm |
115,5± 0,5 mm |
1000 cm3
|
5 kg |
RS-0610AS |
Type B Proctor Mold AS (Modified) |
152 ± 0.5mm |
132,5 ± 0,5 mm |
2400 cm3 |
9 kg
|
Proctor Rammer - ASTM / AASHTO
Product Code |
describe |
Tamping diameter |
height of free fall |
lots of rammers |
weight |
RS-0605A |
Standard Proctor Compactor |
50.8 |
304.8±1 |
2495 ± 9 grams |
4.5 |
RS-0615A |
Modified Proctor Compactor |
50.8 |
457±1.3 |
4536 ± 9 grams |
8 |
Proctor Rammers - English
Product Code |
describe |
Tamping diameter |
height of free fall |
lots of rammers |
weight |
RS-0605E |
Type A rammer EN (low energy standard) |
50±0.5 |
305±3 |
2500 ± 20 grams |
4.5 |
RS-0615E |
Type B rammer EN (medium energy modification) |
50±0.5 |
457±3 |
4500 ± 40 g |
8 |
RS-0625E |
Proctor Compactor Type C (High Energy), EN |
125±0.5 |
600±3 |
15000 ± 40 grams |
25 |
Proctor Rammers - BS
Product Code |
describe |
Tamping diameter |
height of free fall |
lots of rammers |
weight |
RS-0605B |
2.5 kg compaction ram BS |
50±0.5 |
300±3 |
2500 ± 25 grams |
4.5 |
RS-0615B |
4.5 kg compaction ram BS |
50±0.5 |
450±4 |
4500 ± 50 g |
8 |
Proctor Rammers - NF
the code |
standard |
Tamper diameter |
height of free fall |
Tamper weight kg |
RS0075 |
NF |
50.8 |
305 |
2.49 |
RS0076 |
NF |
50.8 |
457.2 |
4.54 |
