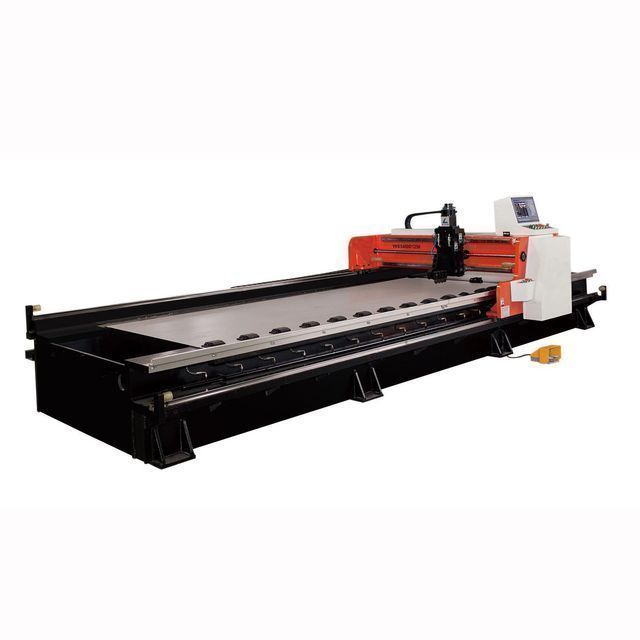

CNC V grooving machine for sale

V-shaped slotting machine, also known as CNC V-shaped slotting machine, sheet metal slotting machine. CNC V-groove machine is a kind of sheet metal processing equipment. This machine is a full slotting machine for sheet metal. It adopts advanced CNC innovative design, which has the advantages of high processing precision, simple operation, no noise and no vibration. In the field of sheet metal bending, it is often used in conjunction with CNC hydraulic bending machines. Many special metal plates cannot be bent directly to meet high-quality and high-precision processing standards. At this time, the user can first use the CNC V-groove machine to open the groove, and then use the bending machine. This will greatly improve the appearance and quality of the workpiece. Reduce equipment investment and save energy. It is mainly used for V-cutting of stainless steel plate, common steel plate, aluminum plate, copper plate and composite plate below 4mm to achieve a certain depth before bending and forming. The workpiece produced by this process has the characteristics of small bending radius, no obvious color change, and small bending force requirements, which reduces the straightness error of the round edge of the narrow and long workpiece, and can use ordinary bending machines and tooling to bend workpieces with complex cross-sectional shapes . Solid metal or bar metal is more expensive to buy and creates waste once formed. V-grooves allow sharp bends to be created from sheets, creating profiles with the appearance of solid materials. V-shaped grooves create decorative grooves, channels, and shadow gaps. Bending sheets with a CNC V-groove machine is a more cost-effective option.

Advantages of CNC V-groove machine:

In the absence of a special CNC V-grooving machine, people usually use a slotting machine to perform V-grooving on metal sheets
Material. Because the gantry slotting machine does not have an effective and reliable sheet metal pressure device. it cannot be precisely controlled
The depth of the V-shaped groove and the position interval of the V-shaped groove. In addition, it has the disadvantage of high energy
High consumption and low efficiency. Therefore, the CNC horizontal V-grooving machine is the first choice for V-shaped grooving of metal sheets.

● High efficiency, energy saving and environmental protection
● Rapid grooving and precise positioning
● Adaptive forward movement can adapt to different states of sheet metal.
● high precision
● Simple operation, stable and reliable performance
● After the tool holder is used, there is no need to reset the tool when changing the tool.
● The base and beam of the machine are frame structures. After finite element optimization design, all steel welding is
Tempering eliminates residual stress, the overall rigidity is good, and the precision is good.
● Equipped with automatic lubrication system: less wear, fine processing, guaranteed processing accuracy and high dynamic response
feature.
● CNC open controller, supports fully automatic operation, 4 knives run at the same time, significantly improving the grooving effect
efficiency.
● Reduces the force required to bend sheet metal

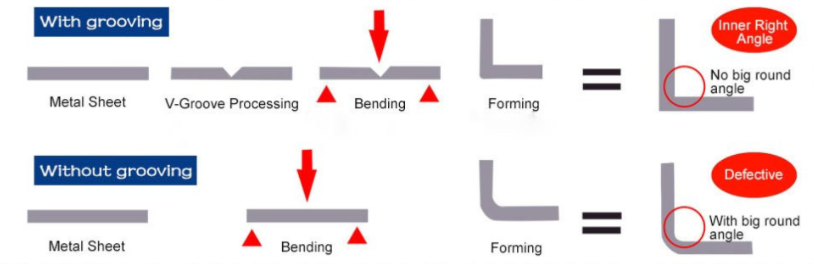

The bending process shows that the bending force is proportional to the plate thickness. front V groove
After bending, the thickness of the remaining sheet is about half of the original sheet thickness or less. Therefore, bending
The force required to bend the sheet is correspondingly reduced. This allows long sheet metal to be bent with less tonnage
bending machine. So as to meet the special requirements of hotels, restaurants, hotels and other places for high-grade decorative metal plates
Commercial buildings, banks, airports and other places.
● Position the length of the bent edge before bending

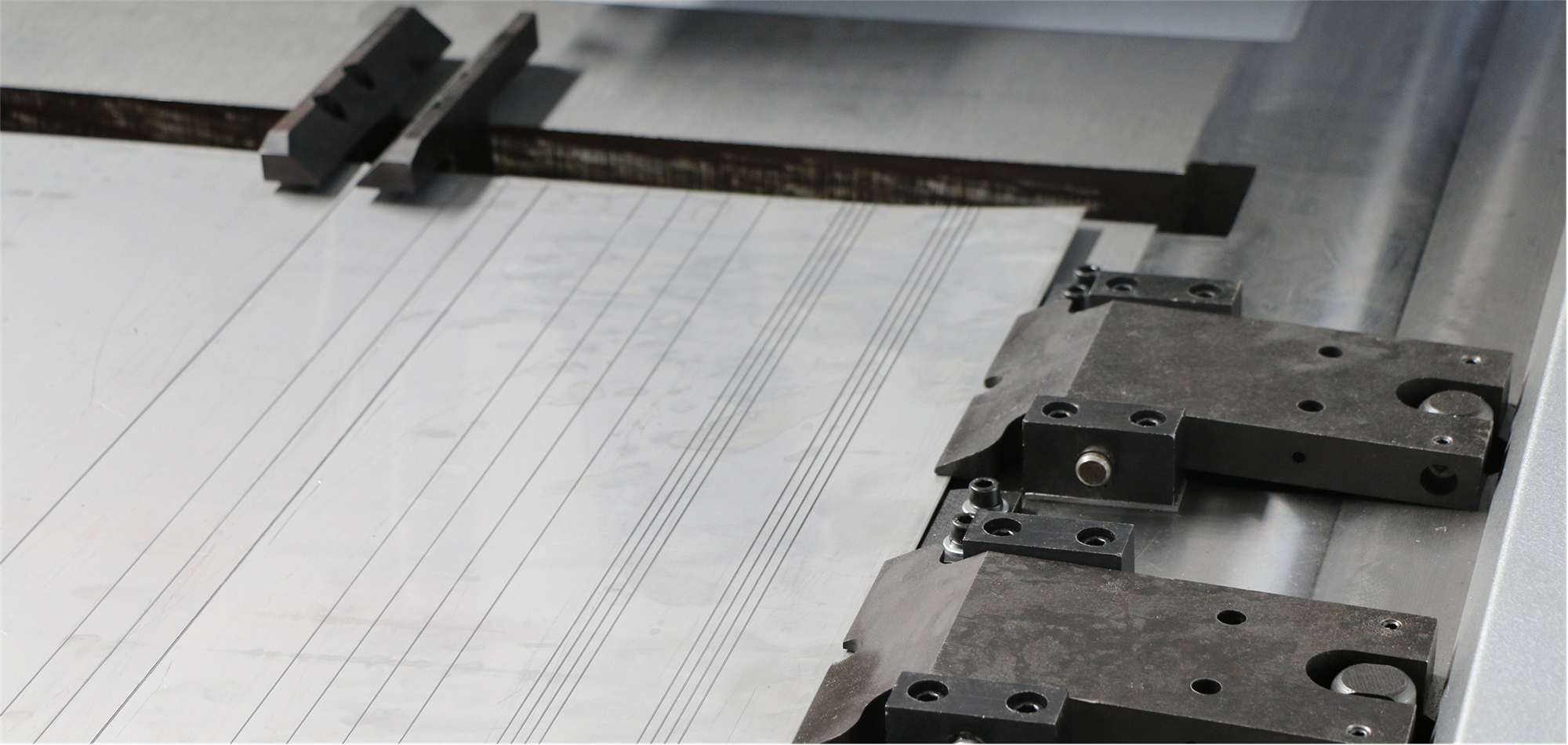

By making a shallow V-groove in the material, the user can predetermine the length of the bend edge before bending. Then,
A user works on a press brake with a pre-engraved sheet metal slotting machine. It not only guarantees the length
The correct size of the bending edge can also replace the function of the back gauge of the CNC bending machine.
