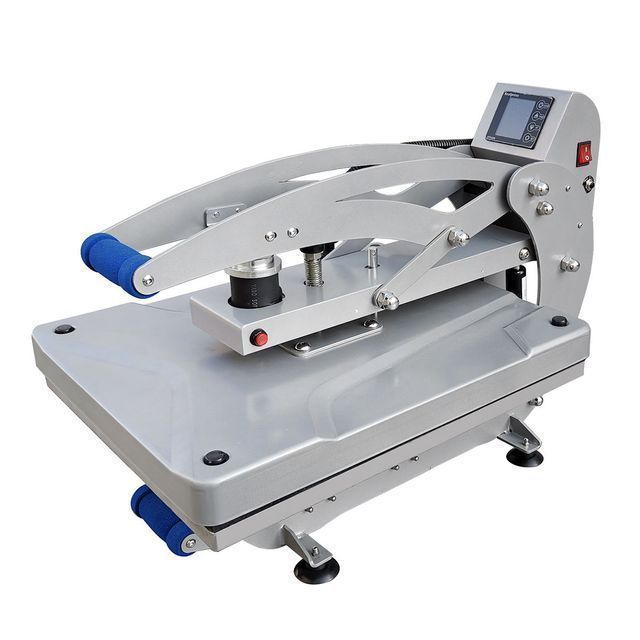

16x20 Auto Open T-Shirt Printing Sublimation Heat Press 40 x 50 with Slide Out Drawer

  • Supplier: Fuzhou Prior Electric Co., Ltd.
  • Region: Fujian, China
  • Contact: Ms Betty Chan
  • Price: $293.00 / 1 - 49 pieces
    $279.00 / 50 - 199 pieces
    $269.00 / 200 - 9999 pieces
    $169.00 / >=10000 pieces
  • Min. Order: 1 piece
Product details
Automatic level:semi-automaticPlate type:flatbed printer
place of origin; place of origin:Fujian Chinabrand:previously
Applicable industries:Clothing store, manufacturing plant, household, retail, print shopPlaten size:40 x 50 cm
Core component warranty:1 yearMain selling points:easy to operate
temperature:0~232C/450FColors and Pages:Polychromatic
Health status:newtype:Hot Press
Packaging Details:Individual cartons with foam protectionpressure:400KG
port:Fuzhou, Xiamenmodel:HP3804D-F
product name:Hot PressCore components:hot plate
Mechanical test report:ifstyle:semi-automatic opening
Supply capacity:8000 pieces per monthVideo shipment inspection:if
usage:Hot Presscolor:custom color
Driver type:manualtime limit:0-999 seconds
Function:multi-surface sublimationDimensions (L*W*H):68 x 42 x 47 cm
Warranty:1 year warranty, 1 yearVoltage:110V/220V
Serve:OEM, design and manufacturepayment terms:Western Union, D/P, T/T, MoneyGram
Certification:CE/EMC/EMD/LVD/ROSHweight:40 kg
Product Description
Specification
model.
HP3804D-F
type of machine
Turn on the heat press machine automatically
controller
Digital time and temperature. controller
Voltage
110V/220V
strength
1.4kW/ 1.7kW
time limit
0-999 seconds.
maximum. temperature.
245°C (473°F)
printing area
380mm x 380mm (15" x 15")/ 400mm x 500mm (16" x 20")
opening angle
43°
workbench
pull out support
Gas Spring Controller
Yes
Printing thickness
113mm/73mm
gross weight
28 kg / 35 kg
Package dimensions
740mm x 560mm x 500mm (29"x22"x20")
application:
T-shirts, puzzles, mouse pads, metal plates, coasters, slippers, bags, cushions, etc.
Warranty:
1 year
Certificate:
CE (EMC, MD, Rohs)
The press is equipped with a manual unit, a digital display and an audible signal at the end of the job.
The t-shirt heat press has an automatic opening function to avoid overheating and damaging t-shirts and other sublimation blanks. If the alarm time is set, the heating plate on the heat press machine will automatically rise and alarm at the same time. So the T-shirt heat press is more convenient to transfer.
Our company can adjust the pressure according to the printed product at any time, which is convenient and quick.
Designed for printing on textiles and other materials, can be used on food, t-shirts, mouse pads, puzzles, tiles and other flat items by using flex, flocking, transfer paper, sublimation and more.

feature:
It is fitted with a smooth pull-out drawer, giving you plenty of room to store your clothes. Use a featured base:
1. The quick change system allows you to change the attachment platen in seconds without tools. 2. Threadable base enables you to load or rotate garments on the lower platen.

① Magnetic automatic opening and auxiliary locking function
② Digital time and temperature controller.
③ 16 x 20 inches Teflon coated upper hot plate.
④ Eccentric pressure adjustment.
⑤ Clamshell design.

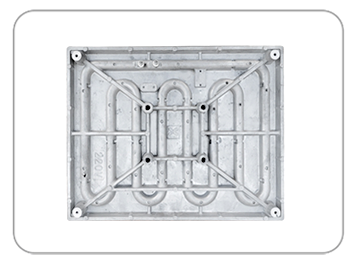

heating plate
The finished aluminum plate has good thermal conductivity and high temperature resistance.

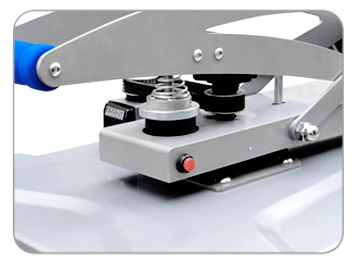

Semi-automatic selection
The semi-automatic opening is soft and smooth, and the pressure distribution is even.

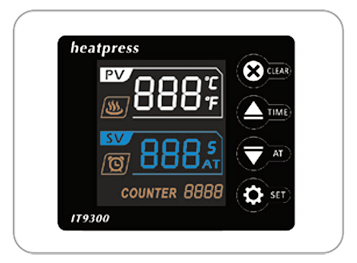

Intelligent LCD Controller
The screen touch controller with standby function can read out the temperature and time accurately. And emit an acoustic signal when the work is finished.

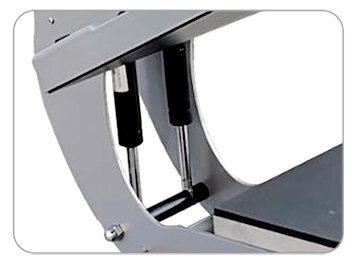

air shock
Two air shock absorbers are installed to ensure that the machine opens softly and smoothly.

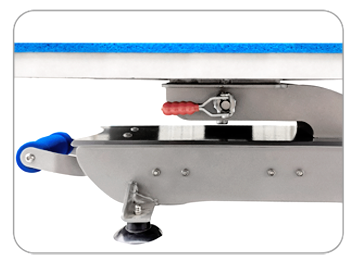

Attachable and Interchangeable Bases
Pull out and removable, interchangeable base, easy to slide out of the base for even more stowage space. Thea and interchangeable bases ensure you can use different platens.
strong frame
Precise laser cut frame, very thick and strong construction, ensures perfect pressure distribution.
