Model: | D210 | thing: | shock mount |
Applicable industries: | manufacturing plant | Health status: | new |
After warranty service: | online support | port: | Qingdao |
Card: | Howard | Core components: | engine |
Video shipment inspection: | if | Warranty: | 1 year |
Range of use: | Various machine tools | type: | backing plate |
Material: | rubber | Packaging Details: | carton or wooden box |
Mechanical test report: | Not available | Local service location: | not any |
Marketing Type: | New Products 2020 | Supply capacity: | 1000 boxes per day |
Showroom location: | not any | Function: | stability and balance |
After-sales service provided: | online support | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |

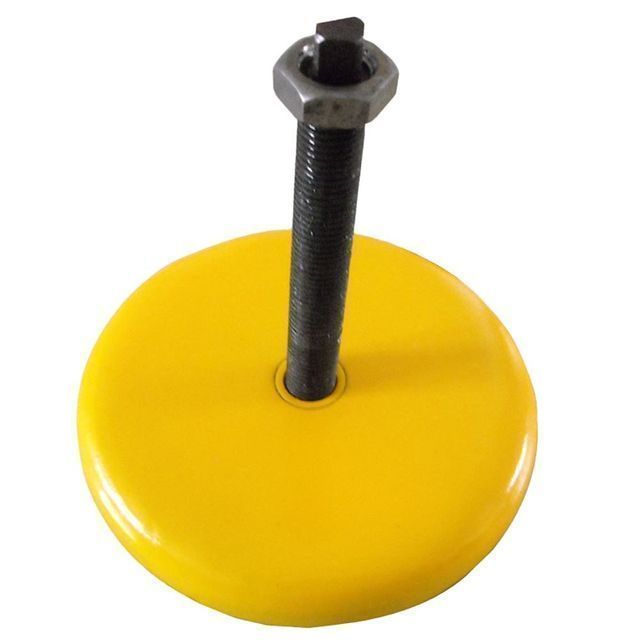

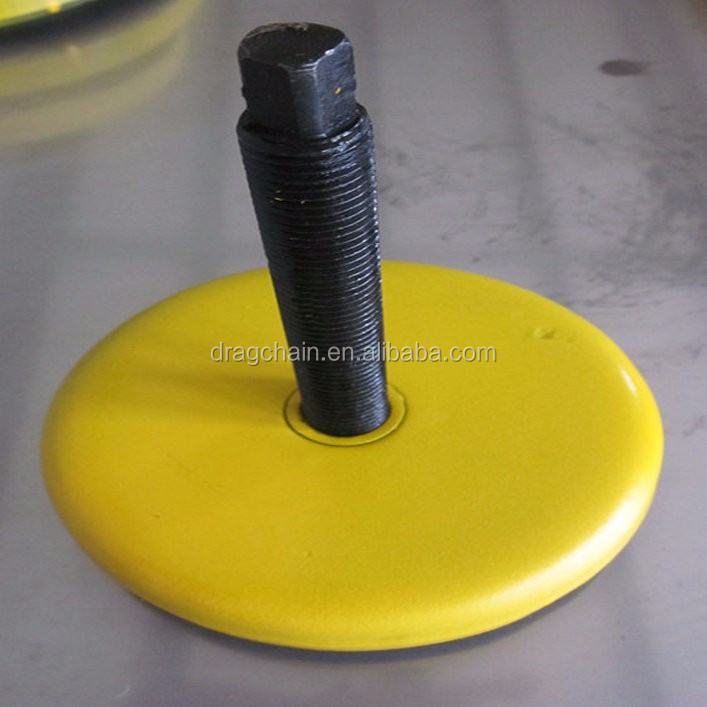

Diameter 80 machine shock mount
Mechanical Mounting Pad Instructions |
Anti-vibration mounts can be used in metal processing machinery, satin press machine tools, textile, printing machinery, food processing machinery, rubber machinery, wire and cable machinery, packaging machinery, generators and heavy equipment.
Horn penetration required under machine foot bolt holes. Make the rotation contact with the bearing plate, then adjust the machine level (turn the bolt clockwise to lift the machine), adjust the machine level. Tighten the nuts to secure the level. Due to the phenomenon of rubber creep, after the first use, adjust the machine level again after two weeks.
Mechanical Mounting Padsprogramme |
DDDDDDD
Didi Didi
Mechanical Mounting Padsfeature |
The anti-shock mount can effectively reduce the machine's natural vibration; reduce the exposure or incoming vibration force, and ensure the accuracy and quality of the product. In addition, the anti-vibration bracket prevents the vibration and noise of the building, and combines with various machine tools to adapt to technological development.
Wide range of adaptation, convenient and quick.
NBR synthetic rubber, resistant to oils and coolants.
Mechanical Mounting Padssize |
Model | 01 | 02 | 03 | 04 | 05 | 06 | 07 |
Diameter (mm) | 40 | 80 | 120 | 160 | 185 | 229 | 317 |
Height (mm) | 15 | 25 | 32/37 | 35/41 | 39/45 | 54/60 | 70/100 |
Wire | M5 | M10 | M12 | M16 | M20 | M24 | M30 |
height adjustment(mm) | 5 | 8 | 12 | ||||
Each installation load (N) | 400-800 | 800-4000 | 4000-12000 | 12000-30000 | 20000-50000 | 25000-70000 | 50000-100000 |
trading |
MOQ:10 boxes
pay:L/C, D/A, D/P, T/T, Western Union, MoneyGram; 30% deposit; 70% balance before delivery or against the copy of B/L
delivery time:3-7 days for samples; within 10 days for bulk goods.
Bale:carton or wooden box
Shipping:Bulk cargo by air or sea, FCL or LCL; Airport/port reception;
Serve |
Professional and enthusiastic sales team is at your service 24 hours a day
Participate in various exhibitions to help you understand us more fully. Samples can be sent within 1-2 days
Accept customized product/logo/brand/package OEM accept small quantity and fast delivery
Can send you samples for free
