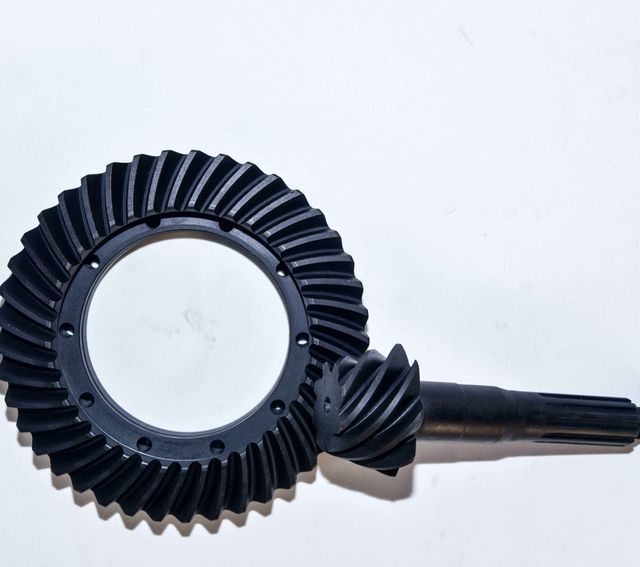

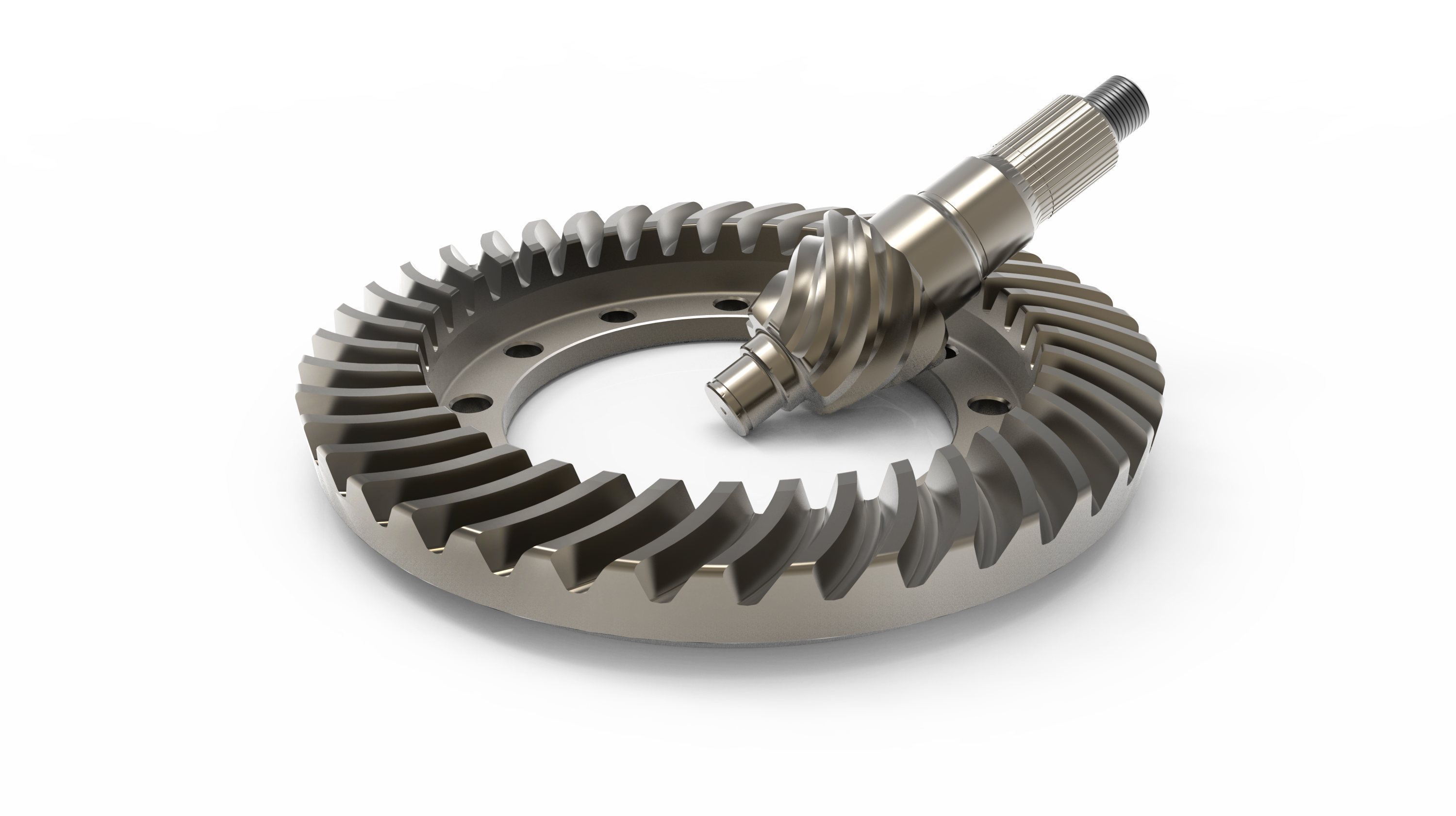

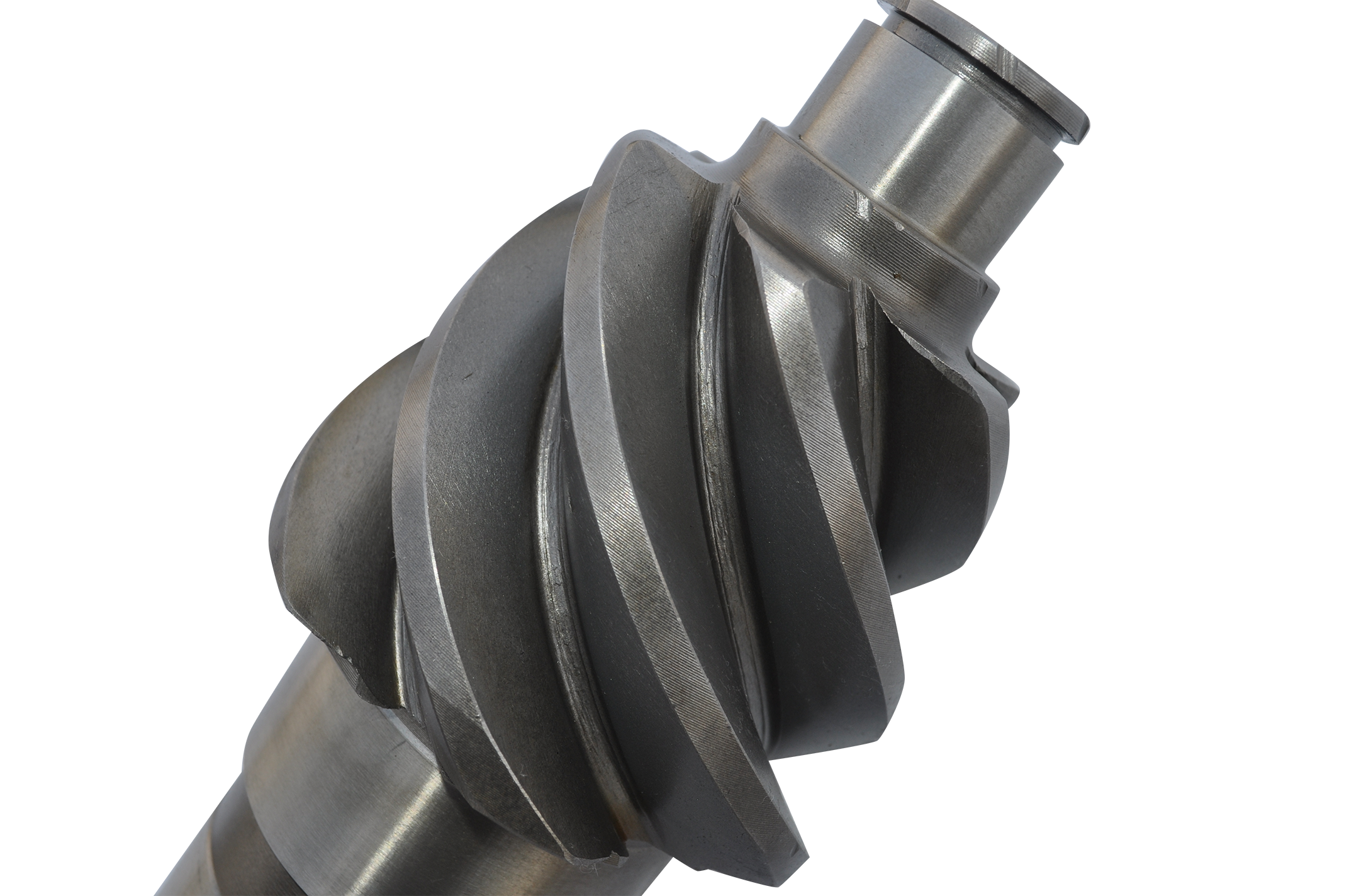

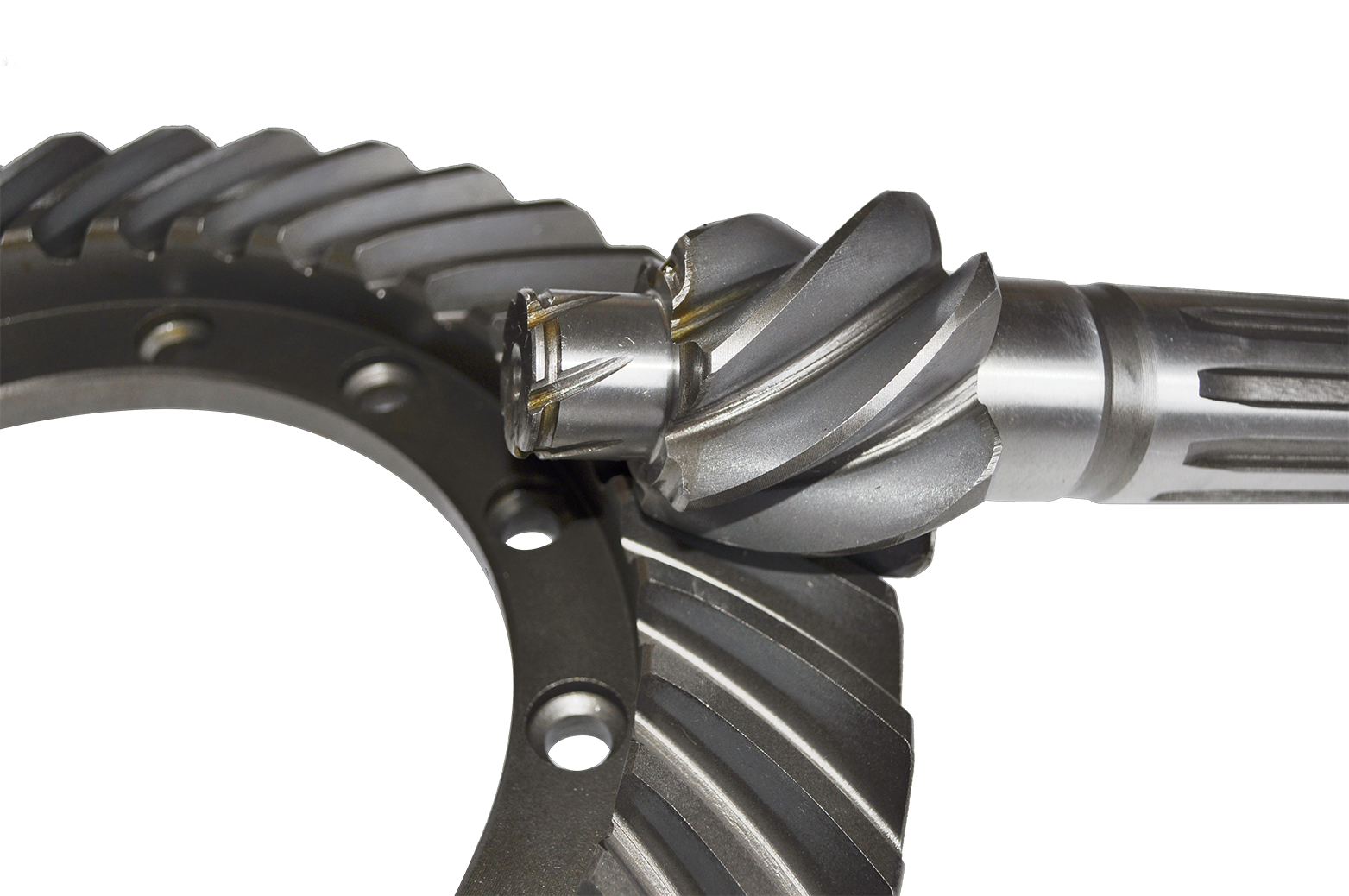

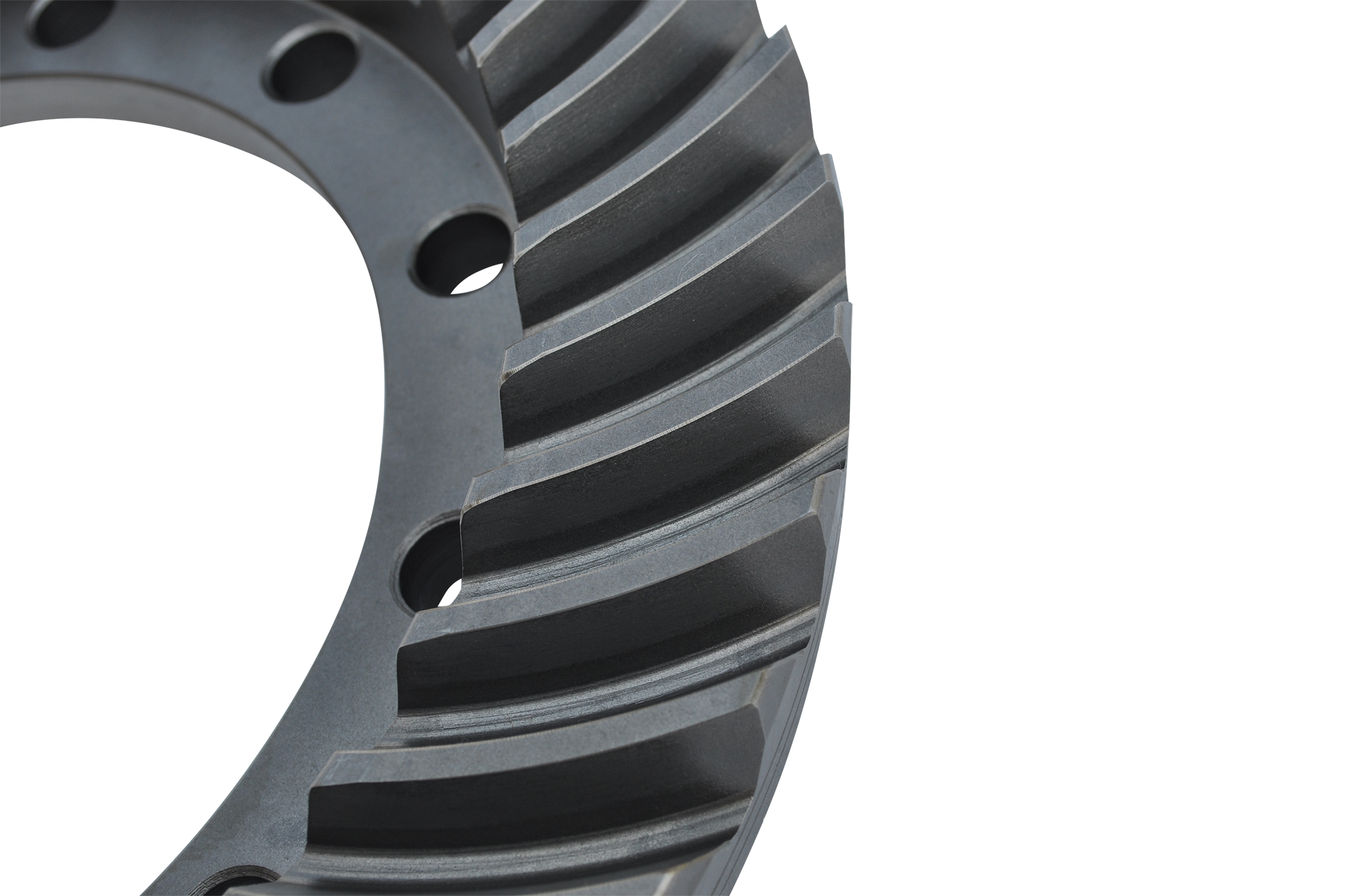

33052 GAZ 8*41 bevel gear crown wheel pinion

Product details
size:standard sizeSupply capacity:20000 sets per month It takes about 30 days if new items are developed.
Marketing Type:New Products 2020Health status:new
Core component warranty:1 yearAdvantage:professional
Showroom location:Vietnam, Philippines, Brazil, Indonesia, Pakistan, Mexicoshape:bevel
Package preview:Material:steel
Warranty:1.5 yearsVideo shipment inspection:if
quality:high qualityusage:auto industry
pack:cartondescribe:Differential 20CrMnTi Spiral Bevel Gear
Certificate:ISO 9001:2000port:Qingdao Port Guangzhou Port Shanghai Port
Applicable industries:retail, otherOuter diameter:230mm
Tooth profile:helical gearbrand:Haydn
car model:gaspayment terms:L/C, Western Union, D/P, T/T
Processing:forgingAfter warranty service:Video technical support, online support
Standard or non-standard:standardtype:OEM precision cast steel spiral bevel gear
Serve:24 hours onlineMechanical test report:if
direction:right handplace of origin; place of origin:China
Local service location:Philippines, Brazil, Indonesia, Pakistan, India, MexicoCore components:Bearings, gears
pressure angle:20Packaging Details:Wrap it in a plastic bag and put it in foam, then put it all together in a five-ply corrugated box.
product name
Crown wheel and pinion
Material
20CrMnTi
Applicable models
gas
turn around
correct
Product packaging size
435*335*140 mm
gross weight
7 net weight/kg
Q: How to achieve HRC on the surface of the product?
A: The surface hardness reaches HRC58-63, and the core reaches HRC30-35.
Q: What equipment do you mainly use for processing?
A: We mainly use American Gleason gear milling machine for milling, continuous carburizing furnace for heat treatment, carburizing time is between 20-30 hours.
Q: What packaging do you use?
A: Pack them together into a five-layer corrugated carton, after packing, we paste the model label. as the picture shows.
Q: How long is the product warranty?
A: The normal warranty period of the gear is three months. If the geometric size is wrong, the whole part is broken, and it cannot be installed. More than 20% of similar problems are within the scope of the three guarantees, and we are responsible for the replacement.
Q: Do you have your own product testing equipment? what test do you do
A: A. Check the metallographic structure and hardness after forging, B. Randomly check the geometric dimensions during processing. C. After heat treatment, detect the metallographic structure and the depth and hardness of the carburized layer. D. Detect the area, noise and various geometric dimensions of the contact surface before delivery. We have professional equipment and inspectors to finish it.
