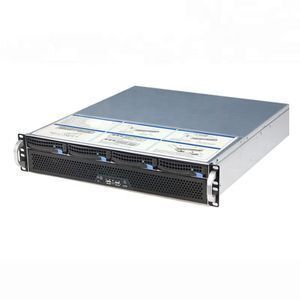

Flexible Ultra short 2U mini case L400mm 4bays hotswap 2U storage rack server chassis for nvr/nas

Supplier: Shenzhen Innovision Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Amanda Li
Price: $89.99 /piece
Min. Order: 1 piece

Click here to contact

Product details

Delivery Detail:	0 days after payment;	Place of Origin:	Guangdong China (Mainland);
Products Status:	Stock;	Product Name:	Mini 2U rack storage server case;
Material:	1.0mm SGCC(Super Coating fingerprint resistant film)&Super ABS ROSHs;	Available Color:	Front Panel coated Black/Customzied optional;
Hot-swap Backplane:	With 6.0Gb/s hot-swap backplane;	Form Factor:	2U Rackmount Chassis;
Power Supply Support:	1U/2U/ATX PSU.L<200mm;	Processor Support:	Single Intel / AMD processor/Optional;
Package Type:	Single Carton +EPE;	Form Factor:	MicroATX;
Selling Units:	Single item;	Single gross weight:	7.2 KG;
Single package size:	56X53X18 cm;	Brand Name:	INNOVISION;
Type:	Rack;	Style:	With Fan;
Motherboard Support:	Max12"9.6"(1U/2U PSU)/Max9.6"9.6"(ATX PSU);	Stroage--Drive Disk Bays:	43.5"/2.5"HDD Bays+12.5" HDD Inside;
Application:	Server;	Dimensions:	L400W437.5H89mm;
Front Ports:	USB;	OEM:	Available;

Flexible Ultra short 2U case L=400mm huge storage 4bays hotswap 2U rack server chassis for nvr/nas

Spotlight Features:

• Optimized 2U rackmount server chassis

• 19" 2U Server Rack mount Chassis

• Material:Super SGCC,Al&Rohs ABS

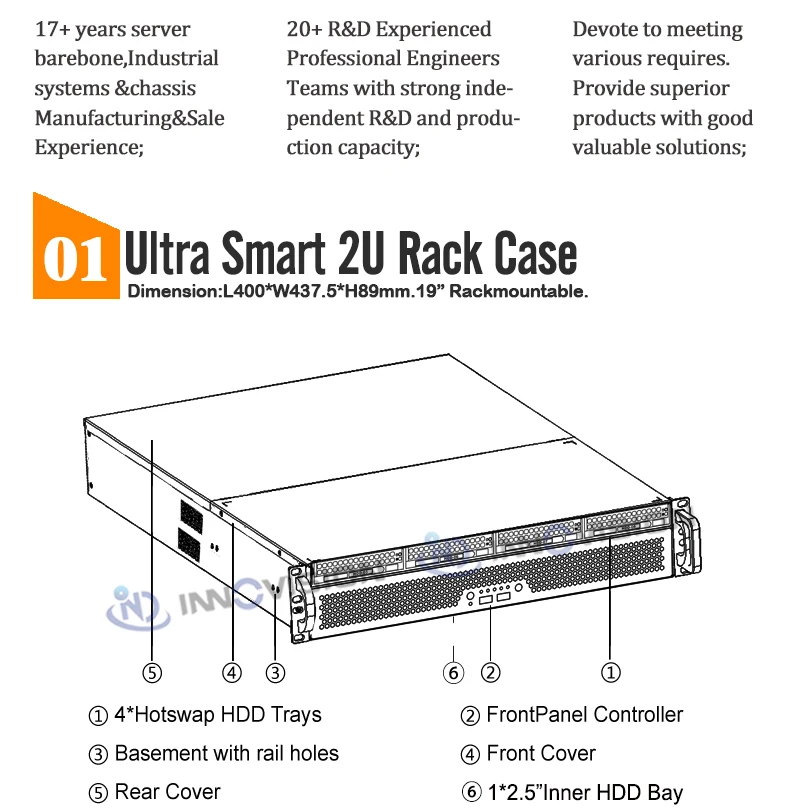

• Dimension: L400*W437.5*H89 mm

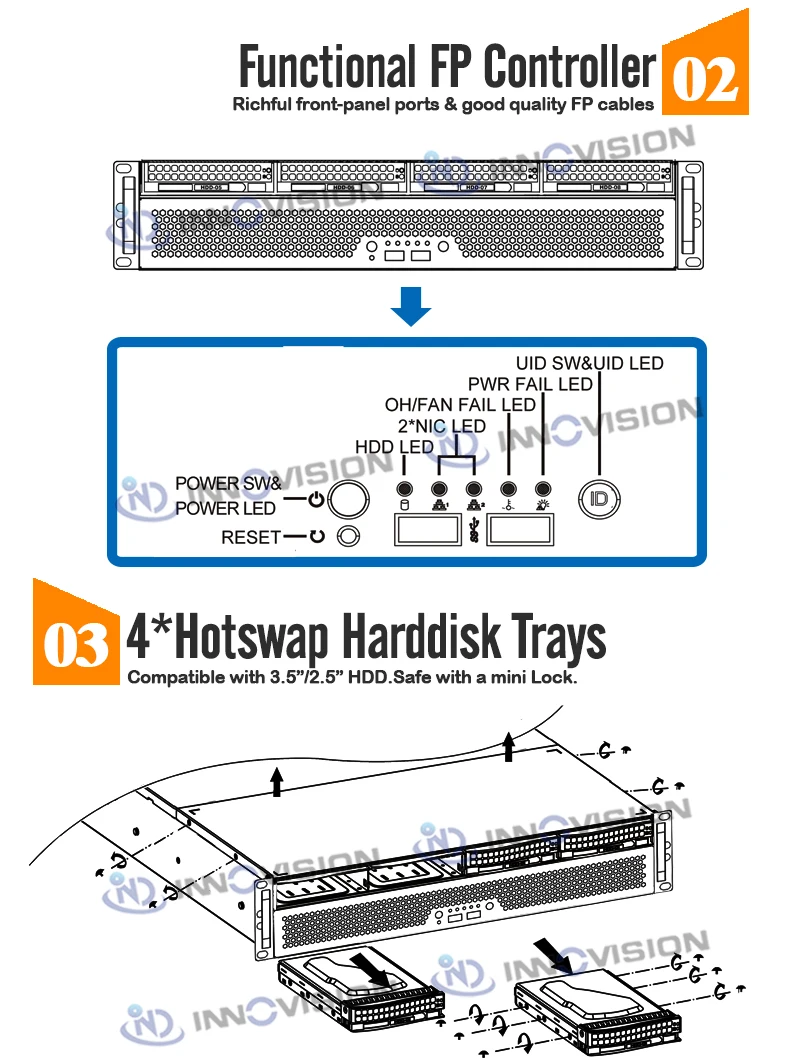

• 4*Hot-swap 3.5" /2.5" HDD Trays

• 1*Inner 2.5" HDD Tray(front-bottom)

• 3*4cm cooling fans at the rear-panel.

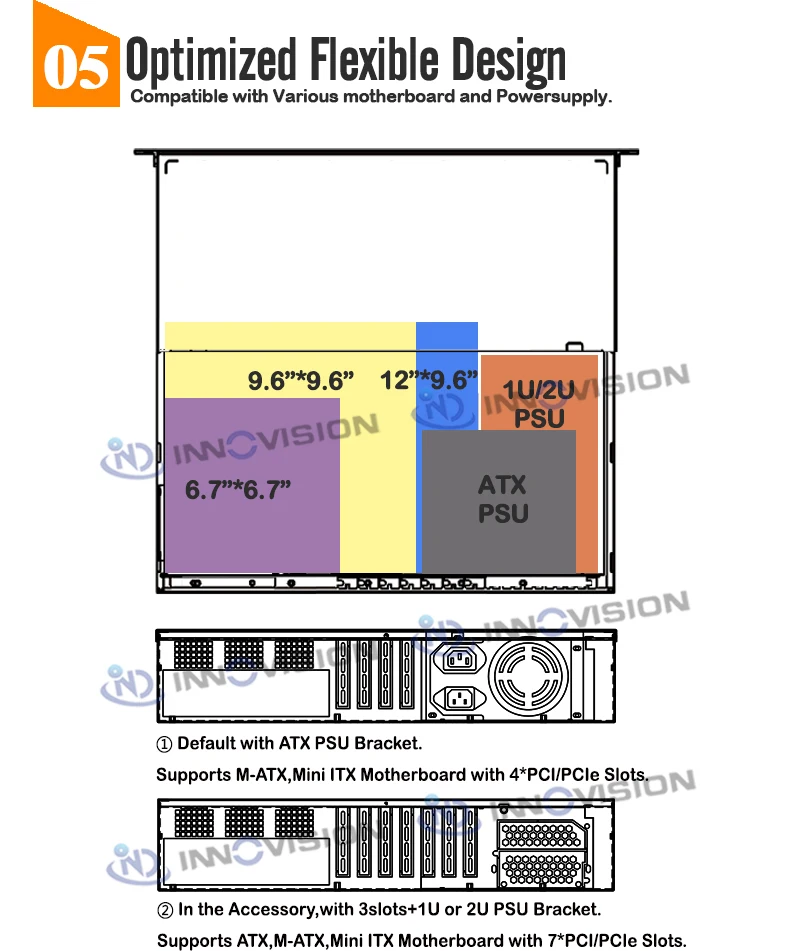

• Flexible & Unique Rear-Panel Design

• Default with 4*PCI/PCIe Expansional slots

• Supports M/B size up to 9.6" x 9.6" with ATX PSU Bay

• Flexible with 7*PCI/PCIe Expansional slots rear-window

• Supports M/B size up to 12" x 9.6" with 1U or 2U PSU Bay

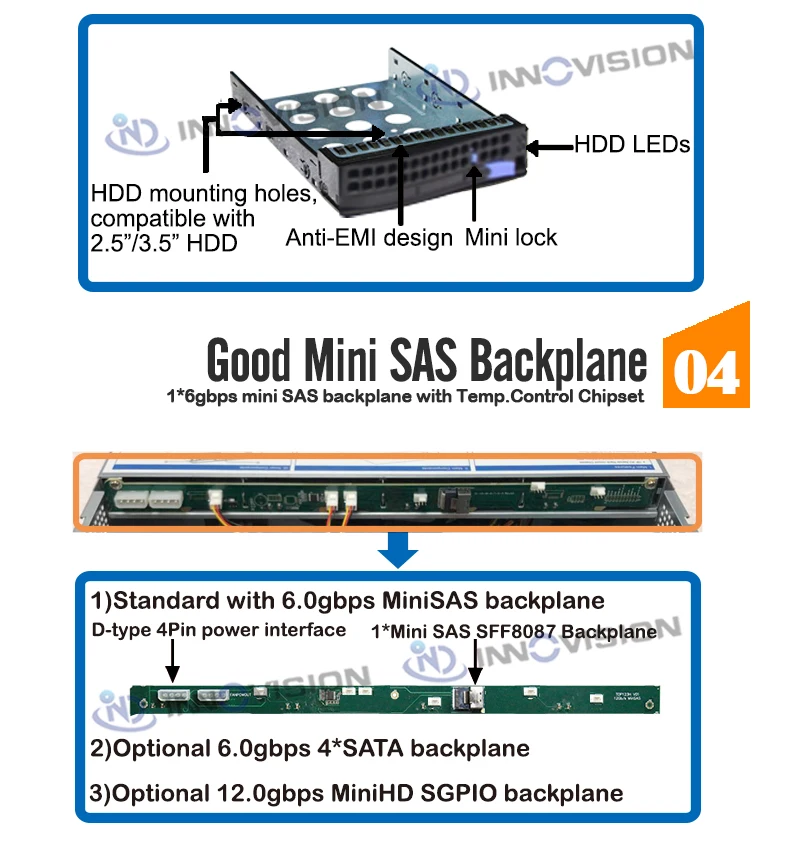

• Default with high-quality 6 Gb/s Mini SAS backplane with Temperature Control

• Application For Firewall server, Corporate Database, Data Center, Database Processing & Storage, Enterprise Server, HPC, iSCSI SAN
• Similar Product---CSE_S25608 Chassis Avaible(Support MAX 12"x10.5"etc.Motherboard.)

Similar Item NO.	S26508	S25608	Customzied
Dimension	L650W437.5H88mm,2U	L560W437.5H88mm,2U	2U OEM
Hotswap Disk QTY.	Supporting 8 Bays	Supporting 8 Bays	Customzied Available
MAX.Motherboard	MAX.12"*13" Various MB	MAX.12"*10.5" Various MB	Customzied Available

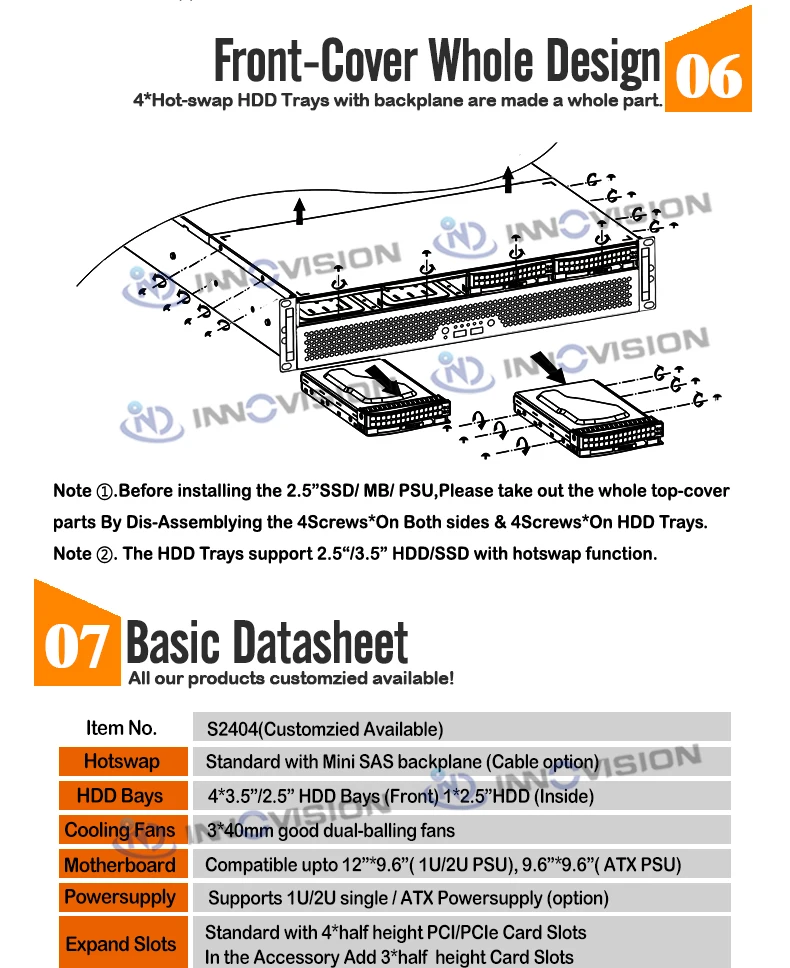

2U Rack 4bays hotswap Short computer case L400mm Datasheet:

Shenzhen Innovision Technology Co.,Ltd

was founded in 2001, mainly engaged in network server, industrial server, industrial development, industrial computer and server hardware barebone---Case, Power Supply and other products of the production, assembly, testing and sales. The company R & D and manufacturing base is located in the beautiful Shenzhen River Golf Club.After 15 years of development, we are the China's most professional leading manufacturer of industrial server barebone.
Our Aim: Devoted ourselves to server for you with 100% satisfy.

Our Advantage

OEM Service

FAQ

Q1. Do you have any MOQ limit ?

A: Low MOQ. 1Set standard product for sample checking is available.
OEM products MOQ is 50Set.

Q2. What's the server chassis OEM sample policy?

A:As our factory sample rule,the sample cost is USD300,which is just as deposit.We will return most sample charge until the order above 50sets.(Deducting one case charge and once-time mould charge.)

Q3. How long to get the exact quotation?

A: Please let us know your requirements and your QTY.My sale engineer will quote it within 1-2working days.

Q4. How to proceed a OEM mass order?

A: 1st.let us know your requirements or application and your planing QTY.
2nd.My sale engineer give the best solution and quote according to your requirements.
3rd.Sign a sample contract and pay the payment.
4th.Make a sample and Confirm it.Satisfy or modify some parts.
5th.Place a mass order.Return the sample cost. Pay the payment.
6th.We arrange the production.Delivery within 15-23days as contract.

Q5. What about the lead time?

A:As usually,we have sufficient Standard products.Delivery within 1-3 days.
OEM/Mass production time takes 15-23days.

Q6. How do you ship the goods and how long does it take to arrive?

A: The shipment is as your choosing.
For small order,it's better by internation express.Eg.DHL, UPS,EMS, FedEx or TNT. It usually takes 3-12 days to arrive. For big volume order,recommended the Airline and sea shipping.
We also can deivery the goods to your signed logistic in China.

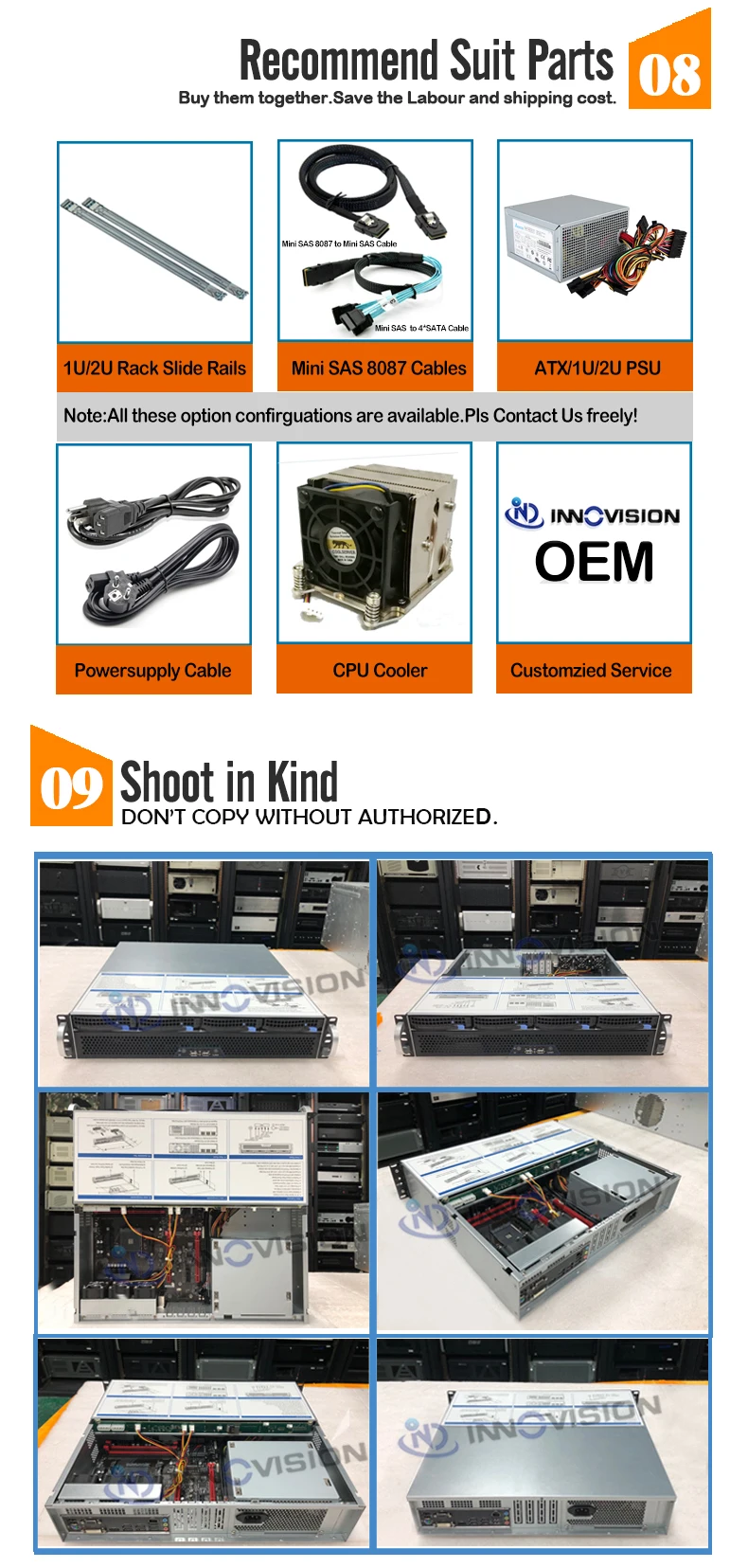

Duing of the server chassis big volume weight,sometimes the shipping cost is higher than the chassis cost.We're highly recommend to buy the powersupply,heatsink etc.linked products.We'll give you our best price.
