Dot pitch: | 0.11775(height) x 0.11775(vertical) | Input voltage: | 5.5V~35V |
model: | ST699 | Installation method: | 1/4"-20 threaded socket (1 bottom) |
Resolution: | 1280x800 | Packaging Details: | 38.2x23.6x44.4CM gift box + neutral box 10 pcs/ctn |
aspect ratio: | 16:10 | payment terms: | L/C, T/T, Western Union, MoneyGram, PayPal |
describe: | DSLR Camera Cage Kit | Shipping Details: | Within 1-2 days after receiving full payment |
port: | FOB Shenzhen | place of origin; place of origin: | Guangdong, China |
Unit size: | 176Lx130Wx17H(mm) | brand: | SEETEC |
enter: | Video, Audio, HDMI | Angle of view: | 89°/89°(Left/Right) 89°/89°(Up/Depth) |
Supply capacity: | 10000 DSLR camera cage kits per month | Backlight: | to lead |

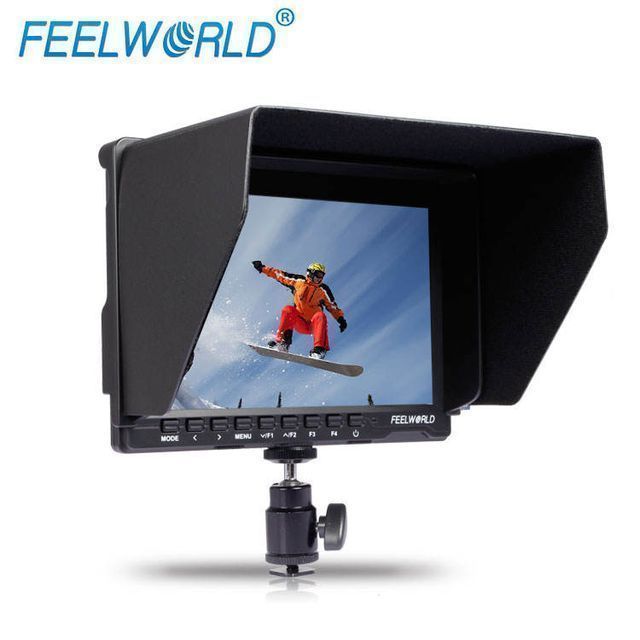

7 Inch Slim Camera LCD Monitor 1280x800 Resolution AV HDMI Port IPS Panel Pixel to Pixel Function dslr Camera Cage Kit
The ST699 is a portable LCD monitor designed for professional HDV and HDSLR camcorders. Ultra-thin 17mm wide viewing angleIPsmall1280×800Professional Peak FilterMake outdoor shooting easier.
Specification | ||
describe | 7 Inch Slim Design Ultra HD IPS 1280x800 Field Monitor HDMI Input | |
Model | ST699 | |
resolution | 1280x800 | |
pitch | 0.11775(height) x 0.11775(vertical) | |
aspect ratio | 16:10 | |
brightness | 400cd/square meter | |
Compared | 800:1 | |
backlight | to lead | |
Response time | 25 milliseconds | |
angle of view | 89°/89°(Left/Right) 89°/89°(Up/Depth) | |
enter | Video, Audio, HDMI | |
output | Wired Remote OSD Controller, Built-in Speaker, 3.5mm Audio | |
HDMI support mode | 480i / 576i / 480p/576p | |
1080i (60/59.94/50) | ||
720p (60/59.94/50/30/29/25/24/23.98) | ||
1080p (60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps) | ||
energy consumption | 5w | |
Input voltage | 5.5V~35V | |
Operating temperature | –20~50℃ | |
Storage temperature | –30~60℃ | |

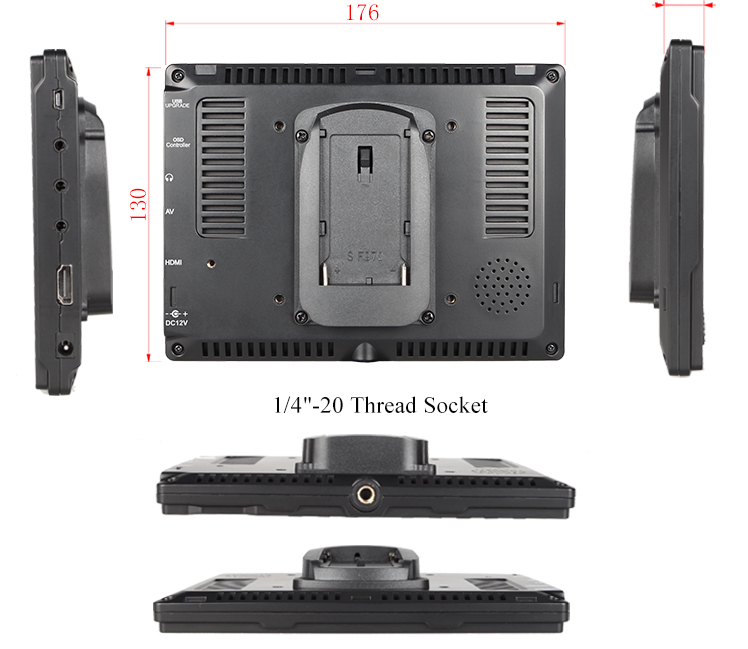

installation method | 1/4"-20 threaded socket (1 bottom) | |
unit size | 176Lx130Wx17H(mm) | |
unit weight | 0.4 kg |

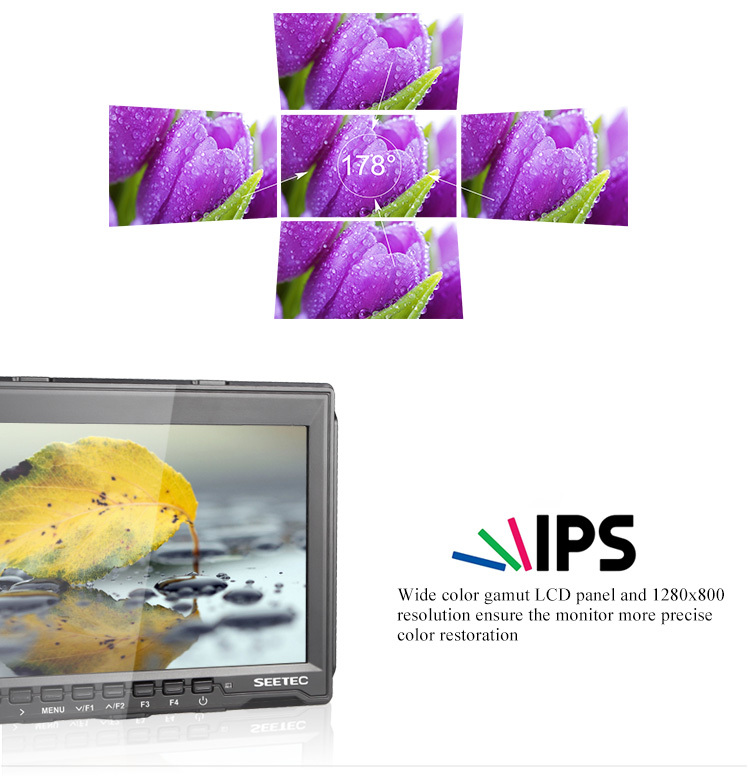

wider perspective
Enjoy a consistent image from any angle ST699 uses an IPS panel that offers a wide viewing angle of 178°/178° and a brightness output of up to 400nit. This means you'll be able to see accurate, consistent and bright images from any angle.
Slim, Lightweight Design
Designed to blend portability and functionality, the ST699 weighs only 17mm 400g, giving you the freedom to shoot anywhere and view your photos with accuracy, consistency and clarity no matter where you are.

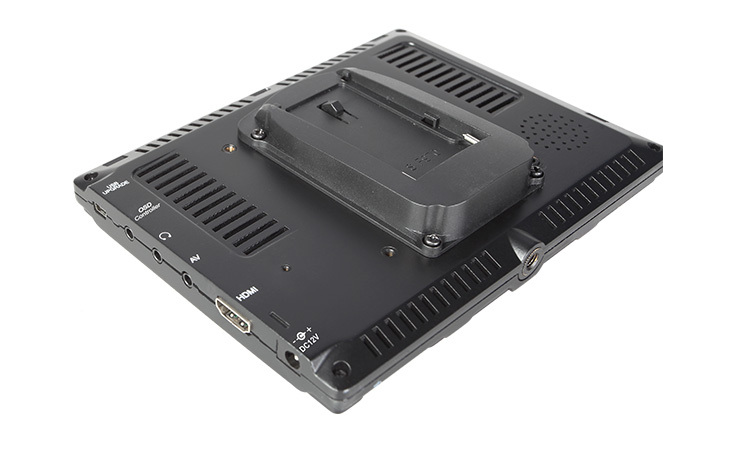

Supports a wide range of signal inputs

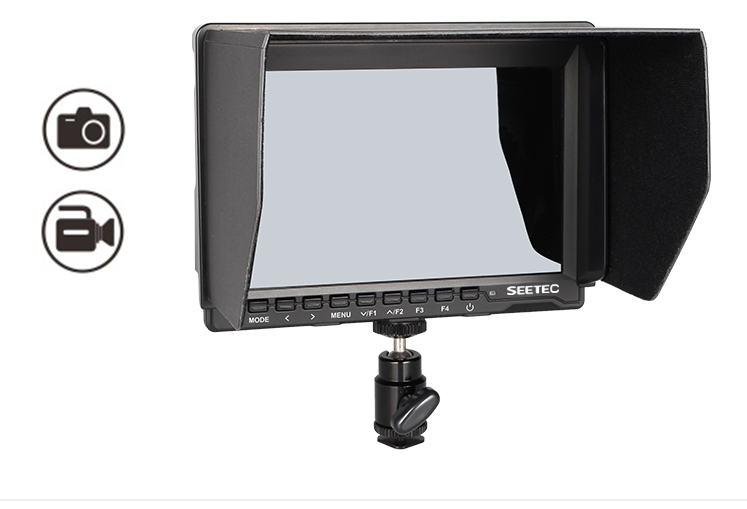

The ST699's multiple inputs include HDMI and AV, and it also supports most DSLRs and camcorders.

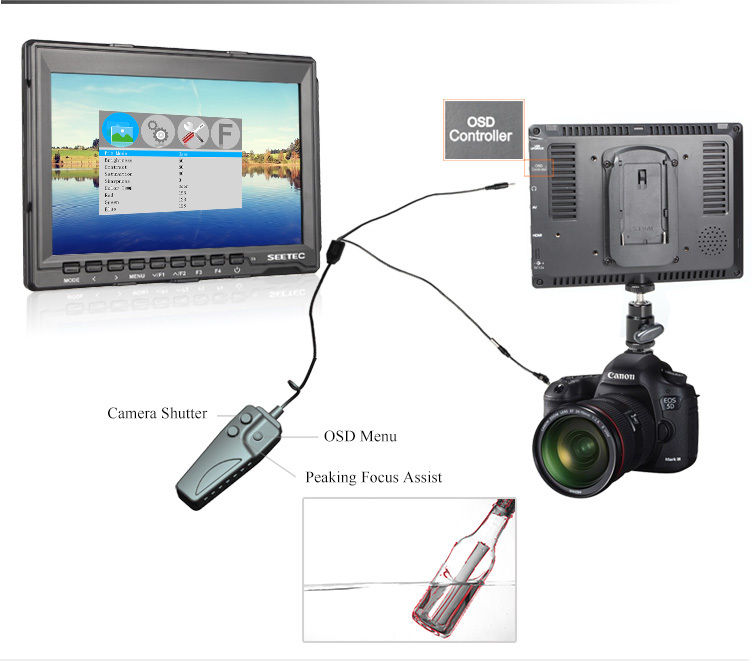

Wired controller for OSD, focus peaking, camera shutter

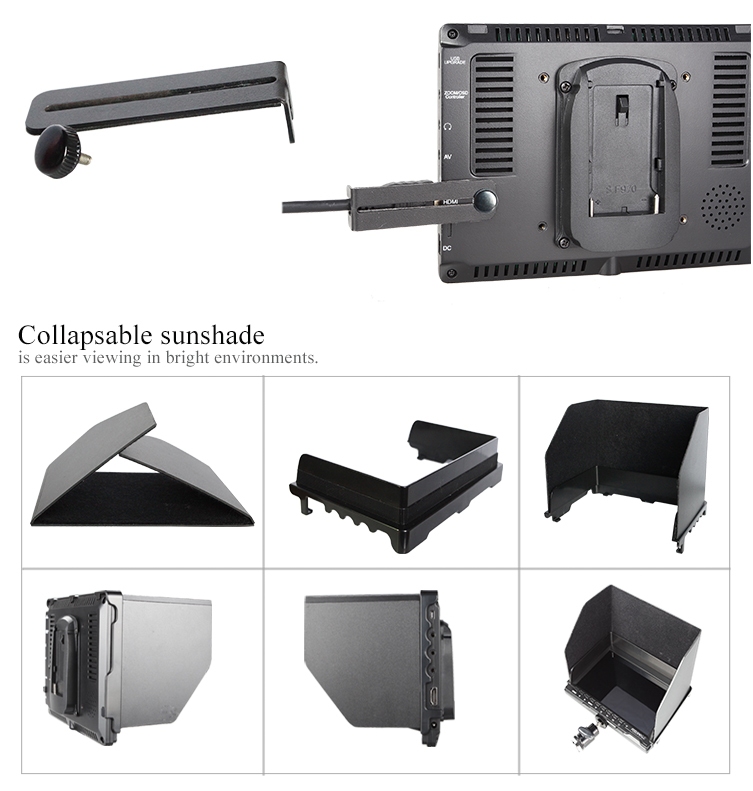

HDMI lock
In order to avoid the impact of shooting due to poor connection when using HDMI format for high-definition signal transmission (in fact, this problem often happens), we specially designed the HDMI lock to ensure the safety of signal transmission.
Advanced Features
1. Wide viewing angle IPS panel, Ultra HD1280x800 resolution
2. Enhanced 400cd/m2 backlight and 800:1 color contrast

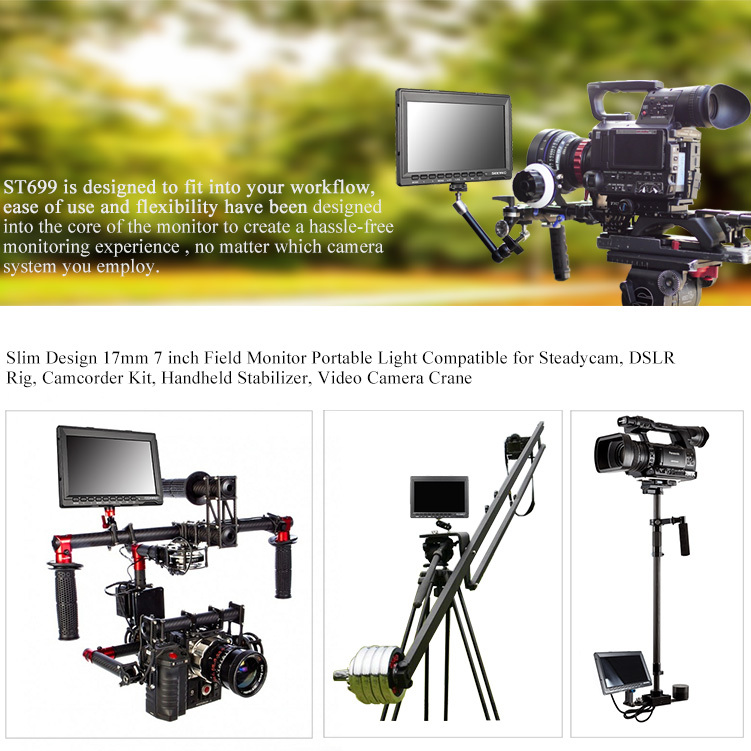

3. Slim Design 17mm Portable Light Compatible with Steadycam, DSLR Rig, Camera Kit, Handheld Stabilizer, Camera Jib
4. Input: Video, Audio, HDMI Input: Wired Remote OSD Controller, Built-in Speaker, 3.5mm Audio
5. HDMI Mode: 480i/ 576i/ 480p/ 576p 1080i (60/ 59.94/ 50) 720p (60/ 59.94/ 50/ 30/ 29/ 25/ 24/ 23.98) 1080p (60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 24fps/ 23.98/ 23.98fps)

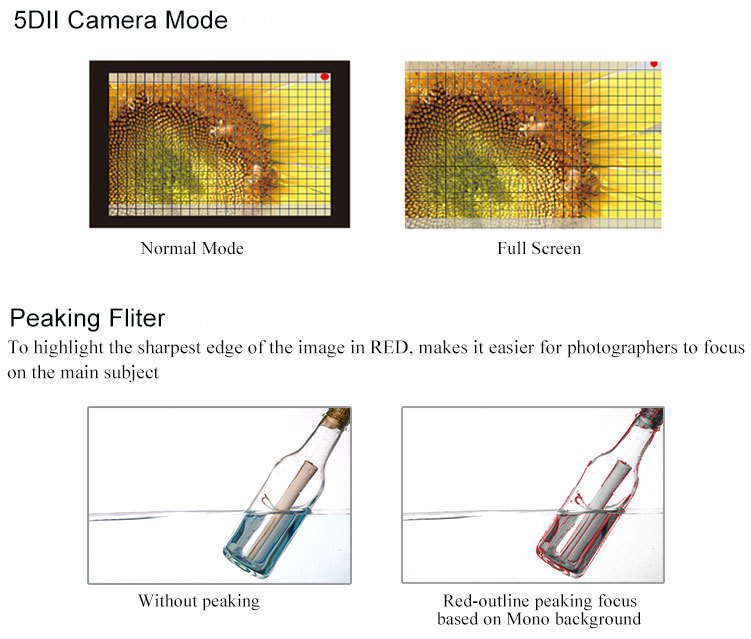

6. Peaking Focus Assist (red outline peak focus based on monochrome background)
7. Camera 5D II mode

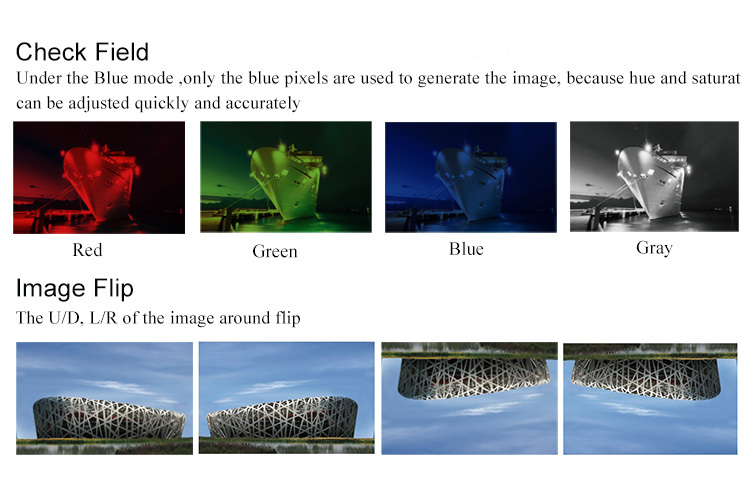

8. Check field (red, green, blue, monochrome)
9. Image flip (U/D, L/R)

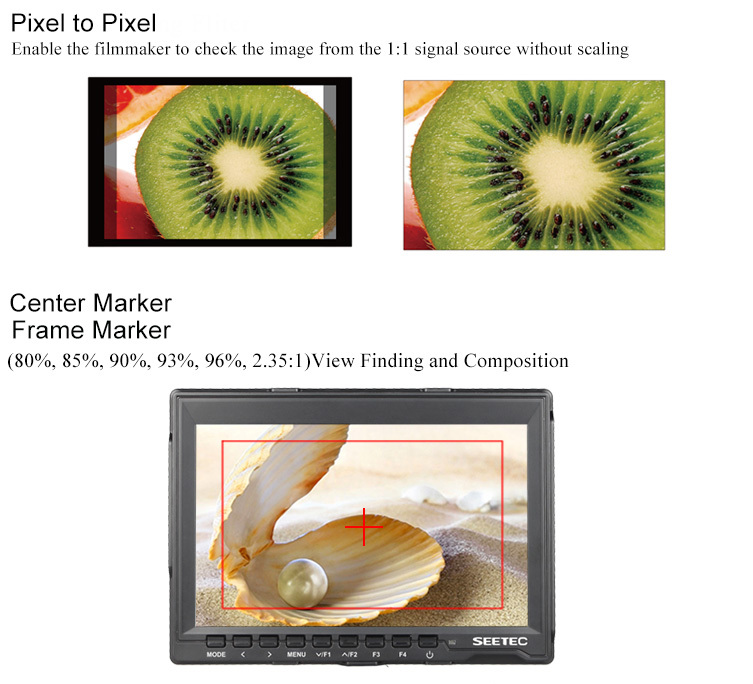

10. Center mark
11. Screen markers (80%, 85%, 90%, 93%, 96%, 2.35:1)
12. 4:3 & 16:9 image adjustable
13. Pixel to Pixel
14. Image freezing
Gift & neutral box 10pcs/ctn
