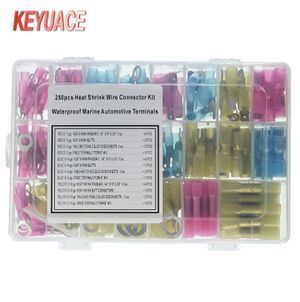

250PCS Heat Shrink Wire Connector Kit/ Waterproof Marine Automotive Terminal set

Supplier: Dongguan Ke Yu New Material Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms KEYUACE INSULATION MATERIALS
Price: $8.00 / >=200 pieces
Min. Order: 200 pieces

Click here to contact

Product details

Brand Name:	KEYUACE;	Gross weight per batch:	180 KG;
Dielectric strength:	20kv/mm min;	Package size per batch:	52X52X48 cm;
Color:	Red,Blue,Yellow;	Work temperature:	-55℃~125℃;
Shrink ratio:	3:1;	Certificate:	ROHS;
Application:	High Temperature;	Selling Units:	Multiple of 200;
Material:	PE;	Flammability:	Flame retardent;
Model Number:	HSCT;	Delivery Detail:	0 days after payment;
Rated Voltage:	1kv;	Place of Origin:	Guangdong China (Mainland);
Type:	12~10 A.W.G Yellow Male Quick Disconnect;	Tensile Strength:	10.4Mpa;

250PCS Heat Shrink Wire Connector Kit/ Waterproof Marine Automotive Terminal set

Product Description

Product Introduction:

250PCS Heat Shrink Wire Connector Kit/ Waterproof Marine Automotive Terminal set is made of polyolefin compounded with hot melt adhesive, it has excellent insulation protection, waterproof and anti-corrosion performance. The middle copper tube is high pure purple copper tube with superior conductivity.

Heat Shrink Wire Connector Kit, it has the advantage of good durablity, easy operation and low installation cost compared with conventional connector.

Application

Product Application:
1, Generally applied to electric wire, wire harness, cables and electric connector for protection.
2, Applied to rough environment for strengthen the fixed and anti-shock function.

Features

Product Feature:
1, Shrink ratio: 3:1
2,Color: Red, blue, yellow
3, PA hot melt adhesive has superior waterproof performance.
4, Extension performance is superior, resistance to mechanical damage.
5, Good electrical conductivity.
6, High elasticity, tube is not easy to deformation.

Operating Indexes:

Initial temperature: 80 ℃
Min. Shrink temp.: 130 ℃
Working temperature: 55 ℃ ~ 125 ℃

Up To Standard: Approvals
According with UL224, ROHS

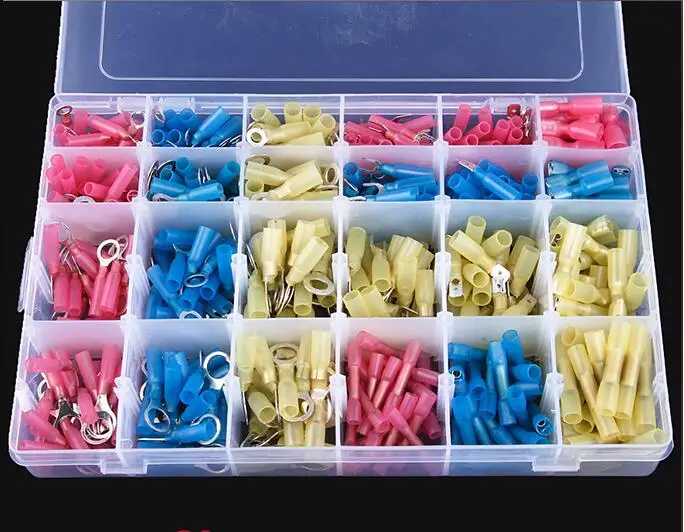

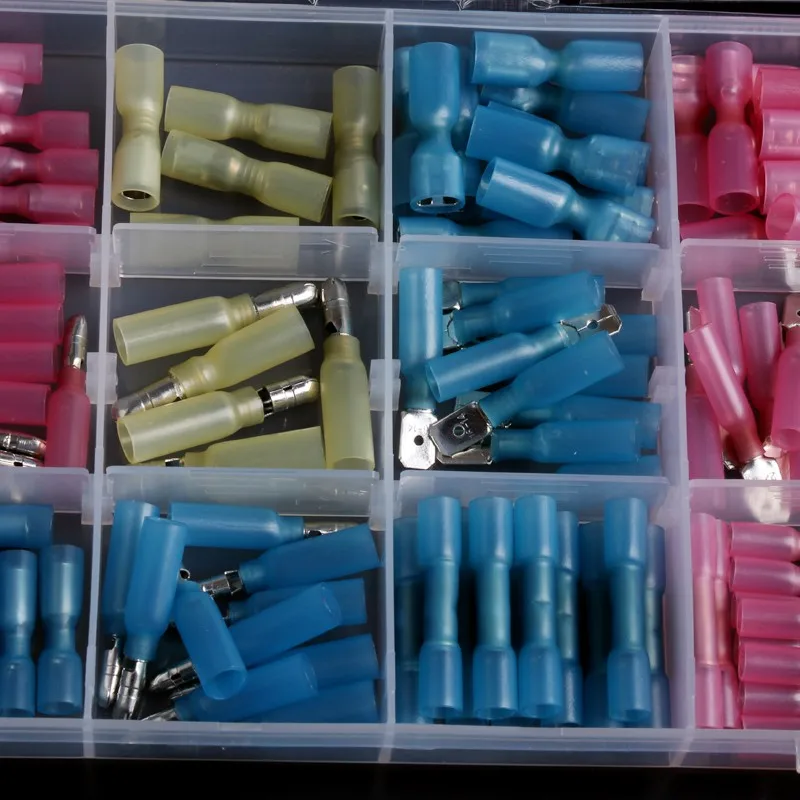

Detailed Images

Advantages

Product Property		Test method	Test Date
Before aging	Tensile strength	room temperature	≥15.9MPa
	Elongation		≥200%
After aging	Tensile strength	159℃/7 days	≥11.6MPa
	Elongation		≥100%
Voltage withstand and breakdown voltage ( Before aging )		room temperature	2500V,60sec, No breakdown
Voltage withstand and breakdown voltage ( After aging )		159℃/7 days	Withstand 2.5KV for 1minute and breakdown at least half of unaged breaddown voltage
Copper corrosion			pass
Copper stablity			No sign of degradation Min.Elongation 100%
Cold bend test		-30℃/3 hrs	No crack
Maximum secant modulus(2%)		-	250MPa
Volume resistivity		-	≥1014Ω-cm
Heat shock test		250℃/4 hrs	No crack
