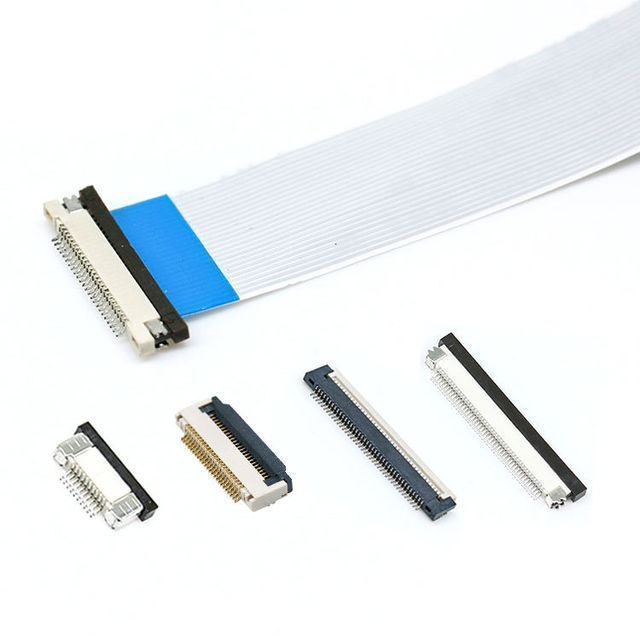

SCONDAR Custom 0.5mm Pitch Awm 20624 80c 60v vw 1 FFC Manufacturer FPC Connector 16 24 pin Honey Wire Flat Flexible Cable PCB
-
Supplier: Shenzhen Scondar Electronic Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Nicole Lei -
Price: $0.10 / >=1000 pieces -
Min. Order: 1000 pieces
Product details
| Certificate: | CE RoHS ISO9001 | Terminal material: | Phosphor Bronze Tin/Gold Plating |
| Package preview: | pack: | Rolls, Tubes, Bags | |
| temperature range: | -25℃-+85℃ | place of origin; place of origin: | Guangdong, China |
| Rated voltage: | 50V AC DC | port: | Shenzhen |
| type: | FFC & FPC Connectors | Packaging Details: | PE bag, reel, tube, carton, according to customer requirements |
| asphalt: | 0.5mm | high: | 2.0mm |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal | describe: | FFC/FPC connector |
| Card: | Skonda | Supply capacity: | 500,000 pieces per week |
| Bale: | custom | Building materials: | Heat-resistant plastic (UL94V-0) |
| model: | FFC050 | Poles: | 4-60pin |
| Current Rating: | 0.5A AC DC |
Product Description
0.5mm FPC connector
Rated current: 0.5AAC, DC
Rated voltage: 50V AC, DC
Temperature range: -25°C ~ +85°C
Contact resistance: 30m Omega Max.
Insulation Resistance: 500M Omega min.
Withstanding voltage: 500V AC/min
Poles: 4-60 pins
Rated voltage: 50V AC, DC
Temperature range: -25°C ~ +85°C
Contact resistance: 30m Omega Max.
Insulation Resistance: 500M Omega min.
Withstanding voltage: 500V AC/min
Poles: 4-60 pins

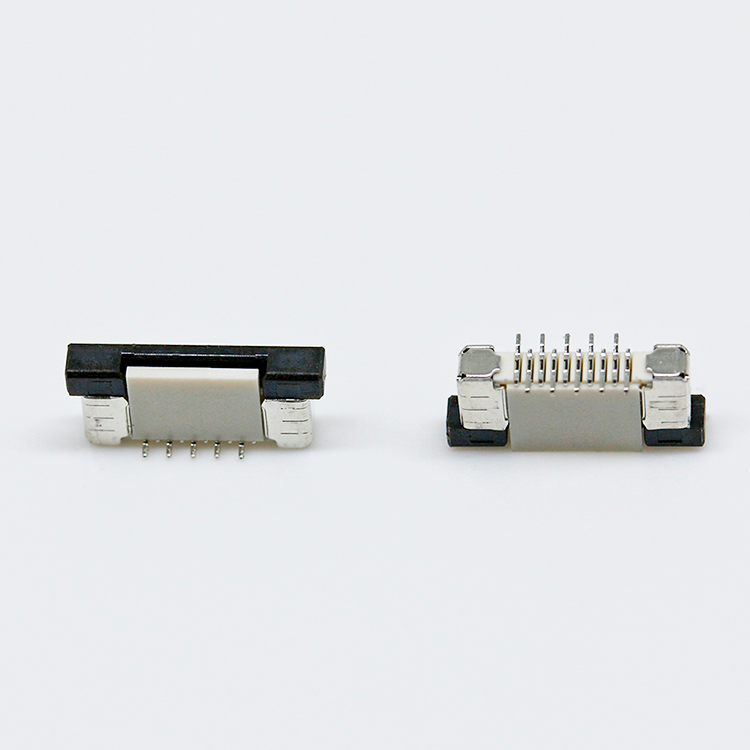

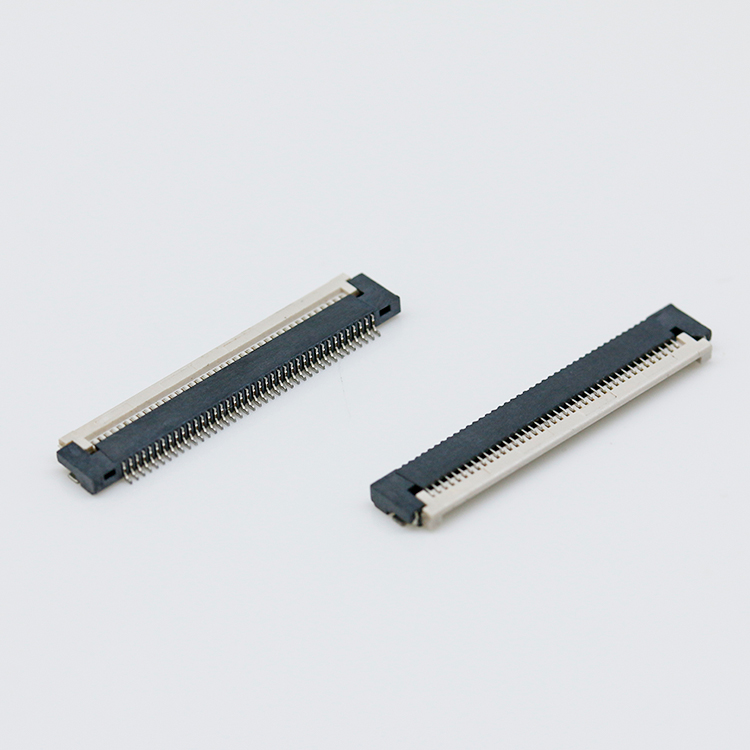

0.5mm pitch "A" model H=2.0
Bottom contact FPC connector
Bottom contact FPC connector
0.5mm pitch "B" bottom
Contact FPC Connector
Contact FPC Connector
0.5mm pitch "B" model H=2.0
Vertical SMT FPC Connector
Vertical SMT FPC Connector
0.5 mm pitch "C" type H=1.2 bottom/top
Contact FPC Connector
Contact FPC Connector
0.5mm pitch "E" model H=1.5
Bottom contact FPC connector
Bottom contact FPC connector
0.5mm pitch "F" model H=2.0
Bottom contact FPC connector
Bottom contact FPC connector
