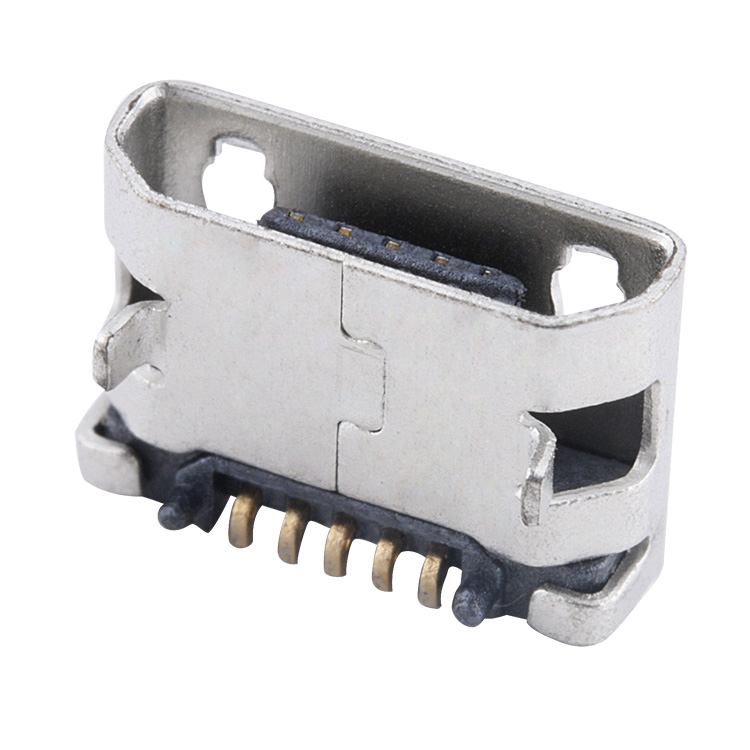

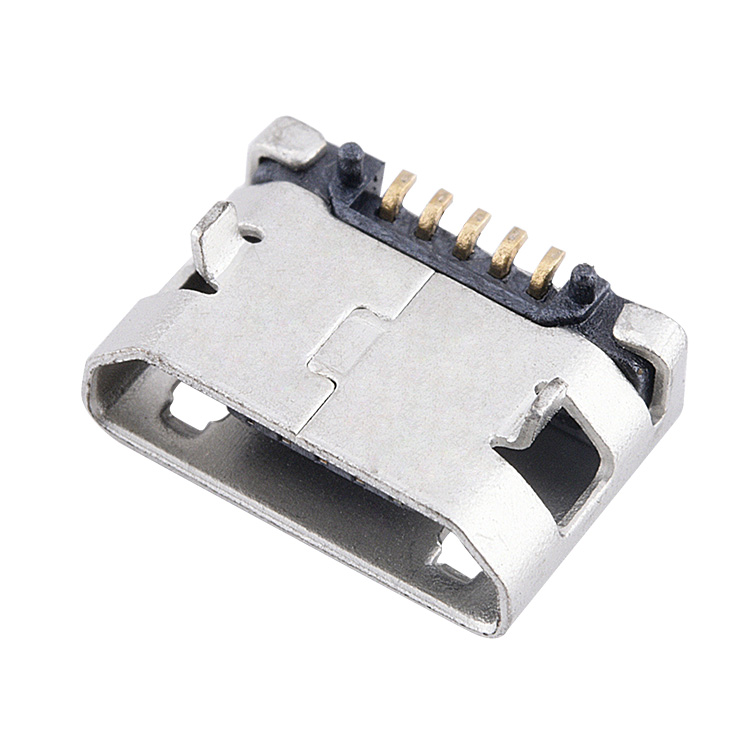

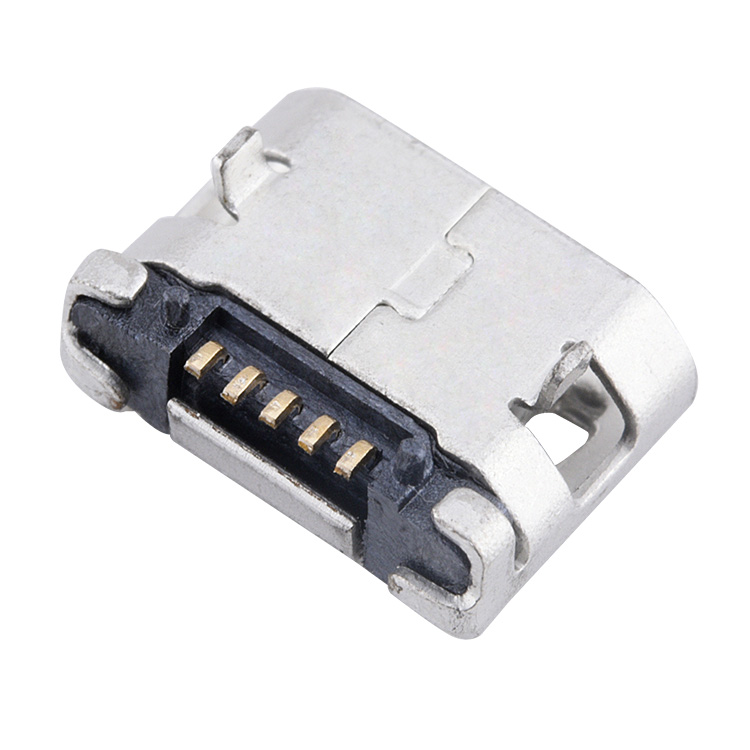

Large supply of Micro USB Type B 5-Pin Female PCB Connectors
-
Supplier: Shenzhen Chuangqin Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Wendy Wu -
Price: $0.04 / 1 - 199999 pieces
$0.03 / >=200000 pieces -
Min. Order: 1 piece
Product details
| application: | circuit board | gender: | female |
| Payment/Payment: | 2021 | model: | CQ-USB-MICRO 5.65 |
| Bale: | Woven packaging | place of origin; place of origin: | Guangdong, China |
| Card: | Chuang Qin | port: | Shenzhen |
| Packaging Details: | durable export carton | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Durability: | 10000 cycles | Insulation resistance: | 100 ohms |
| Current Rating: | 1.0 Ampere.MAX | Package preview: | |
| shell: | Stainless steel | type: | USB |
| Operating temperature: | -30°C- 80°C | Pin: | 5P |
| describe: | Micro female connector | Synergy: | 35N max |
| Dielectric Resistance: | AC100V/min | Supply capacity: | 100000 pieces per day |

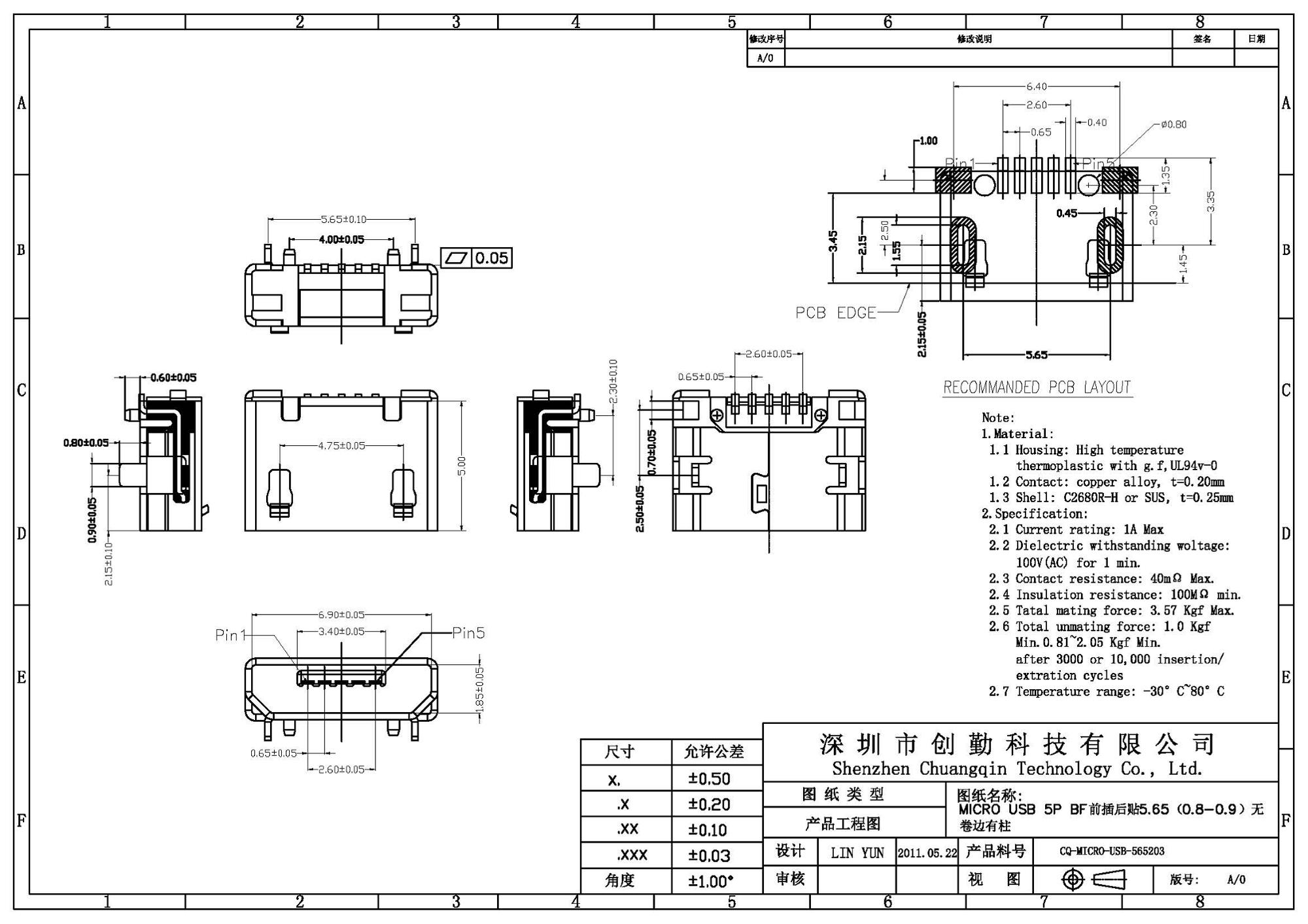

Large supply of Micro USB Type B 5-Pin Female PCB Connectors
housing | High temperature thermoplastic, gf, 94v-0 |
touch | Copper alloy, t=0.20mm |
shell | Stainless steel, t=0.25mm |
current rating | 1A max |
Dielectric withstand voltage | 100V(AC) for 1 minute |
Contact resistance | 50mΩ max |
Insulation resistance | Minimum 100MΩ |
total mating power | 3.57 kgf max |
total pull out force | Min. 1.0 kgf 0.81~2.05 kgf min after 10,000 insertion/extraction cycles |
temperature range | -30°C to +80°C |
