1 ton manual hoist operated chain block with Japanese technology 2 ton 3 ton 5 ton

Product details
Test load:1.5 timesCertification CE GS:CEGS
Packaging Details:Standard export packagingmodel:VCA
usage:Construction liftsSupply capacity:5000 sets per month
port:Tianjinpayment terms:L/C, T/T
Lifting height:3 meterscapacity:1T 2T 3T 5T
hook:forgingWarranty:1 year, 3 years
place of origin; place of origin:Hebei chinaCustomization support:OEM,ODM,OBM
chain:G80 chainEnergy source:Bracelet
Material:alloy steel

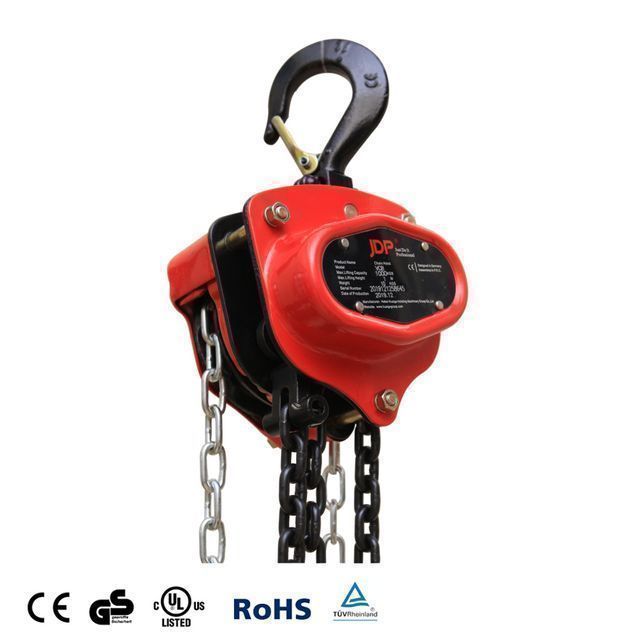

VCA type chain hoist



1) Capacity: from 0.5T--50Ton

2) Double cover protection

3) Fully forged hooks

4) Double pawl

5) With double guide wheels

6) Equipped with G80 high-quality lifting chain

7) Load chain can be galvanized/black painted according to option.



Product Description

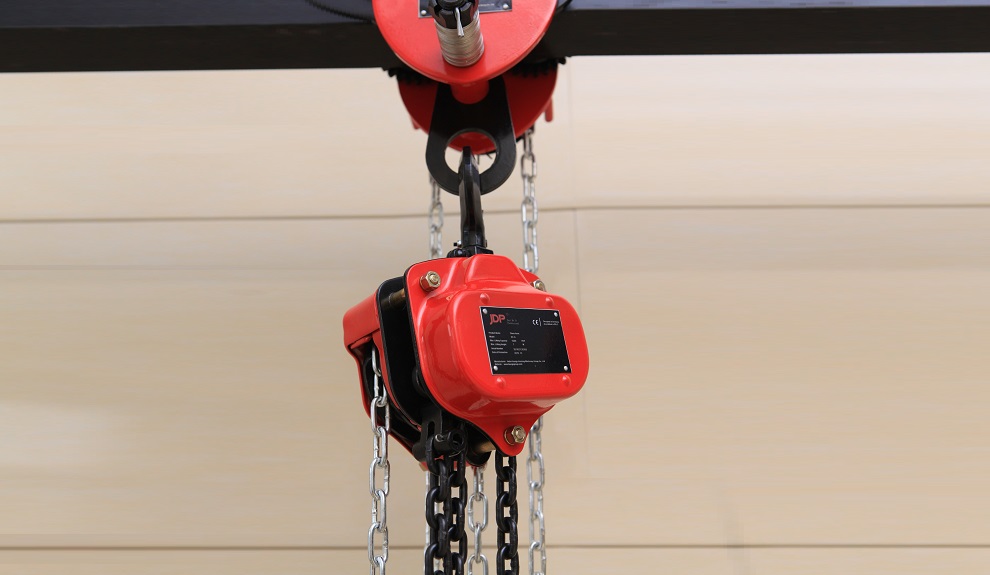

Chain hoist VCA model

1. Gearbox and handwheel cover are resistant to external impact:
The sides of the hoist are covered with the highest technology treated thickened steel gearbox with reinforced wheel housings. They have the ideal shape and stiffness to maintain bearing alignment and withstand external shocks.

2. Double-layer casing to prevent rain and dust from entering:
The brake mechanism, which forms the heart of the hoist, is enclosed in a double cover: wheel cover and brake cover. These protective covers not only keep out the weather elements, but also help keep mud and dust out of the inner mechanism.

3. The double pawl spring mechanism further increases the stability:
In case one of the pawl springs is damaged, the other retains its function. This mechanism further increases certainty.

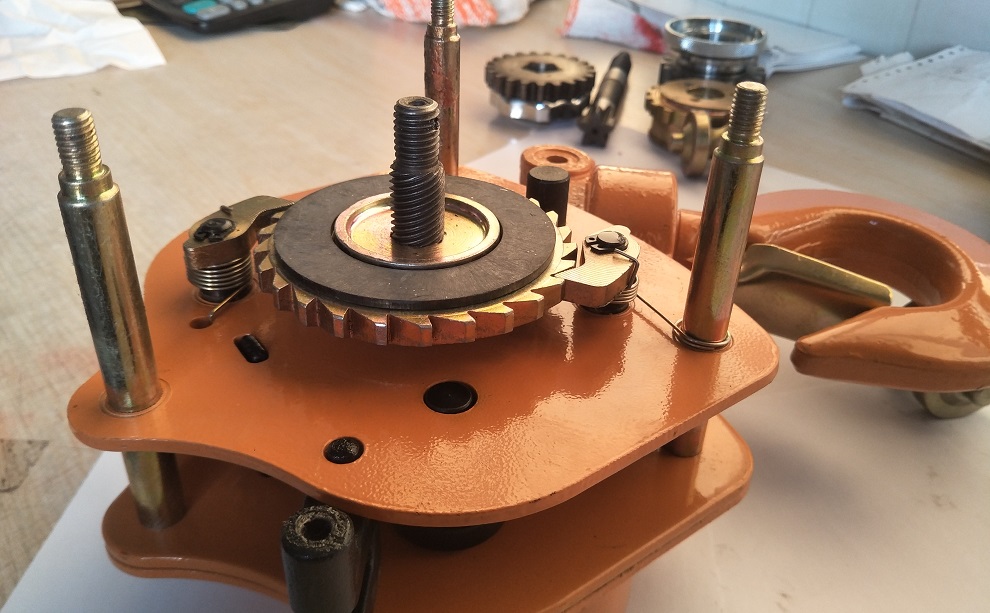

4. Reliable mechanical brake:
Weige's dry asbestos-free mechanical brakes guarantee powerful braking performance.

5. Hooks for easy work:
Specially heat-treated top and bottom hooks are strong and tough enough for tough jobs. Bottom hook design with large dimensions for easy stabilization of loads in place.
The guarded bottom yoke features guards that protect the chain pins and nuts from damage for added safety.

6. Bearing mechanism to improve mechanical efficiency:


The use of unique ball and needle bearings dramatically increases mechanical efficiency and produces high output power with minimal manual input.

7. Load chain guiding mechanism:
Chain guides in flanged load pulleys and guide pulleys contribute to smooth movement of the loaded chain.

8. Stopper prevents excessive lowering:

9. Super load chain (nickel plated)





capacity 1000kg -30000kg
delivery time 35 days

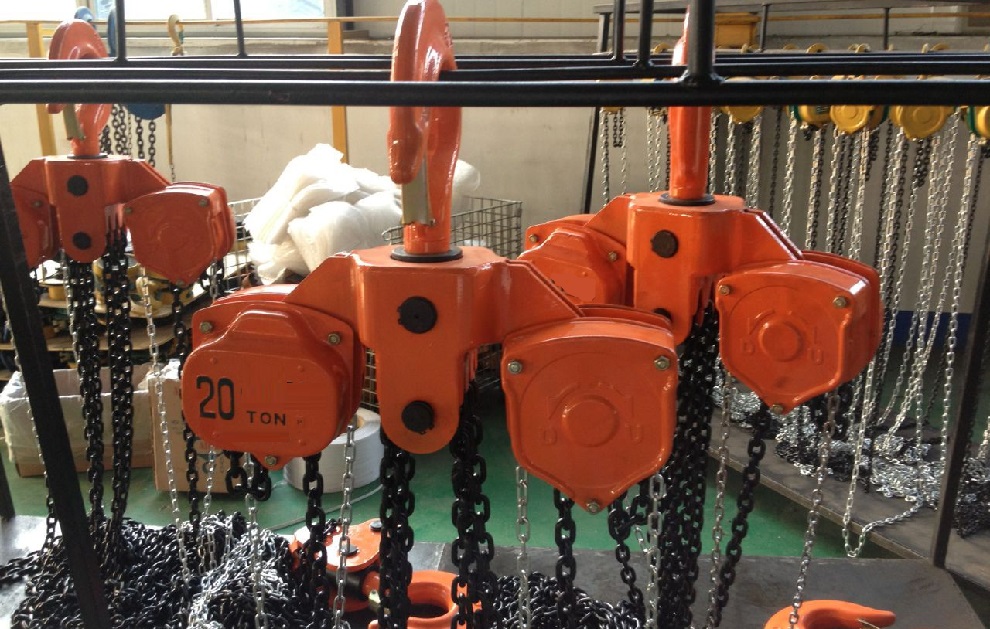

  • Testing machine in my workshop

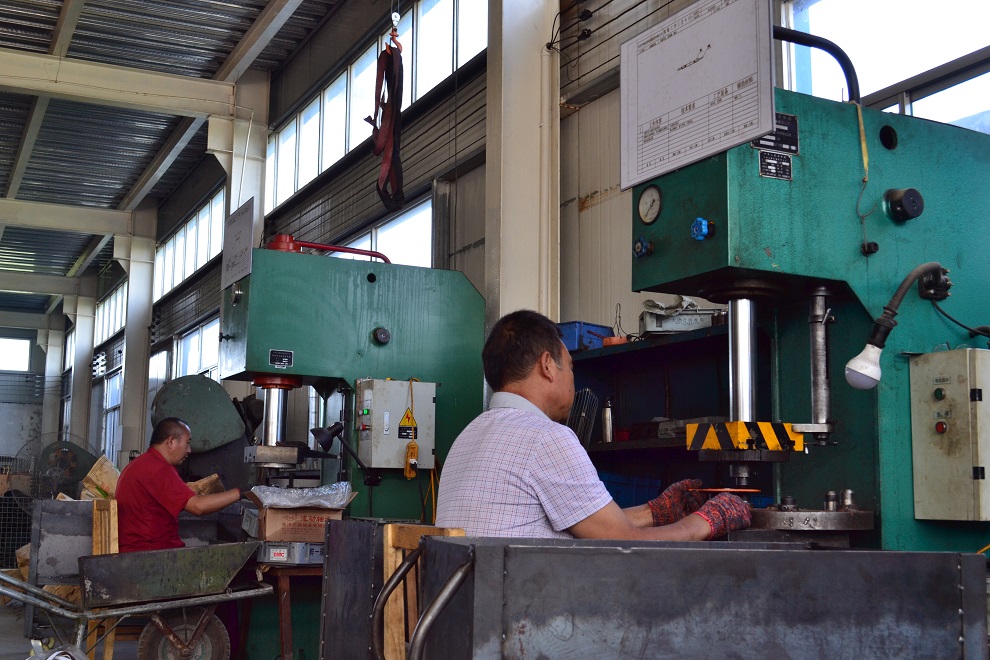

  • Make every part with heart

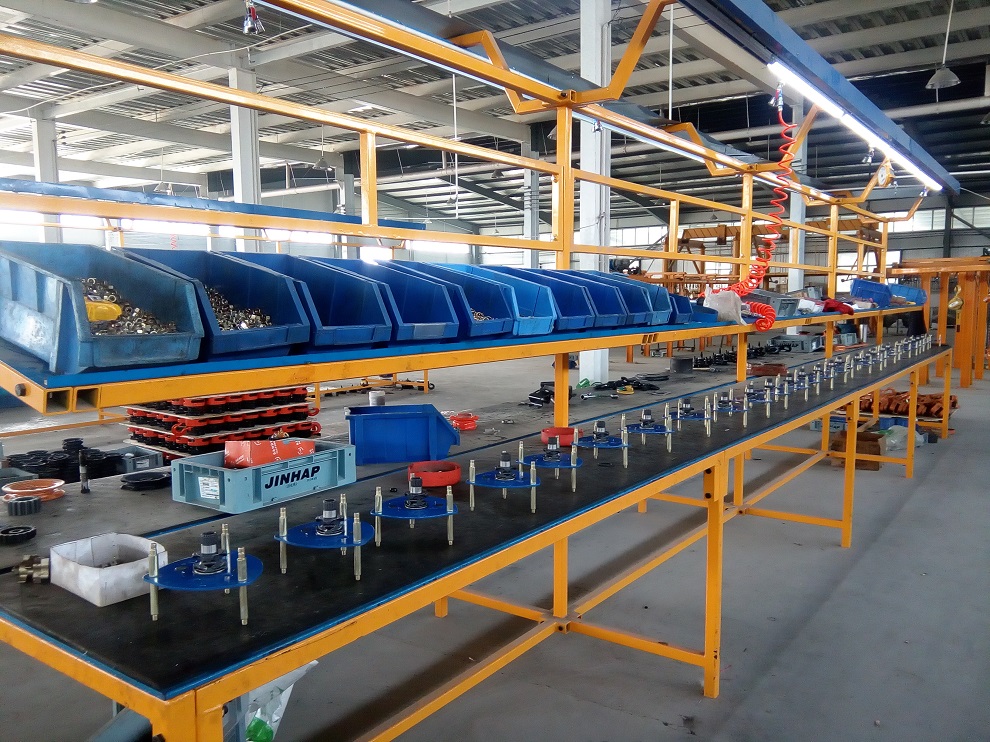

  • production line

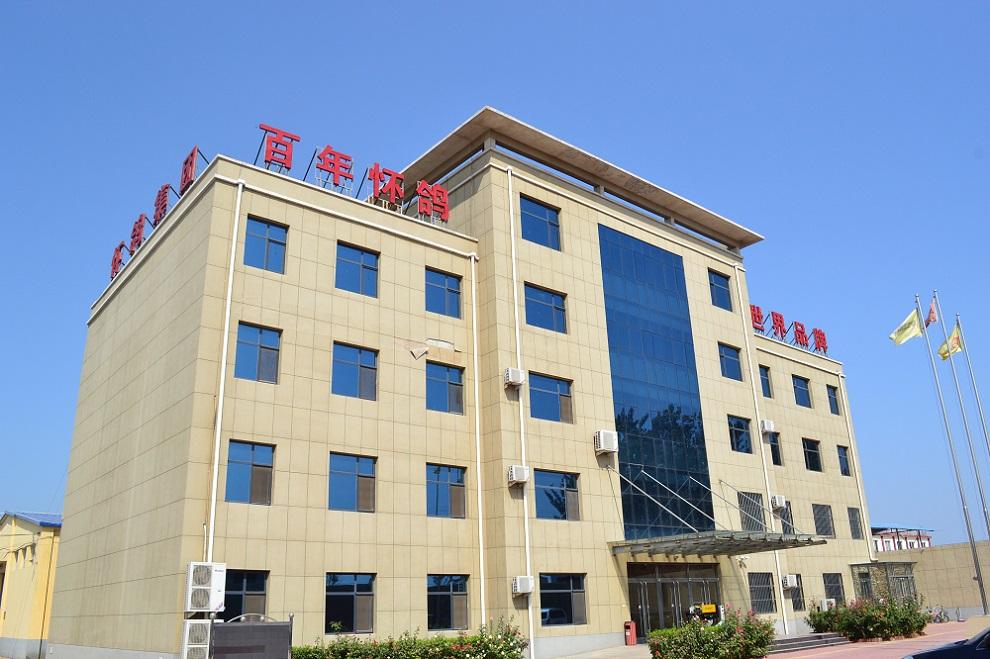

Hebei Huaige Lifting Machinery Manufacturing Group Co., Ltd. (Weige Group) is a leader in the lifting industry, providing quality lifting, rigging and positioning equipment worldwide. From international engineering and home repairs, market dealers and construction companies rely on Viger products to keep projects on track.

Viger electric hoists, hand hoists, chains and rigging products are recognized in construction around the world. Our chain hoists, wire rope hoist products, hoist components and services lead the industry in innovation, performance and reliability.

If you are looking for material handling solutions, whether it is lifting or rigging solutions, we invite you to contact us.
