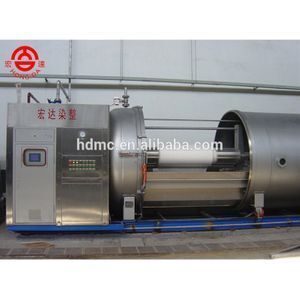

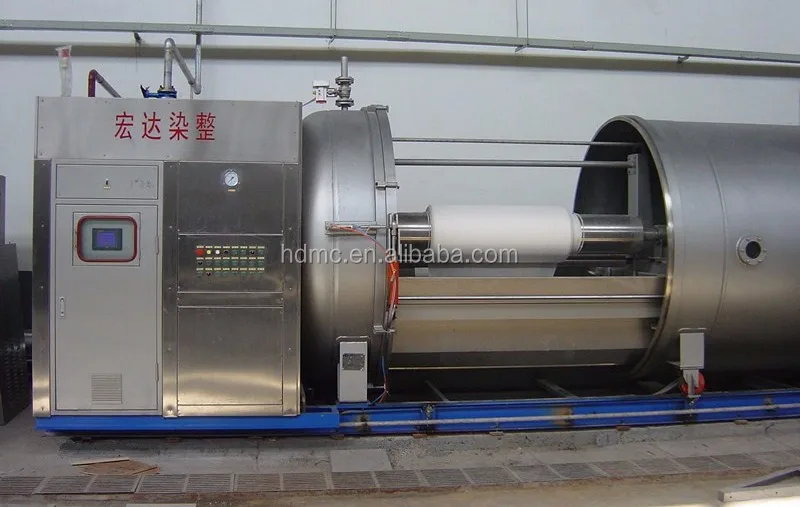

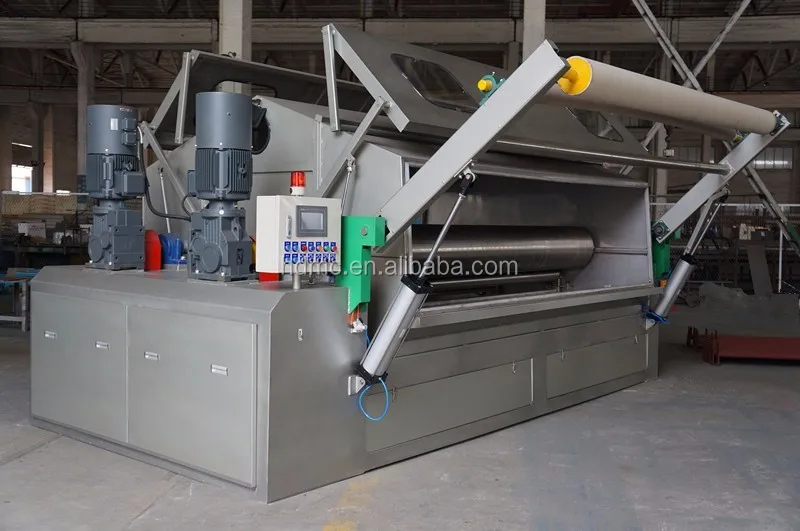

High temperature Dual frequency conversion jigger dyeing machine

Product details
Brand Name:HD;Power(W):7.5 kw;
Operation interface:10 inches Weinview Colorful touch screen(Taiwan);Model Number:HD618-1200-2200;
Payment Terms:L/C,T/T;Frenquency converter:Yaskawa;
Certification:CE marking;Condition:New;
Voltage:220v or 380v;After-sales Service Provided:Engineers available to service machinery overseas;
Packaging Detail:40 HQ;Supply Ability:30 Set/Sets per Month;
Delivery Detail:50 days after advance payment;Weight:8 tons;
Place of Origin:Jiangsu China (Mainland);Automatic Grade:Automatic;
Electric:Schneider, France;Port:Shanghai;
Controller:Omron PLC;Dimension(L*W*H):7400*2750*2900mm;
Warranty:13 months;
Product Description

Product Application

Suitable fabric: Viscose, nylon, elastic fabric, silk, cotton, polyester, hemp, blended fabric.

SPECIFICATIONS FOR 2200 High Temperature Dual Frequency Jigger Dyeing Machine

Roller speicifications
Rolling diameter
mm
1200
Roller width
mm
2200
Efficient roller width
mm
2000

Main performance parameters
Speed
m/min
2-130
Tension range
kg
<=90
Temperature control range
Degtree
0-135

Power
Motor power of main roller
Kw
15
Tank body mobile motor power
Kw
0.75
Motor power of circulating pump
Kw
2.2

Main Features

1) Whole machine is dual frequency converter control system, human-computer operation interface
2) Set of constant tension, constant linear speed
3) Functions of manual, automatic, speed up, slow down
4) Automatic head back, automatic record the lines, automatic stop machine, automatic swing function if line is full
5) Whole machine automatic temperature control, technological operation
6) Operation screen programmable set, technology storage, automatic identification, automatic alarm
7) Liquid level automatic control, automatic charging, automatic circulating
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Detailed Images

Machine Parts

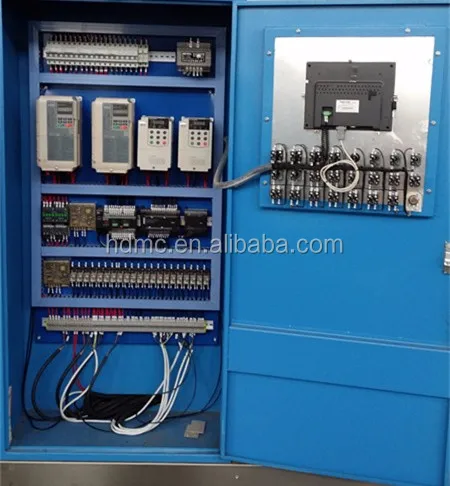

Name: PLC

Brand: Omron

Original: Japan


Machine Parts

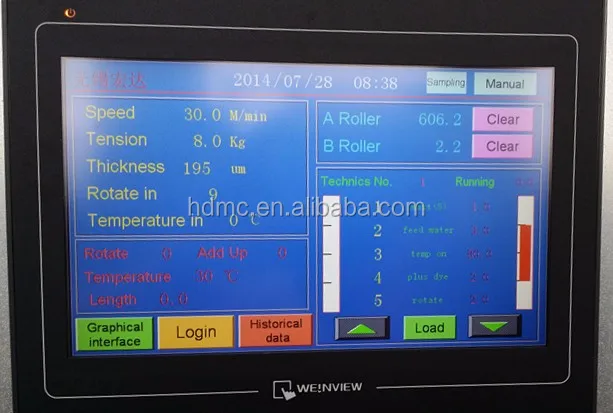

Name: Operation Screen
Brand: Weinview
Original: Taiwan, China
10 inches Weinview Colorful touch screen

Machine Parts

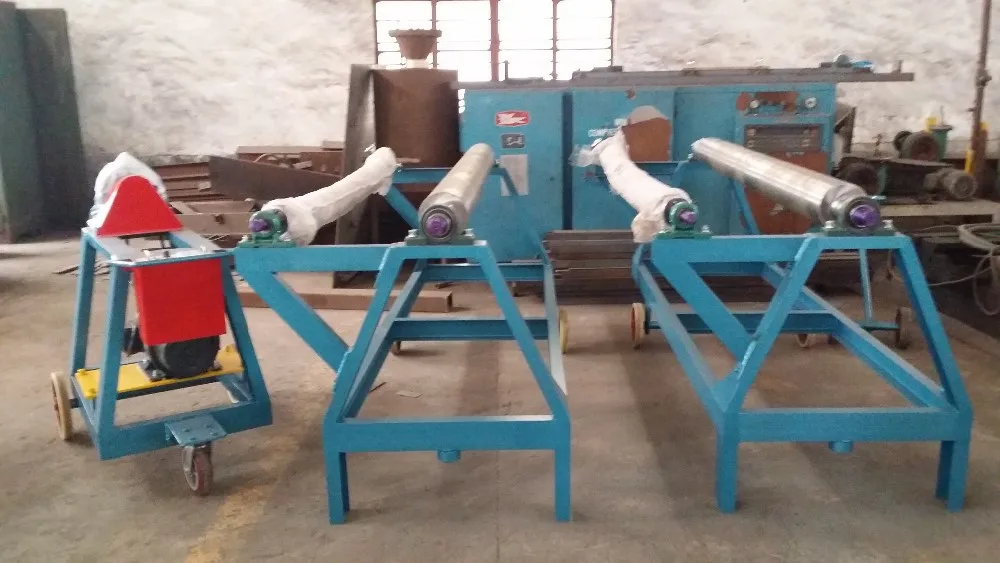

Name: A-Frame
Brand: HD
Original: China,
Self-made, include brake.

Machine Parts

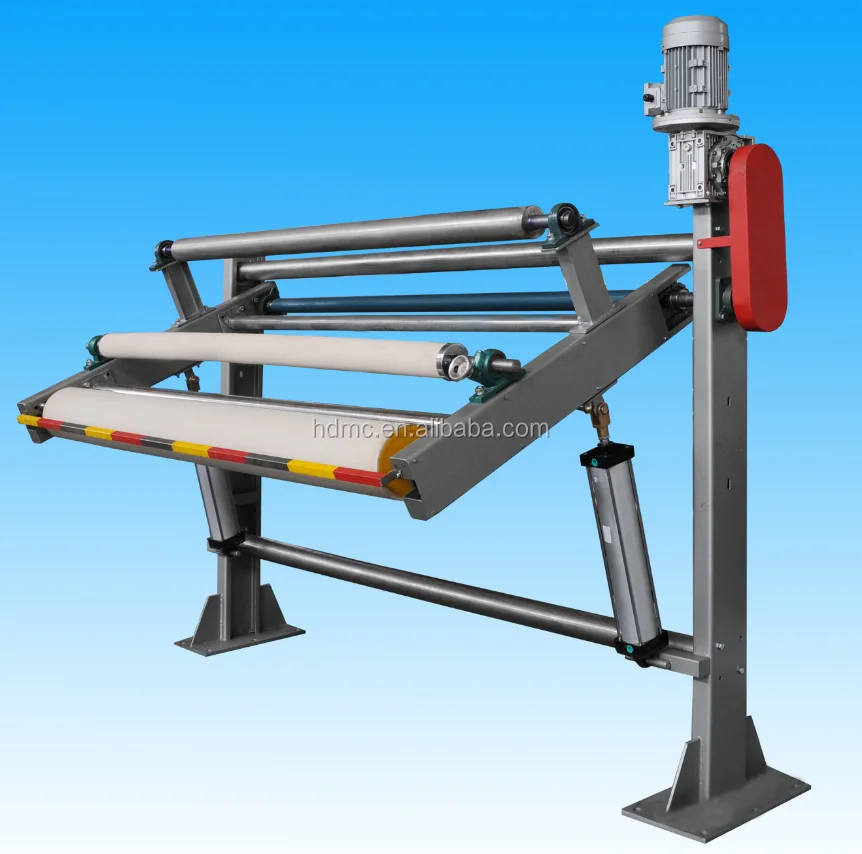

Name: Winding frame
Brand: HD
Original: China
Self-made, made of stainless steel
