KC certified 502030 3.7V 250mAh Lithium Polymer Battery For Bluetooth /camera

Click here to contact

Product details

Selling Units:	Single item;	Capacity:	250mAh;
Model Number:	AS502030;	Brand Name:	A&S POWER;
OEM/ODM:	Accepted;	Package Preview:	https://sc01.alicdn.com/kf/HLB1sEX1SwHqK1RjSZFgq6y7JXXaI.jpg_640x640.jpg;
Voltage:	3.7V;	Type:	Standard Battery;
Delivery Detail:	0 days after payment;	Product Name:	KC certified 502030 3.7V 250mAh Lithium Polymer Battery For Bluetooth;
Protection:	Seiko PCB Inside;	Delivery Time:	4-7days;
Use:	MP3 / MP4 Player;	Package Type:	Carton package for KC certified 502030 3.7V 250mAh Lithium Polymer Battery For Bluetooth /camera;
Certificate:	CE ROHS KC.UL.IEC62133;	Single package size:	3X2X0.6 cm;
Warranty:	1 Year;	Rechargeable:	Yes;
Place of Origin:	Guangdong China (Mainland);	Weight:	6g;
Size:	5.02030mm;	Single gross weight:	0.007 KG;

Product Description

Product Description for KC certified 502030 3.7V 250mAh Lithium Polymer Battery For Bluetooth /camera

1. Model: AS502030

2. Dimension: 5.2*21*32.5mm

3. For digital products

Parameter Table:

Item			Rating	Note
3.1 Capacity		Typical	250mAh	Discharge:0.2CmA cut off Voltage:3.0V for cell
		Minimum	230mAh
3.2 Nominal Voltage			Average 3.7V	Discharge:0.2CmA cut off Voltage:3.0V for cell
3.3 AC Impedance Resistance			≤30mΩ
3.4 Discharge Cut-off Voltage			3.00V
3.5 Charge Current			165mA	Standard Charge
3.6 Charge Voltage			4.2V
3.7 Max. Charge Voltage			4.23V
3.8 Charge Time			Approx 2.5h	Charge: 1.0CmA
3.9 Max. Charge Current			230mA	1.0CmA
3.10 Max. Discharge Current			230mA
3.11 Weight			Approx 6g
3.12 Operating Temperature	Charge		0~+45°C
	Discharge		-20~+60°C
3.13 Storage Temperature	less than 1 month		-20~+45°C	Recommended storage temperature: 20°C,at the shipment state
	less than 3 months		-20~+30℃

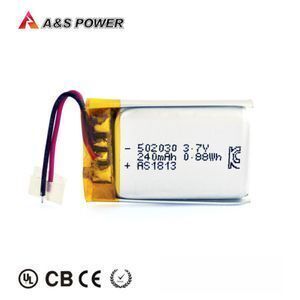

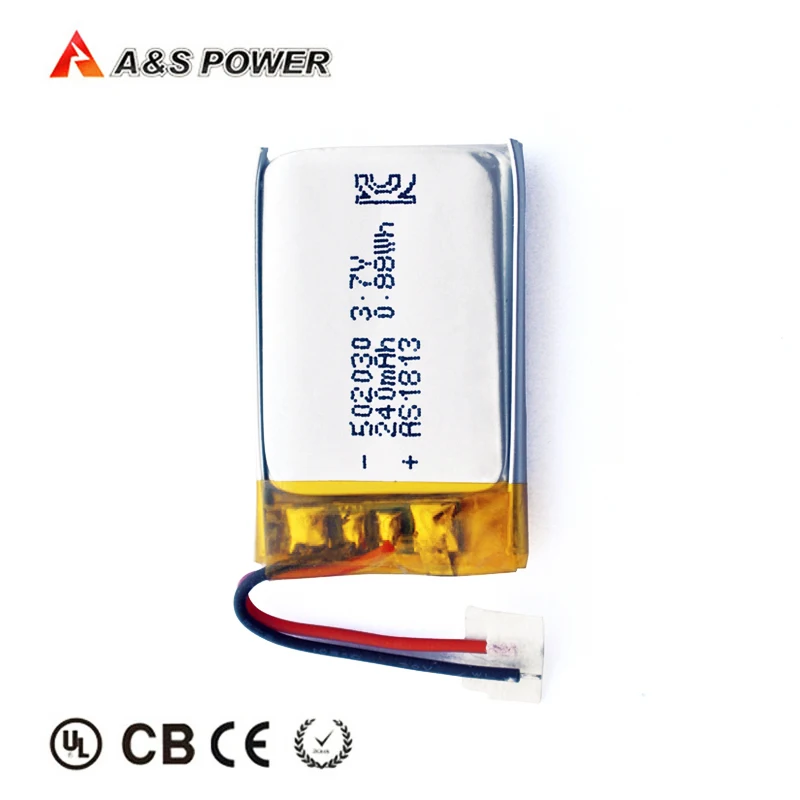

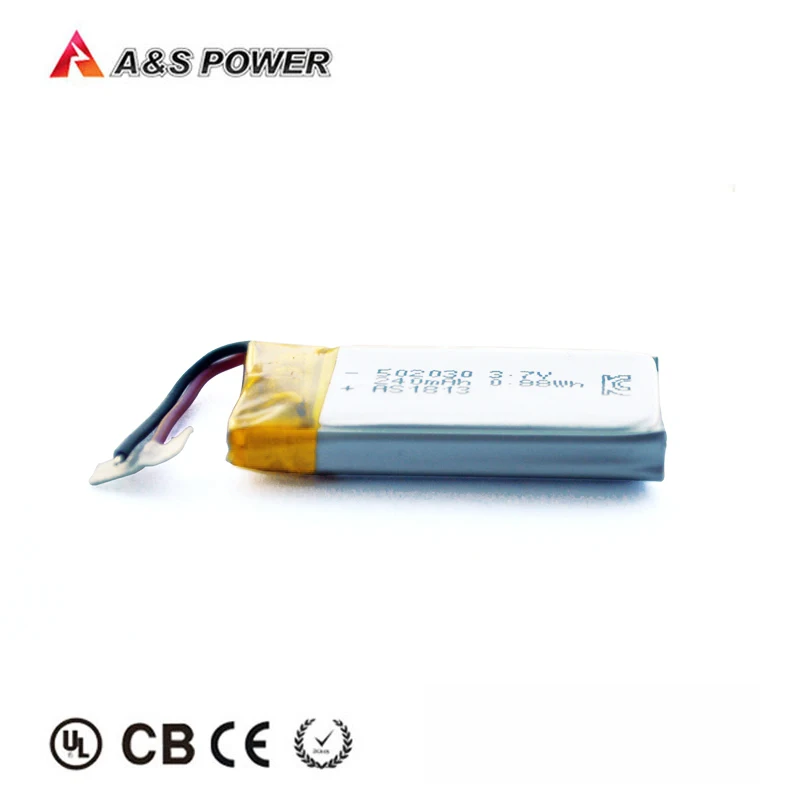

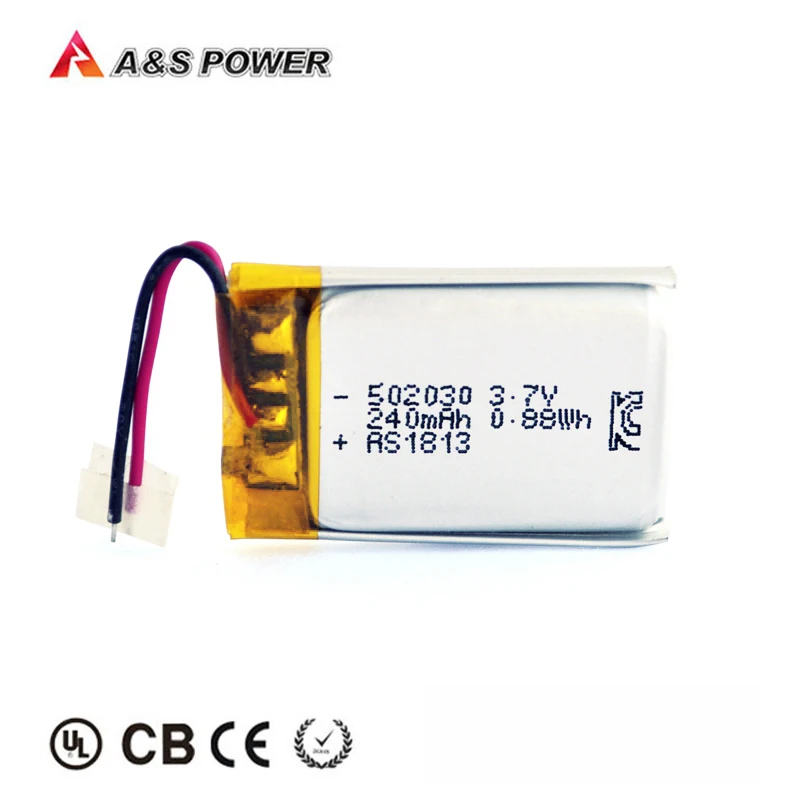

Product show

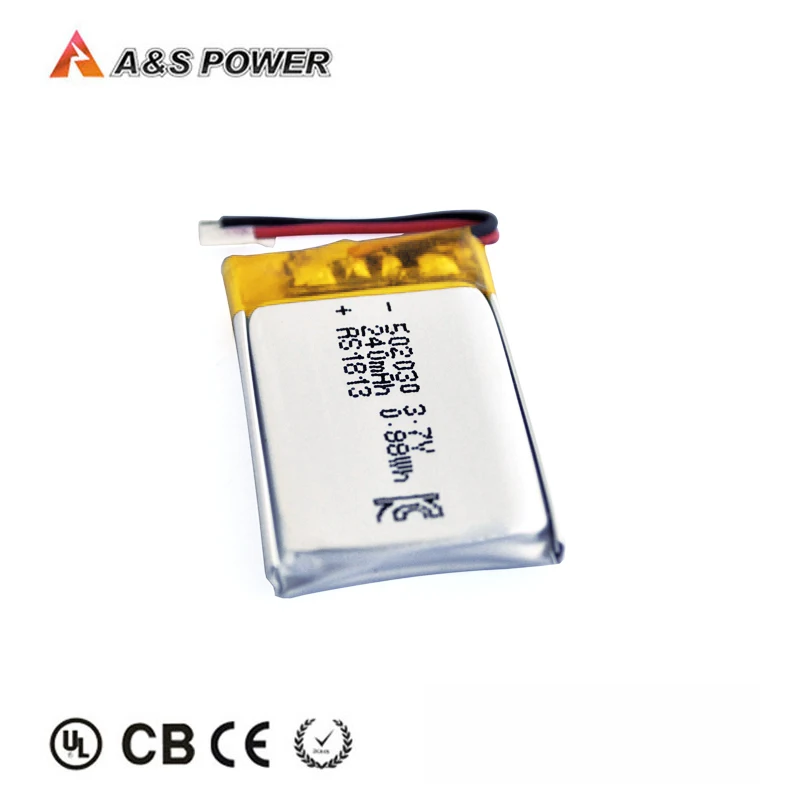

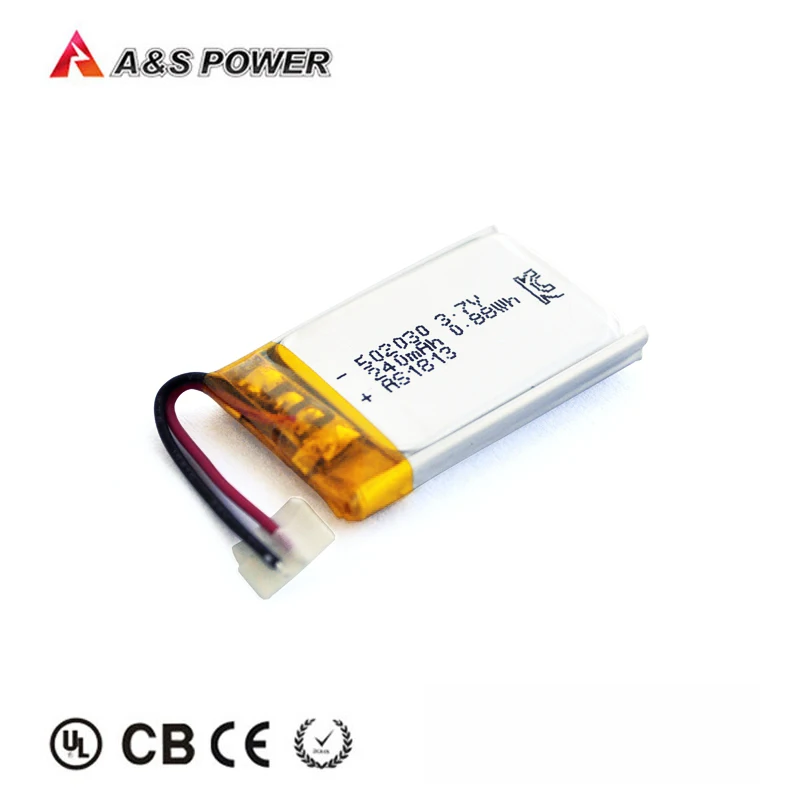

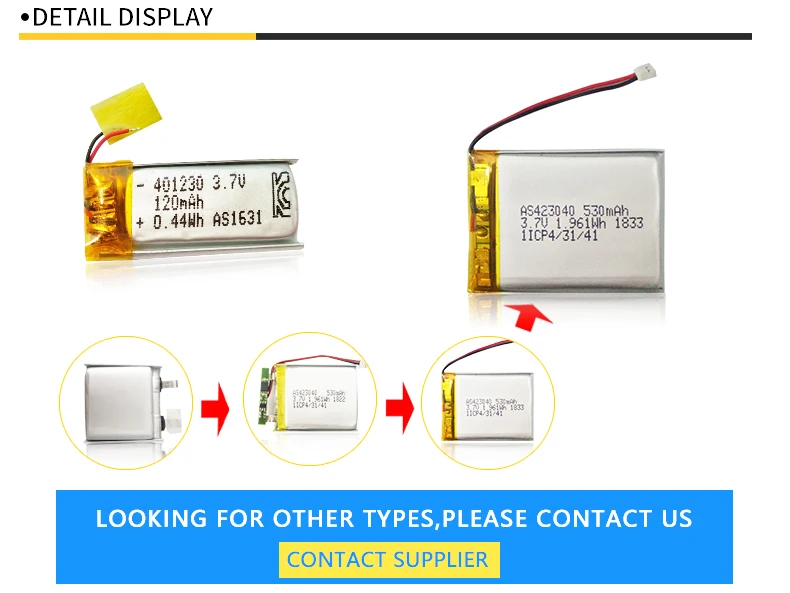

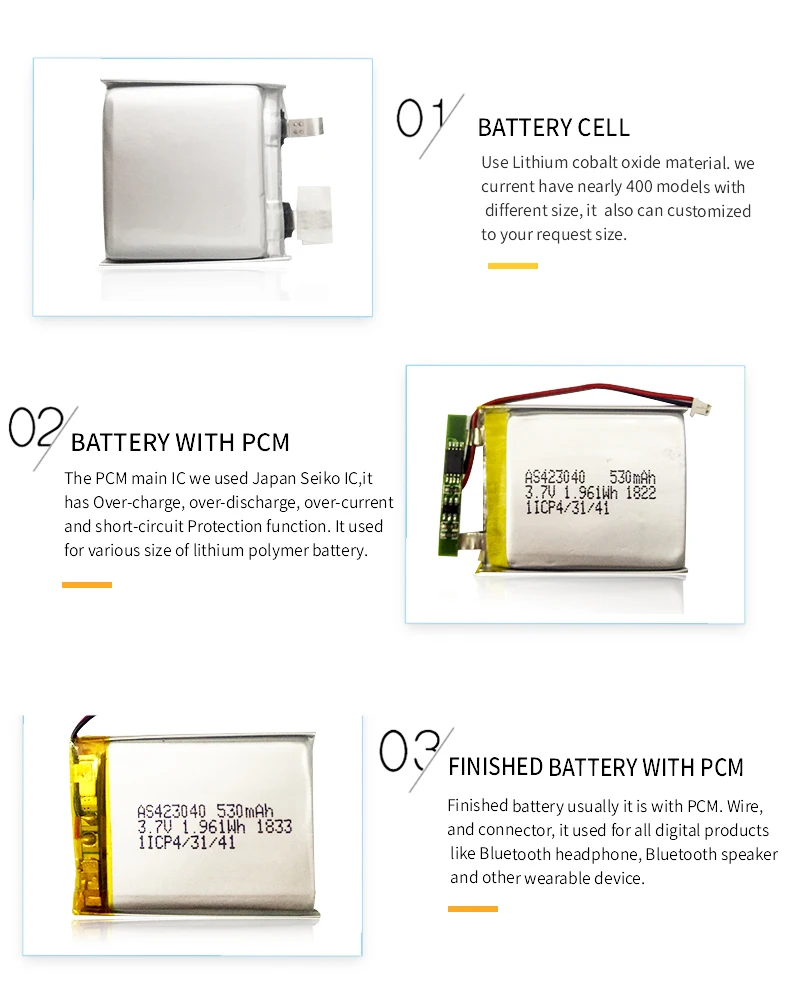

Detail Display

You can customize different combinations of batteries according to your needs!

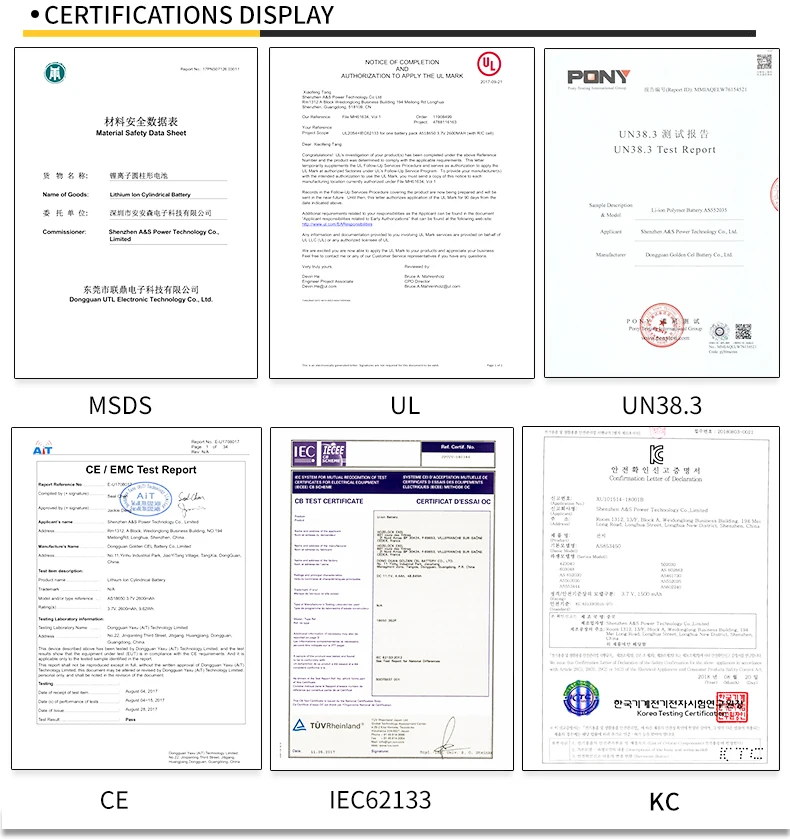

Certifications

Application

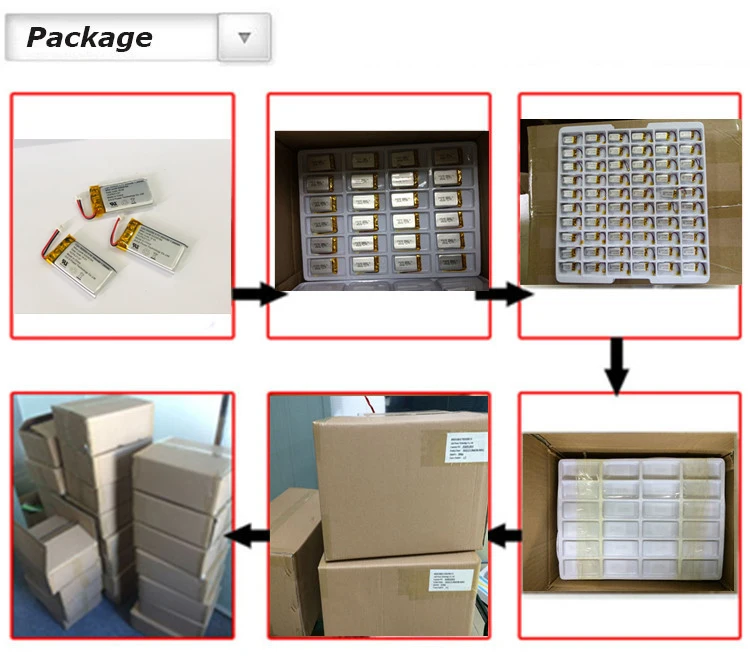

Packaging & Shipping

Shipping
Destination	Normally arrive port time in working days
Destination	Ship by express	Ship by sea	Ship by air
North America	3-7 days	15-28 days	5-7 days
South America	3-7 days	15-30 days	5-7 days
European	3-7 days	20-30 days	5-7 days
Africa	5-7 days	45-50 days	5-7 days
The Middle East	3-5 days	15-30 days	3-5 days
Australia	3-7 days	10-20 days	5-7 days
