Vacuum degree: | -95KPa | Thermocouple: | k-type |
place of origin; place of origin: | Henan, China | model: | XDEM-1200DF |
Classification: | laboratory heating equipment | Warranty: | 1 year |
payment terms: | Western Union, L/C, T/T, MoneyGram | Certification: | Certification and ISO |
Voltage: | AC110-230V, 50/60HZ | Heating rate: | 0-200'C/min |
Packaging Details: | The inside is filled with foam plastic, and the outside is packed in a wooden box | Structure: | Double shell with fan cooling |
Programmable settings: | 99 programs | brand: | XDEM |
Heating element: | Coil with helical quartz | maximum. temperature: | 1200'C |
port: | any port in china | Room Dimensions: | Diameter 70mm x height 90mm |
Operating temperature: | 0-1100'C | Supply capacity: | 100 sets per month |
Customization support: | OEM production |

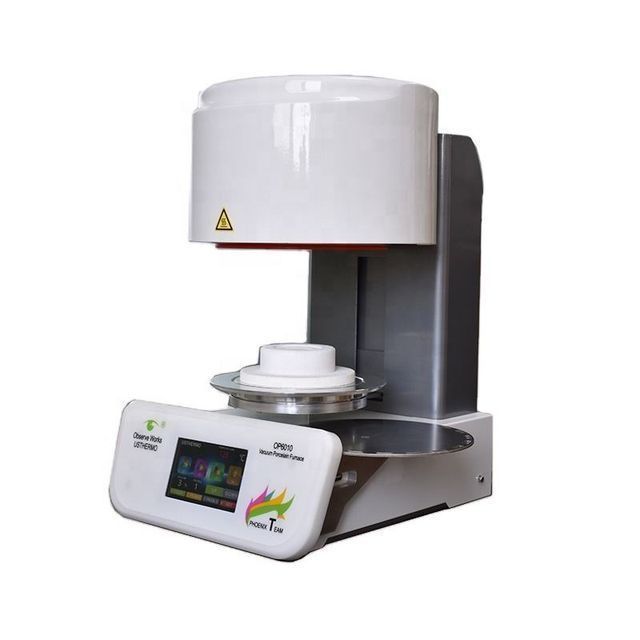

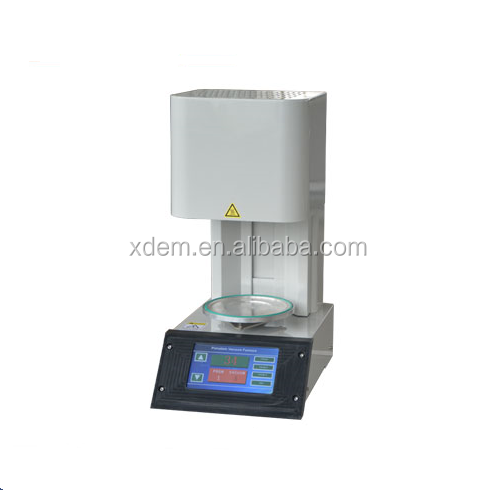

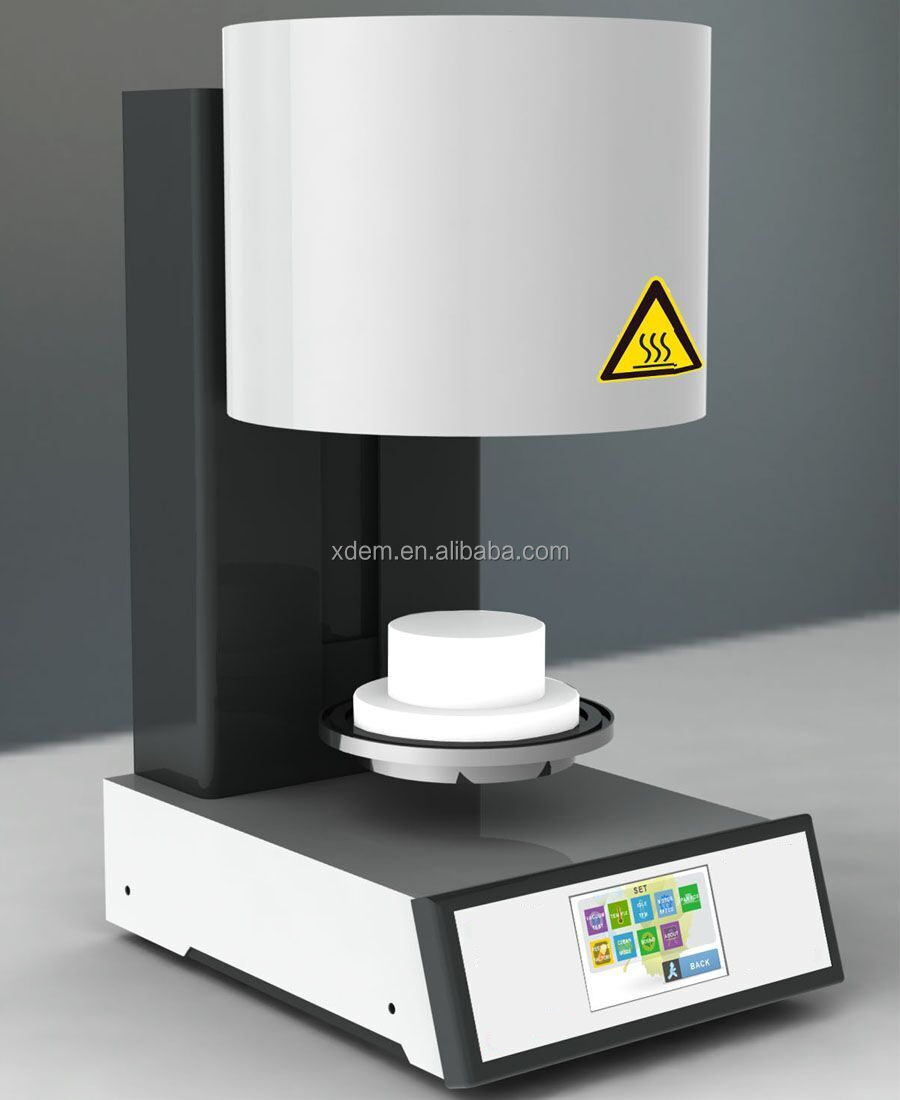

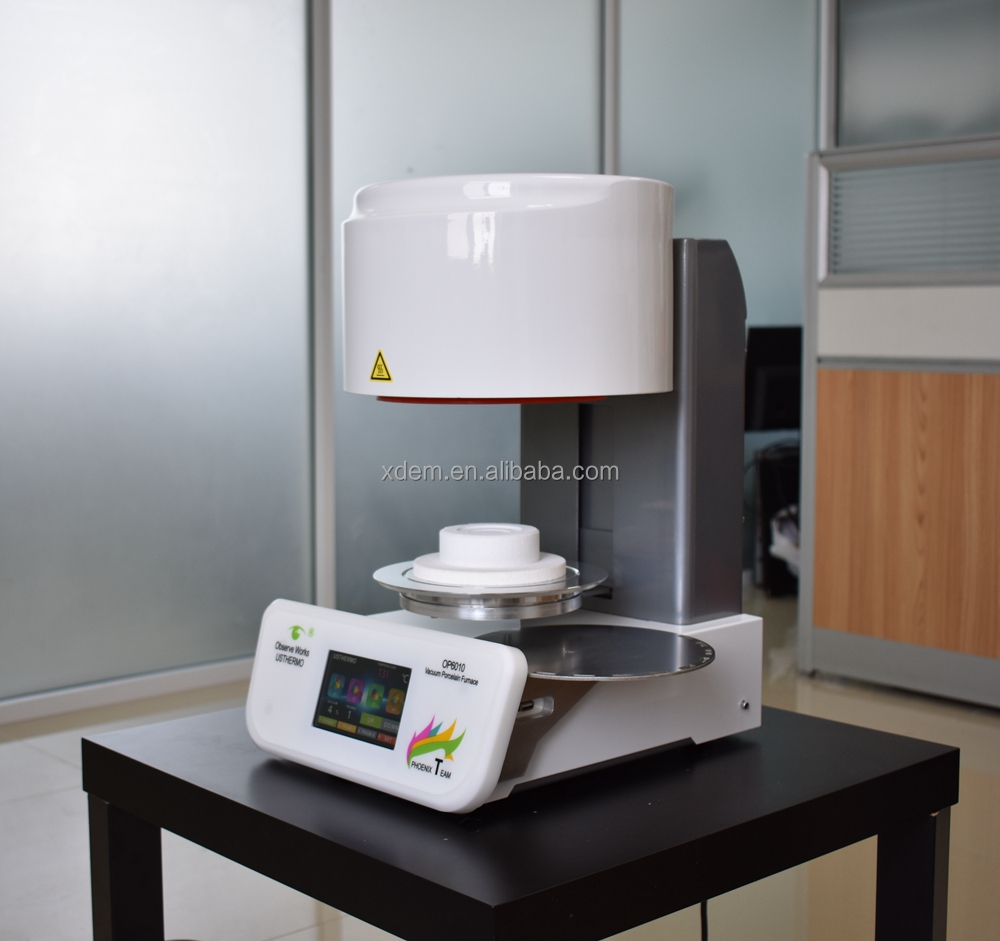

CE Certificate LCD Controlled 1200 Degree Dental Porcelain Ceramic Furnace
Our dental porcelain furnaces are used for laboratory testing and can be used for laboratory porcelain. Our Vacuum Porcelain Furnaces have the following features:
1. High quality temperature adjustment function
Automatically ensure that the actual temperature error is within +/-1.
2. Easy to operate, small in size, currently the smallest in the world.
3. Driven by precision stepping motor, the operation is stable without shaking,
No noise, programmable speed.
4. Spiral quartz furnace
5. Automatic temperature adjustment before each firing.
6. True color touch screen, easy to operate.
7. Built-in 99 programs.
Specifications:
control type |
LED touch screen control panel |
Cavity size |
Diameter 120xH90mm |
Vacuum |
-97KPa |
Voltage |
AC 220V 50/60 Hz single phase (or according to your standard) |
maximum. temperature |
1200 °C (< 2 hours) |
continuous working temperature |
0-1000°C (920°C has good heat preservation effect) |
maximum. heating rate |
0-200℃/min |
vacuum |

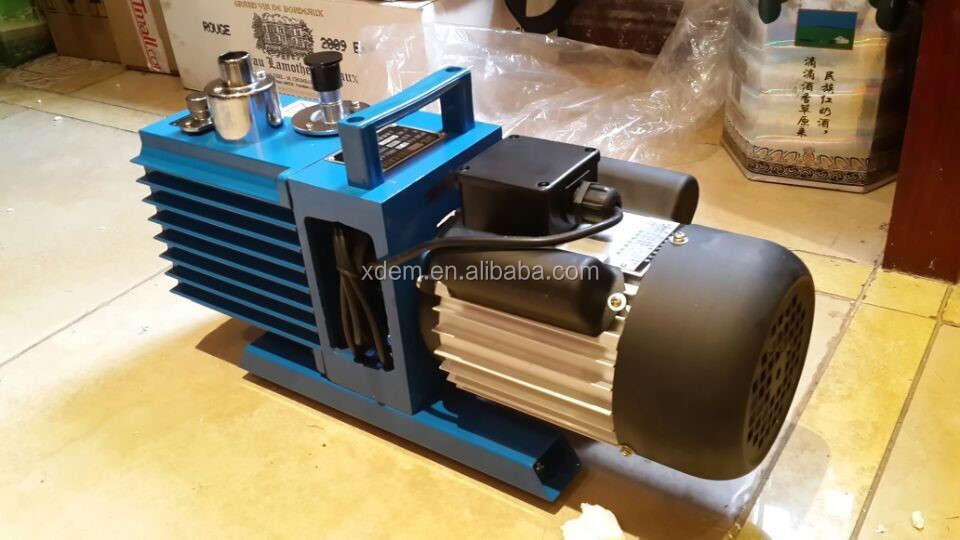

-97KPa with oil-free vacuum pump |
Temperature Controller |
Touchscreen panel that can store 100 porcelain programs |
temperature accuracy |
+/- 1 °C |
Heating element |
Kanthal A1 wire protected by quartz tube |
thermocouple |
K type |
Warranty |
2-year limited warranty |
Product display:
The wooden box is filled with foam to avoid damage.
We have been a professional supplier of furnaces and components in China for many years. Our advantages are as follows:
1. High quality, excellent technicians. good teamwork;
2. OEM service.
3. Factory wholesale price.
4. The inside of the furnace is filled with foam plastic, and the outside is packed in a wooden box.
5. One year warranty for the whole furnace.
