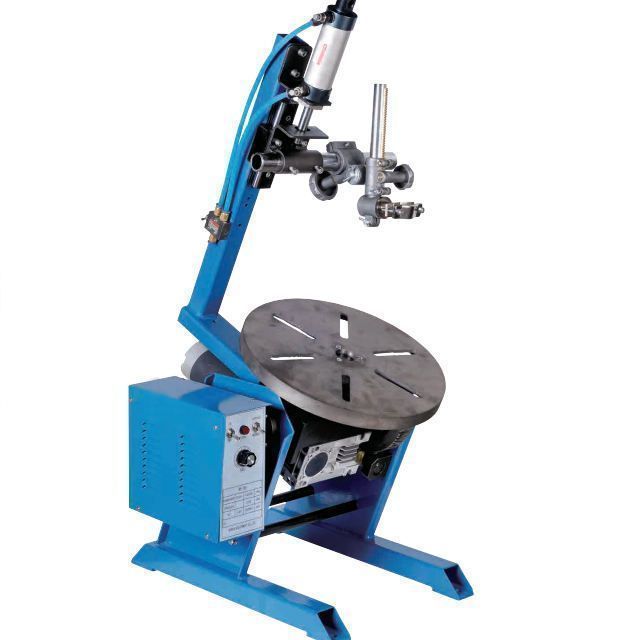

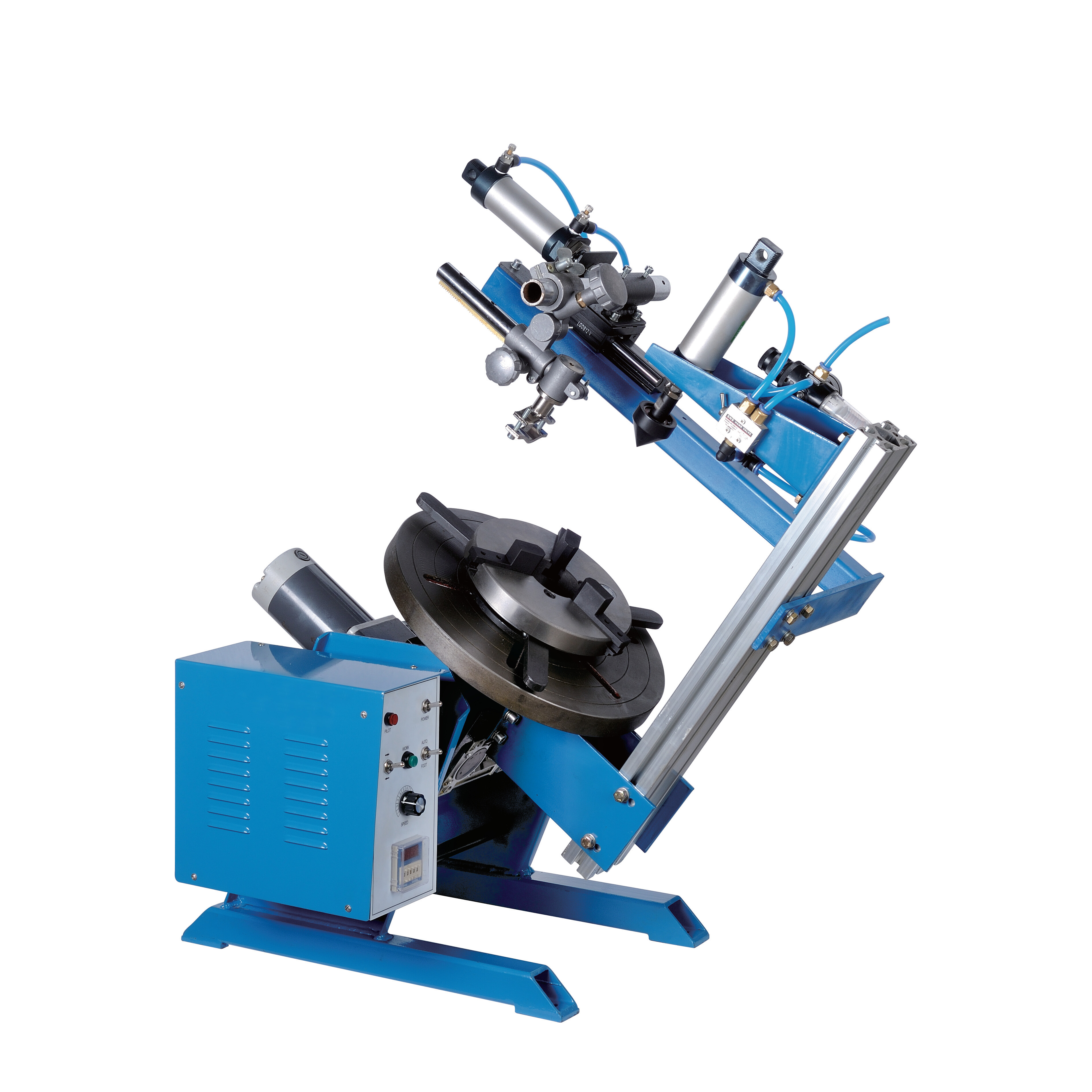

Pipe Workpiece Rotary Welding Machine with Welding Positioner 50kg Rotary Table Rotary Table

  • Supplier: Jinan Apes Technology Co., Ltd.
  • Region: Shandong, China
  • Contact: Ms Grace Lv
  • Price: $670.00 / 2 - 19 pieces
    $618.00 / >=20 pieces
  • Min. Order: 2 pieces
Product details
brand:OEM productionShowroom location:not any
Applicable industries:Building materials store, machinery repair shop, manufacturing plant, retail, construction, otherHyperdimensional:430*430*375mm
Packaging Details:Packaging Type: 1 per boxMechanical test report:if
Health status:newCore component warranty:Not available
Supply capacity:500 sets per monthVideo shipment inspection:Not available
aspect:370x270x220Package preview:
Main selling points:easy to operateWeight (kg):40 kg
capacity:50Kg/25Kgtype:Welding positioner
port:Qingdao, Tianjin, ShanghaiAfter warranty service:online support
Table size:315mmspinning speed:0.5-3.5rpm
power input:AC110V/220Vusage:3D adjustable welding turntable positioner
Marketing Type:New Products 2020Rotating motor:80w
table height:375mmCore components:Programmable Controllers
slope:0-90°place of origin; place of origin:Shandong China
payment terms:Western Union, T/T, MoneyGramAdjust the chuck:D-200 D-300
Warranty:unavailable
product display
- Steplessly adjustable speed. - The spindle can be rotated 90° clockwise and counterclockwise to suit any welding angle.
- Worm gear rotary structure with self-locking function. -Special anti-electromagnetic design reduces the high-frequency interference of TIG welding and effectively improves the welding quality.
-It can be equipped with an adjustable welding torch bracket to fix the position of the welding torch. It can be equipped with track and pneumatic suction head to realize the function of automatic workpiece clamping. - Tracks can be extended according to your requirements.
- The rotating structure is driven by a DC motor, which can realize stepless speed regulation.
- The rotary structure of the worm gear positioner has self-locking function, and the worktable can rotate steplessly from 0
degrees to 90 degrees.
-Configure the automatic controller to control the working state and working time, which can realize the linkage of the positioner
and welders.
-It can be equipped with an adjustable welding torch, and the position of the welding torch can be fixed.
9. The track can be lengthened according to your requirements.
product specification
power input
AC110V/220V 50/60Hz
capacity (horizontal/vertical)
50Kg/25Kg
table dimensions
315mm
table height
375mm
spinning speed
0.5-3.5rpm
Tilt range
0-90°
tilt mode
manual
rotating electrical machine
80W
Hyperdimensional
430X430X375mm
Product packaging
