Factory Wholesale Manufacture Special Trailer For Guardrail Maintenance

Corporate Information

describe

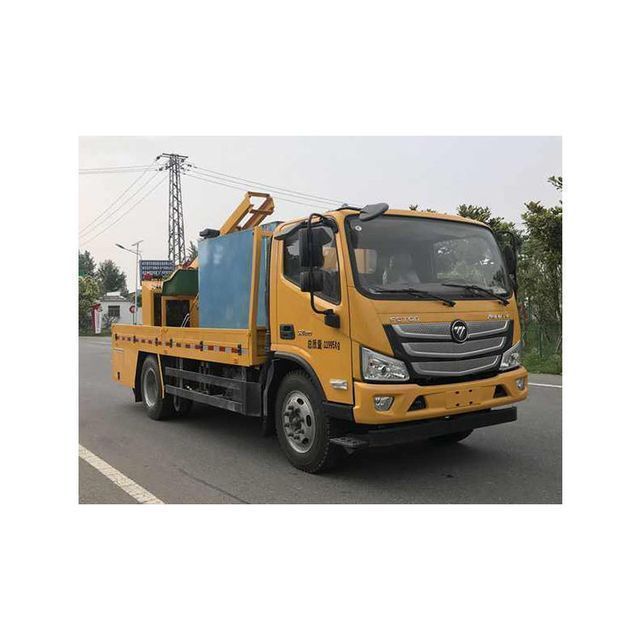

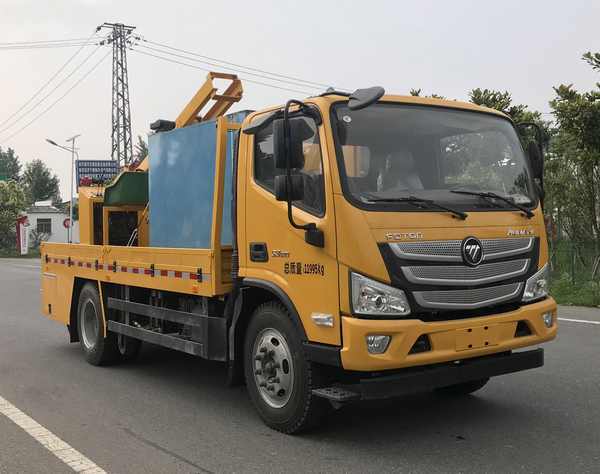

Guardrail repair vehicle

Vehicle Type

VIP Car

Announcement batch

350

issue date

20211207

car model

APED570N04K

catalog number

announcement model

JZZ5120TQX6

Vehicle Brands

faith

Chassis model

enterprise

Jiangsu Zhongze Automobile Technology Co., Ltd.

address

No. 59, Xinhai Avenue, Xuyi Economic Development Zone, Jiangsu Province

Manufacturing address

Exemption

exemption

Do not

expiration date

The main technical parameters

Outer dimension (L*W*H) (mm)

7350×2230×3260(mm)

Cargo size (L*W*H) (mm)

Gross vehicle weight (full fuel tank) (kg)

11995(kg)

Quality Utilization Factor

Curb weight (including empty tank) (kg)

10805(kg)

Rated load capacity (kg)

995(kg)

cab

Allowable passenger capacity in the front row of the cab

Rated passenger capacity

ABS

entry/departure angle

20/12(°)

front suspension/rear suspension

1130/2420(mm)

axle load

3535/8460

Wheel base (mm)

3360,3800(mm)

axis volume

2

maximum. speed

105(km/h)

Fuel consumption (L/100km)

Leaf spring amount

9/8+6,3/4+3

wheel

6

tire size

8.25R20 16PR, 9R22.5 14PR

Front track (mm)

1705,1710,1730,1770,1790(mm)

Rear track (mm)

1615,1630,1800(mm)

Steering model

steering wheel

vehicle identification number

LVBV4JBB×××××××××

engine parameters

engine model

engine manufacturer

Engine displacement (L)

Rated power (kw)

F3.8NS6B156

Foton Cummins Engine Co., Ltd. (Beijing)

3800

115

D30TCIF1

Kunming Yunnei Power Co., Ltd.

2977

125

Fuel parameters

gasoline type

diesel fuel

standard

GB3847-2005, GB17691-2018 VI series

Exhaust emission standard

other

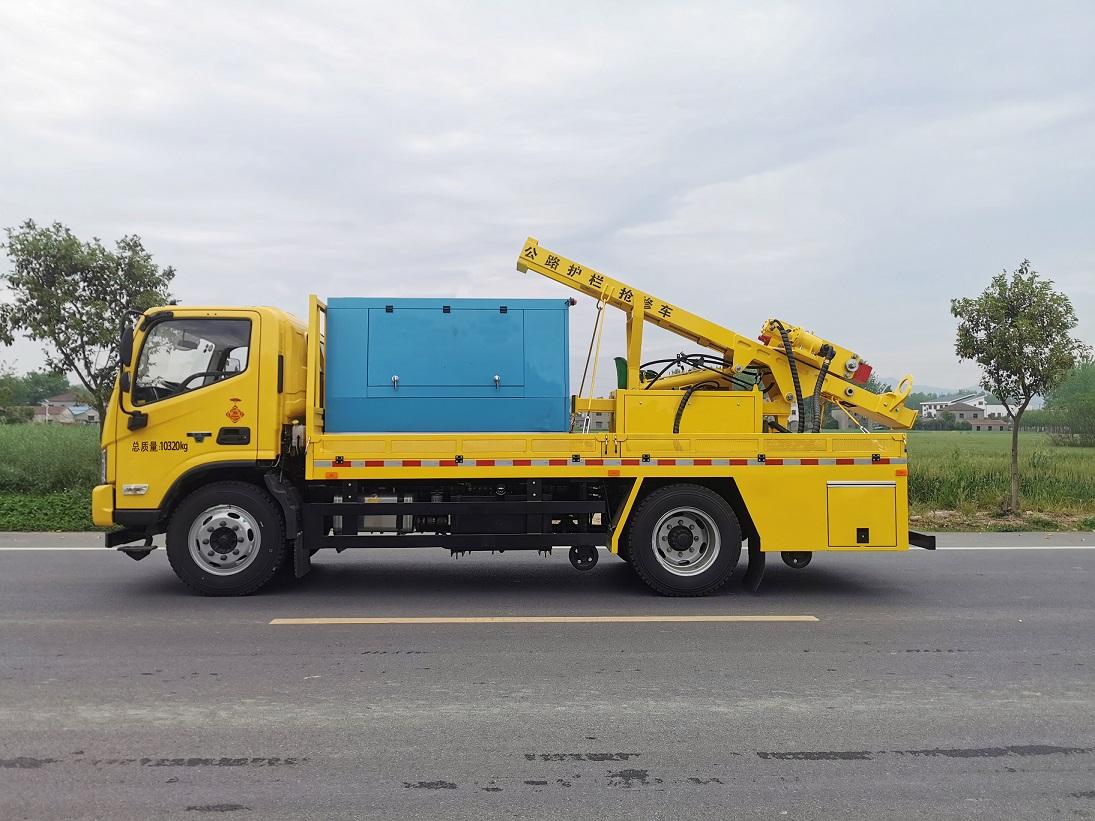

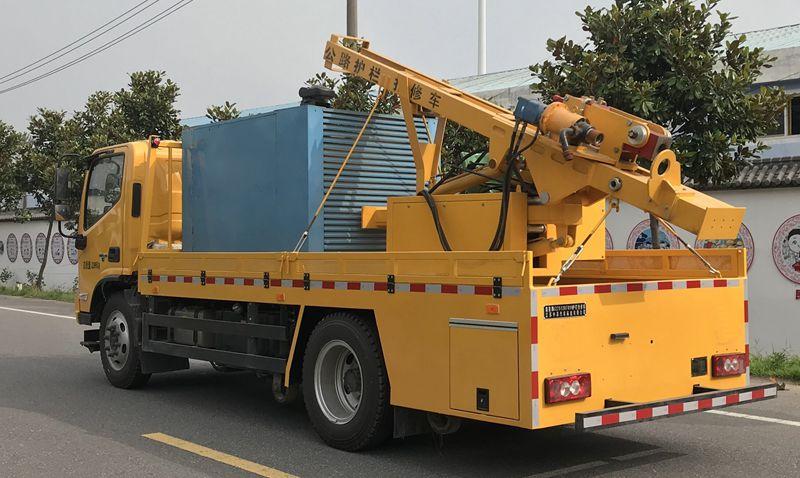

1. The special device for this vehicle is: pile pulling and drilling device; it is mainly used for piling maintenance work,

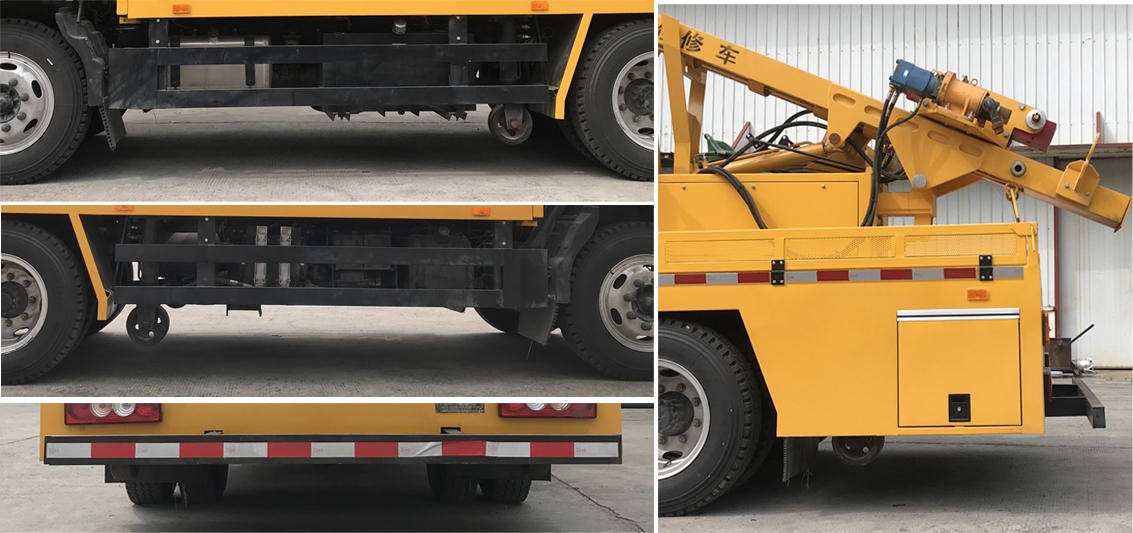

Piling and drilling of guardrails on both sides of the road; 2. The material of the side guards is Q235 steel,
Use bolts and vehicles. Connection, the maximum cross-bar spacing is 140mm, and the lower edge is 470mm from the ground.

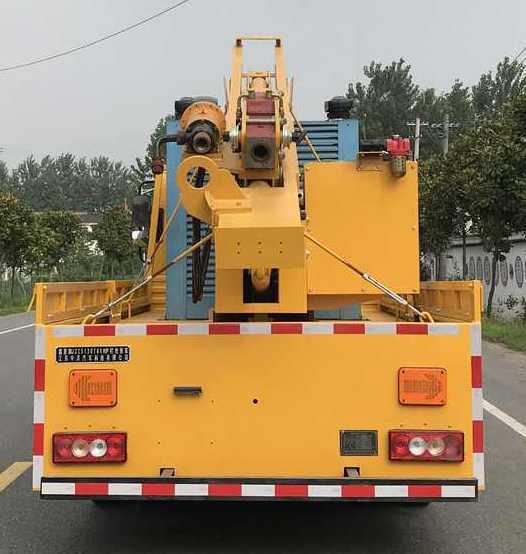

The material of the rear lower guard plate is Q235 steel, which is connected with the whole vehicle by bolts, and the size of the rear guard plate is
(L×W×H): 1980×55×100mm, the maximum height of the lower edge of the rear protection from the ground is 415mm;
3. Engine model F3.8NS6B156, maximum net power 112kw; displacement 3800ml; engine model D30TCIF1, maximum net power 120kw;
Displacement 2977ml; 4. ABS manufacturer: WABCO Automotive Control Systems (China) Co., Ltd., model: ABS-E, optional ABS belt
Chassis, manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., model: ABS-VI·E.5, the car can be equipped with no ocean
King lights; no arrow lights;

reflective logo

enterprise

Changzhou Huarisheng Reflective Material Co., Ltd.

Card

brightly lit

Identification model: TM1200-1
