Steel bar welding machine net width 2500mm diameter 6mm to 12mm

Product details
Marketing Type:2019 Hot Productsbrand:Shen Kang
maximum. Line number:twenty fourApplicable industries:Building material stores, manufacturing plants, farms, construction, energy and mining
Warranty:1 yearCore components:PLC, motor, water pump
Rated Capacity:160KVAx12Core component warranty:1 year
Main selling points:competitive priceSupply capacity:50 sets per quarter
Material surface:smooth or ribbedRebar size:6mm to 12mm
Primary voltage:380V or customizedWelding speed:45-70 times/min.
Showroom location:not anyWeight (kg):12000 kg
Health status:newpayment terms:L/C, T/T
Material:mild steelIntersection Spacing:≥50mm
Video shipment inspection:ifMechanical test report:if
aspect:26*5*2.3mAfter warranty service:Video Technical Support
port:TianjinNominal Duty Cycle:20%
Packaging Details:The host is covered with plastic film, and some parts are placed in wooden boxesplace of origin; place of origin:China
rated power:160KVA*12Wire type:pre-cut thread
usage:for building and construction
detail

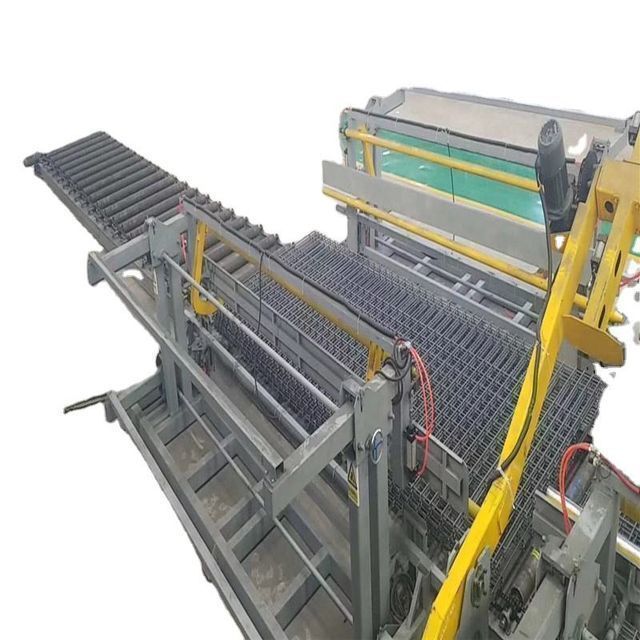

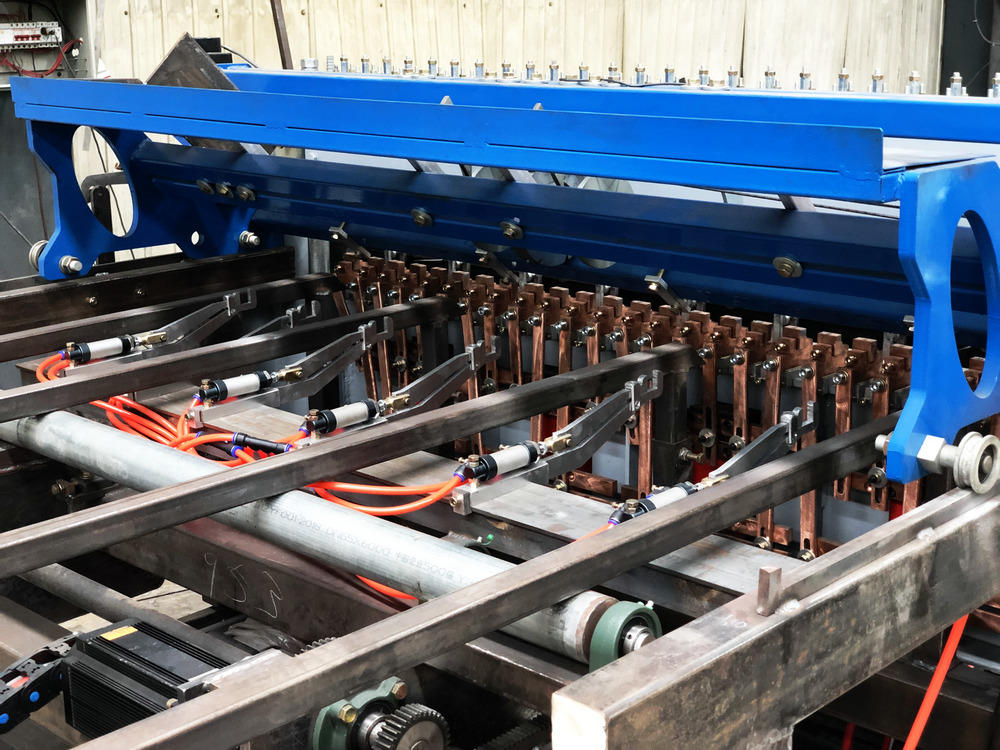

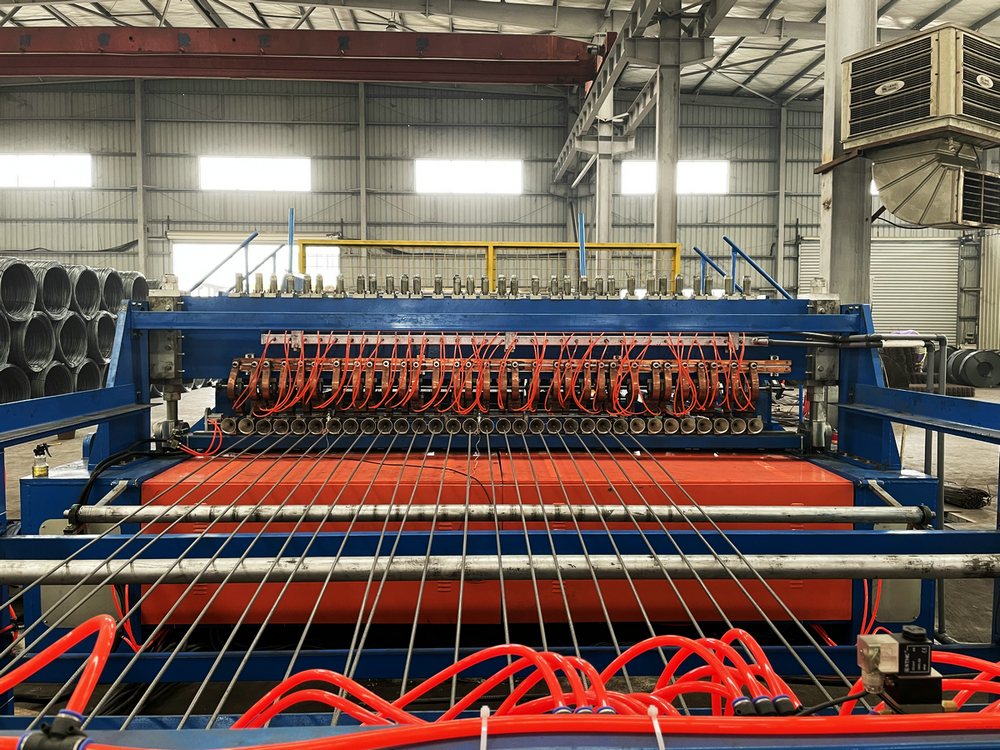

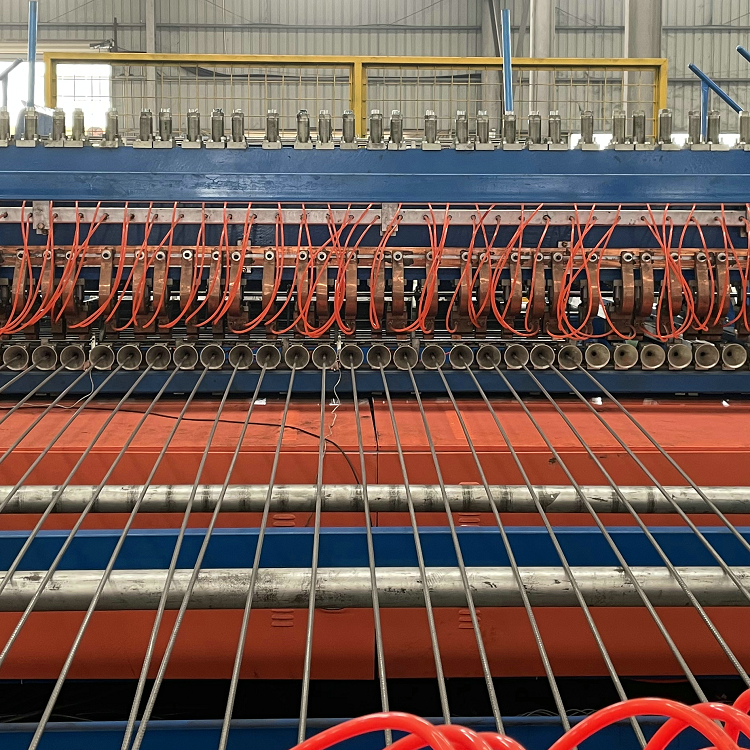

Automatic screen welding machine
The fully automatic welded mesh machine is invented on the basis of ordinary welders according to market trends.
The modular design makes the main welding machine and roller wire system operate separately. This makes the line easy to work and maintain.
Changchai high power engine
Imported EATON regulating valve
Shimadzu hydraulic motor
Machine parameters
Do not
thing
data
1
Wire diameter
6-12mm
2
Mesh width
≤2500mm
3
Crosshair
≥1500mm, pre-cut wire
4
Welding width
Maximum 2500mm
5
roll length
up to 100mm
6
welding frequency
45-70 times/min
7

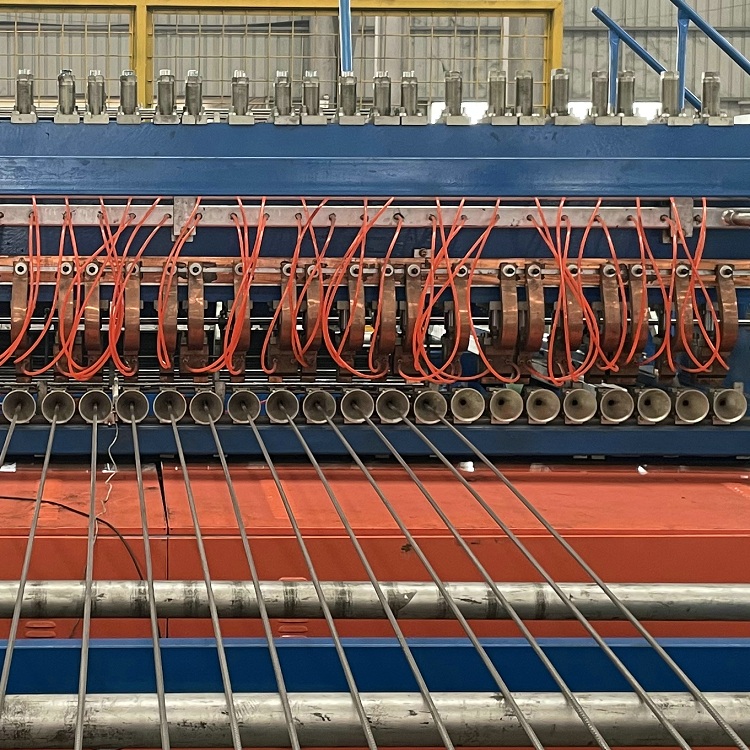

welding electrode
twenty four
8
welding transformer
160KVAX12
* If you have any special requirements, please contact our staff for detailed communication.
manufactures

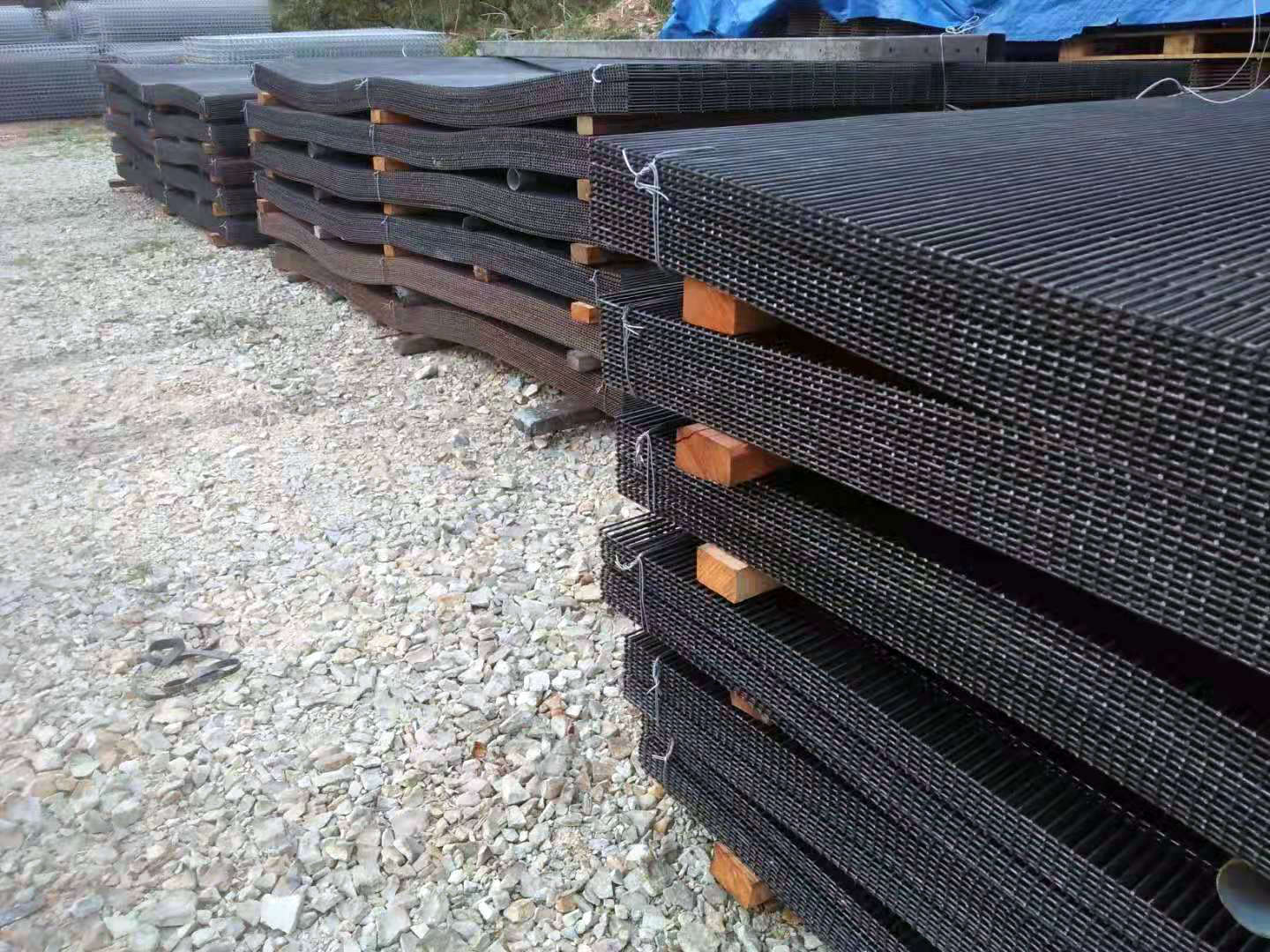

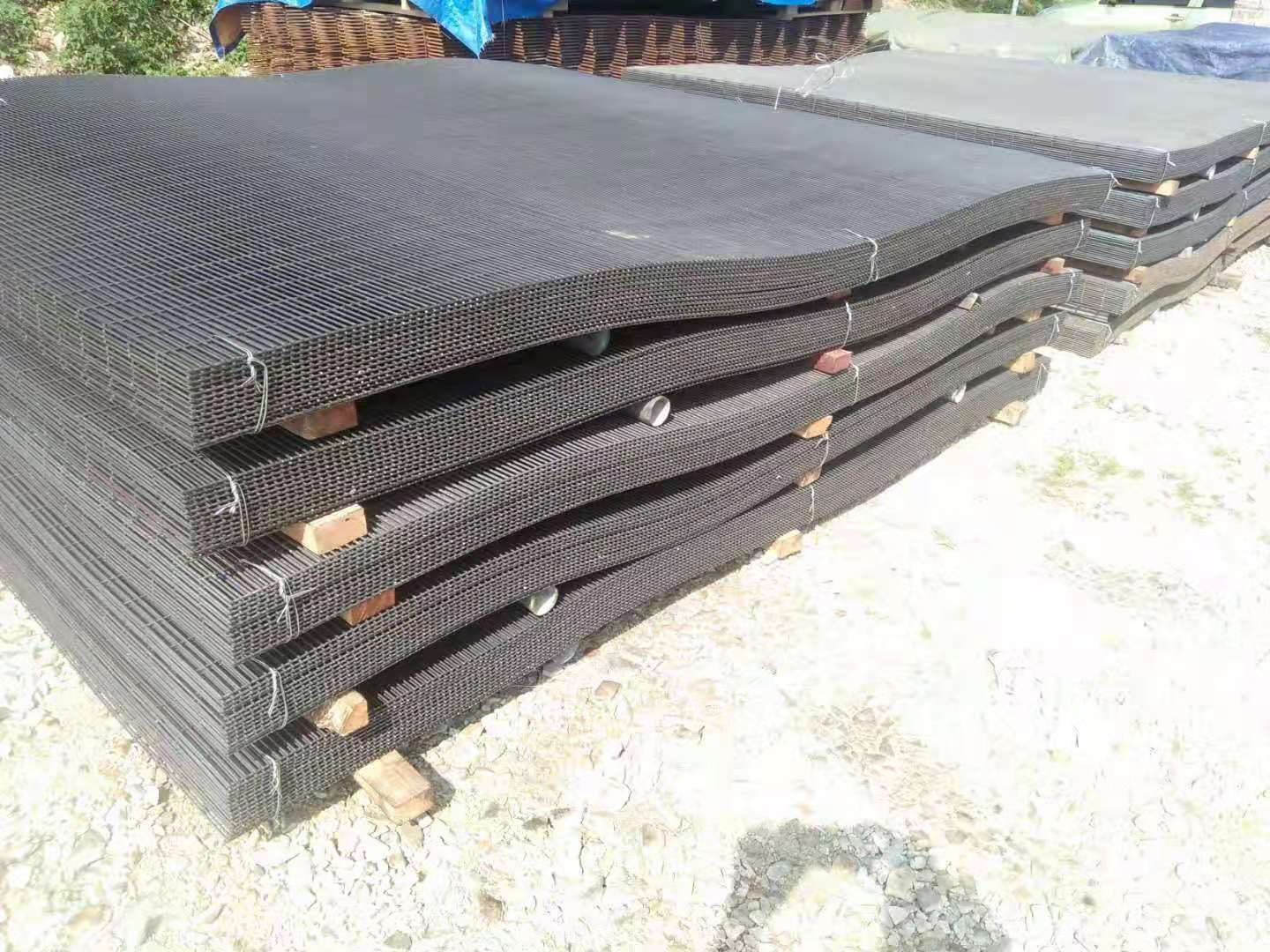

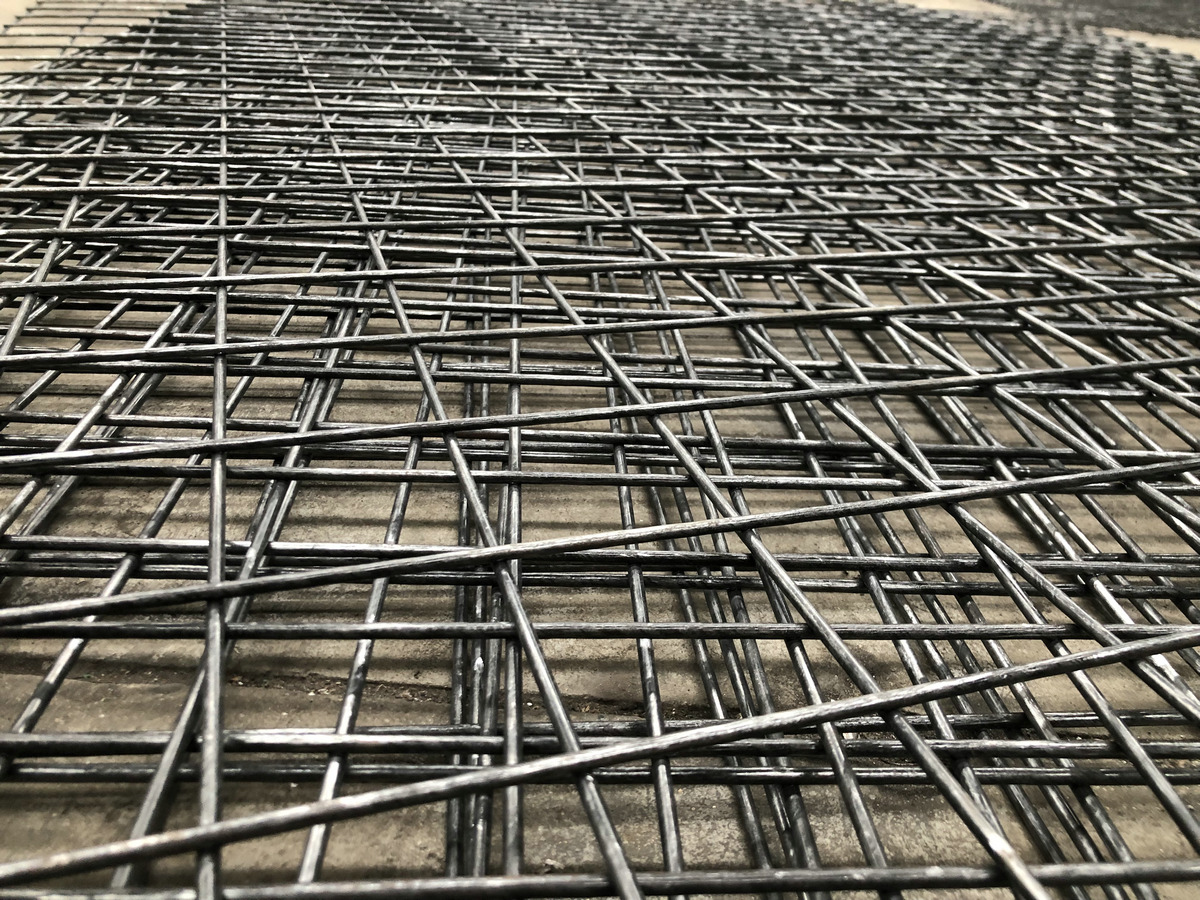

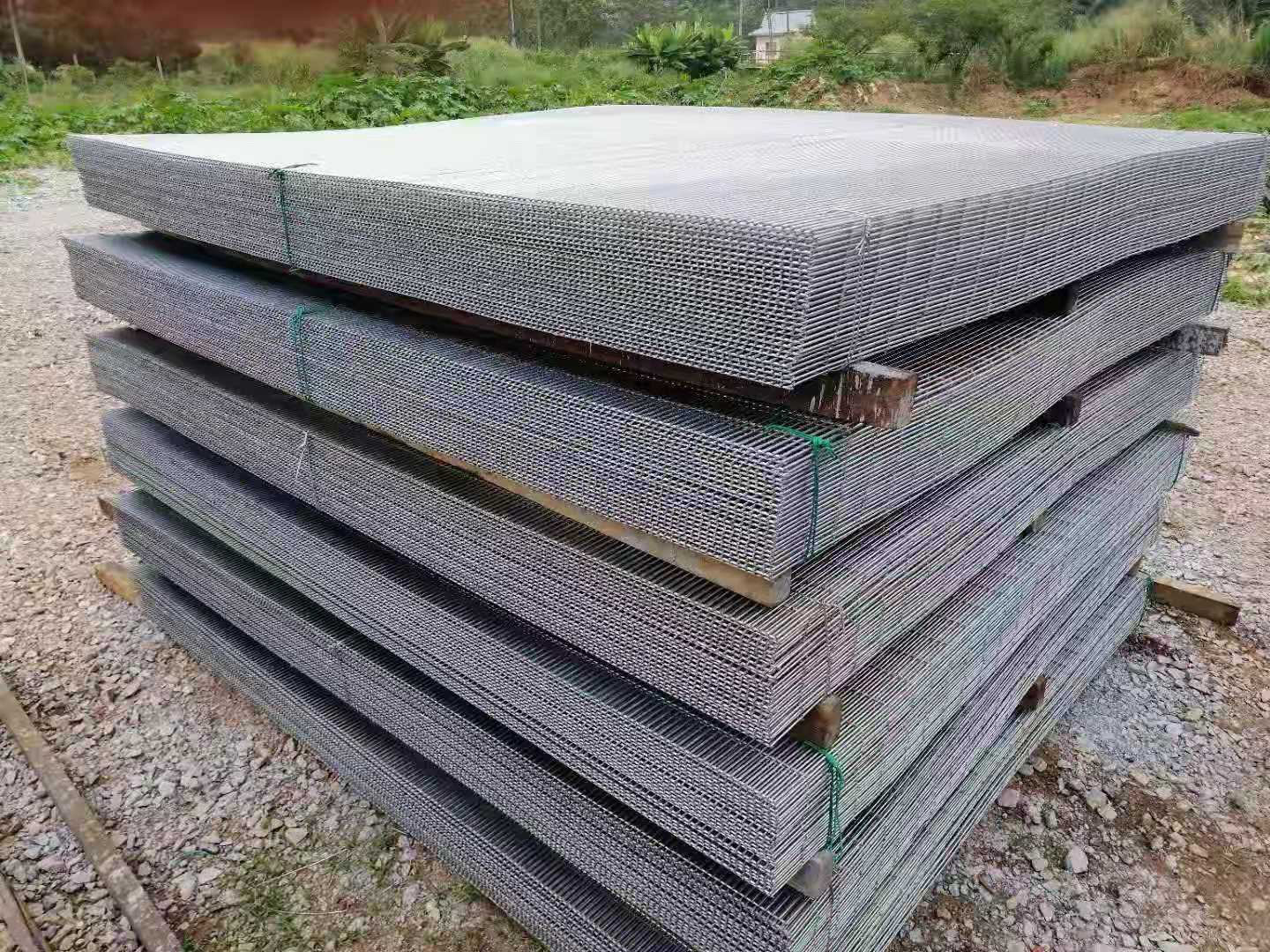

Product function: Rolling mesh welding line, also known as automatic welding mesh machine, welded mesh rolling machine, used to make road mesh, steel mesh, construction mesh, etc.;

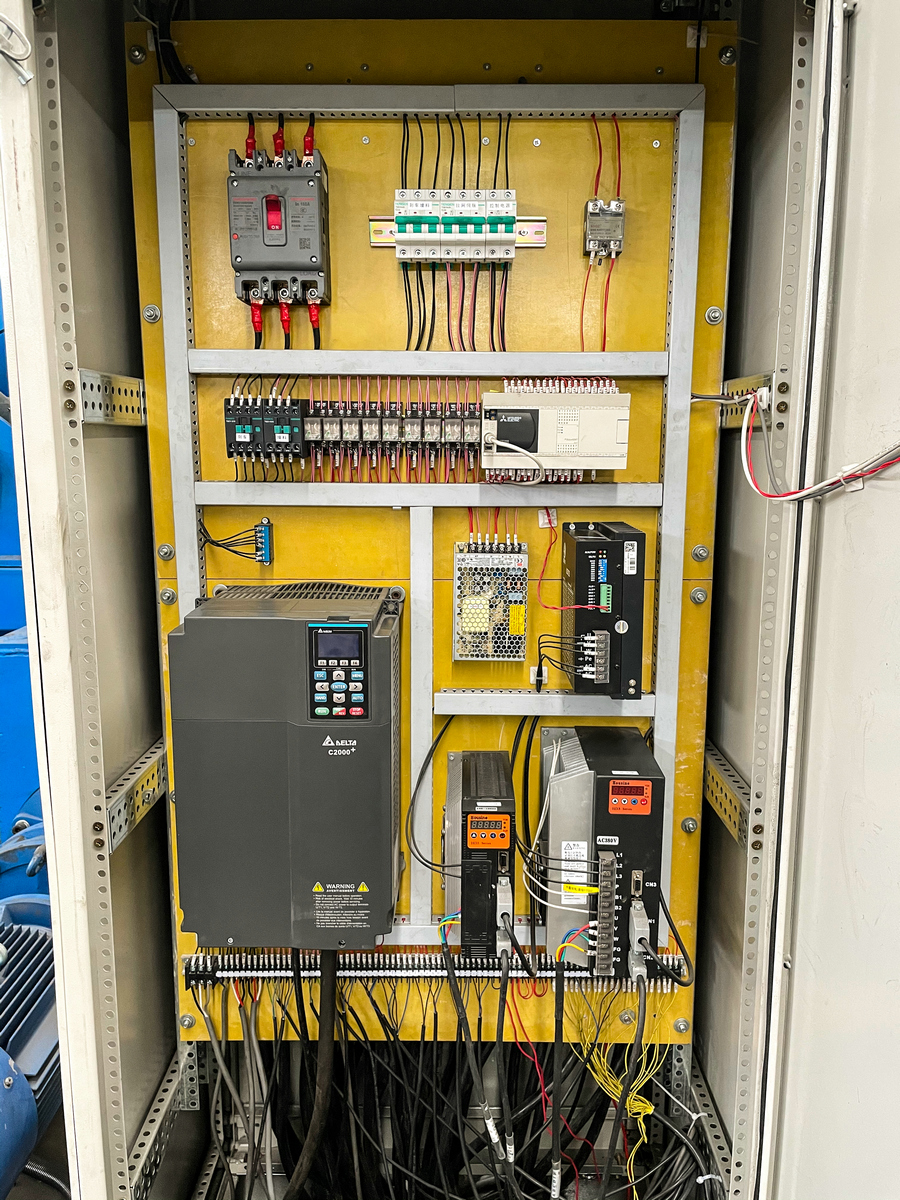

Electric control cabinet
Our electric control cabinets all use world-renowned brand electronic components

Taiwan brand reducer,

◆ Japanese brand PLC control system and servo motor,

■ Femaleranch brand and swedenBrand switch.
advantage
high productivity
long lasting
good after-sales service
quick response
simple control
easy to maintain
