place of origin; place of origin: | Guangdong, China | type: | CTI |
brand: | Yatek | payment terms: | L/C, D/P, D/P, T/T |
interface: | USB | port: | 1 |
model: | AD102 |
Model#: |
AD102 |
emphasize: |
Best Choice for Caller ID on PC, Single Line, Small size and low cost |
basic skills: |
On-hook/off-hook status, line status, dialing number, caller ID, Ring detection, line polarity reversal, line engagement |
port: |
1 |
Maximum stack ports: |
1 |
interface: |
USB |

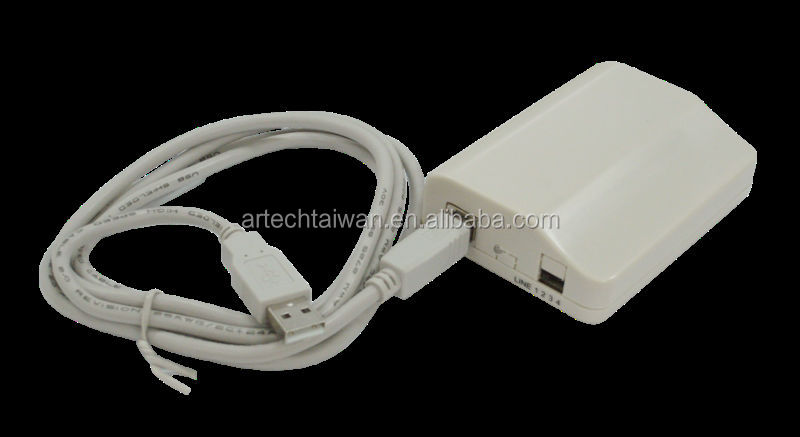

USB cable: |
1.5m |
Development Language (Free SDK) |
Vb/Vc/C#/Delphi (with free demo), Vf, Ocx, PHP, etc. |
System Support |
Windows98se/XP/2000/NT/7/8 OS, Linux |
aspect: |
138(L)×106(W)×25(H)(mm) |
weight: |
187 grams |

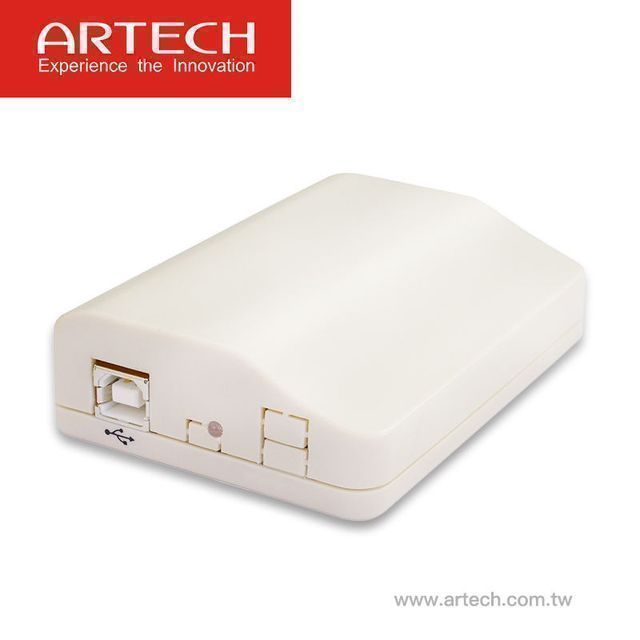

Key features of the AD102:
l A USB caller ID device, which can help you check the information of the caller, and provide a free SDK for your further development.
l Low cost, the best choice for PC caller ID.
l Single wire, small size.
l Flexible system parameter programming.
l HID USB data transmission does not require a USB driver.
l LED status indicators.
l Compatible with ETSI/Bellcore FSK and DTMF caller ID
l Provide multiple ways to judge call start
l On-hook/off-hook status, call duration
l Line status
l Incoming/outgoing call number, caller name, time and date records
l Ring detection
l Line polarity reverse detection
l Line occupation detection
World brand - Artech:
l The world's largest manufacturer of embedded voice recorders
l Founded in 1994, the headquarter is located in Taipei, and the factory is located in Shenzhen, China.
l Global distribution channels (sold to 60+ countries, agents in 30+ countries)
Advanced technology and dedicated service:
l Fully independent design, selected materials, European and American standards
l 20 years of experience in PSTN technology (1994-2014)
l A strong technical support team helps partners complete development efficiently
l Products spread all over the world, compatible with global PSTN network
l Advanced production line and professional quality team ensure the stability and reliability of each single machine
l Effective management and dedicated service guarantee fast delivery and customer satisfaction
Artech Caller ID USB Interface (CTI) Series:
l Full range available (from single line to 4/8 line, from caller ID to call recording)
l Available models: AD102, AD130, AD460, AD860
l USB interface, HID, can be connected to laptop and desktop computer
l Wide application range
l Provide VC, VB, C#, Delphi SDK, complete demo application with source code
