Control System: | Programmable Controllers | automation: | automatic |
brand: | Chinese University | Health status: | new |
Dimensions (L*W*H): | 30*3*2.6 | place of origin; place of origin: | Shandong China |
capacity: | high speed | Voltage: | 380V |
model: | SJ80/38 | weight: | 8000 kg |
port: | Qingdao | payment terms: | L/C, T/T |
Automatic level: | automatic | Packaging Details: | Some wood packing, others stretch film packing |
Key machines: | Drip Tape Machine | year: | 2022-0617 |
strength: | 50Hz/60Hz | Supply capacity: | 10 pieces per month |
Machine capacity: | 300m/min |
Name | name of each part | Do not. | |

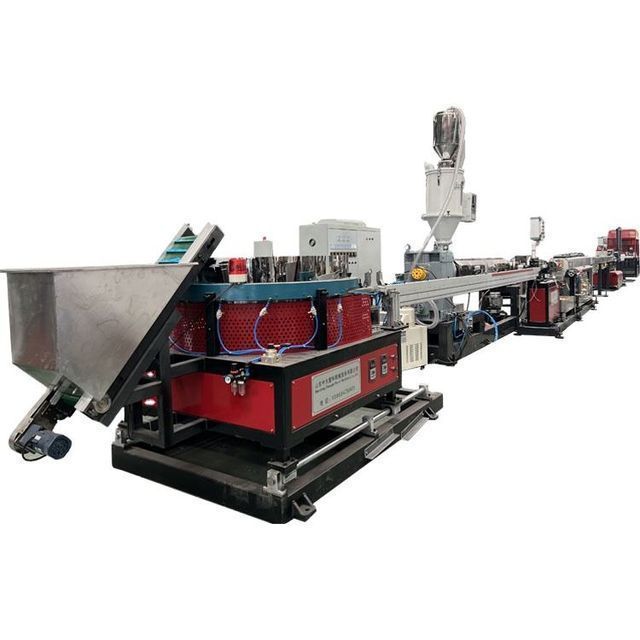

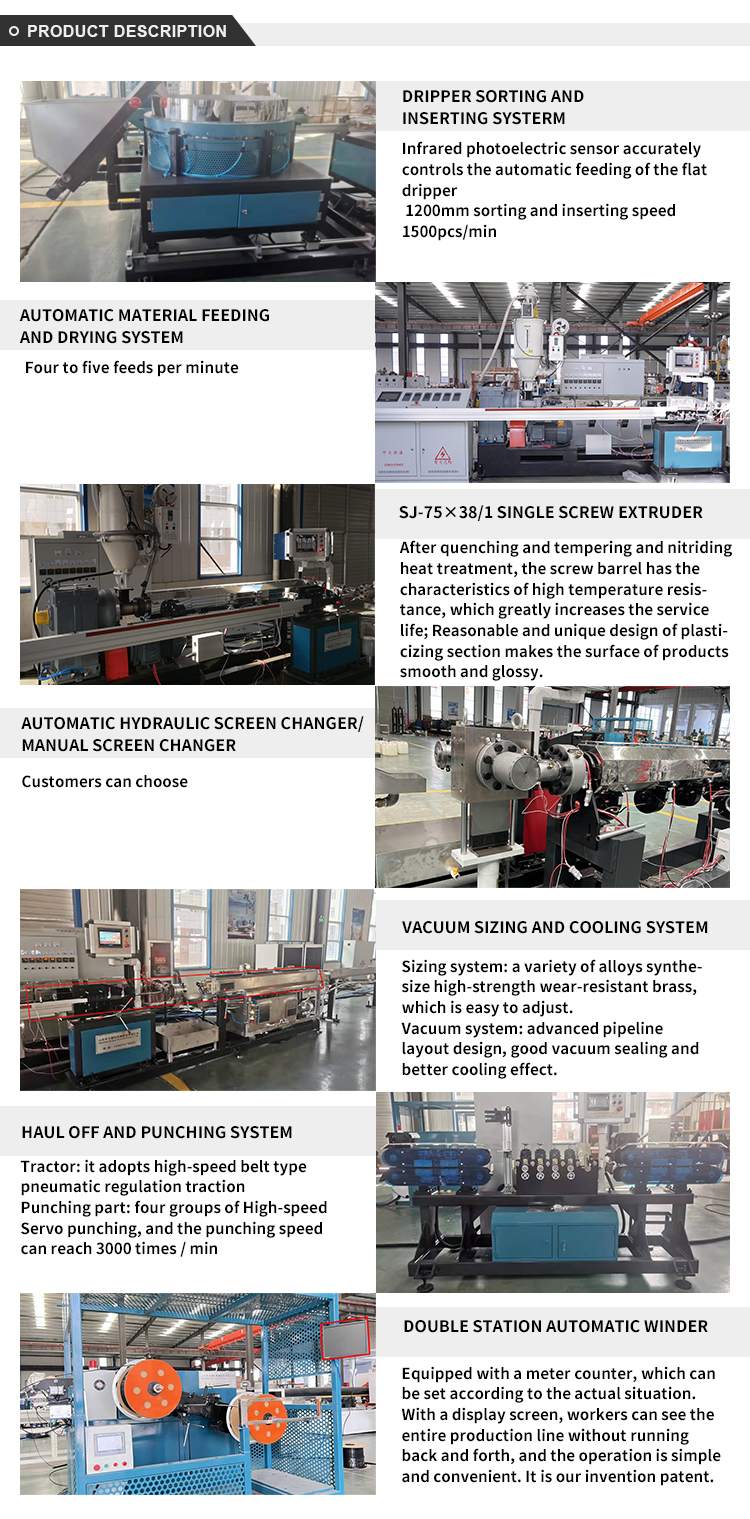

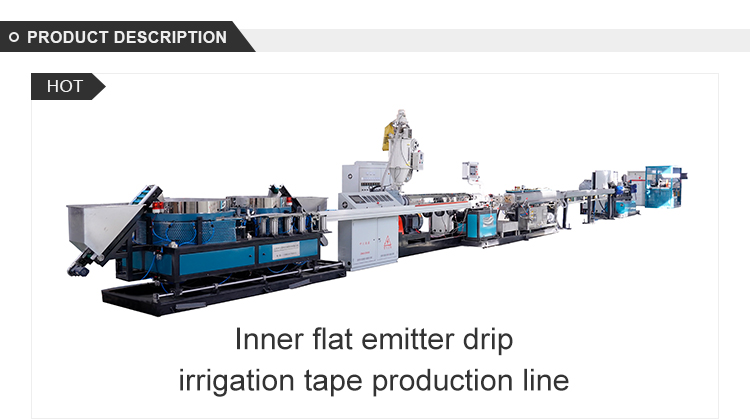

Inner flat dripper drip irrigation tape production line | 1 | Dripper Sorting and Insertion System | 1 |
2 | Automatic feeding and drying system | 1 | |
3 | SJ-75×38/1 single screw extruder | 1 | |
4 | Die | 1 | |
5 | Vacuum calibration tank | 1 | |
6 | cooling water tank | 1 | |
7 | traction punching system | 1 | |
8 | winding machine | 1 | |
9 | Electrical cabinet | 1 | |
10 | cooler | 1 |
Device parameters | Tape diameter (mm) | 16mm |
Thickness (mm) | 0.2-0.6mm | |
Dripper Spacing(cm) | 10-100cm |
working conditions | humidity | 0-40℃ |
energy source | Three-phase 380v, 50Hz | |
Installed power | About 100kw | |
Cooling water | ≤15℃ ≥0.3Mpa ~100L/min | |
compressed air | 5m³/h 0.4-0.6Mpa | |
size | 30*3*2.6m (length*width*height) | |
Line speed | 0-300m/min |
