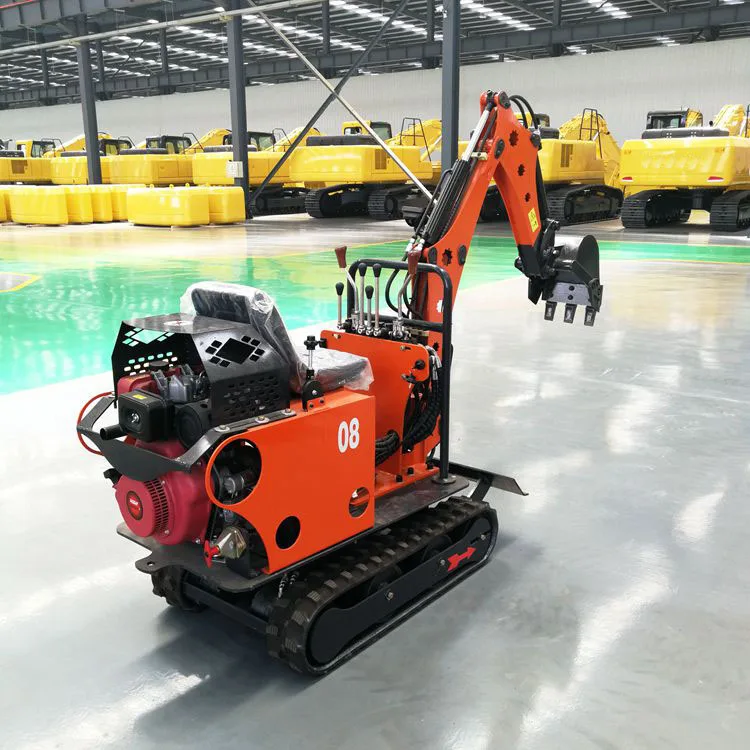

Nt10 910kg mini excavator nt08 820kg newest products small

Supplier: Shandong Nuoman Engineering Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms yolanda li
Price: $3685.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support,Online support,Free spare parts;	Package Preview:	https://sc01.alicdn.com/kf/HTB1IVA2elaE3KVjSZLeq6xsSFXau.jpg_640x640.jpg;
Engine:	Changchai;	Product name:	Mini Excavator;
Bucket capacity:	0.025m3;	Applicable Industries:	Construction works ,Energy & Mining,Engineering & Construction Machinery;
Keywords:	Mini Size Excavator;	Place of Origin:	Shandong China (Mainland);
Package Type:	Packed in containers for mini excavator;	Brand Name:	nuoman;
Engine Model:	KOOP 192F;	Moving Type:	Crawler Excavator;
Hydraulic Cylinder Brand:	Taifeng;	Color:	Red;
Operating Weight:	910kg;	Type:	Mini Small Excavator;
Hydrulic pump:	Shimadzu;	Hydraulic Valve Brand:	NOK;
Maximum Digging Height:	2350mm;	Single gross weight:	800 KG;
Engine Brand:	KOOP;	Rated Speed:	1.5km/h;
Model:	NM-E08;	Brand:	Shandong Nuoman;
Hydraulic Pump Brand:	Taifeng;	Condition:	New;
Selling Units:	Single item;	Warranty:	2 Years;
Origin:	China Mailand;	Certification:	CE ISO;
Max Digging Radius:	2450mm;	Single package size:	2850X1050X1600 cm;
Maximum Digging Depth:	1200mm;	Delivery Detail:	0 days after payment;

Product Description

As an experienced manufacturing company with a group of professional and responsible employees,all our product descriptions on all our details pages are guaranteed to be accurate!!!

Low fuel consumption, wide scope of operation, suitable for loose land in vegetable shed, landscaping in municipal departments, planting of trees and pits in orchard nurseries, broken concrete pavement, agitation of sand and stone, construction of narrow space, etc., Can equipped with rotary drilling, broken hammer, loading bucket, grab, etc., reduce maintenance and operation costs, liberate labor force, improve mechanization, low investment, high return.

Technology parameter

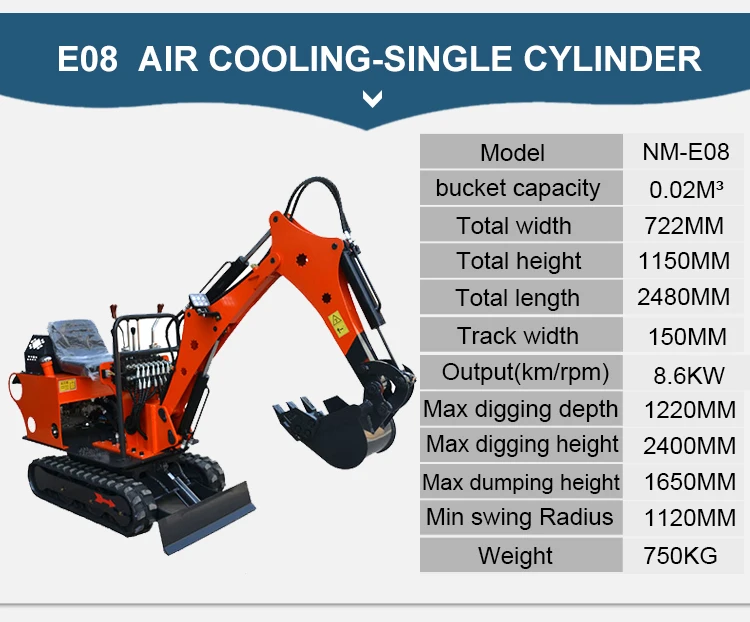

Model				NM-E08
Type of tracks				Rubber

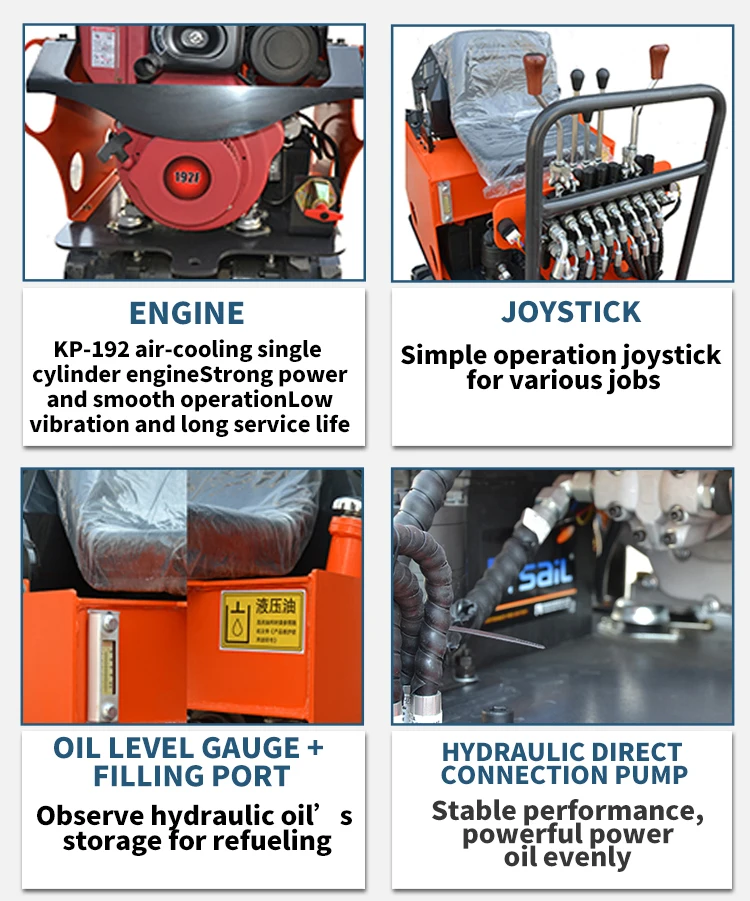

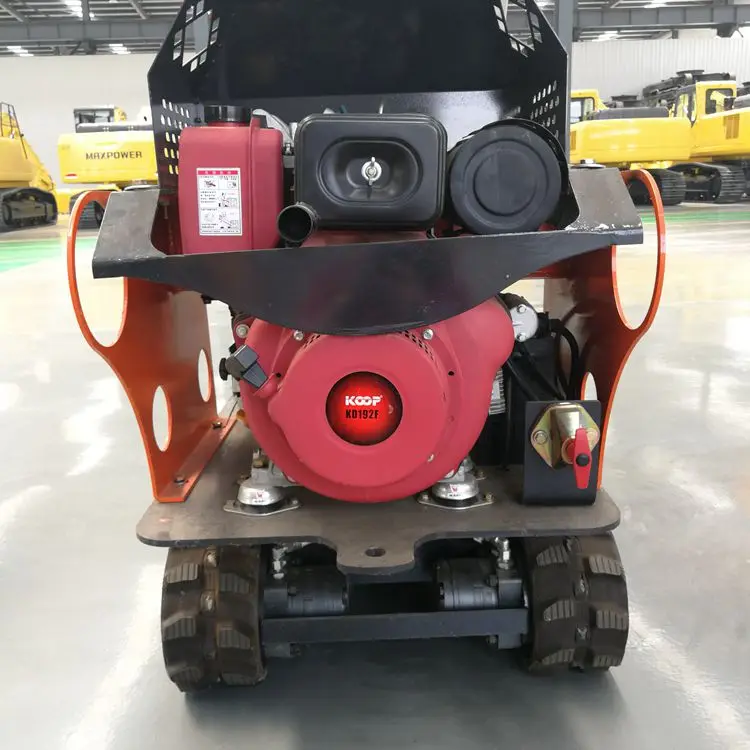

Engine	Model			KP-192F
	Output		HP (kW)/rpm	11.5 (8.6) / 2200
	Displacement		cu.in. (cc)	20 (569)
Dimensions	Overall length		ft.in. (mm)	8'2" (2480)
	Overall height		ft.in. (mm)	3'9" (1150)
	Overall width		ft.in. (mm)	2'6" (722)
	Platform clearance		in. (mm)	15" (380)
Hydraulic system	Pump capacity		gpm. (l/min)	5.55 (21.0)
	Auxiliary hydraulic flow		gpm. (l/min)	5.55 (21.0)
	Max. breakout force	Bucket	kn. (kgf)	7.5 (760)
		Arm	lbs. (kgf)	1010 (460)
Drive system	Travel speed		mph (km/h)	1.2 (2.0 )
	Max. traction force		kn. (kgf)	6.5 (660)
	Tumbler distance		ft.in. (mm)	2'72" (800)
	Crawler length		ft.in. (mm)	3'8" (1140)
	Shoe width		in. (mm)	7.1" (180)
	Ground contact pressure		Kpa(kgf/cm2)	20 (0.20)
Swing system	Unit swing speed		rpm	8.3
	Boom swing angle	Left	degree	55
		Right	degree	60

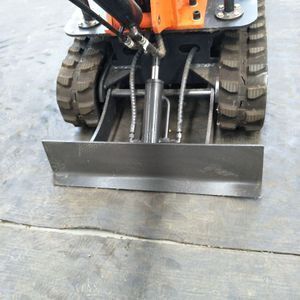

Blade	Dimensions	Width	in. (mm)	2'4" / (700 )
		Height	in. (mm)	7.9" (200)
	Max. lift above ground		in. (mm)	8.0" (210)
	Max. drop below ground		in. (mm)	4.9" (125)
Hydraulic oil (reservoir/system)			gpm. (l/min)	3.30 / (12.5)
Fuel reservoir			gpm. (l/min)	3.17 (12.0 )
Operating weight			lbs.(kg)	1804 (820 )
Including operator’s weight 175 lbs.
