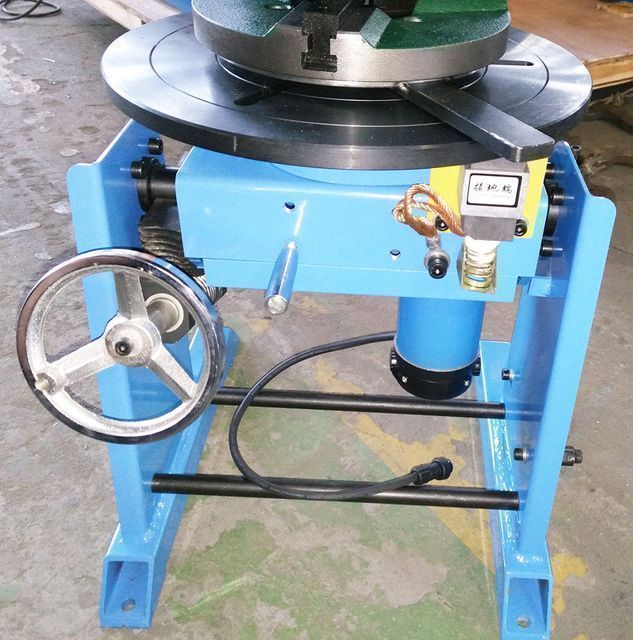

Lightweight 50kg Hydraulic Welding Positioning Chuck

Product details
Mechanical test report:iftype:Welding positioner
Health status:newusage:welding positioning
Core components:gearbox, motorplace of origin; place of origin:Jiangsu, China
brand:Zhou Xiangport:Shanghai
Table height:450 mmAperture:45mm
power input:1 phase, AC115/230VSupply capacity:200 sets per month
Warranty:1 yearModel:ZHB-5
Package preview:Weight (kg):50 kg
Core component warranty:1 yearRotating motor:90 watts
Rotating speed:0.5-5 turnsMarketing Type:factory sales
Maximum load weight:50 kgMain selling points:easy to operate
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramApplicable industries:Building material stores, machinery repair shops, manufacturing plants, construction projects
Showroom location:Egypt, Vietnam, Russia, Argentina, ChileVideo shipment inspection:if
Packaging Details:wooden boxOvershoot angle:0-90°
Table diameter:360 mm
Product parameters
The Zhouxiang factory in China designs and manufactures a wide range of welding positioners and positioning equipment, from 10 kg to 100 tons and above. Our welding positioners are designed to significantly increase the productivity of welding and fabrication processes. The perfect automation solution for 360-degree tilting, swiveling and lifting, workpieces of various capacities, shapes and sizes. They improve the quality and consistency of welds through manual and automated processes. Easy-to-use operation and accessibility of integrated equipment; the weld positioner also significantly enhances operator ergonomics. Our line of positioners include table positioners, adjustable height, lift, cradle, L-shaped and specialty designs that can be built to accommodate large diameter components with jigs and clamps.
Model
R
Table speed
table
strength
Table diameter (ΦD)
speed adjustment

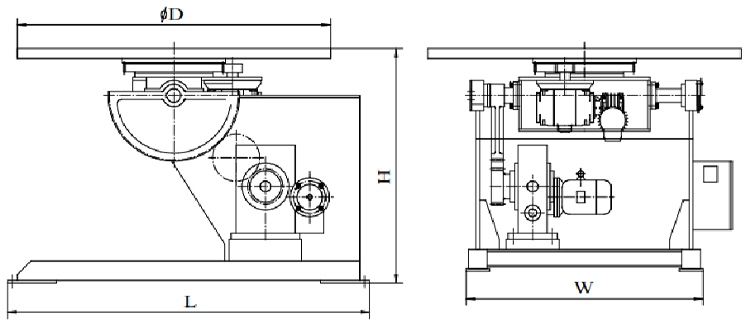

Machine size(mm)
ratio
tilt
slope
ratio
tilt
Kilogram
Rotating speed
Rotating speed
°
kilowatt
mm
length*width*height
HBZ-1
100
0.35-3.5
1.0
0-90
0.18
0.18
400
Inverter
740*525*480
HBZ-3
300
0.2-2
1.0
0-90
0.37
0.37
600
940*720*610
HBZ-6
600
0.09-0.9
1.0
0-90
0.75
0.75
1000
1500*1120*1000
HBZ-10
1000
0.05-0.5
0.8
0-120
1.1
1.5
1200
1850*1210*1140
HBZ-30
3000
0.05-0.5
0.23
0-120
1.5
1.5
1400
2200*1740*1355
HBZ-50
5000
0.05-0.5
0.16
0-120
2.2
3
1500
2700*1984*1510
HBZ-100
10000
0.017-0.17
0.1
0-120
3
5.5
2000
3460*2500*2024
HBZ-200
20000
0.017-0.17
0.1
0-120
4
5.5
2000
3610*2930*1974
Model
R
Table speed
table
strength
Table diameter (ΦD)
speed adjustment
Machine size(mm)
ratio
tilt
slope
ratio
tilt
lb
Rotating speed
Rotating speed
°
life value
mm
length*width*height
HBZ-1
220
0.35-3.5
1.0
0-90
0.24
0.24
400
Inverter
740*525*480
HBZ-3
660
0.2-2
1.0
0-90
0.50
0.50
600
940*720*610
HBZ-6
1320
0.09-0.9
1.0
0-90
1.00
1.00
1000
1500*1120*1000
HBZ-10
2200
0.05-0.5
0.8
0-120
1.5
2.0
1200
1850*1210*1140
HBZ-30
6600
0.05-0.5
0.23
0-120
2.0
2.0
1400
2200*1740*1355
HBZ-50
11000
0.05-0.5
0.16
0-120
3.0
4.0
1500
2700*1984*1510
HBZ-100
22000
0.017-0.17
0.1
0-120
4.0
7.4
2000
3460*2500*2024
HBZ-200
44000
0.017-0.17
0.1
0-120
5.4
7.4
2000
3610*2930*1974
Product advantages

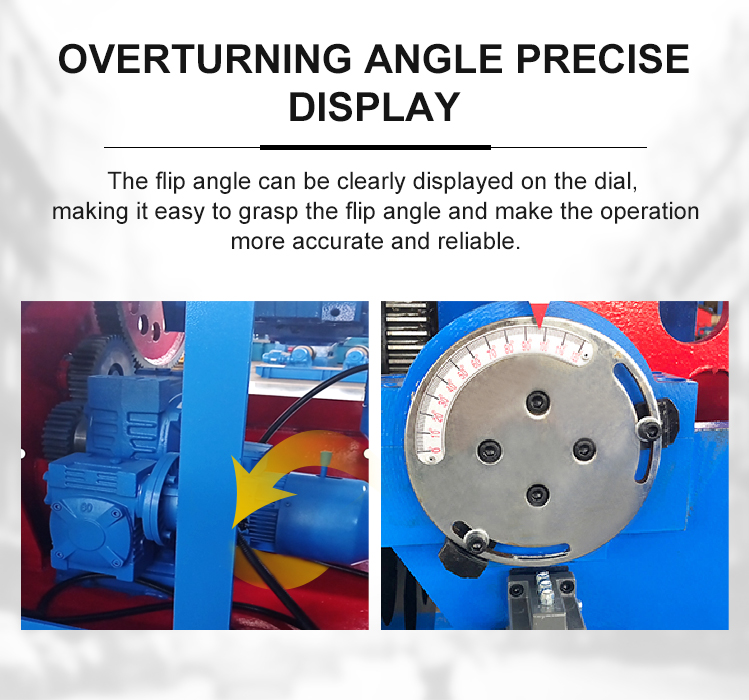

A1:The tilt-rotary welding positioner is equipped with an angle dial, which can clearly display the tilt angle, which is easy to grasp the flip angle and makes the operation more accurate and reliable. The limit switch effectively protects the equipment.

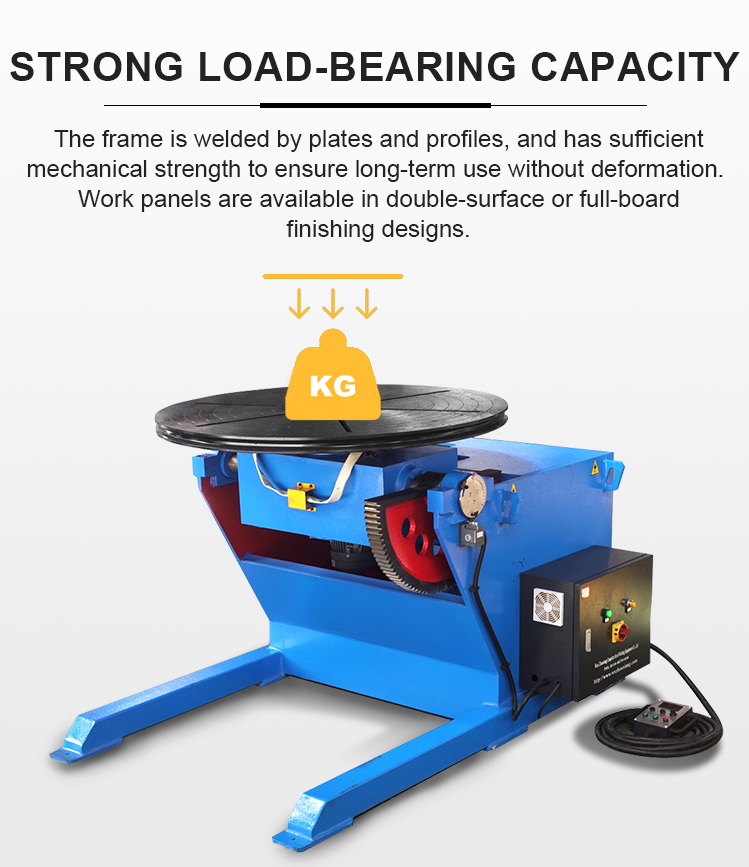

A2: The frame is welded by plates and profiles, with sufficient mechanical strength to ensure long-term use without deformation. Grooves facilitate workpiece fixation. Chucks can be configured according to customer requirements. The rotation of the workbench adopts a slewing bearing, which has a strong bearing capacity.

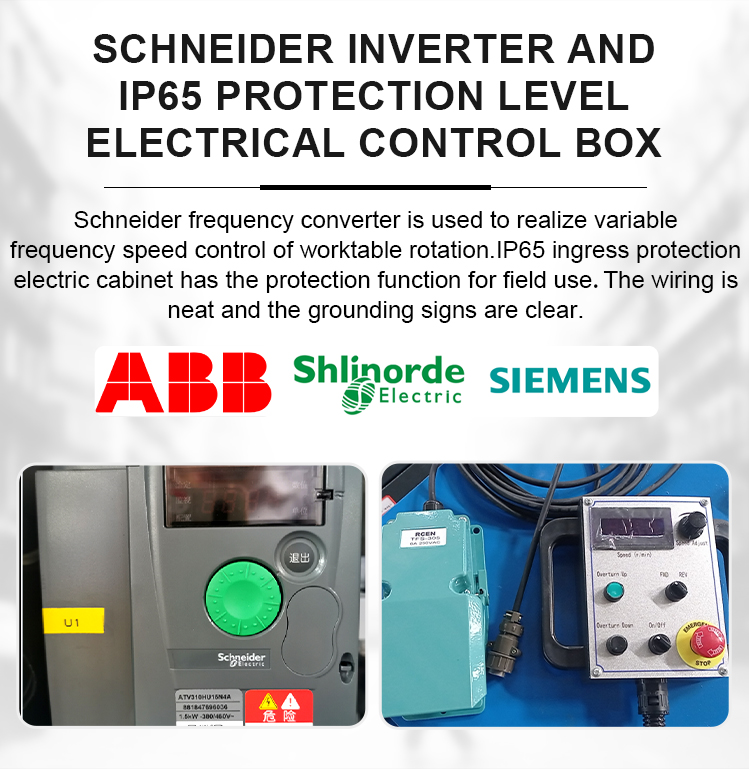

A3: Schneider AC frequency conversion speed governor is mainly used to control and adjust the speed of three-phase AC asynchronous motors. It has stable performance, rich combination functions, good dynamic characteristics, super overload capacity and unparalleled flexibility. The electrical control system adopts IP65 protection level, dustproof and heavy rain and remote wired/wireless control box operation. High-standard electrical control box with neat wiring and clear grounding signs.

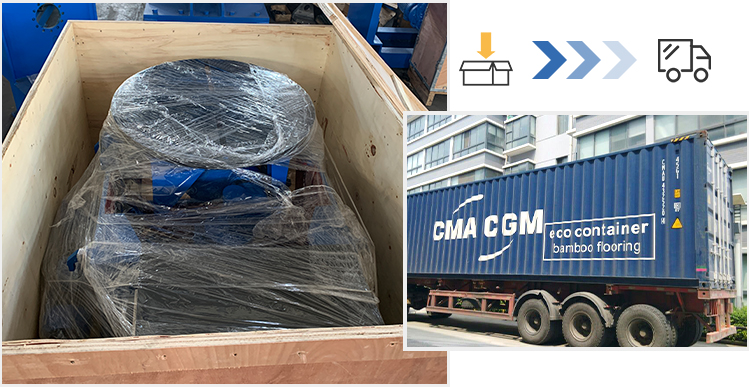

Packaging and Shipping
