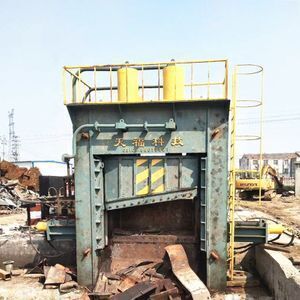

CE Hydraulic Heavy Metal Scrap Shear (High Quality)
-
Supplier: Jiangyin Tianfu Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Landry zhou -
Price: $100000.00 /set -
Min. Order: 1 set
| Power (kW): | 220KW; | Brand Name: | Tianfu Technology; |
| Shift Efficiency: | 50-100Tons/Shift (8 Hours); | Max. Cutting Force (Ton): | 6300KN; |
| Cooling system: | Water or Air Cooler; | Packaging Detail: | packing: plastic wrapping and wood case, steel wire fixed in the container; |
| Machine Type: | Hydraulic Shears; | Material / Metal Processed: | Brass / Copper,ALLOY,Carbon Steel,Aluminum,Stainless Steel,car shell; |
| Supply Ability: | 200 Set/Sets per Year The Production Of Scrap Metal Shear Baler Machine; | Quality Standard: | CE/ISO9001: 2000/SGS; |
| Port: | Shanghai; | Place of Origin: | Jiangsu China (Mainland); |
| Payment Terms: | L/C,T/T,ESCROW; | Operation: | PLC Control; |
| Warranty: | 1 Year; | Feed box size: | 8000*1800*900mm; |
| Color: | Customer's Request; | After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service; |
CE Hydraulic Scrap Metal Shear (High Quality)
1. Application for scrap metal shear baler machine :
Q91Y series scrap metal shear is applicable in steel plants,recycling companies,ferrous & non-ferrous smelting industry to press heavy metal scraps(steel,copper,aluminum,stainless steel,discarded cars), then cut the bale after baled into pieces.
Features:
1)Hydraulic drive,PLC control.
2)Bale-discharging:"turn-out",big square metal cutting shearer equiped.
3)Big enough pressing room to feed large size scrap.
2. Main Technical Parameters for scrap metal shear baler machine :
Nominal push force (KN) | 6300 |
Feed box size(L*W*H) (mm) | 8000*1800*900 |
| Blade length of shearer (mm) | 1800mm |
| Cutting frequency (time/min) | 2.5-3 |
| Capacity | 6-12Tons/hr |
| Quality standard | ISO;CE;SGS |
Power (KW) | 220KW |
Operation | PLC control |

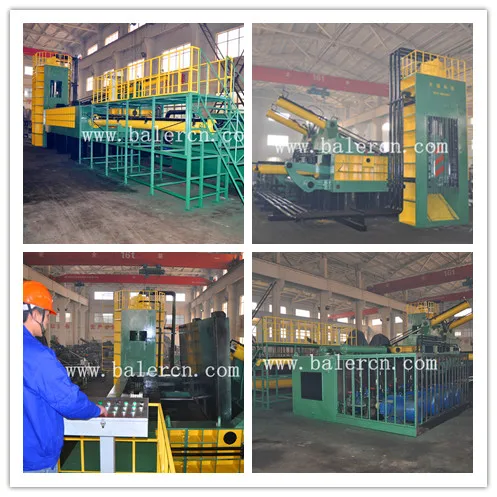

3. Factory for scrap metal shear baler machine :
We are specialized in scrap metal recycling indutry with over 20 years experience. we do as "quality first, service best". we export to over 50 countries like Europe. USA.Brazil.Mexico.Russian.Iran.etc. so we are sincere to invite you come to my factory. when you see you will believe, you can compare the quality.
4.Advantages for scrap metal shear baler machine :
1). Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
2). We use good quality seals, so no oil leak.

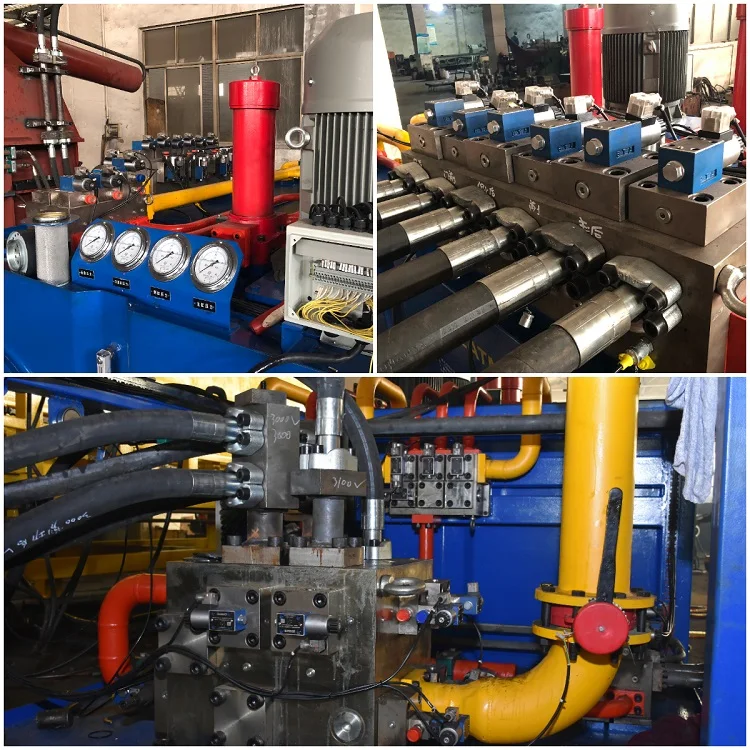

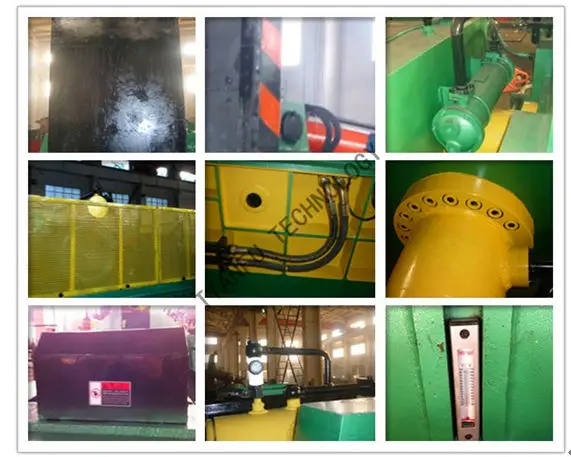

3). Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.
5. Certificates and Patents
6. Customers

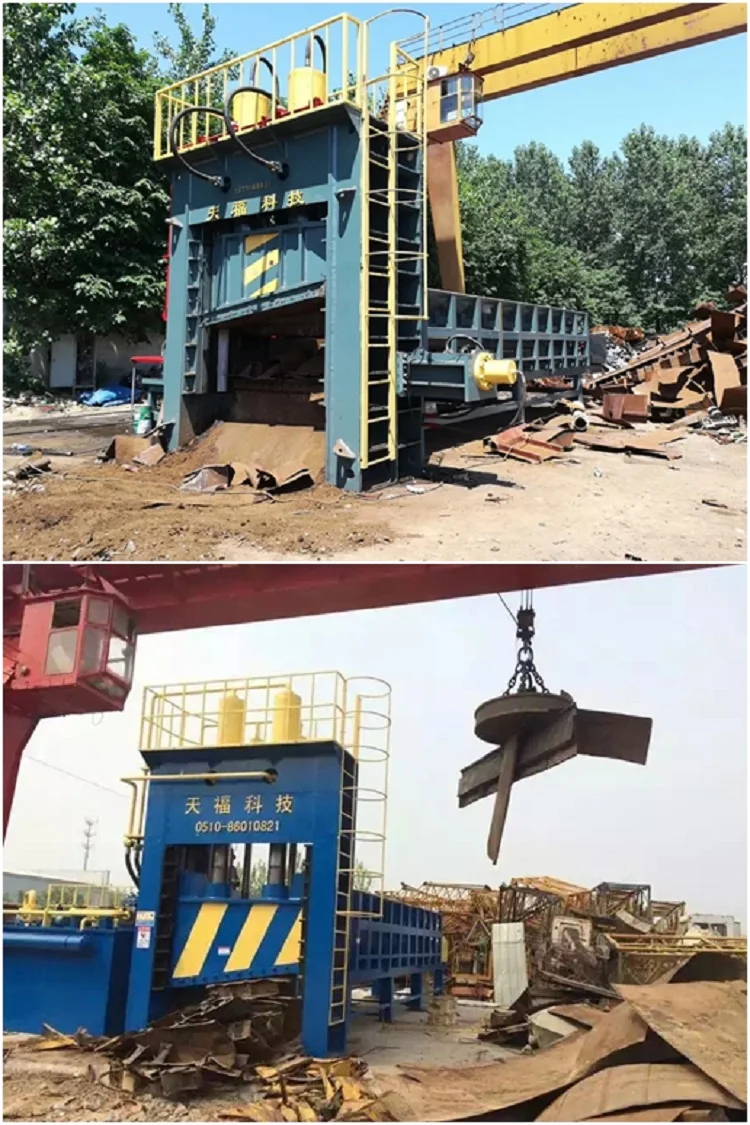

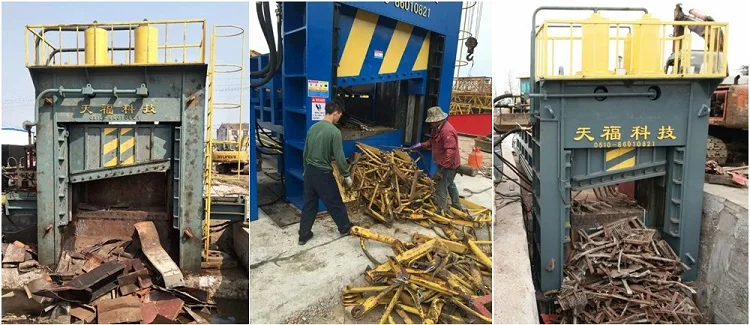

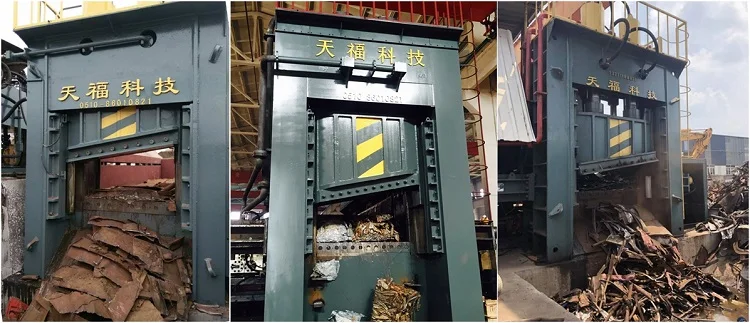

8. Customer Using Situation
1)Are you a factory or trade company?
We are manufacturer with own factory for 20 years, export proportion 70~80%.
2)How can i trust your company?
a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
b. Assessed by third party, national patents for all equipment, also CE, ISO.
c. Agents in RU, UKR,MYS,PH; Users around the world.
d. Welcome to inspect anytime. We are near to Shanghai airport.
e. About the machine, we do much better on:Wear plates, seals, structure design, pressure head.
3)How about the test running & installation?
Before delivery, we finish the test over 3 times.
If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
4)Any warranty?
Under the proper usage, one year for whole machine except the wear parts.
5)Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
-
