MZ-1000 IGBT INVERTER Submersible ARC Welding Machine
-
Supplier: Shanghai CHD Welding & Cutting Equipment Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Chiong Emily -
Price: $1800.00 /set -
Min. Order: 1 set
| brand: | coronary heart disease | payment terms: | T/T, MoneyGram |
| Supply capacity: | 500 sets per month | Feeding speed range: | 20~250cm/min |
| Core component warranty: | 1 year | Main selling points: | easy to operate |
| Core components: | motor | Health status: | new |
| color: | blue | aspect: | 950*650*810mm |
| Mechanical test report: | if | Product number: | MZ-1000 |
| port: | Shanghai | Video shipment inspection: | if |
| Welding thickness: | 5-20mm | Weight (kg): | 400 kg |
| After-sales service provided: | online support | Wire amount: | 25 kg |
| Warranty: | 1 year | Applicable industries: | Building materials store, factory |
| Marketing Type: | 2019 Hot Products | Flux: | 10L |
| Packaging Details: | Inner packing: strech films Outer packing: polywood case | place of origin; place of origin: | China Shanghai |
| Welding speed range: | 15~150cm/min | Showroom location: | Indonesia, Thailand |
|
Standard Specifications
|
||||
|
order number.
|
ZT5536
|
ZT5537
|
ZT5538
|
ZT5539
|
|
Model
|
MZ-630
|
MZ-1000
|
MZ-1250
|
MZ-1600
|
|
Input voltage/frequency
|
3~380V 50/60Hz
|
|||
|
Rated input capacity
|
46KVA
|
66KVA
|
83KVA
|
110KVA
|
|
Current adjustment range
|
80~630A
|
100~1000A
|
100~1250A
|
100~1600A
|
|
duty cycle
|
100%
|
100%
|
80%
|
80%
|
|
Welding thickness
|
3~10
|
5~20
|
5~25 years old
|
5~30
|
|
Dimensions (mm)
|
885×620×760
|
950×650×810
|
950×650×810
|
1050×750×910
|
|
weight
|
260 kg
|
400 kg
|
410 kg
|
430 kg
|
|
Welding speed range
|
15~150cm/min
|
|||
|
Feeding speed range
|
20~255cm/min
|
20~250cm/min
|
20~250cm/min
|
20~250cm/min
|
|
Wire amount
|
25 kg
|
|||
|
flux
|
10L
|
|||
|
car weight
|
50 kg
|
|||

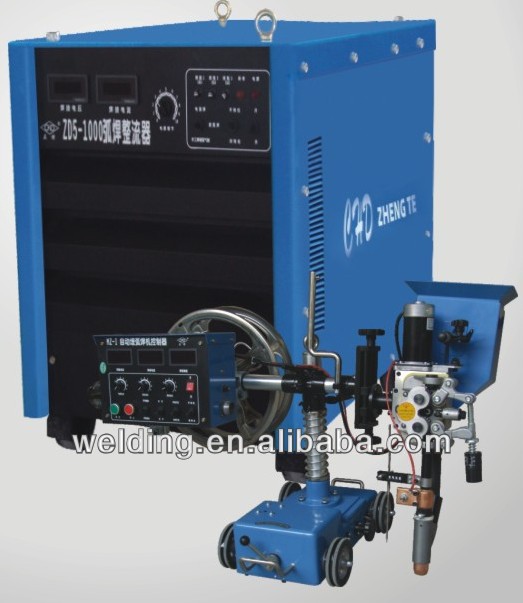

MZ-1000 Thyristor Submerged Arc Welding Machine
feature:
1. High load cycle, continuous work around the clock;
2. High energy, 100% success rate, slow wire feeding arc start;
3. Power-saving design, automatically cut off the power every 30 minutes without arcing;
4. Two wire feeding modes: variable speed and constant speed;
5. Use pulse width to adjust the speed of wire feeding and trolley travel, which is less affected by grid fluctuations and temperature changes;
6. It has welding functions such as automatic SAW, MMA welding, carbon arc gouging and other functions;
7. Non-contact control, full IC access, high reliability.
-
Submerged arc welding machine 4-wheel welding tractor equipped with welding source and flux recovery system
-
