Wholesale Price Water Cooled Chiller Circulating Bathtub Cooled Chiller
-
Supplier: Guangdong Yake New Energy Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Catherine Guo -
Price: $360.00 / 1 - 9 pieces
$350.00 / 10 - 49 pieces
$335.00 / >=50 pieces -
Min. Order: 1 piece
Product details
| Video shipment inspection: | if | range of working temperature: | 0~40 |
| After-sales service provided: | Video technical support | type: | water cooling |
| After-sales service: | online support | brand: | burn off |
| Function: | cooling only | place of origin; place of origin: | Guangdong, China |
| Mechanical test report: | Not available | Cooling capacity: | 2600/3500/5000/7200W |
| Applicable industries: | Restaurant, household, farm, hotel, food and beverage store, food and beverage factory, retail, food store, aquarium, ice bath | Core components: | Motor, compressor, PCB |
| Core component warranty: | 1 year | Marketing Type: | 2019 Hot Products |
| Package preview: | Packaging Details: | Standard carton with plywood pallet. | |
| Freon: | R22/R410a | weight: | 36 kg |
| Voltage: | 220V/50~60hz | Main selling points: | competitive price |
| port: | Guangzhou | Health status: | brand new |
| Supply capacity: | 5000 pieces per month | water tank: | 1000-1500L |
| strength: | 3500W | Dimensions (L*W*H): | 695*396*545mm |
| cooling method: | compressor cooling | Warranty: | 1 year |
| payment terms: | wire transfer | Heat exchanger: | Titanium tube/PVC shell |
| Showroom location: | not any | After warranty service: | online support |
| compressor: | Toshiba/Gree/GMCC/Hitachi/Sanyo/Chigo |
Product Description
describe

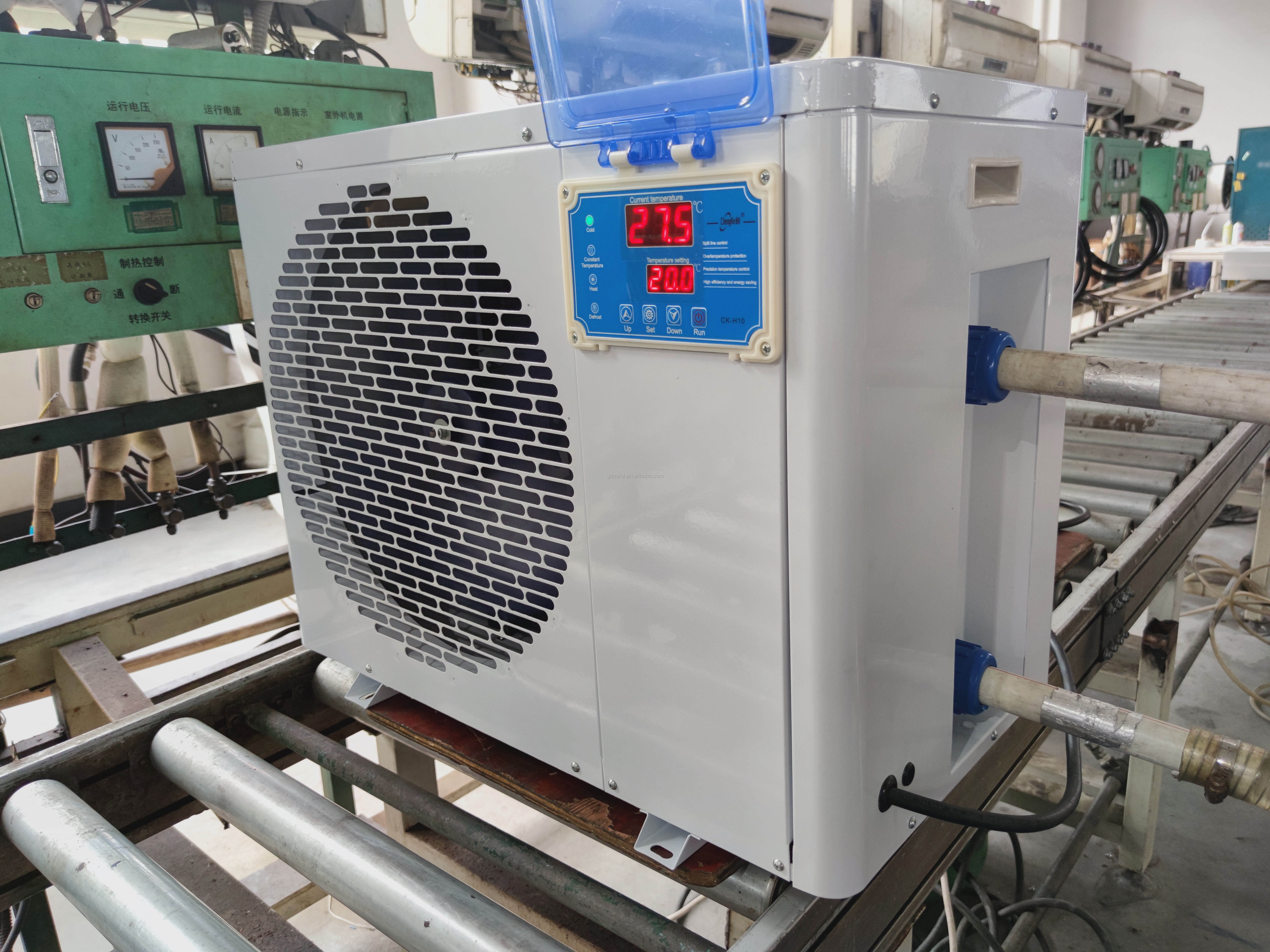

This chiller is an automatic control device designed for cooling/heating water tanks while maintaining the temperaturestable.
other appsThis chiller can also be widely used for cooling, heating and constant temperature creation of small pools, fish tanks, etc.
A stable environment for fish growth.
A stable environment for fish growth.

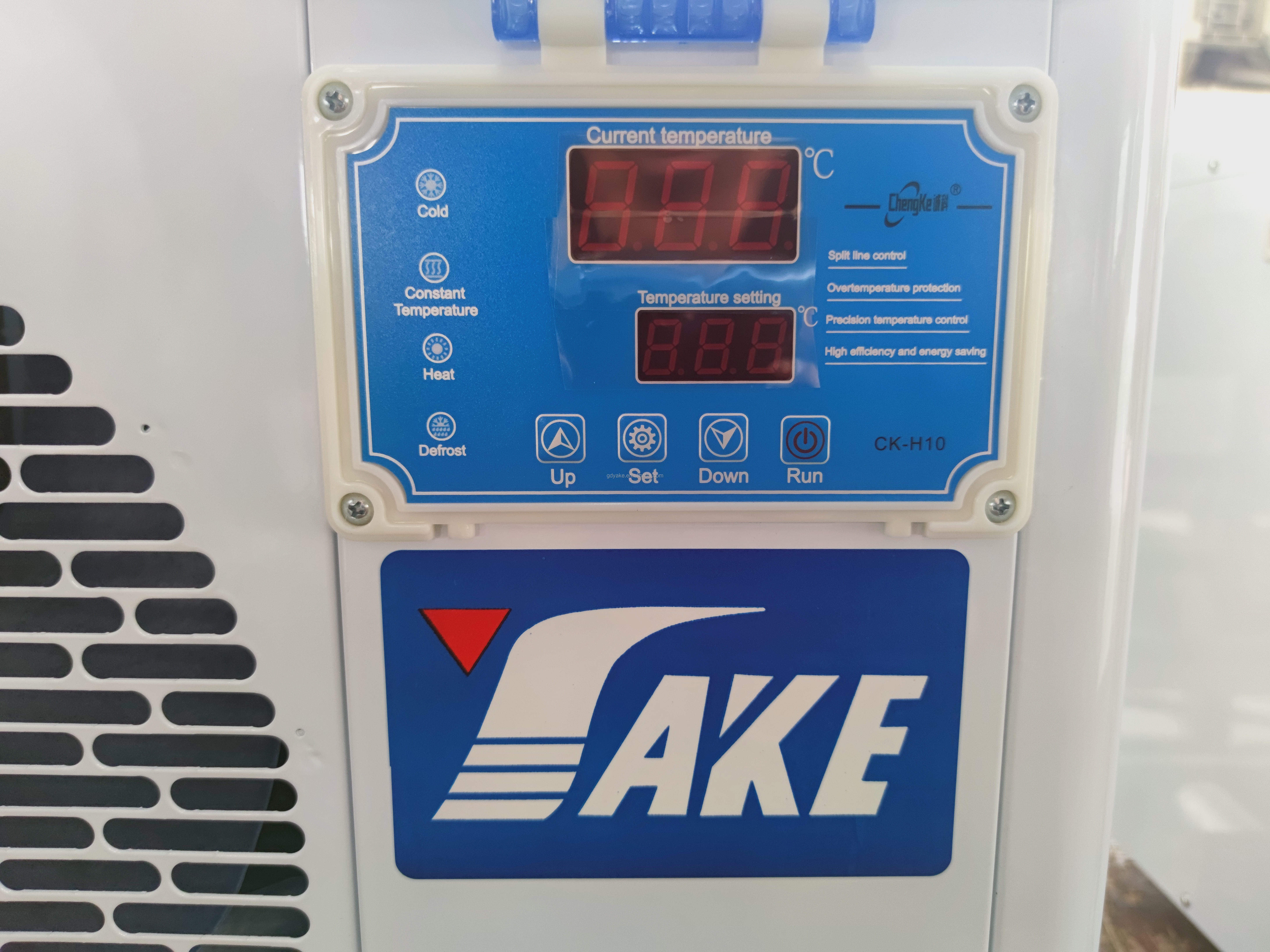

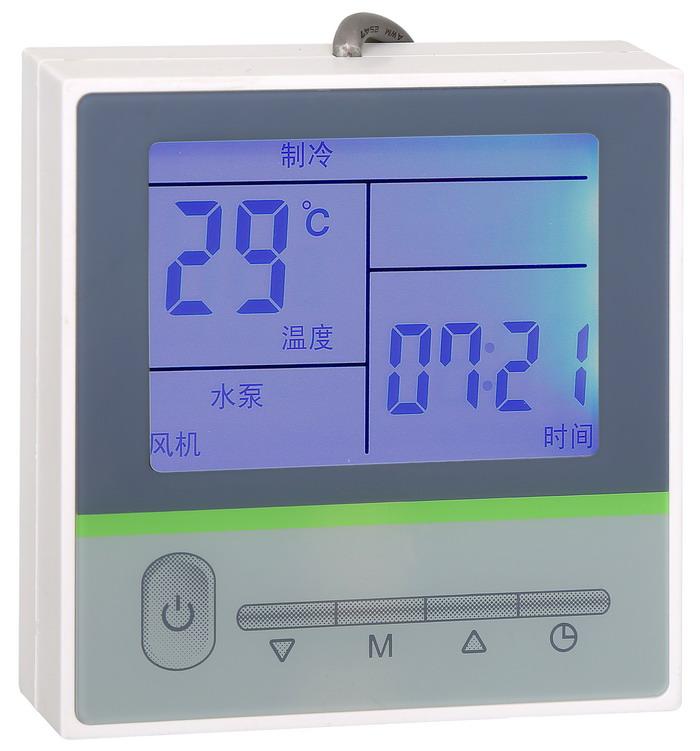

control panel
The main control board has a digital display, which can adjust the operation mode and set temperature of the chiller. easy to use,
Reliable control and stable performance.
Reliable control and stable performance.

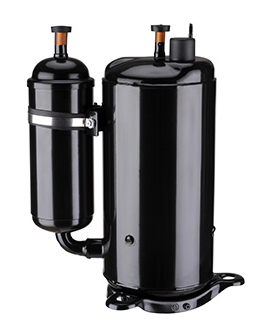

rotary compressor
Adopt famous brand compressor. Offers high efficiency and reliability, low noise and vibration, resulting in long economic life.

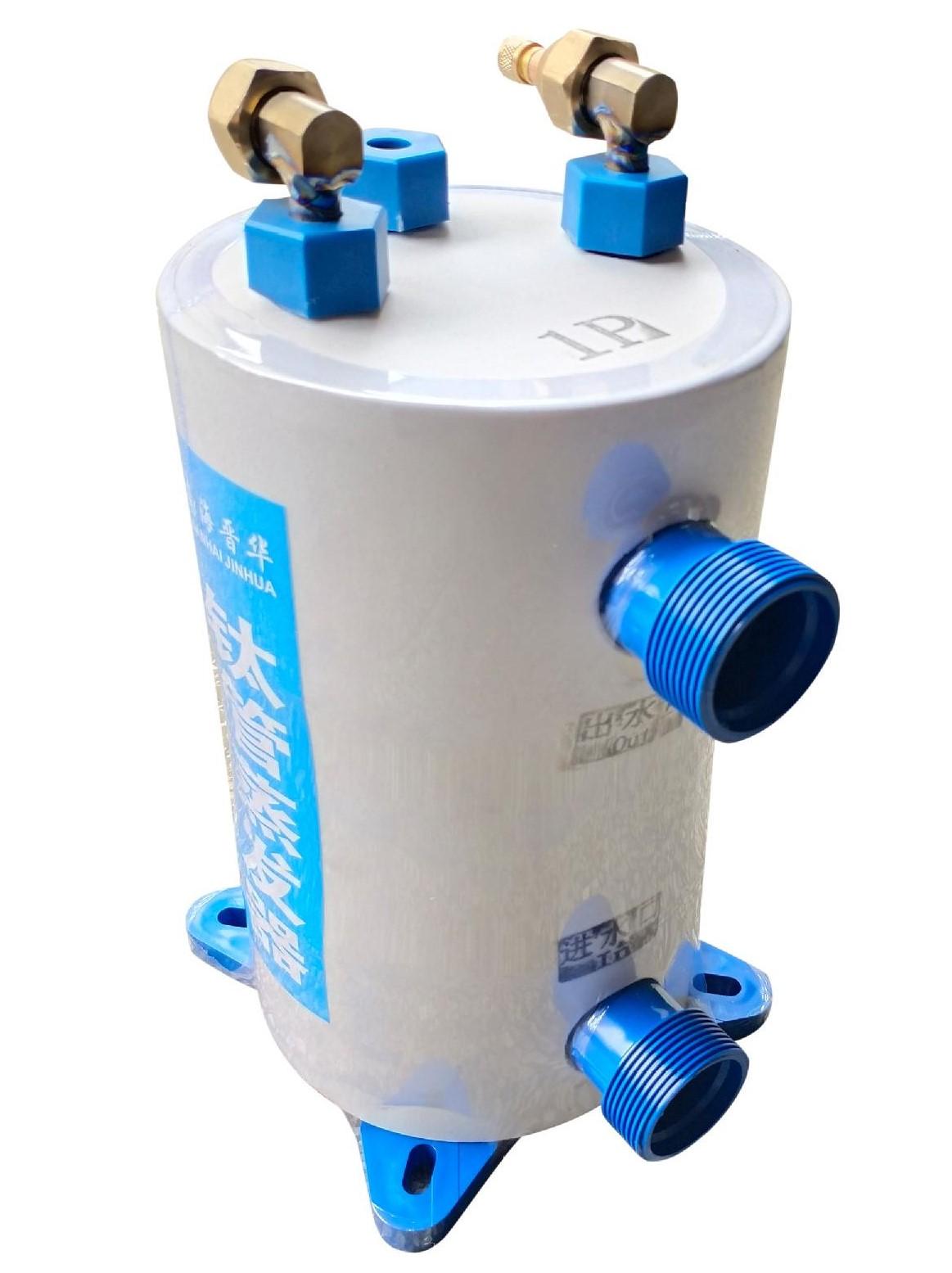

Evaporator
The evaporator of the chiller adopts industrial pure titanium coil, which has strong corrosion resistance and is specially designed for
seawater. Stainless steel 304 coils are also available for food use and severe weather conditions.
seawater. Stainless steel 304 coils are also available for food use and severe weather conditions.
Specification
Model | YHGF(R)-27AP2 | YHGF(R)-36AP2 | YHGF(R)-52AP2 | YHGF(R)-72AP2 | |||
strength | AC 220V/50HZ (110V/50HZ, 220V/60HZ can be customized) | ||||||
Rated cooling/heating capacity | 2700W/3380W | 3600W/4500W | 5200W/6500W | 7200W/8600W | |||
Rated cooling power | 920W | 1380W | 1820W | 2500W | |||
Rated cooling current | 4.2A | 6.3A | 8.3A | 11.4A | |||
Maximum Cooling Input Power | 1058W | 1590W | 2100W | 2880W | |||
cooling input current | 4.8A | 7.2A | 9.5A | 13A | |||
Set temperature range | 3~35°C (factory default 20°C) | ||||||
Recommended pump flow | 0.77 cubic meters per hour | 1.03 cubic meters per hour | 1.49 cubic meters per hour | 2.06 cubic meters per hour | |||
Inlet/Outlet Dimensions | 50mm internal thread | ||||||
noise level | ≤52dB(A) | ≤52dB(A) | ≤58dB(A) | ≤58dB(A) | |||
Refrigerant/Charge | R22/580(620)g | R22/1000(1050)g | R22/1250(1300)g | R22/2000 (2050g) | |||
Applicable water volume | 700~1200L | 1000~1500L | 1500~2000L | 2000-2500L | |||
aspect | 645×270×660mm | 644×269×686mm | 775×325×690mm | 790×350×838mm | |||
net weight | 38KG | 40KG | 51KG | 71KG | |||
customization options
9000BTU/12000BTU/18000BTU/24000BTU availableCooling only/Cooling & Heating
110V~220V/50Hz~60Hz

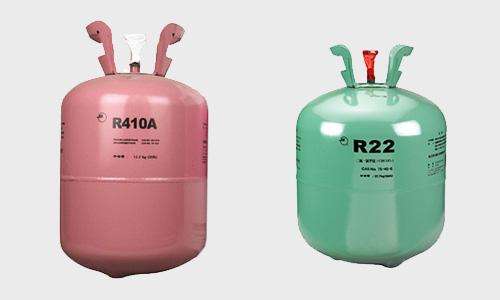

R22/R410a
Jacques logo/OEM
110V~220V/50Hz~60Hz
R22/R410a
Jacques logo/OEM

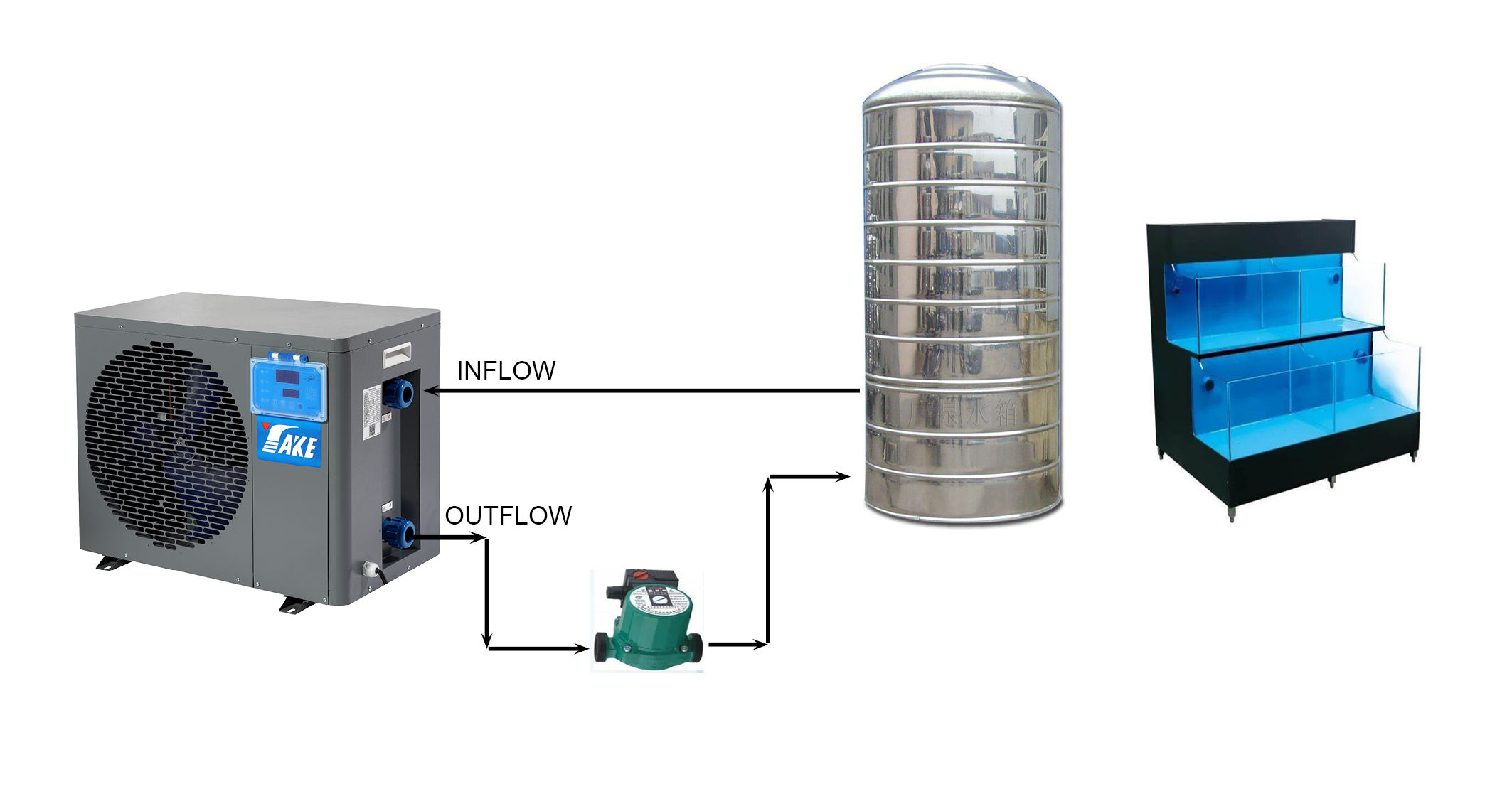

Installation Notes
A circulation pump is needed to help circulate the water from the tank/fish tank to the chiller.

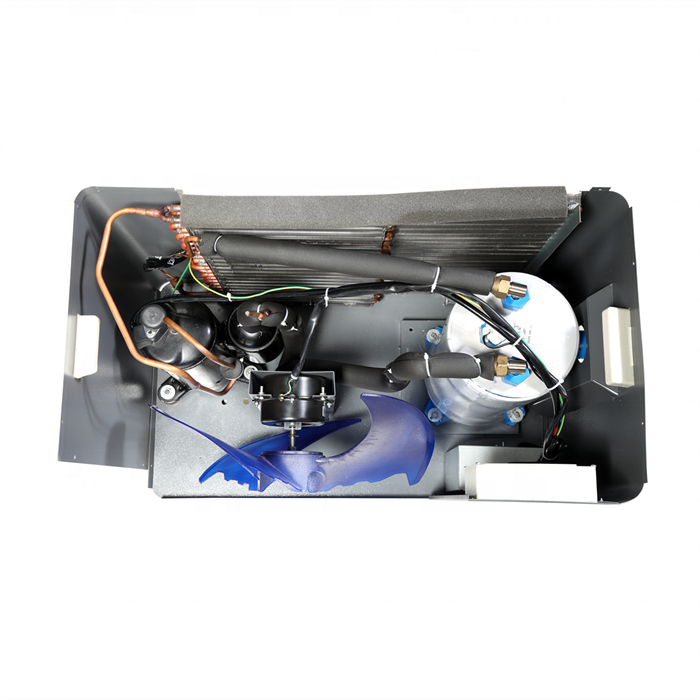

detailed image

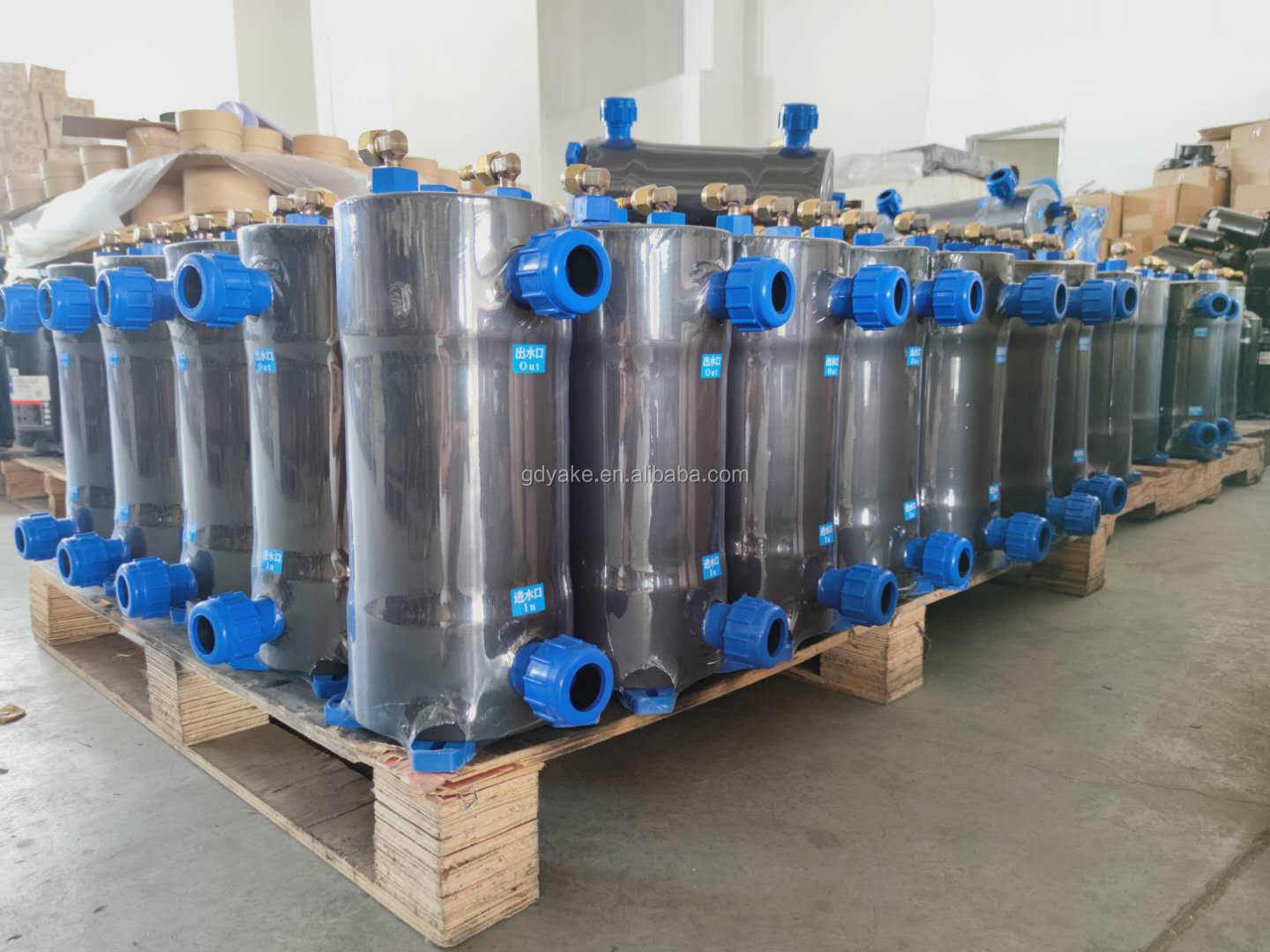

High quality heat exchanger
Industrial grade PVC housing with titanium/stainless steel inner coil designed for rapid water cooling. Diameter and Coil Length
Can be customized according to your environmental conditions.
Can be customized according to your environmental conditions.

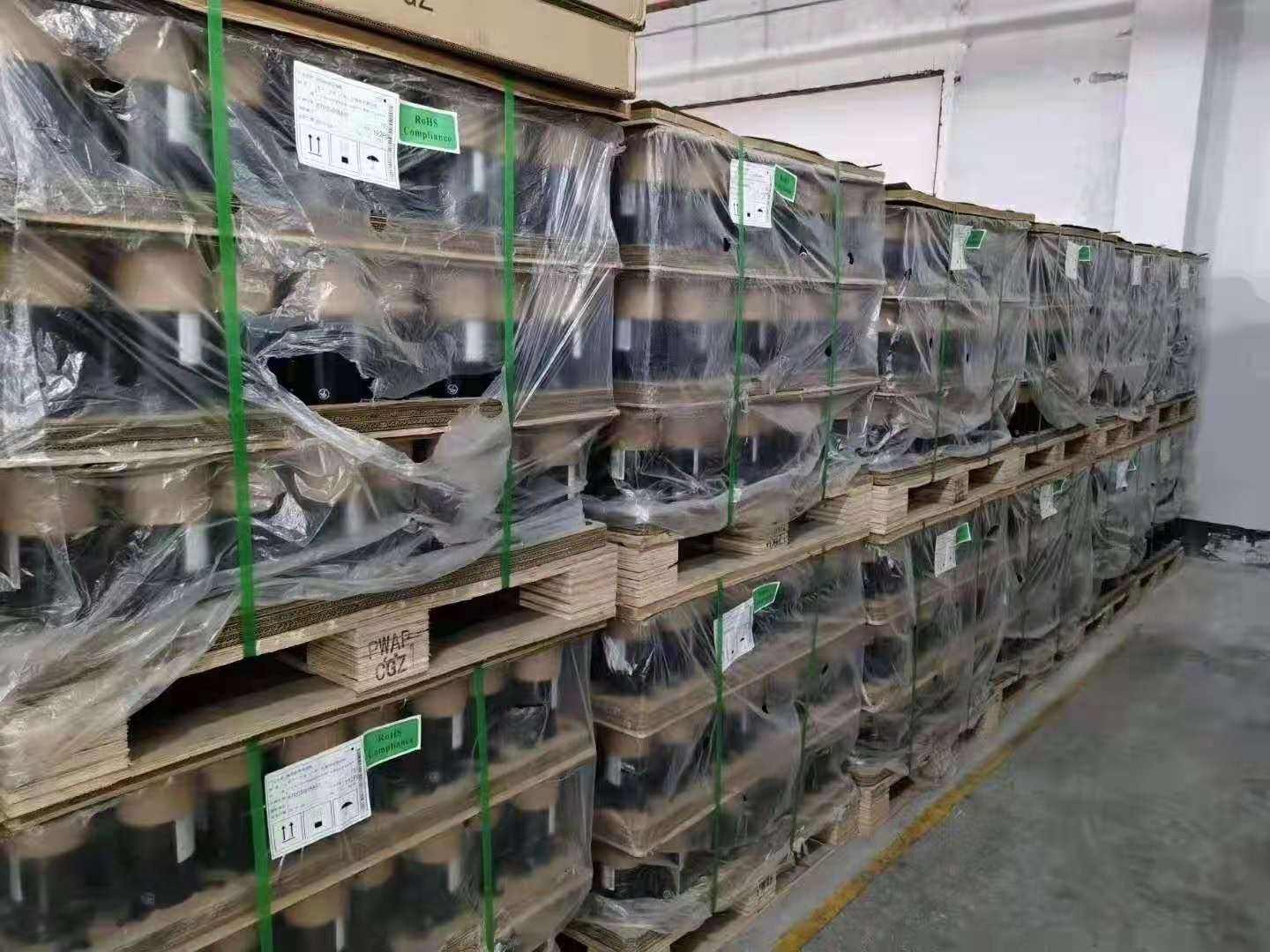

brand compressor
All products adopt famous brand compressors with high efficiency and longer stability.
