Material: | Chrome steel/GCr15/52100/stainless steel | Rows: | single row |
pack: | by request | type: | ball, ball |
Seal type: | Open | payment terms: | L/C, T/T, Western Union |
port: | Xiamen, Zhangzhou | Packaging Details: | One piece in a small polybag, 100pcs in a big polybag, then packed in a box |
cage: | Steel cage. Brass cage | structure: | thrust, thrust |
application: | machine | Applicable industries: | manufacturing plant |
model: | F6-12M | brand: | Run Star |
Supply capacity: | 100000 pieces per month | Accuracy class: | ABEC-1, ABEC-3, ABERC-5 |
Certificate: | ISO 9001:2015, Reach and RoHS | place of origin; place of origin: | Fujian China |

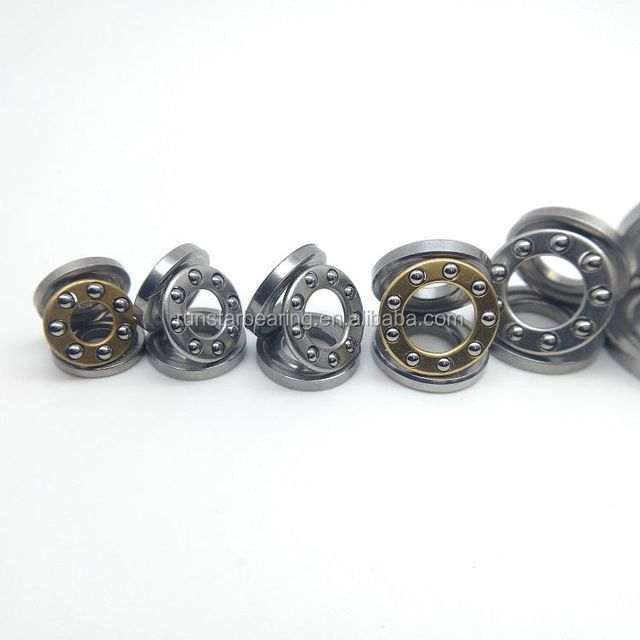

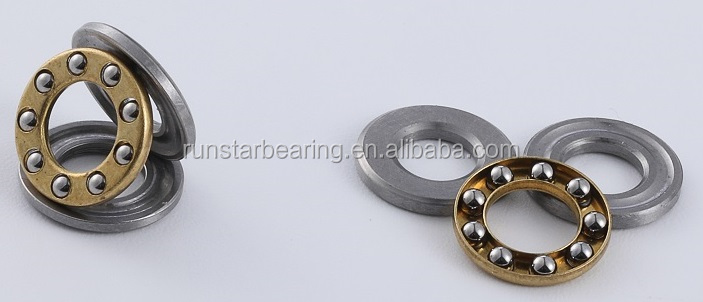

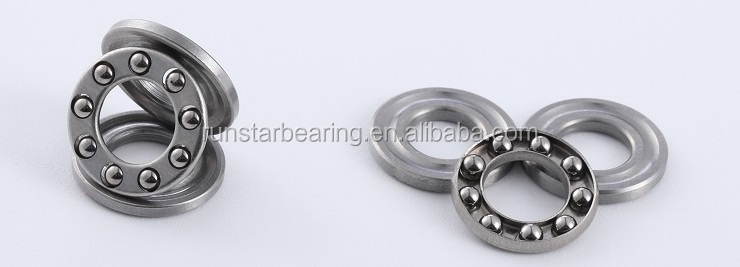

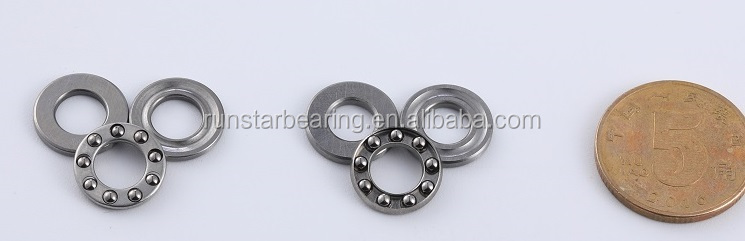

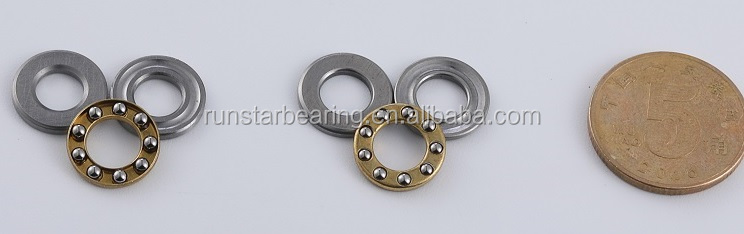

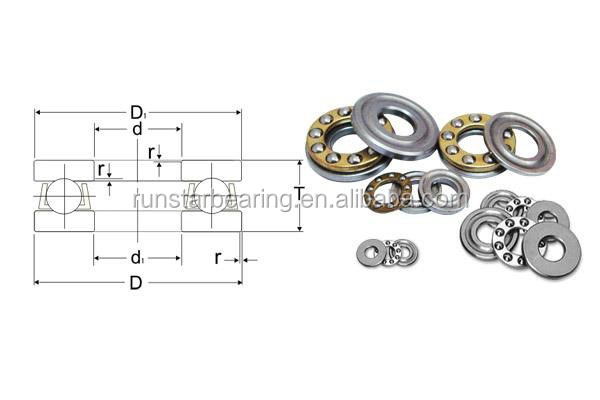

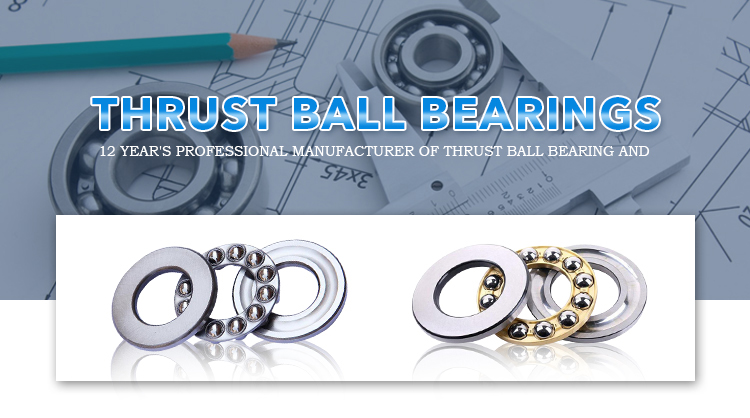

Thrust ball bearings consist of two precision chrome steel or stainless steel washers (rings) and a ball assembly separated by a bronze retainer (and stainless steel stainer). They are available with or without radius ball grooves in the ring. Thrust bearings only carry pure axial loads.
FM series (with groove)
type | d | Ding | d1 | D1 | h | load | Rated load Cor(N) |
score | |||||||
Chromium (nitrogen) | |||||||
F3-8M | 3 | 8 | 3.2 | 7.8 | 3.5 | 600 | 480 |
F4-9M | 4 | 9 | 4.2 | 8.8 | 4 | 800 | 520 |
F4-10M | 4 | 10 | 4.2 | 9.8 | 4 | 658 | 580 |
F5-10M | 5 | 10 | 5.2 | 9.8 | 4 | 950 | 830 |
F5-11M | 5 | 11 | 5.2 | 10.8 | 4.5 | 988 | 880 |
F5-12M | 5 | 12 | 5.2 | 11.8 | 4 | 988 | 880 |
F6-12M | 6 | 12 | 6.2 | 11.8 | 4.5 | 1600 | 1255 |
F6-14M | 6 | 14 | 6.25 | 13.8 | 5 | 1800 | 1588 |
F7-13M | 7 | 13 | 7.2 | 16.8 | 4.5 | 1422 | 1255 |
F7-15M | 7 | 15 | 7.2 | 14.8 | 5 | 2200 | 2000 |
F7-17M | 7 | 17 | 7.2 | 16.8 | 6 | 2600 | 2256 |
F8-16M | 8 | 16 | 8.2 | 15.8 | 5 | 2500 | 3000 |
F8-19M | 8 | 19 | 8.2 | 18.8 | 7 | 3452 | 3000 |
F9-20M | 9 | 20 | 9.2 | 19.8 | 7 | 3356 | 2999 |
F10-18M | 10 | 18 | 10.2 | 17.8 | 5.5 | 2230 | 2721 |
F series (no groove)
type | d | Ding | d1 | D1 | h | Rated loadCr(N) | Rated load Cor(N) |
F2-6 | 2 | 6 | 2 | 6 | 3 | 117 | 83 |
F2X-7 | 2.5 | 7 | 2.5 | 7 | 3.5 | 156 | 117 |
F3-8 | 3 | 8 | 3.2 | 7.8 | 3.5 | 600 | 480 |
F4-9 | 4 | 9 | 4.2 | 8.8 | 4 | 800 | 520 |
F4-10 | 4 | 10 | 4.2 | 9.8 | 4 | 658 | 580 |
F5-11 | 5 | 11 | 5.2 | 10.8 | 4.5 | 988 | 880 |
F6-12 | 6 | 12 | 6.2 | 11.8 | 4.5 | 1600 | 1255 |
F7-15 | 7 | 15 | 7.2 | 14.8 | 5 | 2200 | 2000 |
F8-16 | 8 | 16 | 8.2 | 15.8 | 5 | 2500 | 3000 |
F9-17 | 9 | 17 | 9.2 | 16.8 | 5 | 578 | 627 |
F10-18 | 10 | 18 | 10.2 | 17.8 | 5.5 | 2230 | 2721 |
application

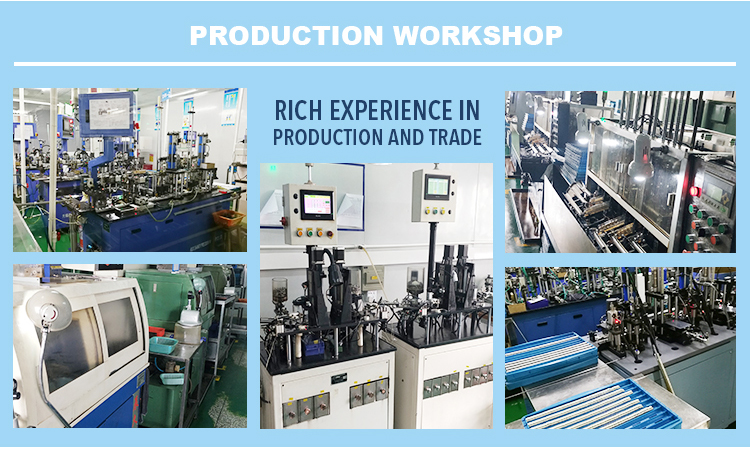

our workshop

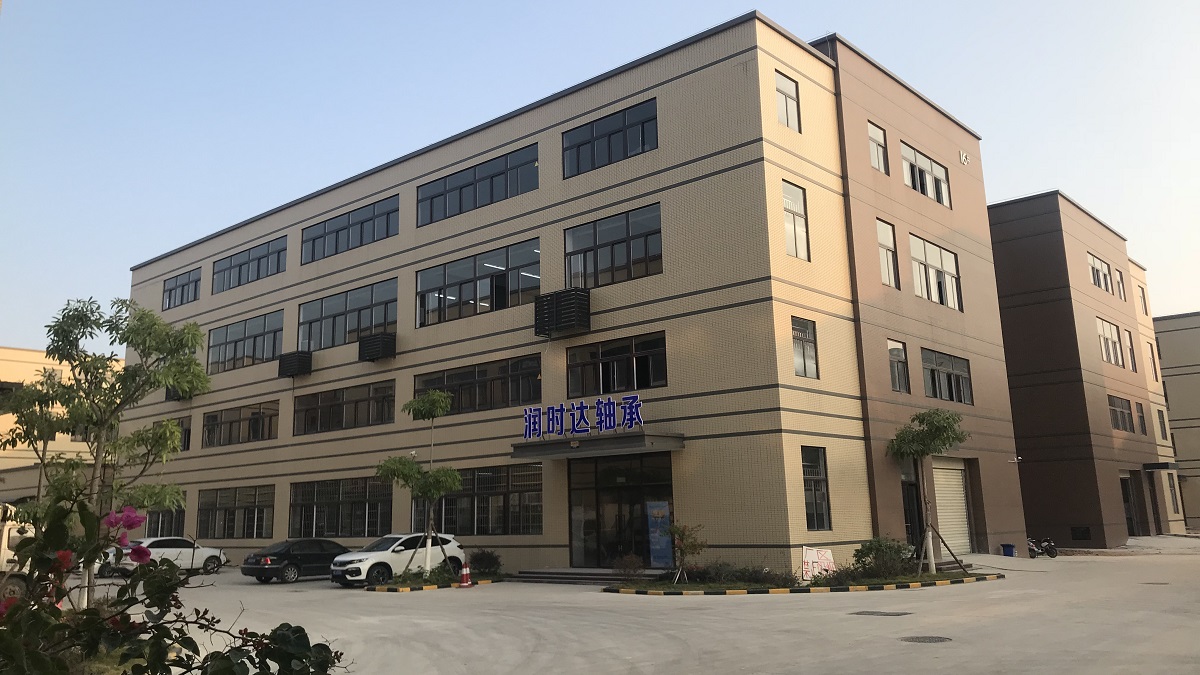

Our factory
pack
Delivery Method
