Sling Color: | yellow | Package preview: | |
Packaging Details: | shrink or as needed | Supply capacity: | 10000000 pieces per day |
Operating temperature: | From -40C to 100C | brand: | chain |
payment terms: | L/C, Western Union, T/T, Paypal | length: | According to your requests |
Types of: | Double Polyester Webbing Sling with Reinforced Lifting Eyes, Assembled Sling | color: | yellow |
Safety elements: | 7:1 | width: | 93mm |
port: | Fuzhou | capacity: | 3T |
model: | ec6561 05001 | shape: | flat |
Customization support: | OEM production | Certification: | GS |
standard: | EN1492-1 | Lifting eye type: | flat eye |
place of origin; place of origin: | Fujian China | product name: | polyester suspenders |

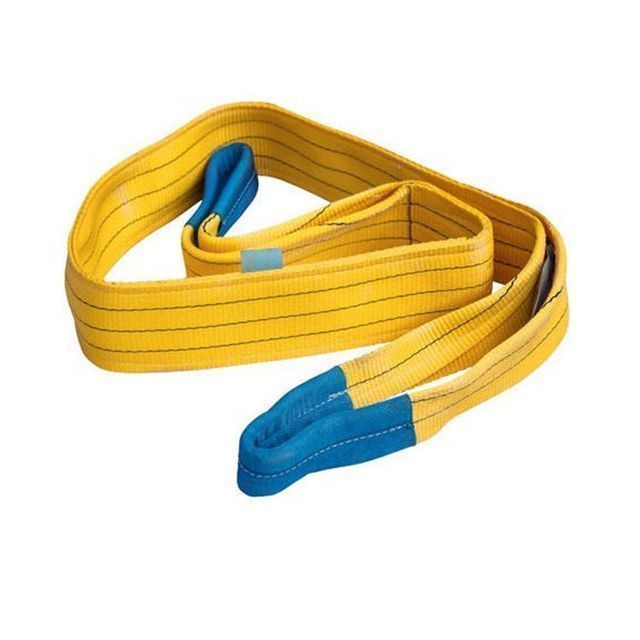

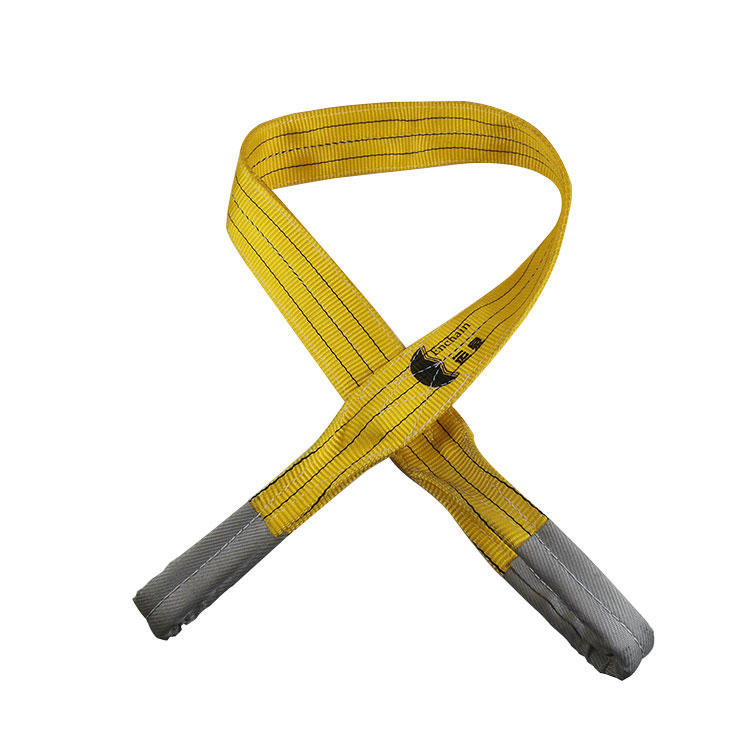

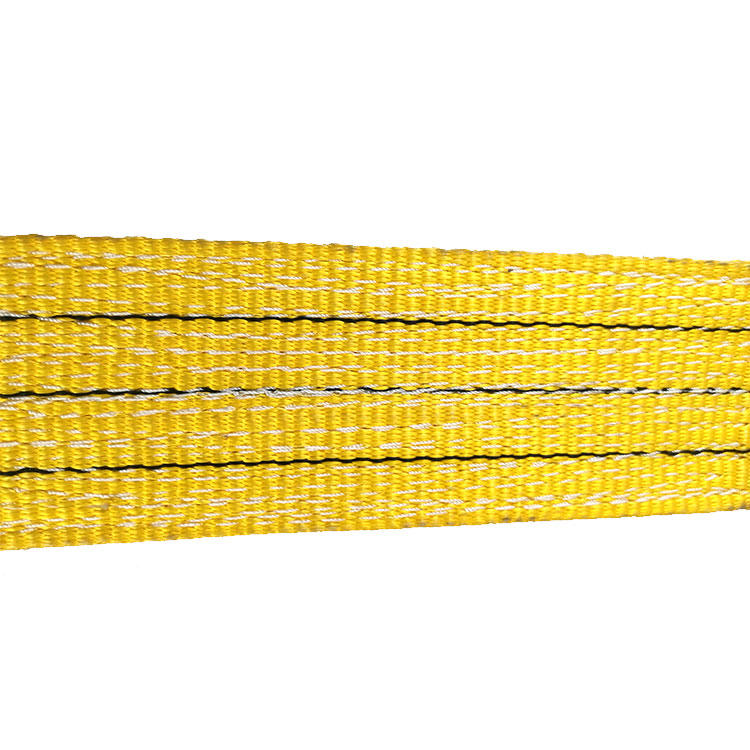

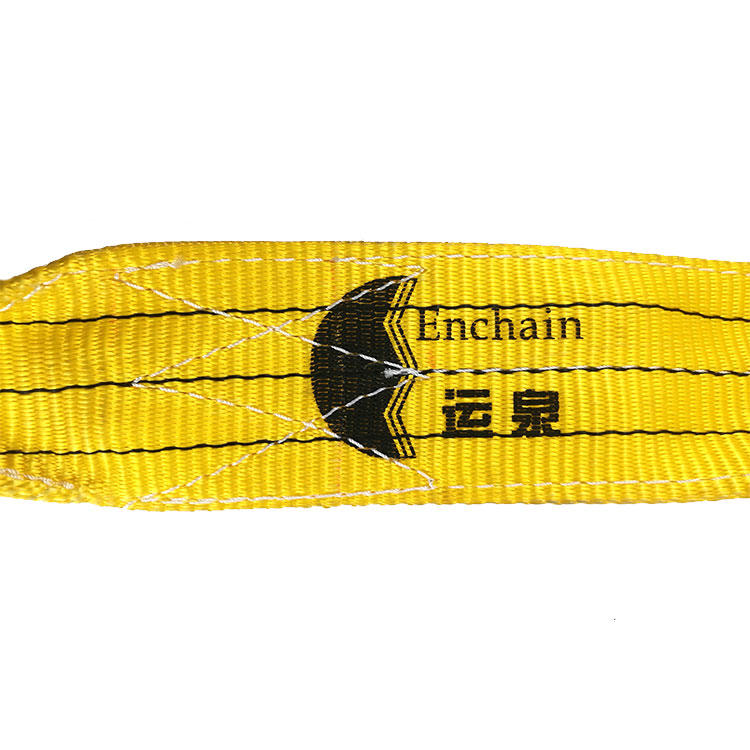

product name: | 3T Polyester Eye-to-Eye Webbing Flat Sling |
Types of: | Double layer polyester fiber sling with reinforced eyelets |
standard: | EN1492-1 |
Material: | 100% High Tenacity Polyester |
Safety elements: | 7:1 as standard, 6:1 or 5:1 available upon request |
capacity: | 3T |
color: | yellow |
Operating temperature: | From -40ºC to 100ºC |
color According to EN-1492-1 | Width (mm) (San Francisco 7:1) | Workload Limit (WLL, in kilograms) | ||||||||
Straight lift | Hoisting | hanging basket | ||||||||
A=0-7° | A=7-45° | A=45-60° | ||||||||
M=1.0 | M=0.8 | M=2.0 | m=1.4 | M=1.0 | ||||||
Purple (4005) | 30 | 1000 | 800 | 2000 | 1400 | 1000 | ||||
Green (6018) | 60 | 2000 | 1600 | 4000 | 2800 | 2000 | ||||
yellow (1018) | Post-90s | 3000 | 2400 | 6000 | 4200 | 3000 | ||||
gray (7001) | 120 | 4000 | 3200 | 8000 | 5600 | 4000 | ||||
red (3020) | 150 | 5000 | 4000 | 10000 | 7000 | 5000 | ||||
brown (8003) | 180 | 6000 | 4800 | 12000 | 8400 | 6000 | ||||
blue (5015) | 240 | 8000 | 6400 | 16000 | 11200 | 8000 | ||||
Orange (2008) | 300 | 10000 | 8000 | 20000 | 14000 | 10000 |
