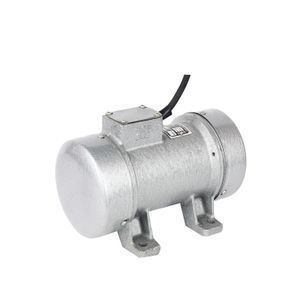

Electric Concrete Vibrator 0.25 kw

Supplier: Zhejiang Yitong Machinery & Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Ms YIJIE LI
Price: $20.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	YITONG;	Product name:	Internal type concrete vibrator;
Packaging Detail:	export package, Carton or wooden case .;	Drive Mode:	Electric Vibrator;
Payment Terms:	T/T;	Condition:	New;
Supply Ability:	50000 Piece/Pieces per Month;	Warranty:	1 Year;
Port:	Ningbo,shanghai;	Weight:	7.5-38kgs;
Vibration foree:	300/350/500/700/980/1380/1980 kg f;	Certification:	ccc &ce;
Frequency:	50 /60hz;	Current:	2.0/0.67/5.94/1.9/8.74/2.44/3.24/4.53/6.8;
Vibrating Amplitude:	0.8-1mm;	Motor speed:	2840r/min;
Power(W):	0.25KW/0.75KW/1.1KW/1.5KW/2.2KW/3KW;	After-sales Service Provided:	Video technical support;
Applicable Industries:	Construction works ;	Material of Enclosure:	Cast lron;
Type:	External;	Length of Flexible Shaft:	no;
Dimension(LWH):	422326cm;	Place of Origin:	Zhejiang China (Mainland);
Voltage:	110V-240V/380V-440V;

Why Choose Us

WHY CHOOSE US

1. Manufacturing from 1993, and full of export experiences.

2.We promise Guaranteed Quality

3.100% tested for the quality prior to shipment

4.Can be designed according to customers' requirements

5.Sincere and Professional Service

6.NO MOQ,1PC OK. SMALL ORDER WELCOME.

Product Description

Model	ZW-1.5	ZW-3.5	ZW-5	ZW-7	ZW-10	ZW-15	ZW-20	Unite
Vibration frequency	2840	2840	2840	2840	2840	2840	2840	r.p.m
Vibration foree	300	350	500	700	980	1380	1980	kg f
Rated voltage	220/380	220/380	220/380	220/380	380	380	380	V
Rated current	2.0/0.67	5.94/1.9	8.74/2.44	3.24	4.53	6.8	9.5	A
Motor power	0.28	0.75	1.1	1.5	2.2	3	4	kw

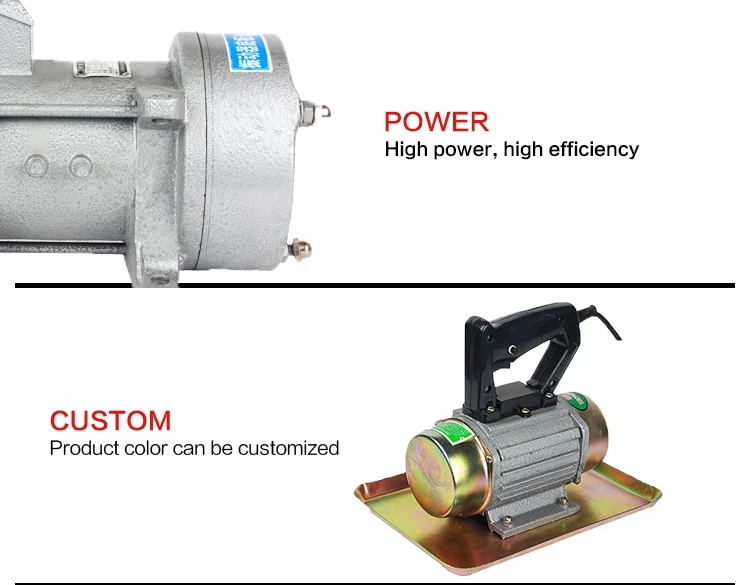

The attached concrete vibrator is an indispensable tool widely used for concrete vibrating and compacting work in modern construction projects. It can be applied to the surface foundation of concrete and the surface compaction of various precast concretes. It can also be installed in various vibration tables and other vibration devices as vibration sources.

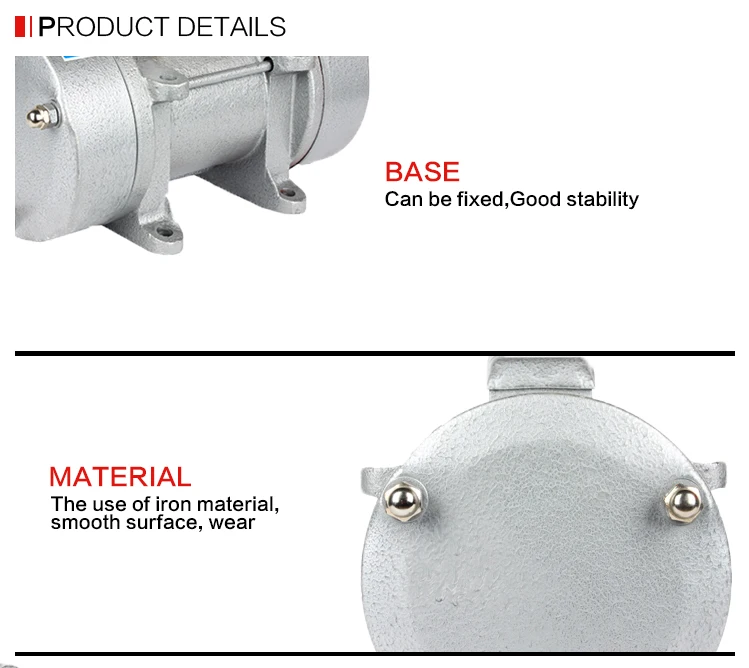

The attached concrete vibrator is composed of a eccentric block which is matched with the motor power at both ends of the single and three-phase asynchronous motor.The whole machine has full sealing and high strength performance, and is easy to disassemble and repair. The power cord is composed of a four-core rubber cable. Light weight and high efficiency. The two end caps are directly tightened with three long bolts, which are relatively firm and reliable.
