Low voltage protector DSP digital processor JKW automatic compensation power factor controller

Supplier: Huizhou Qiming Pilot Power Supply Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Judy Luo
Price: $78.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Overvoltage setting:	230V-280V, step size is 1v	brand:	Huirong
Supply capacity:	5000 pieces per month	Sampling voltage:	AC 380V
place of origin; place of origin:	Guangdong, China	Types of:	JKW
Sampling current:	0~5A	Packaging Details:	wooden box
Undervoltage setting:	180V-210V, step size is 1V	custom made:	yes
Certification:	DL/T597-1996, T597-1996	product name:	React Controller
Harmonic voltage setting:	15-25%	Warranty:	1 year
Package preview:		energy consumption:	≤15W
Sensitivity:	≥100MA	Current ratio:	1-1000
voltage:	AC 220V ±20% 50Hz ±5%	port:	Shenzhen
payment terms:	wire transfer	model:	HR-JKWT24D (with 485 communication port)

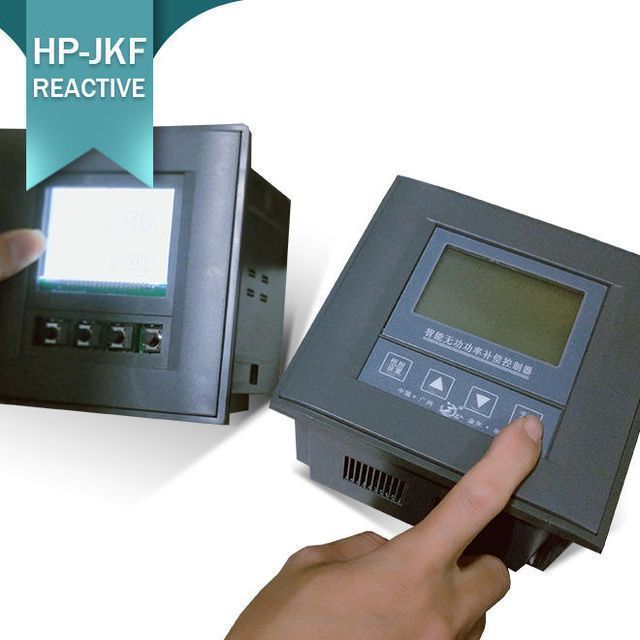

JKF liquid crystal voltage protector intelligent low-voltage power supply automatic compensation reactive power controller

HR-JKF reactive power compensation controller adopts large-screen LCD Chinese TFT high-definition LCD or LED display, high-speed single-chip microcomputer or DSP digital processor, easy to operate and easy to install. The controller has real-time monitoring of electric energy parameters, grid connection and harmonic protection. , Reactive power compensation and protection alarm function, in line with JB/T9663-2013 and DL/T597-1996 standards. T597-1996" standard, mainly used in reactive power compensation control systems such as switchboards, box transformers, and compensation boxes in AC 0.4KV/50Hz low-voltage power distribution systems.
