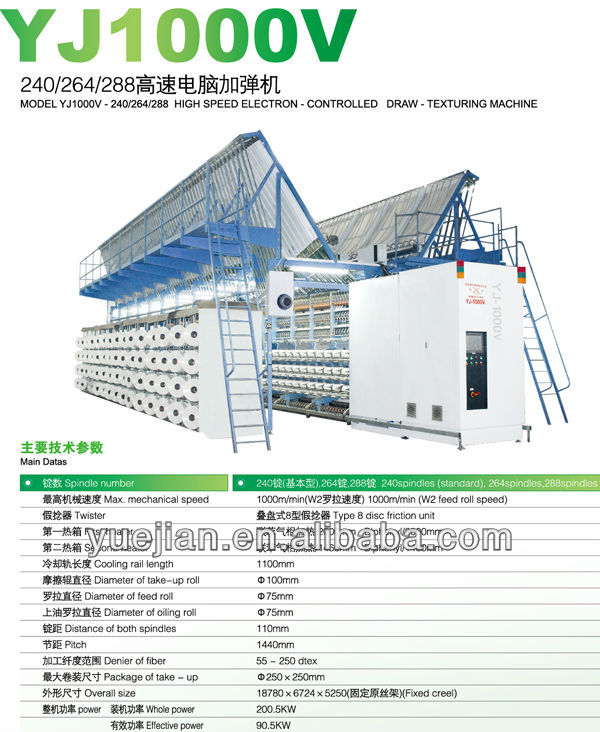

YJ1000V high speed polyester thread texture machine

Supplier: Zhejiang Yuejian Intelligent Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Chunguang Ma
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Maximum mechanical speed:	1000m/min (W2 feed roller speed)	Certification:	ISO9001
Packaging Details:	Plywood packs a machine in four 40ft containers	State of health:	new
port:	Ningbo or Shanghai	Model:	Yarn texturing machine
Spindle:	240,264,288	Supply capacity:	30 sets per month
First heater:	Biphenyl/2000mm	Second heater:	Biphenyl/1460mm
model:	YJ1000V	Material Capability:	fiber
Shipping Details:	30 days	product:	polyester or nylon
brand:	cross over	twister:	8 discs
place of origin; place of origin:	Zhejiang, China	After-sales service provided:	Overseas service center available
payment terms:	L/C, T/T	Type of machine:	texturing machine

Types of:

feature:

1. The first heater and the second heater adopt dual-phase air heating. Computer controlled heating and temperature control, the temperature control accuracy is 1, ensuring that the temperature of each spindle is almost the same.

2. The machine has simple structure, reliable transmission ratio, low noise and convenient process adjustment.

3. Design advanced electrical control system, simple operation, reliable operation, touch screen to realize human-computer interaction

4. The two sides of the machine are relatively independent. The process can be set individually, and textured yarns of different varieties and deniers can be processed at the same time.

Imported parts:

Do not	Part name	brand
1	All transmission bearings of machine head	Japan NSK Corporation
2	roller bearing	German SKF company
3	friction bearing	German SKF company
4	Traverse box bearing	German SKF company
5	Bobbin lever bearing	Japan NSK Corporation
6	Stroke Modified Bearings	Japan NSK Corporation
7	tornado plug	China HDXFZ Company
8	separation roller	Germany INA Company
9	gearbox timing belt	Swiss GATES company
10	central zone	germany siegling
11	Twister timing belt	Swiss GATES company
12	Stroke Modification Motor	German SEW company
13	String ceramic wheel	Morgan & Co
14	Ceramic Parts for Heaters	Morgan & Co
15	upper thread guide	Germany DOCERAM company
16	offline guide	Germany DOCERAM company
17	W2 yarn displacement ceramic rod	Germany DOCERAM company
18	W3 yarn displacement ceramic parts	Germany DOCERAM company
19	Nozzle Ceramic Parts	Germany DOCERAM company
20	Oiled ceramic parts	Germany DOCERAM company
twenty one	Wound Ceramic Parts	Germany DOCERAM company
twenty two	Yarn guide ceramic parts	Morgan & Co
twenty three	Boot disk (Ra0.3)	German CERAMTEC Company
twenty four	polyurethane disc	German TEMCO
25	nip roll	German DAYTEX company
26	Programmable Controllers	Germany SIEMENS company
27	15" color touch screen	China Kunlun Company
28	inverter	Danish DANFOSS company
29	main motor	China Evergrande
30	yarn sensor	Switzerland ELECTROTEX
31	clip bearing	German SKF company
