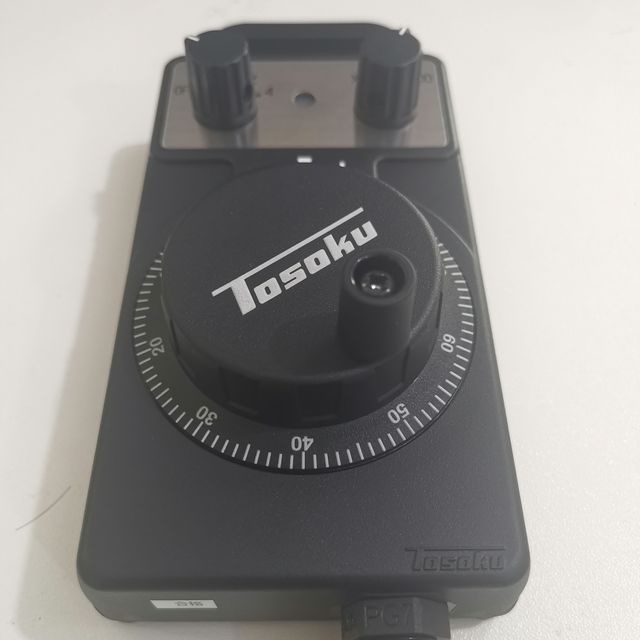

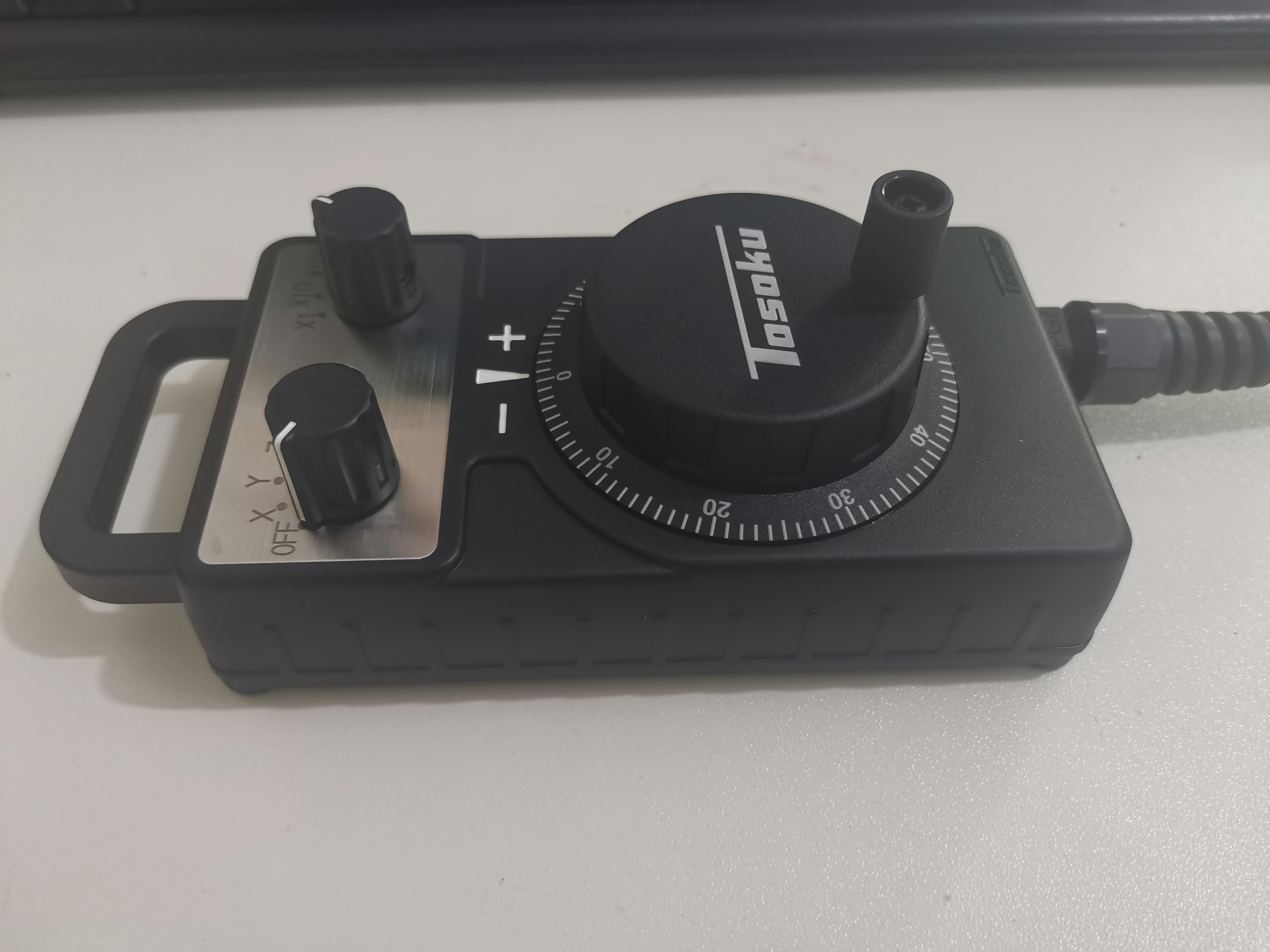

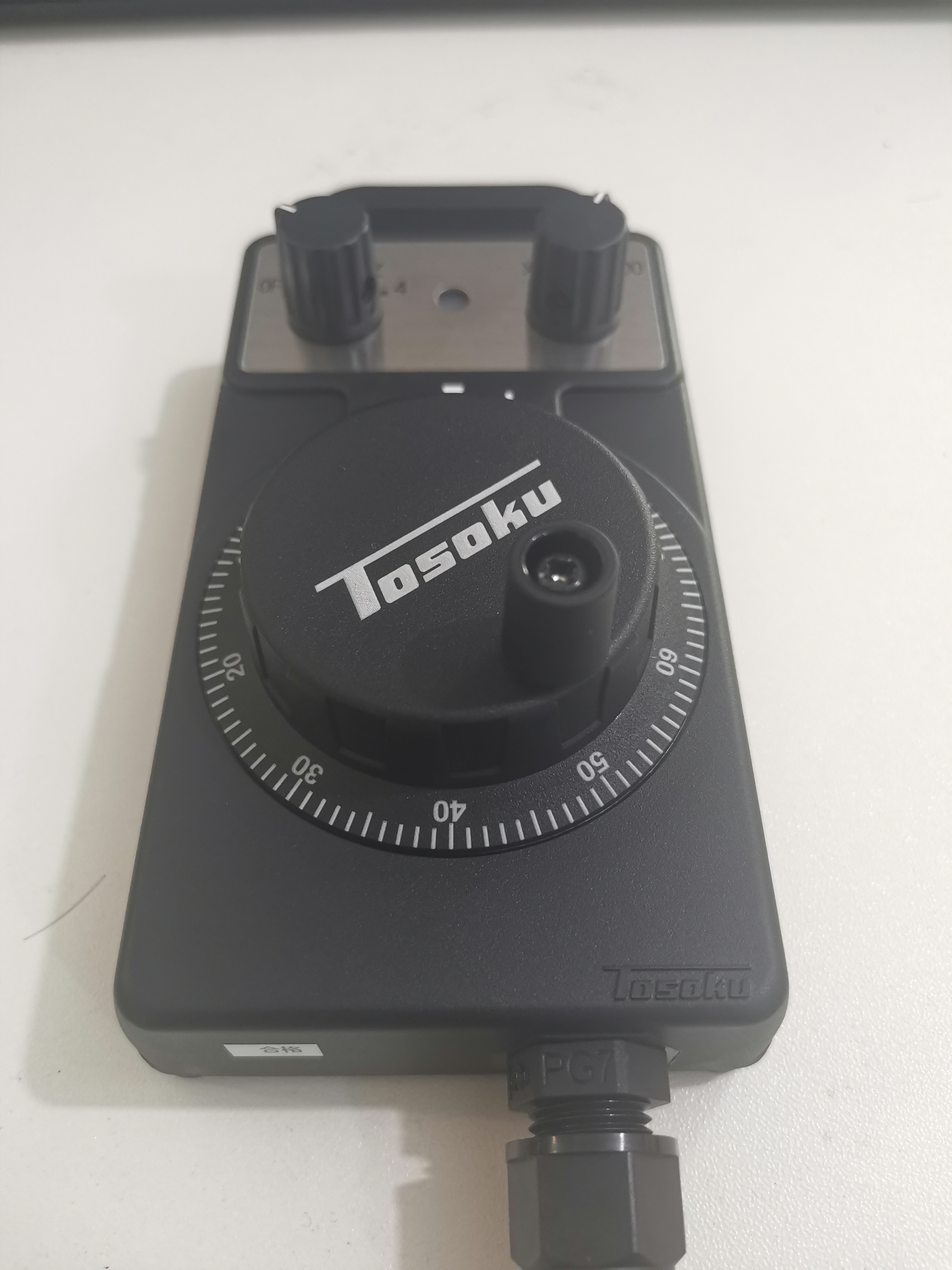

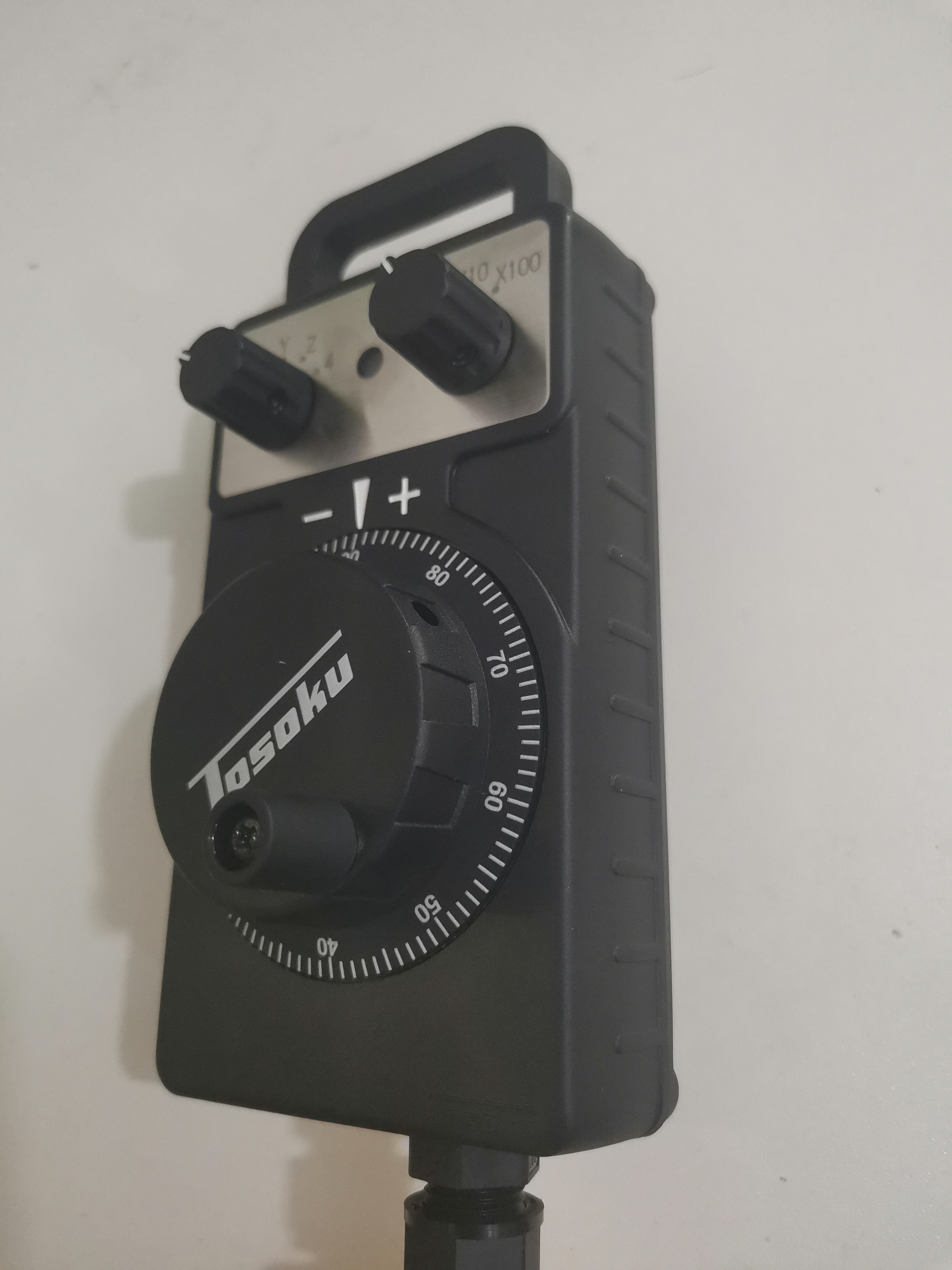

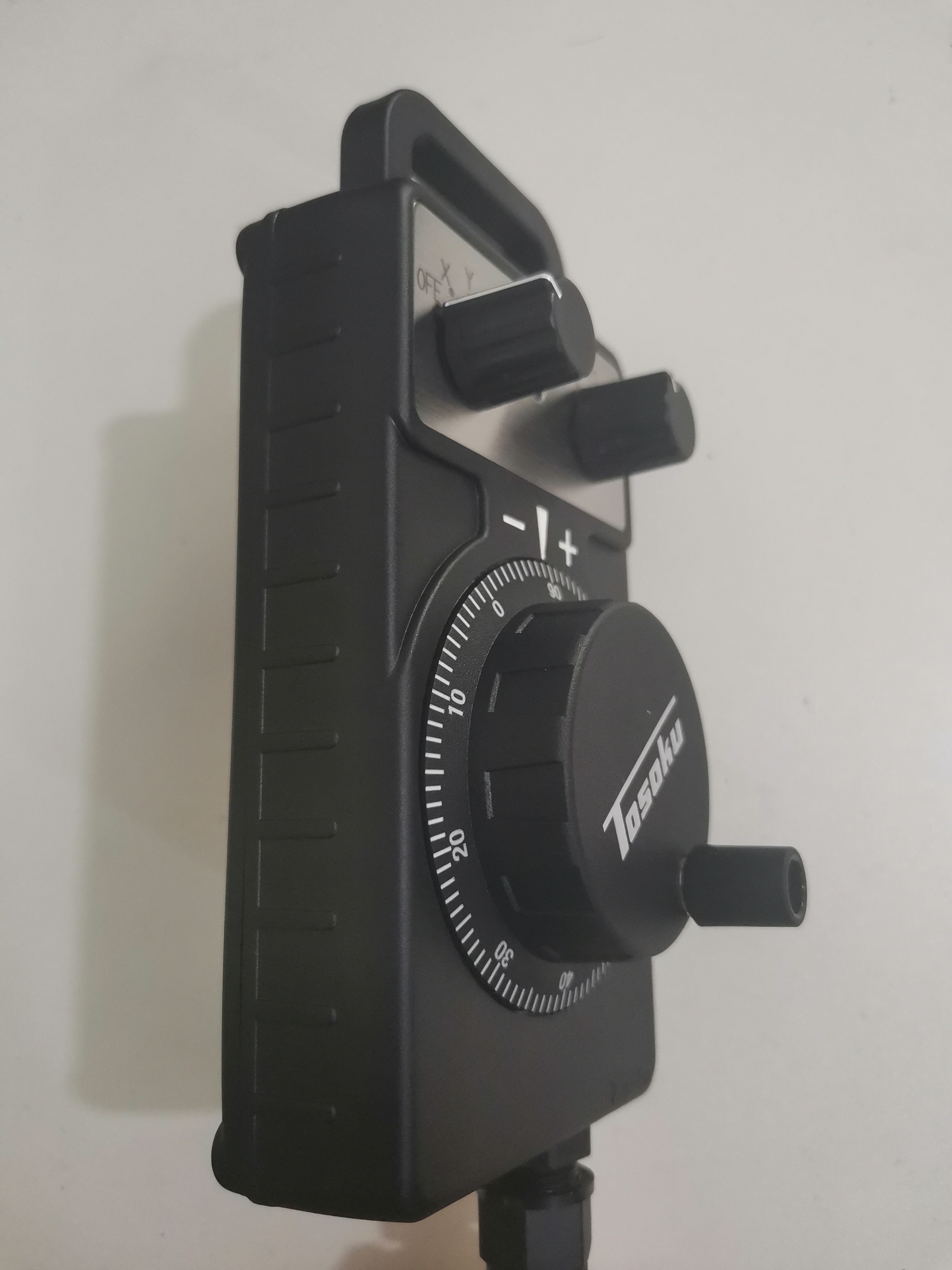

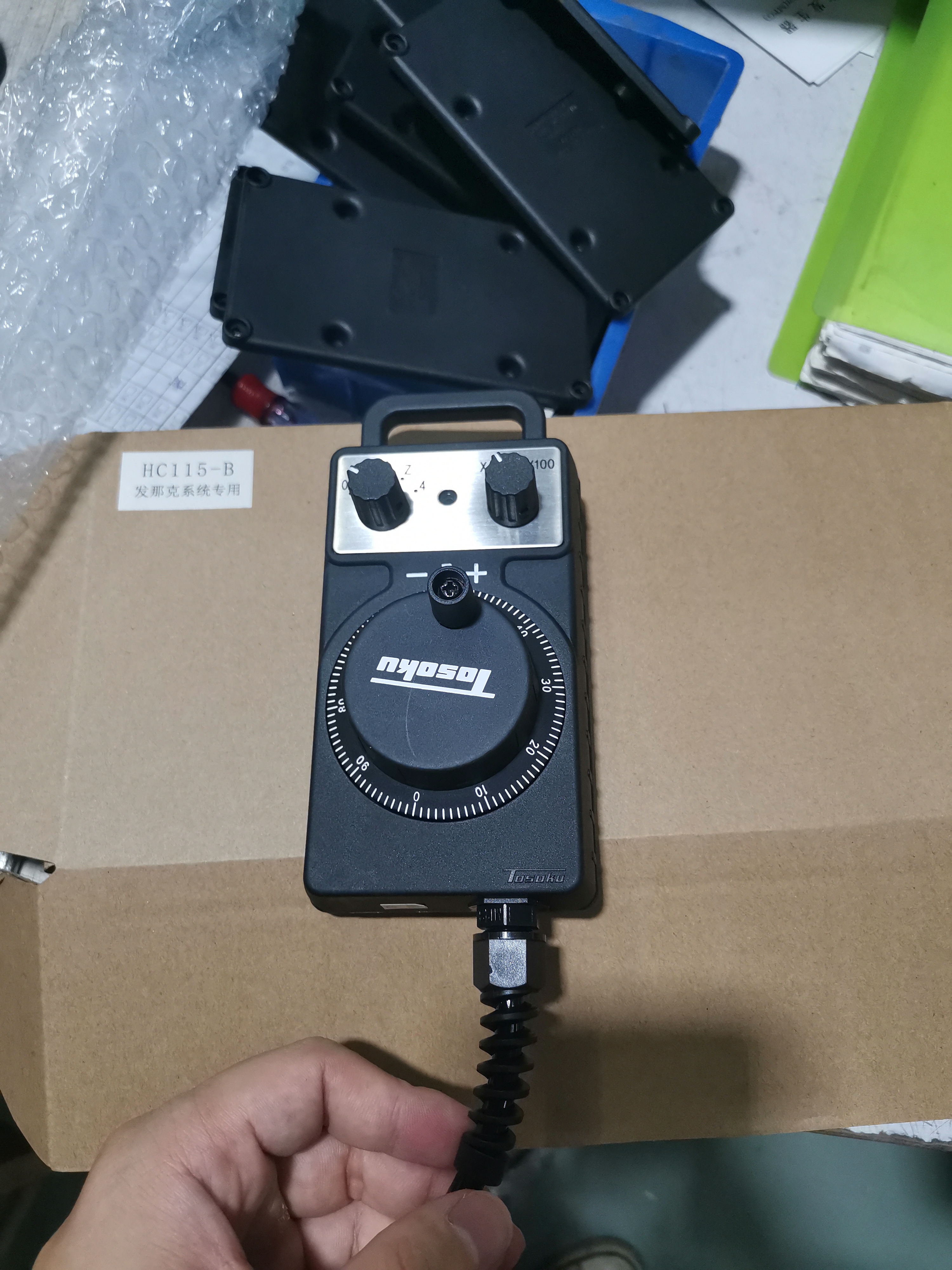

HC115/121/11D 5v/12v/24v Fanuc Siemens Mitsubishi Control System Cnc Handwheel MPG Manual Pulse Generator Plastic CN;GUA Speked
-
Supplier: Zhongshan Hemei Technology Co., Ltd. -
Region: Guangdong, China -
Price: $40.00 / 1 - 9 units
$35.00 / >=10 units -
Min. Order: 1 unit
| Showroom location: | not any | Single package size: | 30X18X10 cm |
| Mechanical test report: | not available | Sales unit: | single product |
| Warranty: | 1 year | MOQ: | 1 |
| Material: | plastic | State of health: | new |
| style: | spokes | Video shipment inspection: | not available |
| system: | Fanuc/Siemens/Mitsubishi | Weight (kg): | 1.5 |
| Material: | plastic | place of origin; place of origin: | Guangdong, China |
| Marketing Type: | normal product | Applicable industries: | manufacturing plant |
| model: | hc115/121/11d | Gross weight per piece: | 2.500 kg |
| Name: | Machine tool handwheel | Core components: | pulse |
illustrate:
- The HC1 is the most compact model of all our MPG range and has been specially developed for use in numerous industrial fields.
- Compact, thin line and light weight (26mm)
- Axis number/multiple selection can be set according to customer requirements
- Sealed structure box
- RoHS Compliant (box/wire)
- Exclusive easy-to-attach stand as standard accessory
- Optional rubber magnet
Body:
- Dimensions: 124×73×26(mm)*
- LED visible indicator: DC24V green
- Conforms to noise immunity EN50082-2
Reel:
- 19/25 core shielded cable
- 19 cores: choose from 2m, 3m, 4m, 5m
- 25 cores: choose from 3m, 5m
- (We will choose 19 or 25 conductors depending on the function required)
- Please refer to the reel catalog for details
Specification:
- Compatible with FANUC and other systems
- Model: HC115
- Voltage: DC5V
- Output resolution 100
- A, B phase output
| thing |
HC115 FANUC system |
HC121 Mitsubishi system |
HC11D Siemens system |
| resolution | 100PPR | 25PPR | 100PPR |
| voltage | DC5~15V | DC5~15V | DC5V |
| supply current | <60mA | <60mA | <160mA |
| high production | >VccX0.7V | / | >2.5V |
| low output | <0.5v | / | <0.5v |
| Output current | <35mA | <35mA | ±20mA |
| fall/rise time | 5us | 5us | <100ns |
| frequency | 0~5KHz | ||
| resist | >20MΩ | ||
| lights | DC24V LED | ||
| Operating temperature | -10℃~+60℃ | ||
-
