Cheap silicon steel core wire ladder overlapping electrical steel lamination sizing machine
-
Supplier: Zhu Tang (Suzhou) Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Jack Liao -
Price: $80000.00 /set -
Min. Order: 1 set
| Operating Voltage: | Maximum 1500-3000N.M | Main selling points: | Famous PLC |
| Width Tolerance: | ≤±0.1mm | place of origin; place of origin: | Jiangsu, China |
| Marketing Type: | normal product | Warranty: | 1 year |
| Supply capacity: | 100 sets per year | State of health: | new |
| brand: | bamboo pond | CNC system: | Programmable Controllers |
| Video shipment inspection: | if | Cutting width (mm): | 40 - 400 mm |
| Core component warranty: | 1 year | thickness: | 0.23-0.35mm |
| Model: | HJJ400 | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Factory type: | Transformer automatic plate rolling machine manufacturer | payment terms: | L/C, T/T |
| Mechanical test report: | if | Feed speed (m/min): | 0 - 120 m/min |
| Showroom location: | not any | Uncoiler loading: | 2000 |
| Applicable industries: | Machinery repair shop, manufacturing plant | Packaging Details: | Seaworthy packaging |
| Control mode: | CNC system | Cut length (mm): | 350 - 9999 mm |
| Cutting thickness (mm): | 0.2 - 0.35 mm | width: | 40-410mm |
| Weight (kg): | 8000 | Item name: | CNC double shear double punch cross cutting machine |
| application: | Mainly used for shearing of transformer core | port: | Shanghai |
| Pay-off speed: | 0-100m/min |
Cheap silicon steel core wire ladder overlapping electrical steel lamination sizing machine
introduce
HJX400 is used for cutting, punching and grooving the iron core plate, and making full oblique seam, half oblique seam and straight seam transformer core lamination, which can be used for Small and medium transformers. Silicon steel sheet coils are punched and cut according to the preset shape and size of the sheet, and the finished sheets are sorted at the end of the production line and then laminated.
The uncoiler adopts hydraulic tension and electric reverse. The feeder is driven by a servo motor and equipped with a length measuring device.
The punching unit includes a V-shaped punching machine and a set of cutters. The punching and shearing are driven by a servo motor, which is driven by longitudinal and lateral movement; a punching machine and a set of punching dies. The punching and shearing are driven by Driven by a servo motor, the servo motor is fixed vertically and horizontally, and the size of the die is selected by the customer.
The shearing unit includes two rice cutting shears and two sets of cutters. The shearing plate 1 is adjustable in angle, that is, it can be fixed at a working position of 45° or 90°, and the shearing plate is driven by a servo motor. The hair removal sorting machine includes a hair remover and a pressing device.
Our product models are HJJ400 and so on.
main ingredient
1. Uncoiler at both ends (hydraulic tension, electric flip)
2. Inclined feeding device
3. Feeder (servo motor drive, length measuring device)
4. Punch unit
5. Shearing unit
6. Export platform
7. Hair removal sorting machine
8. Grabber
9. The whole line width adjustment system
10. Pneumatic system
11. Electric control system control cabinet and console
Technical Parameters
HJJ4 typical standard specification00 isAs shown below, but these can be modified according to your requirements.
|
Coil Width Tolerance: |
≤±0.1mm |
|
Coil burr length: |
≤0.03mm |
|
Coil S degree tolerance: |
1000mm unidirectional less than 0.1mm |
|
Coil waviness: |
≤15mm/1000mm (span greater than 1000mm, height less than 15mm) |
|
Sheet thickness: |
0.23~0.35mm |
|
Paper Width: |
40~410mm |
|
Sheet Length: |
350~2500mm |
|
Punching diameter |
10mm~24mm |
|
Punching position: |
Can be offset in both directions along the centerline |
|
V-shaped punching eccentricity (along the center of the plate): |
±30mm |
|
Feed rate: |
0~100m/min |
|
strength: |
15Kw |
|
Operating Voltage: |
380V |
|
Business direction: |
left line |

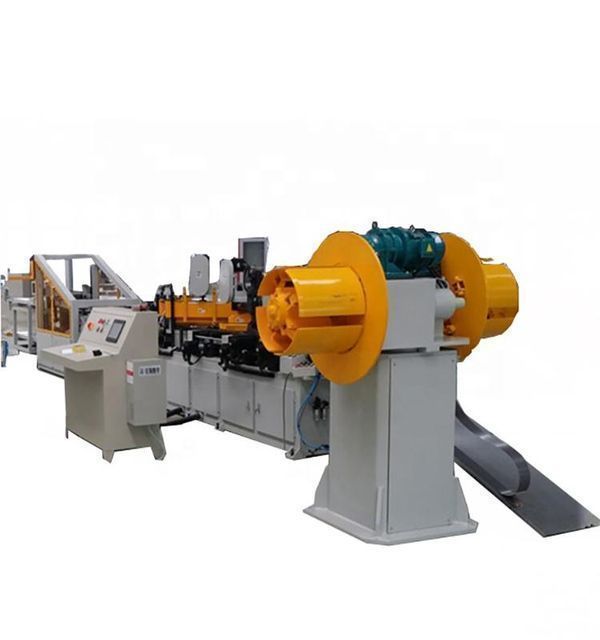

Figure 1: General view of HJJ400 CNC cutting machine for transformer iron core

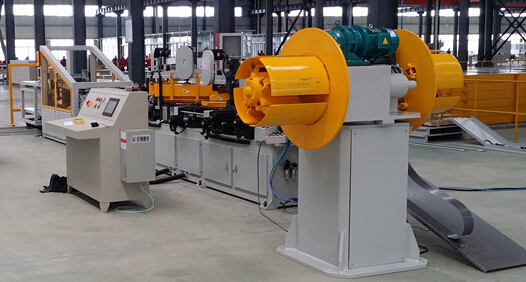

Figure 2: CNCCutting products of transformer core cutting machine HJJ400
