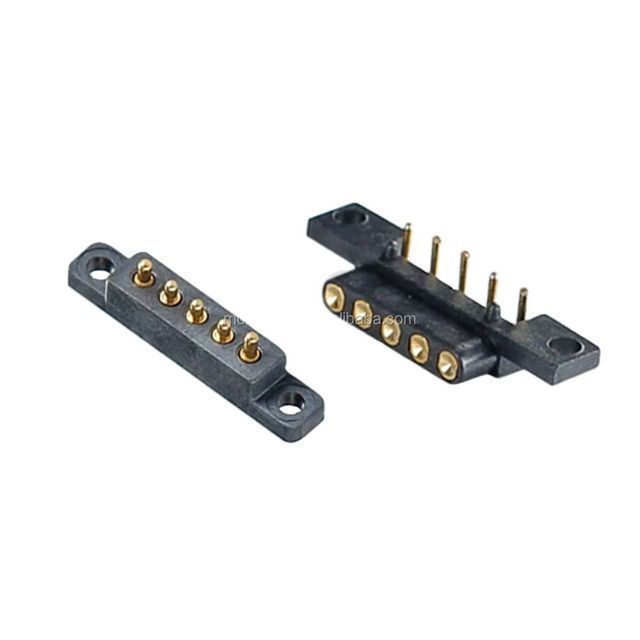

1-Pin to 10-Pin Spring Connector, Single Row Right Angle Target Pogo Pin Connector

Product details
Types of:1 needle, 2 needles, 3 needles, 4 needles, 5 needles, etc.port:Shenzhen or Hong Kong
Name:Test Probe, Gold Plated Brass Pogo Pin Battery Connectorpayment terms:Western Union, T/T, MoneyGram, PayPal
Connector type:Male and female pogo pinsProcessing:welcome
place of origin; place of origin:Guangdong, Chinacolor:Golden
Connector:2 needles, 3 needles, 4 needles, 5 needles, 6 needles, 7 needles, 8 needles, etc.Certification:ISO CE RoHS
thing:standard and non-standardproduct name:Pogo Pin Connector 4 Pin Spring Loaded High Quality SMT Brass Pogo Pins
describe:pogo pin connectorKey words:pogo pin spring contact smd
Supply capacity:5,000,000 pieces per monthSupplier type:original factory
model:standard and non-standardbrand:Qinghai Industry
Plunger and tube:Brass C3604Packaging Details:Packing anti-rust oil+polybag+carton, or customer request delivery details: 1. Fedex / UPS / DHL / TNT for example 2. Bulk goods by air or sea 3. Freight forwarder appointed by customer Delivery time: 5- 15 jobs day, depends on customer's order quantity and other requirements

1-Pin to 10-Pin Spring Connector, Single Row Right Angle Target Pogo Pin Connector













Product Description



Material Brass (C3604)
color the gold
size depends on customer's request
Types of Mounter
plating Gold plating (3-10U") (customizable)
cycle life 30000 times
Contact resistance 50m ohms max
salt spray 48 hours
Rated current and voltage 2A/12V (customizable)
application PCB, power supply, charging equipment
Certificate ISO9001/RoHS/REACH
Package 1000pcs/PE bag (or according to customer requirements)
expiration of pay T/T, 30% deposit, 70% balance
payment method T/T, PayPal,
freight Air, Sea, Express
Sample delivery time Stock sample 1-3 days/ customized sample 3-7 days
production lead time 5-15 days, or depends on the order quantity
designed for America, Europe, Asia, South Africa
Terms of trade Ex-factory price, FOB price, CIF price
Serve High quality and reasonable price.
OEM service, any special size, color, design is acceptable.
Original samples can be recreated.





1. Electroplating

1.1) Plunger: Brass C3604, 3~50 microinch gold over 50~120 microinch nickel;

1.2) Barrel: Brass C3604, 3~50 microinches gold over 50~120 microinches nickel;

1.3) Spring: SUS304, 1~3 microinch gold;

2. Rated voltage (per contact): 12V;

3. Rated current (per contact): 1.0A-3.0A;

4. Insulation resistance: minimum 100MΩ;

5. Dielectric withstand voltage: 100VRMS AT 60HZ;

6. Contact resistance: maximum 50mΩ before test, maximum 60mΩ after test, Pogo pin working stroke;

7. Recommended working stroke and force:

7.1) Spring force: >=30gf;

8. Mechanical life:

8.1) Mechanical life: 30000 Cycles;

9. Working temperature range: -30~85℃;

10. Salt spray: 48 hours;



1-Pin to 10-Pin Spring Connector, Single Row Right Angle Target Pogo Pin Connector





feature:

1. Female pogo pin connector, male pogo pin connector,

2. High-precision free samples, precision 0.01mm

3. High recovery, high current, low MOQ, low resistance

4. Standard & non-standard Pogo pin connectors

5. OEM / ODM, customized design is available

6. One row, two rows, three rows

7.Surface mount soldering, double head, flat head

8. Waterproof

application

Battery Connectors, Electrical DC Power Connectors, Electronic Component Connectors, Electronic Product Connectors, LED Lighting Charger Pogo Pin Connectors, Medical Components Pogo Pin Connectors, Mobile Phone Pogo Pin Connectors, Mounting USB Pogo Pin Connectors, Proble PCB pogo pin connector, Quick Wire connector pogo pin connector, smartphone pogo pin connector, SMT / SMD pogo pin connector, telecom/mobile pogo pin connector, wearable device pogo pin connector, wearable digital device pogo pin connector, Wire Adapters pogo pin connector, Andor TV Box pogo pin connector, antenna clip battery pogo pin connector,

Packaging and Shipping

Package

Anti-rust oil + plastic bag + carton, or customer requirements

Shipping Details:

1. Example of Fedex / UPS / DHL / TNT

2. Bulk goods by air or sea

3. The freight forwarder designated by the customer



delivery time:

5-15 working days, depends on customer's order quantity and other requirements

our service
1-Pin to 10-Pin Spring Connector, Single Row Right Angle Target Pogo Pin Connector
a) We can provide customized services such as model selection, structural design, product application, and non-standard parts development, and assist customers to solve problems in design, application, and process.



Quick response:

Quick proofing: brand new samples, delivery time 3-7 days;

Fast production: lead time 5-15 days, or depends on the order quantity



Track the delivery until the goods are received



100% Guarantee on all our products:

a) 5 sets of assembly line force measuring and contact resistance testers, rare in the industry, 100% guaranteed quality.

b) Due to our continuous improvement of workmanship and quality, no customer complaints about product features in the past 3 years



advantage

1. Price:

Competitive factory price and good quality.

2. Service:

Short delivery time, 5-15 working days according to your quantity

100% delivery on time to our dear customers

3. Low MOQ

1 rapid prototyping sample available

4. Close to Shenzhen and Hong Kong, with convenient transportation.

5. OEM is available, ODM is also welcome

6. Quality:

Good pogo pin manufacturing experience and technology, some engineers have more than 18 years of experience in the production of various precision parts, can provide customers with good technical support

7. Advanced measuring equipment

Make sure all the requirements of our dear clients are measurable.

8. 100% inspection before shipment.





Ordering procedure

1. Please send us your drawings or samples

2. We review drawings or samples, compare with our ability

3. If you need, we will provide you with the design

4. If you are satisfied with our design, we will make corresponding samples and send to you

5. If you are ok with the samples, please send out the order and prepay 30% deposit of the total amount. Then we will start formal mass production of your order.

6. We will deliver the finished product to the designated place.

7. You pay the balance after seeing the copy of B/L.





main market:

North America, South America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, South Asia
