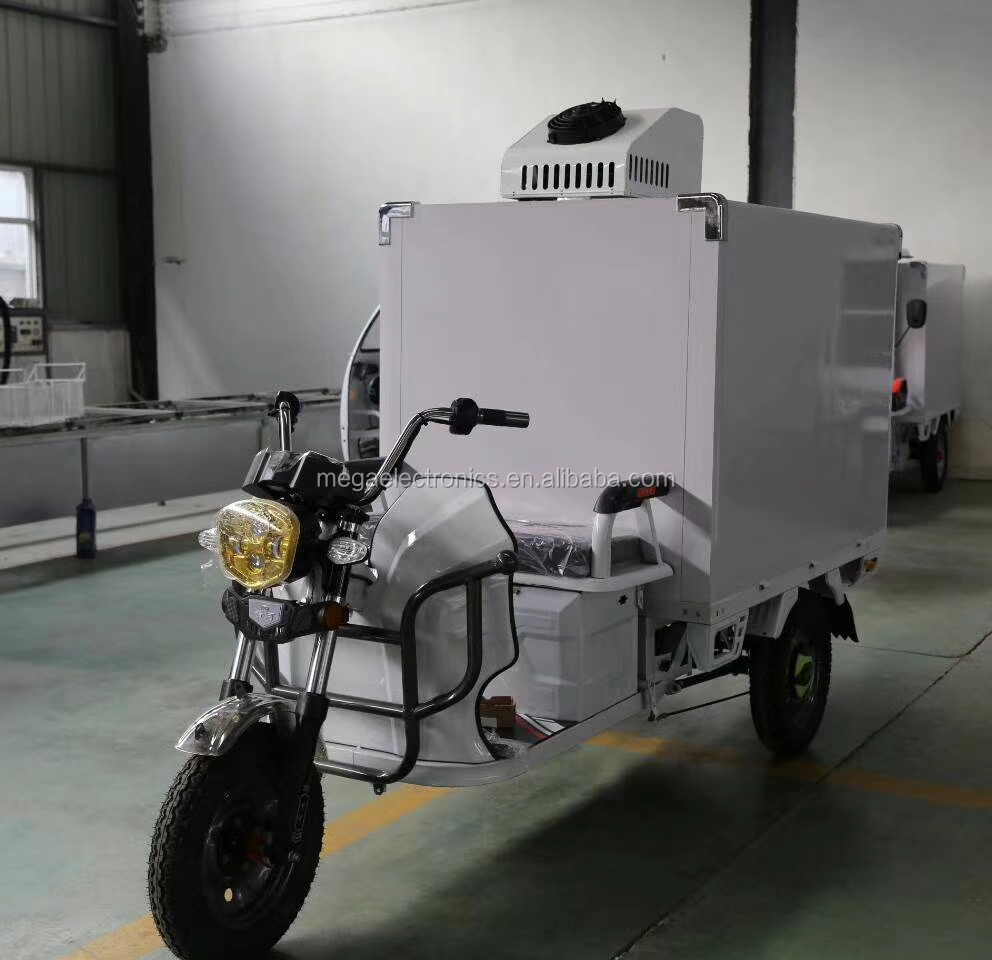

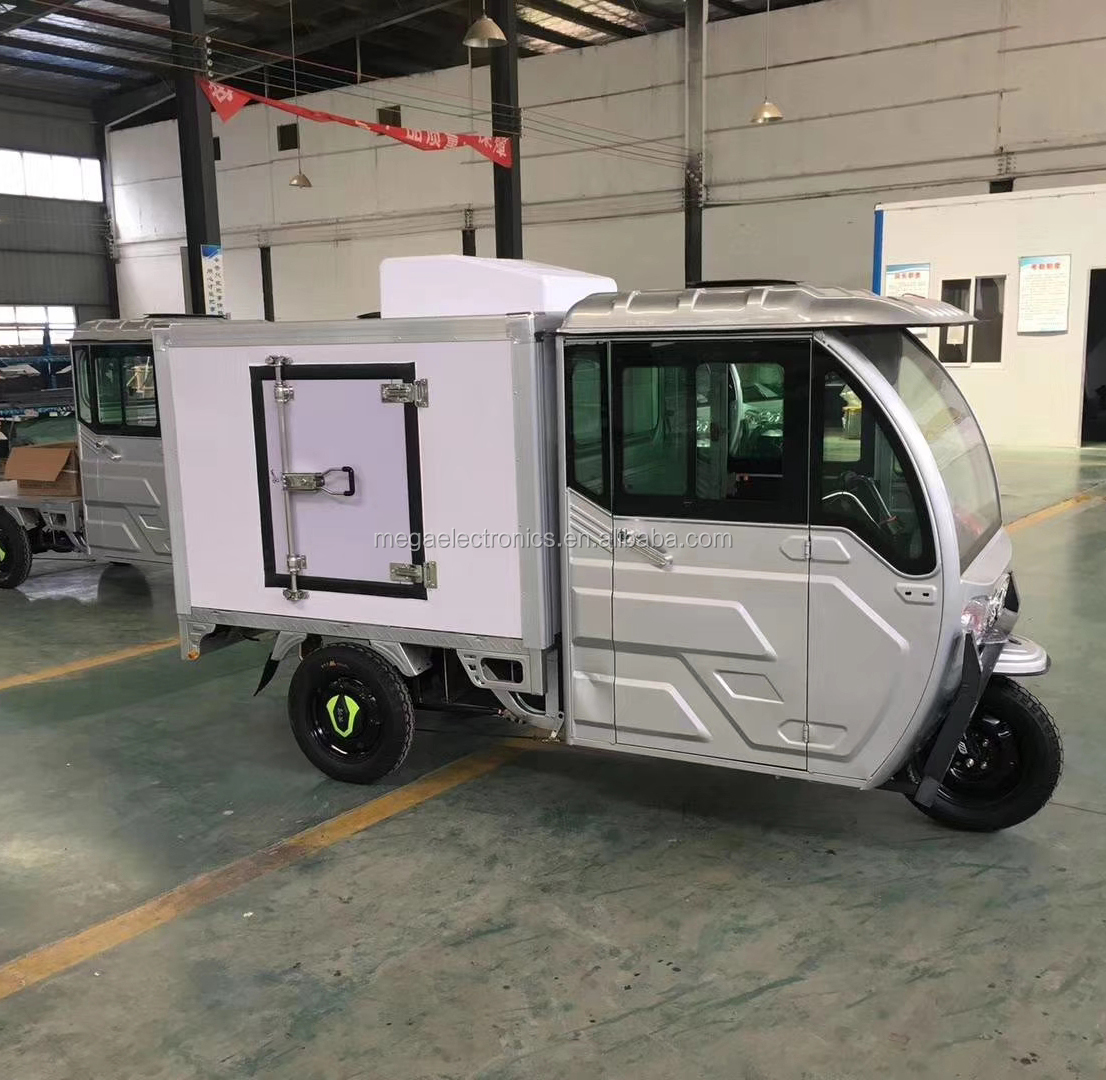

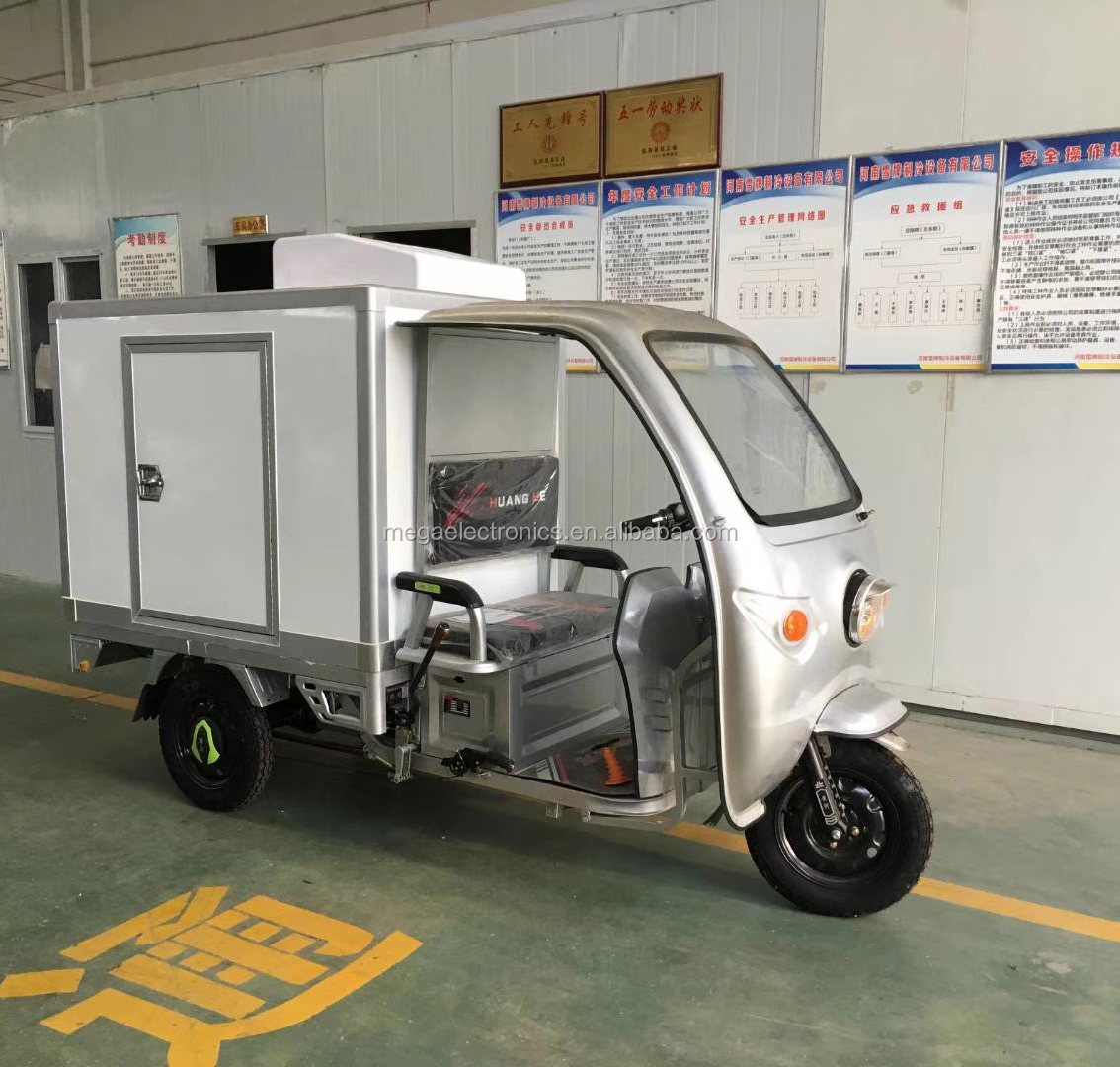

Electric tricycle technical parameters

Dimensions of tricycle (mm)

2720*1000*1750

Cabinet size (mm)

1500*1000*1000

Cabinet internal size (mm)

1350*850*850

tire size

3.00-12

Motor power (w)

48v(60v)850w/1000w

controller

15/18

continue the journey

50-80km (batteries can be provided according to the needs of the continued journey)

Battery

12V32AH 4 sections (environmentally friendly silicone battery, with the advantages of lighter weight, larger capacity, higher charging efficiency, longer service life, anti-vibration, stable performance, maintenance-free, etc.)

technology

The tricycle box and frame are treated with pickling, phosphating, electrophoresis and baking paint.

smart system

Voice self-check, voice reversing, low voltage protection

engine

48V, 800W differential motor (pure copper brushless battery. Non-carbon brush motor, optional power supply)

Specification

cold storage

frozen

Model

MG-Z058-J48

MG-D150-J48

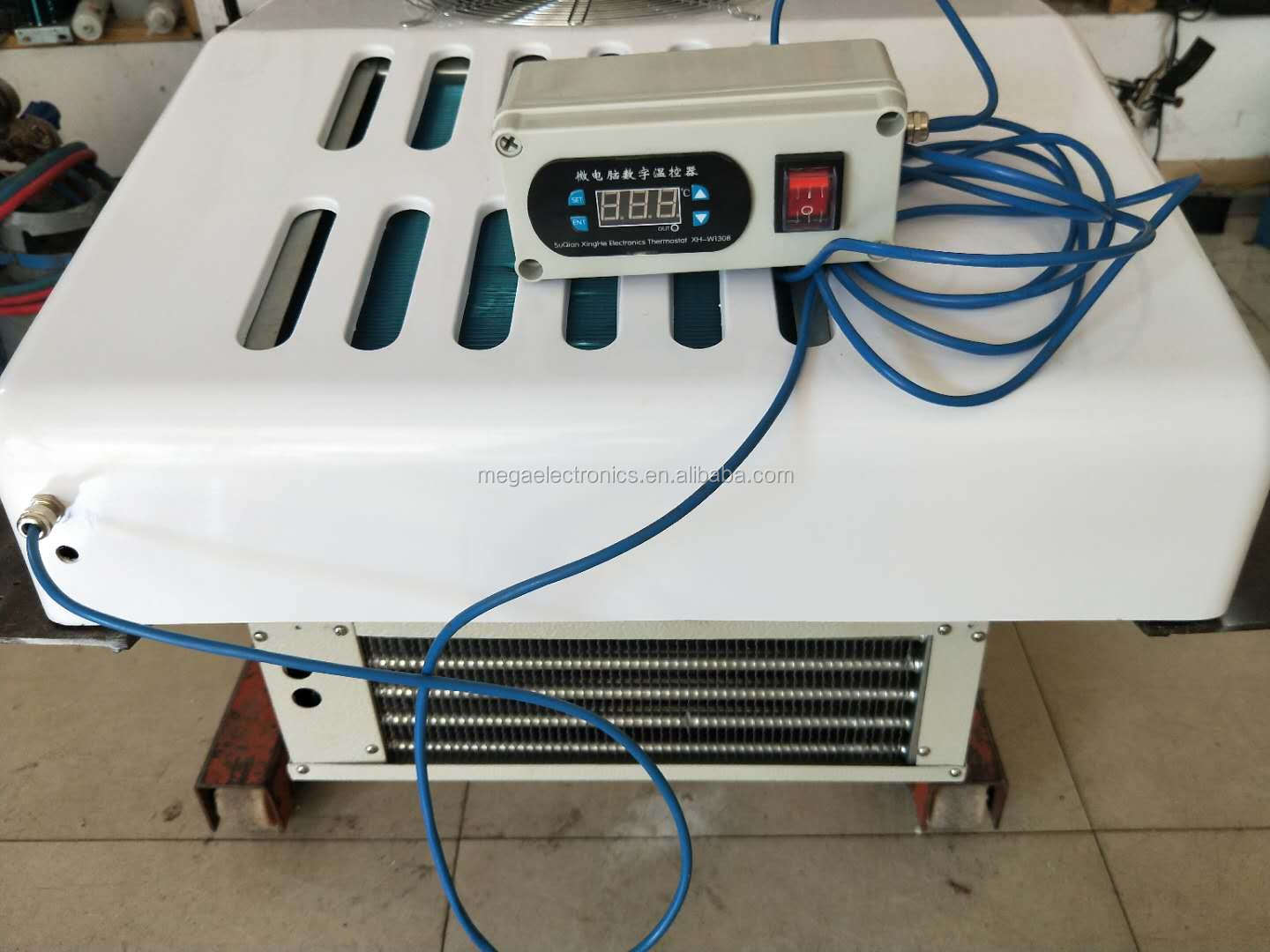

Rotary DC compressor

48v270W

48V560W

total power

380W

680W

rated current

6.1-7.4A

10.1-11.4A

High-efficiency finned air-cooled condenser

1.0L

1.5L

High-efficiency finned air-cooled evaporator

1.5L

2.0L

DC super large air cooler

Xuefeng YY12038H24B

Xuefeng YY12038H24B

Microcomputer digital temperature controller

W1308

W1308

controller button switch

LG

LG

Refrigeration unit battery

48V20AH

48V32AH

temperature range

0-8℃

-15~20℃

refrigeration temperature

40~60 minutes to 0℃

From 50-90°C to 20°C

charging time

8-10 hours

8-10 hours

configuration

Model Specifications

standard size

1500*1000*1000mm (can be customized)

form material

Polyurethane

exterior material

Color steel plate

wall thickness

75mm

wrap angle

aluminum alloy

Thermal Conductivity

0.018~0.024W/(MK)
