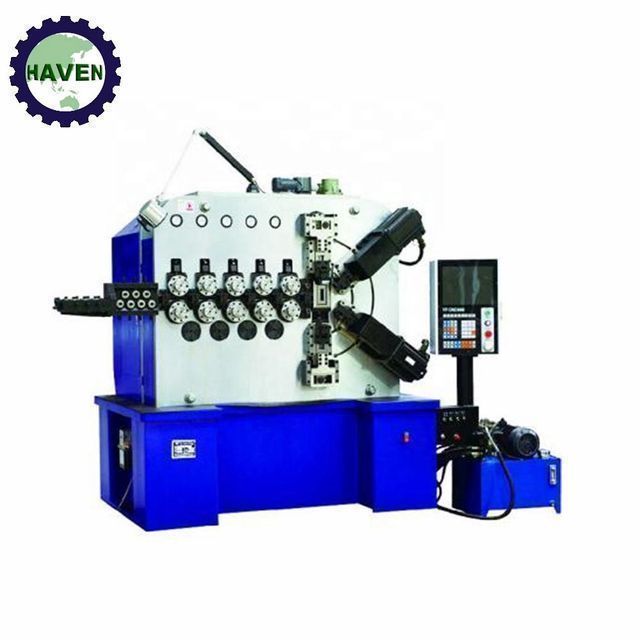

6 Axis CNC Drawing Spring Coil Forming Machine Buckle Spring Machine CNC- 86100

Product details
Video shipment inspection:ifWarranty:1 year
State of health:newShowroom location:Thailand, Nigeria, Malaysia
port:Ningbo or Shanghai portSupply capacity:50 units per month
Main selling points:competitive pricePower (kW):2.9x2
Marketing Type:normal productDimensions (L*W*H):300x155x220
Voltage:380V or customizedWeight (kg):5800
brand:havenpayment terms:L/C, D/P, D/P, T/T, MoneyGram
Mechanical test report:ifplace of origin; place of origin:Zhejiang, China
Core component warranty:1 yearservice provided:On-site installation, commissioning and training
Applicable industries:Building materials store, machinery repair shopCore components:PLC, motor
Package preview:Packaging Details:Single board case

6 Axis CNC Wire Drawing Spring Coil Forming Machine Buckle Making Machine CNC- 86100

Mechanical characteristics and functions:

1. Taiwan imported computer control system and imported servo motor;

2. The computer has an English interface, which is easy to operate and accurate in positioning. The computer can control 6 servo motors, and all motors can be operated synchronously or independently;

3. With precise detection and tracking equipment, if there is any unqualified product, it can automatically stop;

4. Correct the outer diameter angle of the product at any time according to the working conditions on the fluorescent screen;

5. The design of automatic lubrication and oil supply for mechanical automatic parts ensures the long-term operation of the equipment;

6. The automatic stop design and the automatic acceleration of the wire frame make the production easier and more effective;

7. It is suitable for the production of double torsion springs, straight springs, pagoda springs, extension springs, rectangular springs, wire forming, steel eddy current springs, springs and various fancy springs, complex and difficult-to-form springs (computer spring machine).



Main Specifications:

Model

CNC-8645

CNC-8660

CNC-8680

CNC-86100

Number of axes

6

6

6

6

Maximum Wire Diameter (mm)

Dia1.5-Dia4.5

Dia2.0-Dia6.0

Dia3.0-Dia8.0

Dia3.5-Dia10.0

maximum. Spring outer diameter (mm)

Diameter 65

Diameter 90

diameter 120

diameter 150

Feeder length

unlimited

unlimited

unlimited

unlimited

Feed roller quantity

3

3

4

5

Servo motor (kw)









wire feeding

asphalt

blade up/down

Outer Diameter Up/Down

7.5

1.0

1.8/1.8

1.5/1.5

9.0

1.5

2.7/2.7

1.8/1.8

15

2.0

4.4/4.4

2.9/2.9

30

2.9

7/7

3.8/3.8

Machine size(cm)

170x120x190

210x125x210

250x145x220

300x155x220

Machine weight(kg)

1450

3000

4100

5800





about us

our machine



our workshop



The machine will be customized for you according to drawings or samples, please feel free to contact us.
