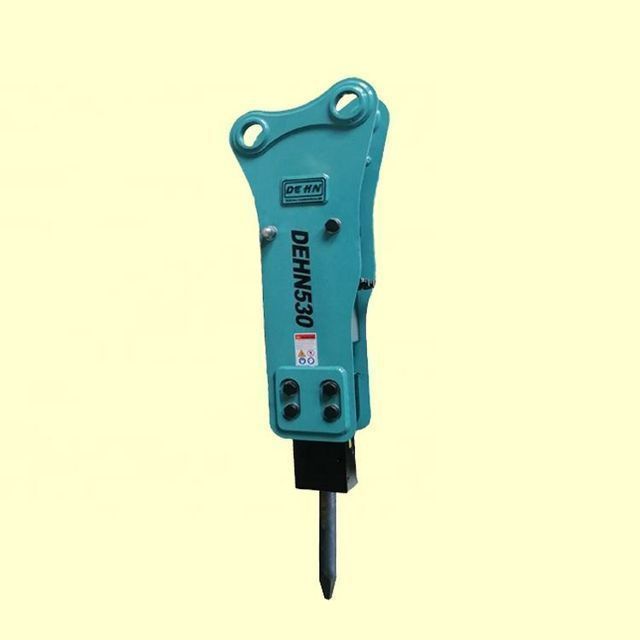

Backhoe Breaker Mini SB20 Korean Hydraulic Breaker for Mini Excavator

Product details
After-sales service provided:Free spare parts, video technical support, online supportAfter warranty service:Video technical support, online support, spare parts
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramChisel diameter:40 mm
port:Qingdao PortSupply capacity:5000 sets/month breaker
Package preview:Core components:chisel
Warranty:1 year, 1 yearbrand:Dern, Dern
length:918mmImpact rate:800-1400 times/min
place of origin; place of origin:Shandong ChinaMechanical test report:not available
Application industry:Mining, Construction and RoadsLocal service location:not any
color:customer requestState of health:new
Types of:Side/Top/Frame - Muteweight:70 kg
Marketing Type:normal productplace of origin; place of origin:Shandong China
Showroom location:not anyport:Yantai or Qingdao port
Certification:CE&ISO9001model:SB20
Video shipment inspection:ifApplicable industries:Construction machinery industry
Applicable excavator (ton):0.8-1.2 tonsPackaging Details:Export wooden box or breaker according to customer requirements
Applicable excavator:0.8-1.2 tons
Product Description

Hello,

DEHN 450 hydraulic breaker is matched with SB 20 excavator 1.5-2.6 tons, including three types of side mounted, top mounted and muffler box.


main feature:

1. Silent valve 2. Fuel saving

3.Patented fuselage design

4. Low maintenance cost

5. Smart bracket design

6. Energy recovery system

7. Various working tools

8.Long shelf life:12 months warranty

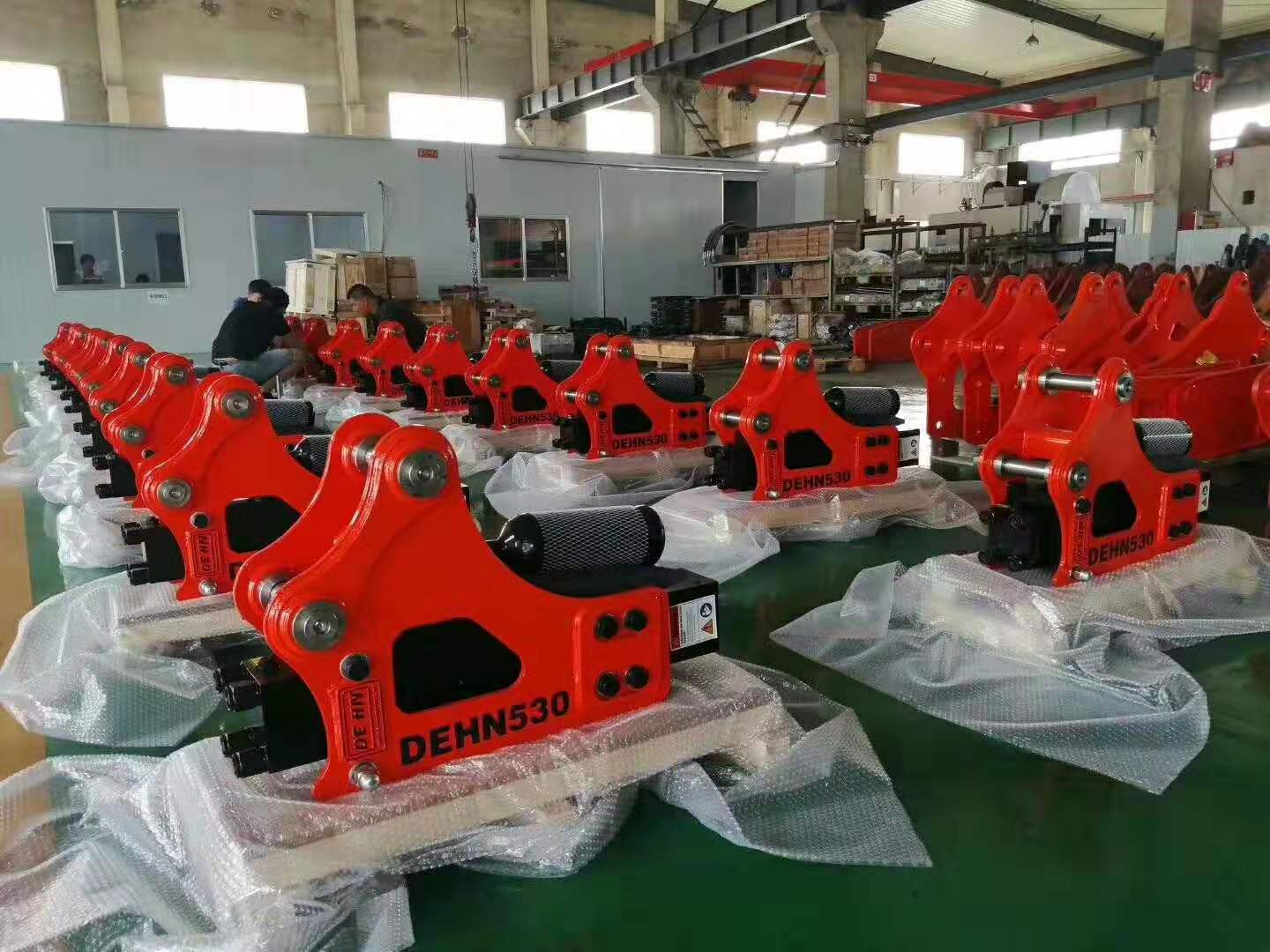

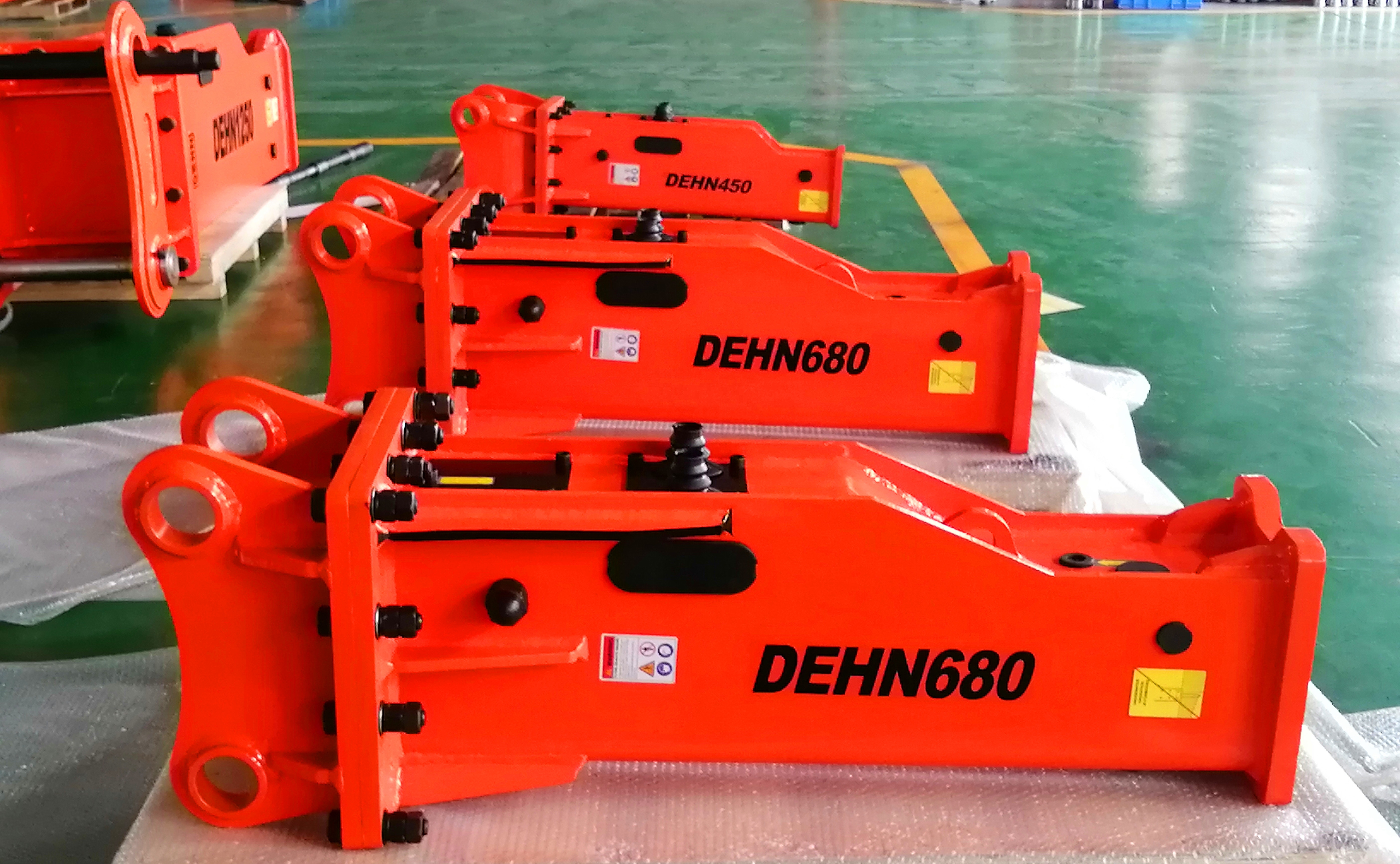

Product live display:

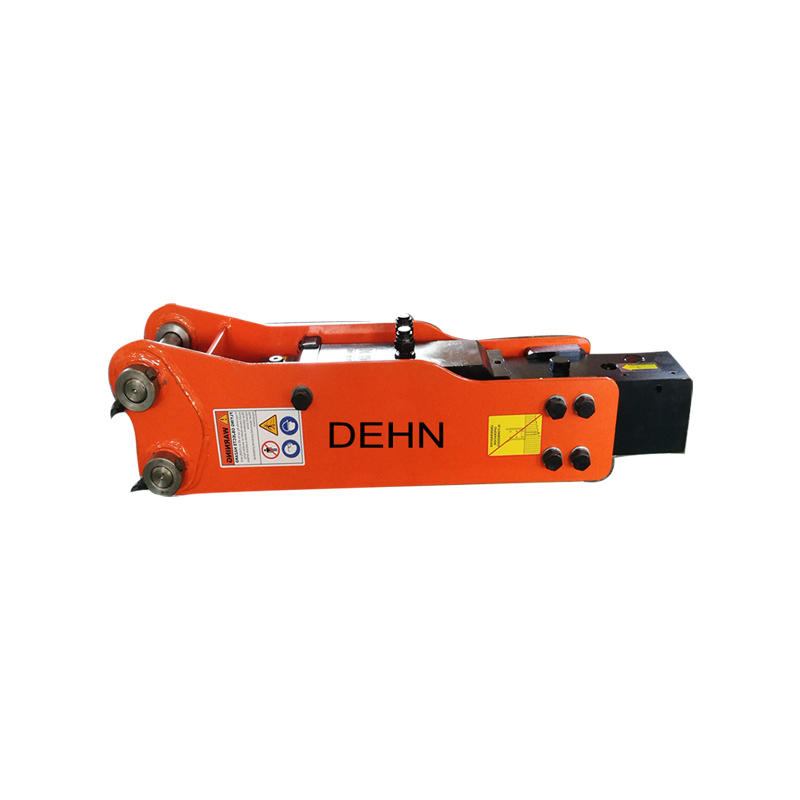

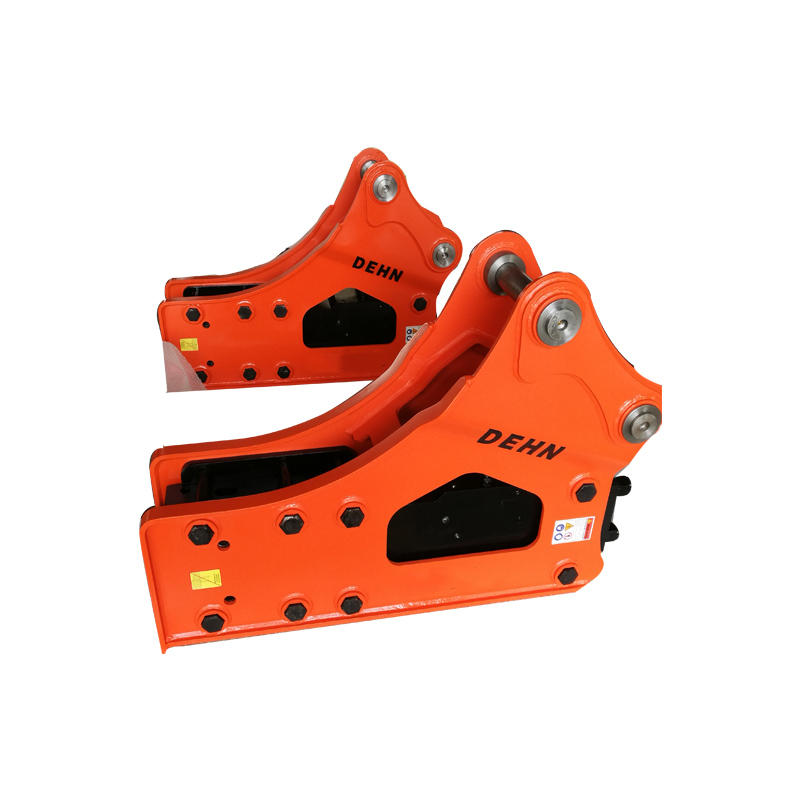

SB20 side circuit breaker
1. Reduce the overall length
2. More convenient handling of broken objects
3. Easy maintenance

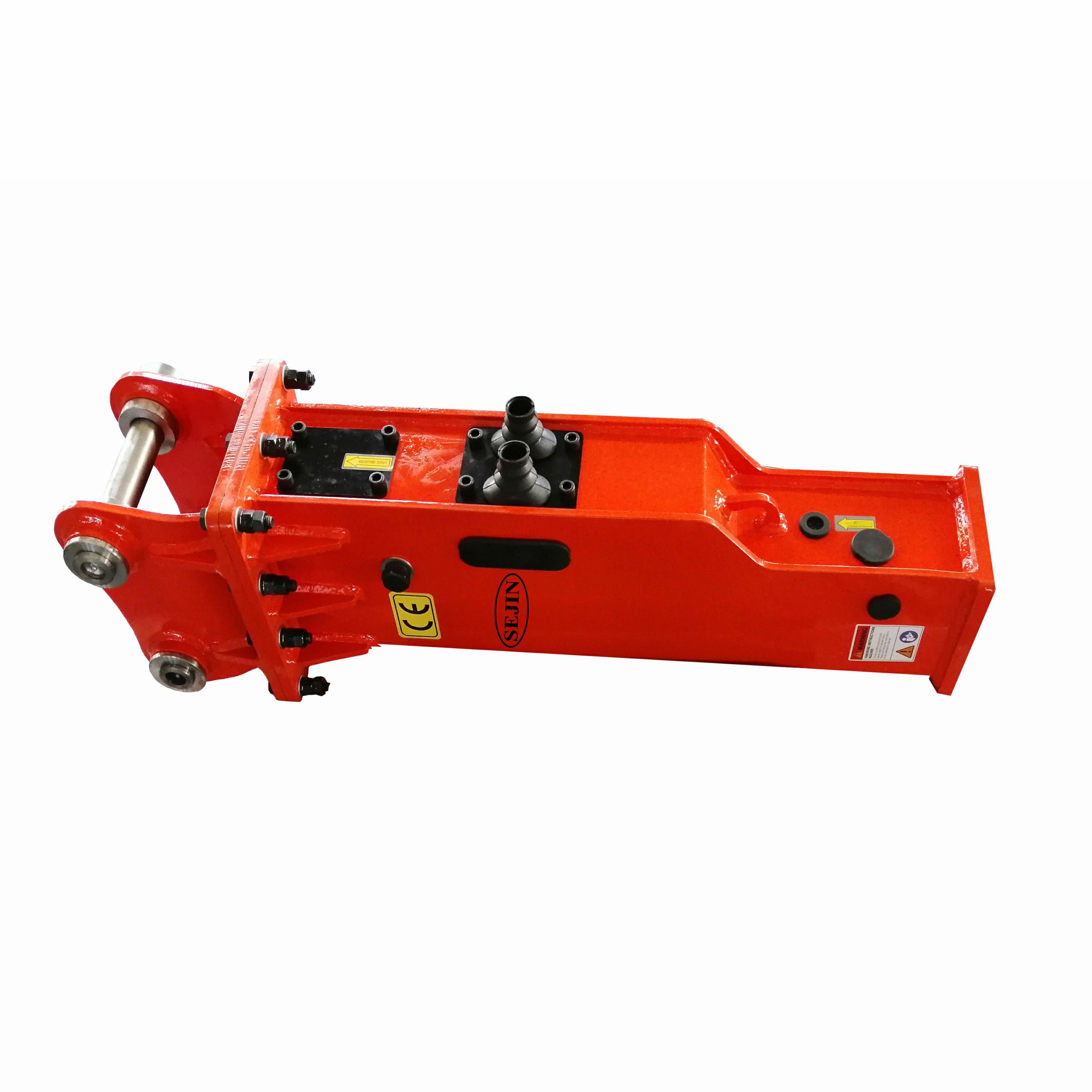

SB20 silent type circuit breaker
1. Low noise
2. The fully enclosed bracket protects the main body from damage
SB20 top circuit breaker
1. Easy control and easy positioning make digging work more convenient
2. No focus, reduce the rate of chiseling
3. Longer overall length and heavier overall weight
Model
SB20=DEHN450
Gross weight (side/top/box)
Kilogram
95/95/126
Length (side/top/weight)
mm
1090/1235/1331
work flow
l/min
20-30
Drain pressure
kg/cm²
160
work pressure
kg/cm2
90-120
strike frequency
the rhythm
700-1200
Chisel diameter
mm
¢45
Tubing nominal diameter
inch
'1/2
back shell pressure
kg/cm²
16
Applicable excavator weight
Ton
1.5-2.6
Applicable bucket capacity
cubic meter
0.03-0.1
chisel weight
Kilogram
8
expiration of pay
TT/LC/Western Union
Standard parts: two chisels, two hoses, one set of nitrogen filling kit, with nitrogen cylinder and pressure gauge, one set of spare sealing kit, one tool box containing necessary maintenance tools and operation manual.

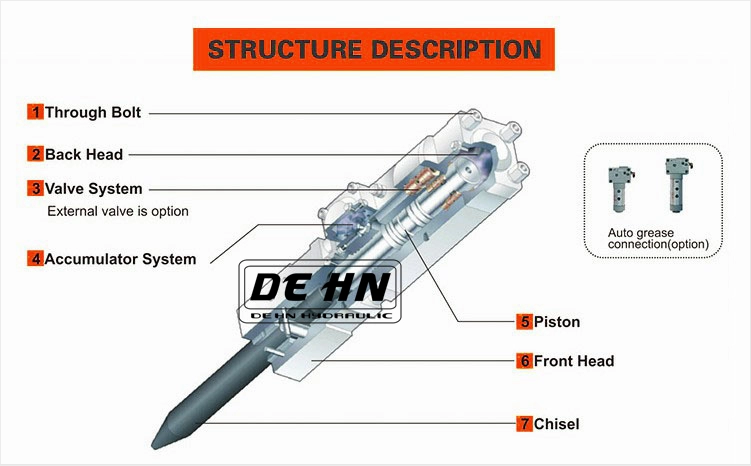

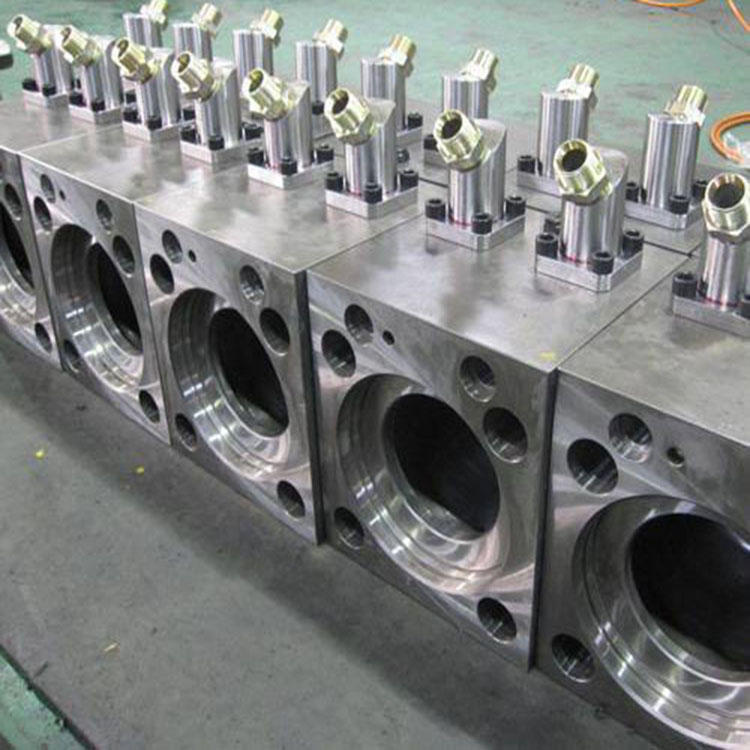

spare parts

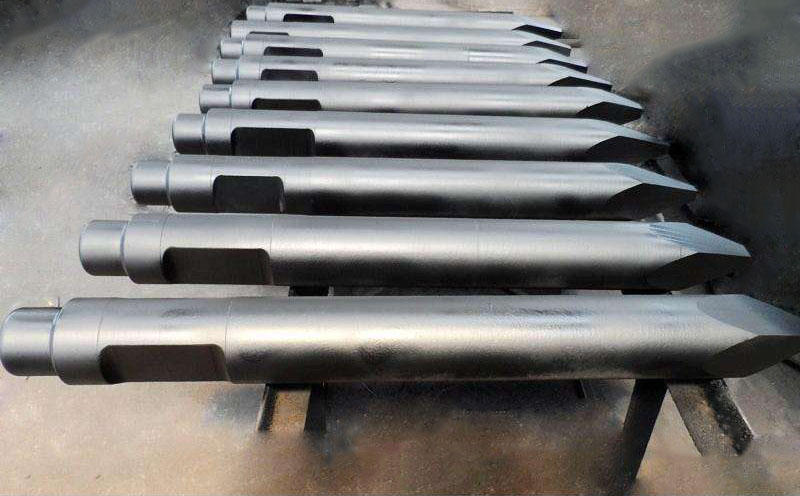

chisel

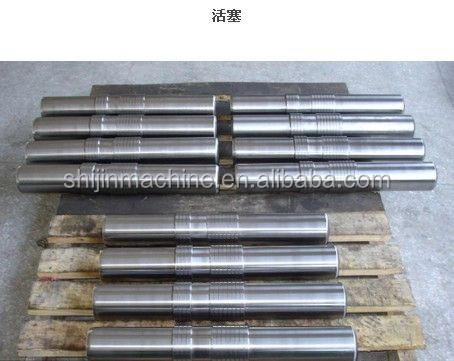

piston

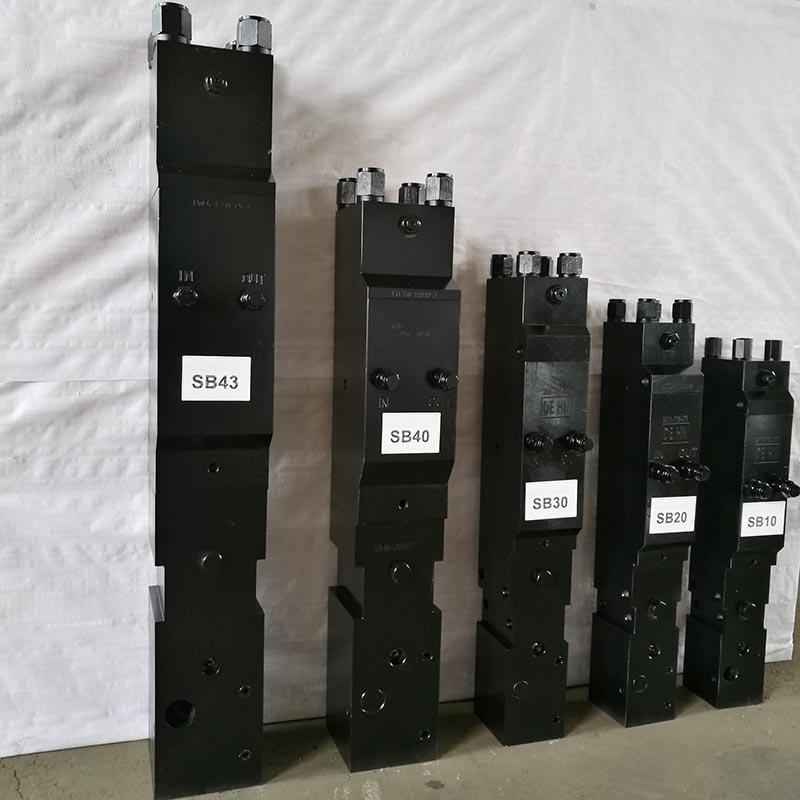

Circuit breaker body

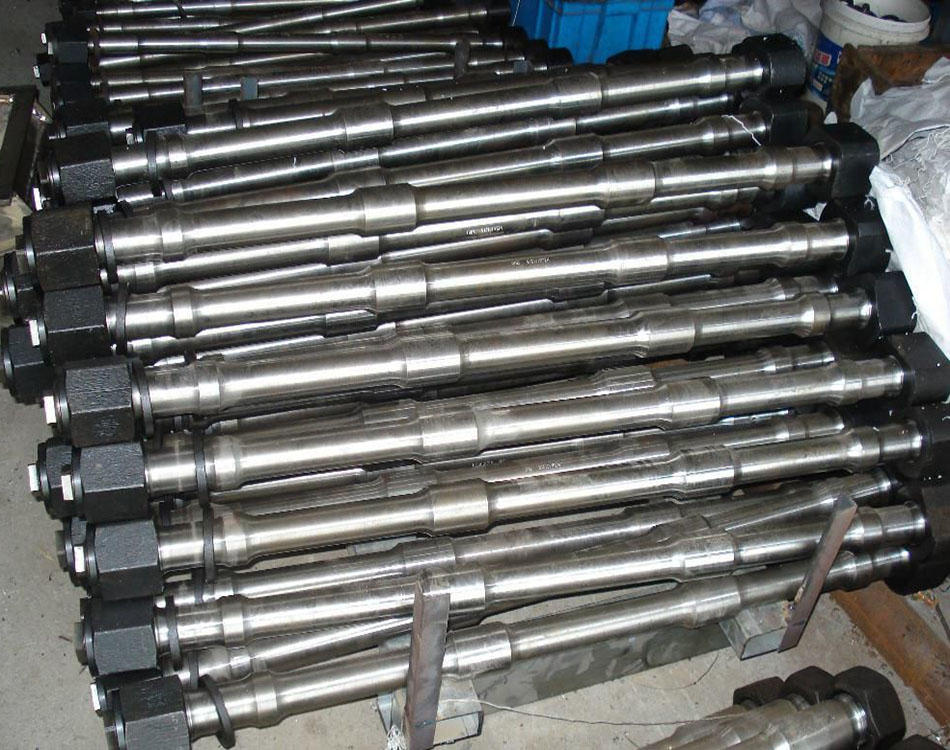

through the bolt
rock crusher cylinder

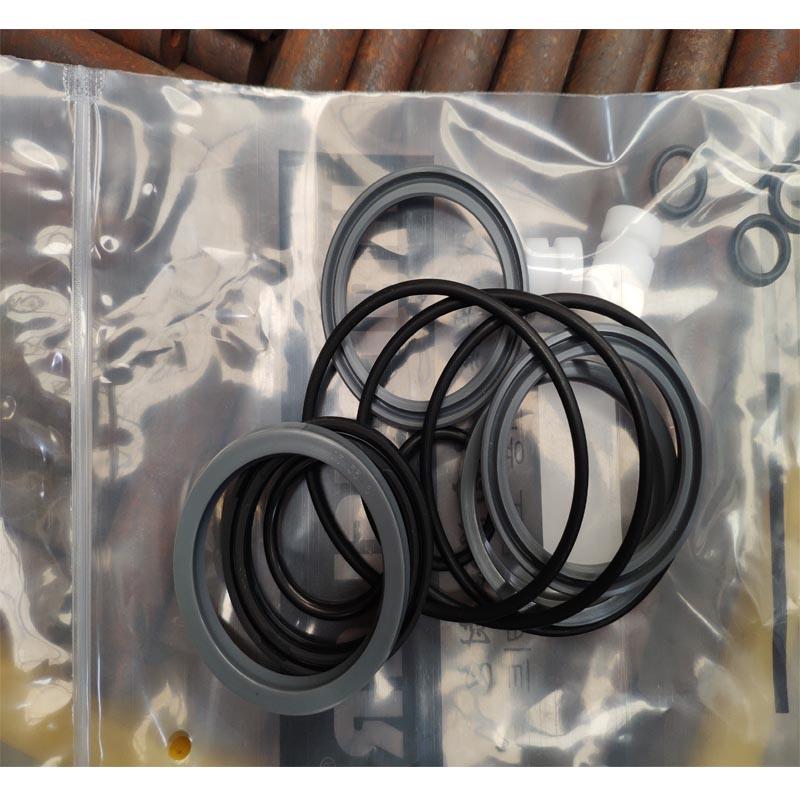

seal kit

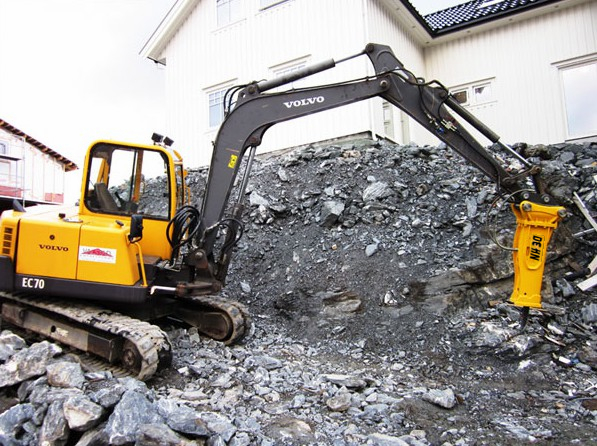

application
Circuit breakers are used for:
1. Mining --- mining, secondary crushing
2. Metallurgy - slag removal, furnace dismantling, foundation dismantling
3. Road --- road construction, road breaking, foundation engineering
4. Railway---Tunnel, bridge demolition
5. Construction --- demolition of buildings and reinforced concrete
6. Ship repair --- remove clams and rust from the hull
7. Others - frozen mud
