place of origin; place of origin: | Henan, China | type of battery: | Lithium iron phosphate |
model: | 1 MWh 2 MWh | AC side rated voltage: | 380V |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal | Container Dimensions: | 12192*2438*2591mm |
Protection class: | IP54 | range of working temperature: | -20 to 50°C |
System communication interface: | RS485, Ethernet | System battery configuration: | 2428S32P |
Packaging Details: | container | port: | Qingdao Dalian Shanghai Tianjin Shenzhen |
brand: | Benip | Supply capacity: | 50 pieces per month |
Package preview: | Output frequency: | 50/60 Hz | |
weight: | 32 tons | Inverter: | automatic switch |
OEM/Design Manufacturer: | acceptable |

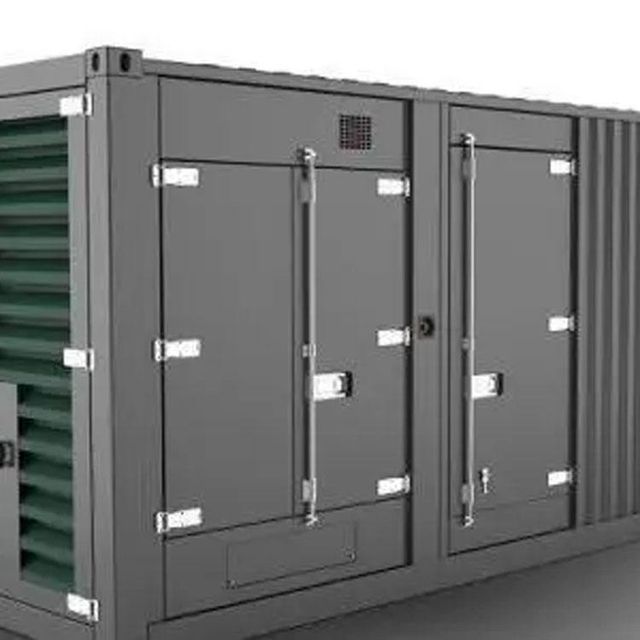

Container size (length x width x height) | 12192*2438*2591mm | |
Container energy storage system weight | 32 tons | |
degree of protection | IP54 | |
range of working temperature | -20~50℃ | |
Working Humidity Range | 0 ~ 95% (no condensation) | |
working height | 2000m (>2000m, derating required) | |
Battery temperature control method | Industrial temperature controlled air conditioner forced air cooling | |
Inverter cooling method | Forced air cooling | |
Fire fighting system (battery container) | Fully submerged cabinet heptafluoropropane automatic | |
System communication interface | RS485, Ethernet | |
Battery parameters | ||
cell type | 3.2V/86AH | |
System battery configuration | 2428S32P | |
Battery rated capacity | 2007.8592KWH | |
battery voltage range | 570~832.2V | |
DC current | 1746A | |
AC side parameters | ||
AC side rated power | 1 MW | |
AC side rated voltage | 380V | |
Grid voltage range | ±15% | |
AC rated current | 1520A | |
Rated grid frequency | 50Hz/60Hz | |
Output Harmonic Distortion | ≤3% | |
Power factor adjustable range | -1~1 |
