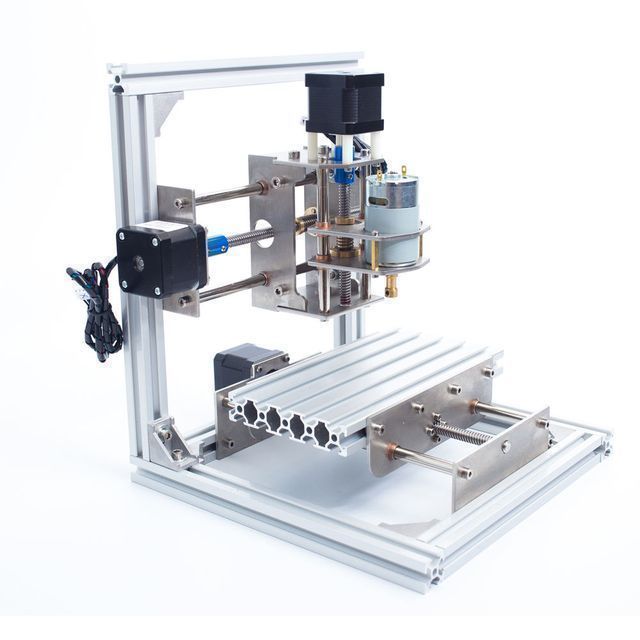

BACHIN 1610 High Quality 3 Axis Mini CNC Router Wood Carving and Cutting diy Router

Product details
software:Candle/GRBLapplication:Other applications, hard materials, 3C accessories, medical industry
Packaging Details:cartonplace of origin; place of origin:Guangdong, China
Material:Stainless steelDimensions (L*W*H):24*24*28cm
Positioning accuracy (mm):0.01Weight (kg):6
Main selling points:multifunctionalSpindle speed range (rpm):8000 - 12000
Work area:XYZ: 13*11*3CMport:Shenzhen
Repeatability (X/Y/Z) (mm):0.01payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Warranty:1 yearAfter-sales service provided:Video technical support, online support
Spindle power (kW):0.06State of health:new
brand:Ba Jin





BACHIN1610 high quality 3 axis mini cnc router wood carving and cutting diy router machine





Specification:
- Dimensions: 240x240x280mm (excluding motor protrusions)
- Travel (engraving range): 130x130x30mm
- Screws: Professional T8 screws, lead 4mm, double copper nuts to eliminate backlash
- Stepper motor: brand new 42 stepper motor, reliable quality
- Voltage: 12V, phase current 1.3A, phase resistance 2.1Ω, torque 0.25Nm
- Spindle: 555 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
- Laser head: 500MW and 2500MW are optional
- Power supply: 24V 5A power adapter (input voltage 110-240V), simple and convenient
- Table top: 20100 aluminum (table size: 180x100 mm)
Rack: 2020 Profiles
- Gray part Material: Plastic
- Control software: Grbl Control, Candle
- Design software: All CAM (Computer Aided Manufacturing) software available
- System requirements: windows XP SP3, win7, win8, win10. (32/64 are both available). Linux
- Interface: USB
