spinning speed: | 0-90 rpm | Core components: | Motors, Pumps, Bearings |
Mud pump flow: | 20L/min(optional) | Supply capacity: | 20 sets per month |
Video shipment inspection: | if | Package preview: | |
spinning speed: | 50-70 rpm | Showroom location: | nepal |
Gas consumption: | 17-35 cubic meters per minute | Mechanical test report: | if |
Packaging Details: | Standard export packaging/according to customer requirements | Drilling depth: | Maximum 260m |
weight: | 5400 kg | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
usage: | well | Maximum rotation torque: | 4500-6500Nm |
place of origin; place of origin: | Henan, China | Marketing Type: | New Products 2022 |
Voltage: | 220V/380V | Work pressure: | 1.7-3.0Mpa |
State of health: | new | Main selling points: | multifunctional |
Core component warranty: | 1 year | Drilling diameter: | 90-315mm |
Applicable industries: | Farms, home use, construction, energy and mining | Power type: | diesel engine |

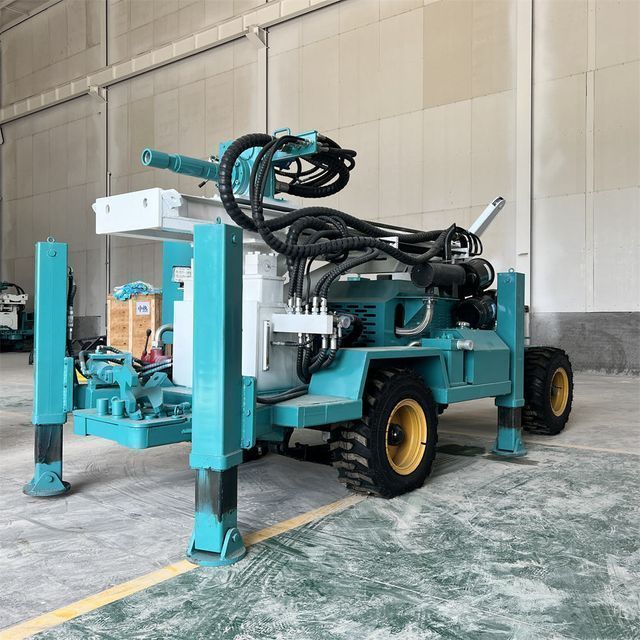

product name: | Trailer Drilling Water Well Drilling Rig | Walking speed: | 2km/h |
flexibility: | mobile | Types of: | Water well drilling rig |
Maximum lifting force: | 14 tons | color: | customizable |
port: | Tianjin, Qingdao, Shanghai | brand: | high frequency |
Dimensions (L*W*H): | 3900*1700*2150mm | Warranty: | 1 year |
Water well rig upgrade price unchanged Increased drilling depth | ||||||||||
model (new) | HFJ220A | HFJ260A | HFJ360A | HFJ460A | HFJ560A | |||||
maximum. Drilling depth | 220 meters | 260 meters | 360 meters | 460 meters | 560 meters | |||||
Drilling diameter | 90-254mm | 90-315mm | 105-325mm | 105-350mm | 105-350mm | |||||
working pressure | 1.05-2.46Mpa | 1.7-3.0Mpa | 1.05-3.45Mpa | 1.05-3.45Mpa | 1.05-4.5Mpa | |||||
Air consumption | 16-30 cubic meters per minute | 17-35 cubic meters per minute | 16-55 cubic meters per minute | 16-55 cubic meters per minute | 16-60 cubic meters per minute | |||||
Drill pipe length | 3 meters | 3 meters | 3m/4.5m/6m | 3m/4.5m/6m | 3m/4.5m/6m | |||||
Drill pipe diameter | 76/89mm | 76/89mm | 89/102mm | 89/102mm | 89/102/114mm | |||||
Axial pressure | 4T | 4T | 4T | 10 tons | 12 tons | |||||
lifting force | 12 tons | 14 tons | 20 tons | 24 tons | 28 tons | |||||
Lifting speed | 2.5m/min | 2.5m/min | 3.0 m/min | 3.0 m/min | 3.0 m/min | |||||
traction speed | 0.5-5m/min | 0.5-5m/min | 0.5-5m/min | 0.5-5m/min | 0.5-5m/min | |||||
Lifting speed is fast | 18m/min | 18m/min | 30m/min | 25m/min | 25m/min | |||||
Fast drawing speed | 35m/min | 35m/min | 50m/min | 40m/min | 40m/min | |||||
maximum. rotational moment | 4200-5600Nm | 4500-6500Nm | 6500-8500Nm | 7500-9500Nm | 8500-11000Nm | |||||
spinning speed | 48-70 rpm | 50-70 rpm | 60-100 rpm | 45-120 rpm | 75-150 rpm | |||||
mud pump flow | 20L/min(optional) | 20L/min(optional) | 20L/min(optional) | 20L/min(optional) | 20L/min(optional) | |||||
High hydraulic leg stroke | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m | |||||
walking speed | 2.5km/h | 2km/h | 3.5km/h | 3.5km/h | 3.5km/h | |||||
climbing ability | 30° | 30° | 30° | 30° | 30° | |||||
weight | 4.7 tons | 5.4 tons | 8.5 tons | 10.5 tons | 11.5T | |||||
size | 3600*1700*2150mm | 3900*1700*2150mm | 4800*2000*2450mm | 5700*2000*2550mm | 5800*2250*2550mm | |||||
strength | 55 kW | 77.4kw | 93KW | 94KW (6 cylinders) | 153kw |
