Supply capacity: | 2200 meters per day | Lifting eye type: | flat eye |
model: | ZS0102H | port: | Shanghai |
The scope of work: | 1000-50000kg | shape: | flat |
Types of: | Webbing sling, webbing sling | application: | lifting cargo |
Material: | Polyester | product name: | Ring flat lifting sling |
payment terms: | L/C, T/T, Western Union, MoneyGram | length: | 0.5m-100m |
brand: | Gostern | Sling Color: | customized, customizable |
Certificate: | China Classification Society, ISO9001 | Packaging Details: | Slings are packed in bags, cartons, or according to customer requirements. |
port: | Shanghai | Safety elements: | 4:1 5:1 6:1 7:1 8:1 |
Certification: | China Classification Society ISO9001 | place of origin; place of origin: | Jiangsu, China |
Product Description
The sling is made of high-quality synthetic fiber (100% PES), nylon, and polypropylene fiber. It is produced with international advanced weaving technology and equipment and a variety of sewing methods. It is mainly used in various hoisting occasions. The product meets the standard GB/ T8521-1997, EN1492-2000
standard | ISO4878, EN1492-2, JB/T8521 |
The product complies with CE and GS safety requirements | |
Material | Polyester, Polypropylene, Nylon |
security elements | 4:1, 5:1, 6:1 7:1, 8:1 |
length
| 0.5m-100m |
Workload | 1T-50T |
elongation | Ultimate Working Elongation<2% Breaking Elongation<12% |
temperature range | - 40 °C - 100 °C |

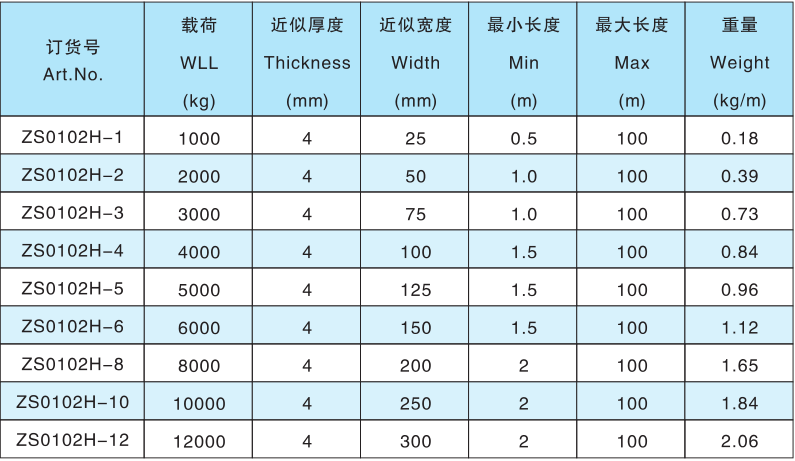

Size Information
detailed image
The sling has the advantages of damping, non-corrosion, non-conductive, non-aging, and no sparks in explosive environments.The section follows the shape of the surface and is inherently very soft and elastic. The sling can be close to the hoisted goods without damaging the goods. At the same time, the possibility of rebounding and hurting people can be reduced.
Material: High Tenacity Polyester (100% PES)
Length: according to customer requirements
According to customer requirements, the safety factor of the sling is 4:1, 5:1, 6:1, 7:1, 8:1, the load range is from 0.5t to 100t, produced according to international standards, for color and load capacity .

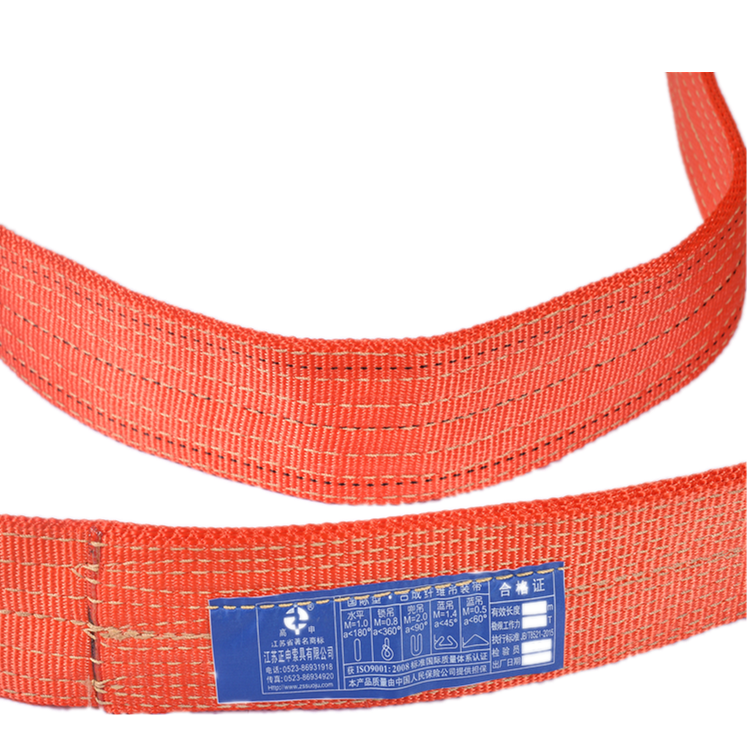

Webbing slings are individually labeled with sling number, material, length and date of manufacture. except any
relevant safety information. Load-bearing seams are stitched in a contrasting suspender color to help
Check the program.
