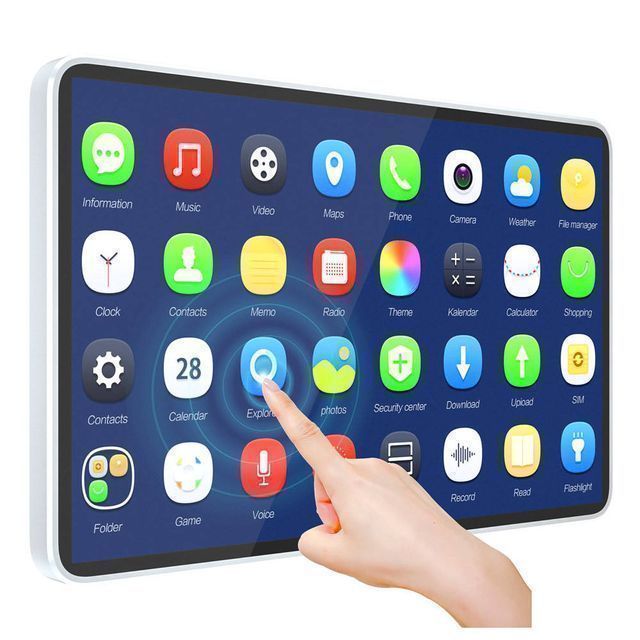

65 inch ultra-thin android monitor lcd advertising monitor

Product details
Supply capacity:1000 pieces per weekCPU:android/windows
model:wall mountInput voltage:5.0V
Viewing angle:89/89/89/89 (min) (CR=10)Warranty:2 years
brightness:350 (typical value)Packaging Details:Carton, wooden frame/box, flight case
Decoding resolution:Up to 1080PNMResponse time:8 milliseconds
Pixel Pitch:0.294mm (H) x 0.294mm (W)application:indoor
touch:Infrared touch screen (optional)brand:Bi Ling
place of origin; place of origin:Guangdong, ChinaResolution:1920 (RGBW) x 1080 [Ultra HD]
port:FOB ShenzhenBacklight type:WLED, 50K hours, including LED driver
After-sales service provided:On-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support, video technical supportNetwork support:3G, Ethernet, WiFi support, wireless peripheral expansion
Contrast:1000 : 1memory:EMMC FLASH 8G (optional)
Types of:thin film transistoroperating system:Android 4.4 or above
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGramsize:Support 10.4 inch ~ 98 inch
wireless online:Built-in WIFI (optional)
Company Profile

We are a digital signage manufacturer with complete testing equipment and strong technical force. Complete variety and good quality
Quality, reasonable prices and stylish designs, our products are widely used in many industries.

Product Description


product description
infrared touch

Material: tempered glass

Glass thickness: 3mm, 4mm, 6mm
Surface abrasion resistance: strong, determined by the glass surface
Transparency: ≥95%, up to 100% (without glass)
Uniformity: good

Resolution: 1280 (RGBW) * 1024 [UHD]
Display size: 376.32 * 301.056 mm (H * V)
Visual size: 380.32 * 305.06 mm (H * V)
Brightness (cd/m2): 350 (Typ.)
Best Angle: Panorama
Viewing Angle: 89/89/89/89 (minimum) (CR=10)
Pitch: 0.294mm (H) x 0.294mm (W)
Number of colors: 16.7M, 72% (CIE1931)
Screen weight: 1.67Kgs (Typ.)
Refresh frequency: 60Hz
Signal system: 30-pin LVDS (2 CH, 8 bits), terminal
Supply voltage: 5.0V (typ.)
Maximum ratings: Storage temperature: -20~60°C Operating temperature: 0~50°C
Screen type: LCD module, a-Si TFT-LCD
Pixel configuration: RGBW vertical bars
Appearance size: 396*324*18.3mm (H*V*D)
Surface treatment: Fog (Haze 1%), Hard, coating (3H)
Contrast Ratio: 1000:1 (Typical) [Transmission]
Optical method: TN, normally white display, transmissive
Response speed: 8 (Typ.) (G, to, G) MS
Backlight type: WLED, 50K hours, including LED driver



CPU: RK3188, quad-core, frequency 1.6GHz
Memory: 1/2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 or above
Play mode: support loop, timing, insert and other play modes
Network support: 3G, Ethernet, WiFi support, wireless peripheral expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.
Picture format: support BMP, JPEG, PNG, GIF
USB2.0 interface: 3 USB HOST, 3 USB sockets
Serial port: 3 serial ports
TVIn: CVBS input 2 channels, support N, P system
GPS: Built-in GPS (optional)
WIFI, BT: built-in WIFI, BT (optional)
Ethernet: 1, 10M/100M adaptive Ethernet
Timing switch: support
