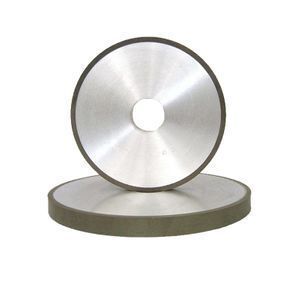

1A1 vitrified bond diamond cbn grinding wheels for sharpening carbide saw blades

Supplier: Xiamen PRC Precise Tools Co., Ltd.
Region: Fujian, China
Contact: Mr. Allen He
Price: $295.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment:	T/T,Western Union or Others;	Certificate:	ISO9001;MPA;EN12413;;
Bonding Agent:	Ceramic;	Selling Units:	Single item;
Shape:	Cylindrical;	Hardness:	Medium-hard;
Single gross weight:	5 KG;	MOQ:	1PCS;
Abrasive:	Diamond;	Brand Name:	OEM;
Application:	For Abrasive Machine ;CNC; Universal grinder;	Size:	customized;
Delivery Detail:	0 days after payment;	Place of Origin:	Fujian China (Mainland);
Package Type:	Color Box for small grinding wheel and Wooden Box for large diameter grinding wheels. We can design color box with customer's logo on it or as your request!;	Viscosity:	customized;

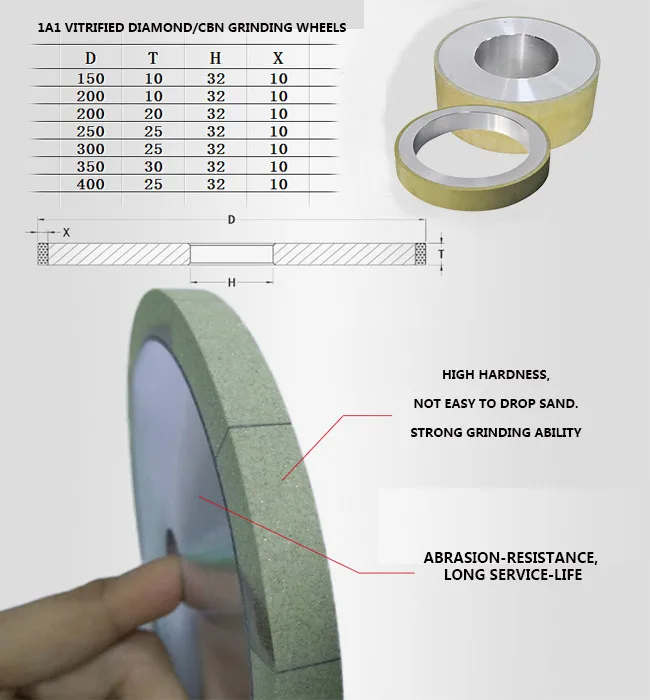

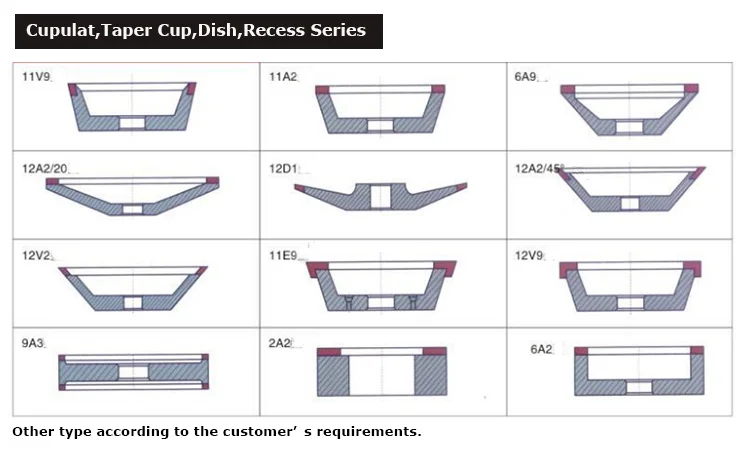

Model Number:	1A1,1A1R,1A3,;	Single package size:	40X40X15 cm;

Type

Product Uses

How to choose abrasive:

There are two main types of abrasives: diamond (SD, ND) and cubic boron nitride (CBN). Correct selection of abrasives is the key to effective grinding.

Abrasive		Application

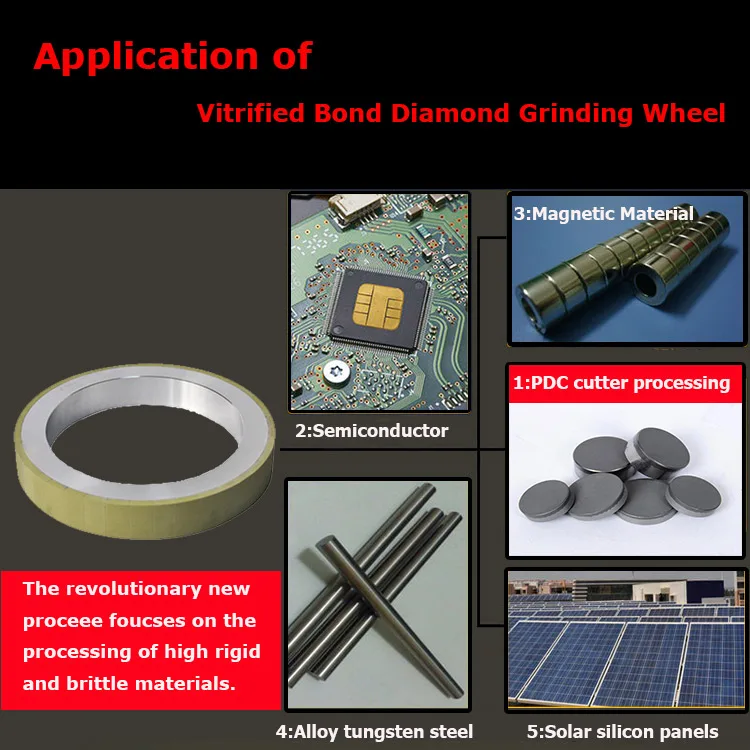

Diamond	SD	Grinding, finishing and polishing of cemented carbide, glass cutting and grinding tools, magnetic materials, etc.
	ND
CBN	CBN	Precision grinding and polishing of various kinds of steel, such as bearing steel, stainless steel, carbide steel and tools, die steel, etc.

How to Choose Binders:

Bond	Application
Resion-bonded (B)	Grinding efficiency is high and self-sharpening is good. It is mainly used for semi-finishing, finishing and polishing, but not for heavy load grinding.
Vitrified-bonded (V)	It is used for forming grinding with large contact area and sintered grinding of superhard materials.
Metal-bonded (M)	Diamond abrasives are used for rough grinding of cemented carbides and grinding and cutting of high-hardness non-metallic materials such as optical glass, semiconductor materials, ceramics, etc. CBN Abrasive Tool Used in Metal Material Forming and Honing of Alloy Steel
Electroplated-bonded (P)	Production of various small, special-shaped products, can be used in the processing of high-hard metal, non-metallic materials.

How to choose the grit:

	Rough Grinding	Semi-grinding	Precision Grinding	Polishing Grinding
Grit	50/60-120/140	120/140-200/230	200/230-M36/54	M22/M36-M0/0.5

Company

Our company has attained ISO9000 quality system certification, which can ensure you receive safe, reliable grinding wheels every time and we also implement PDCA (plan, do, check, action) circle to manage our production. Backed by more than 20 years of experiences, we are experts in solving problem applications.

Certifications
